EDDY GT
Wind and solar solution in Ile Ouen, New Caledonia
eddyGT allows you to sell energy into your electric
grid and has the capacity to offset a significant portion of your energy
use.

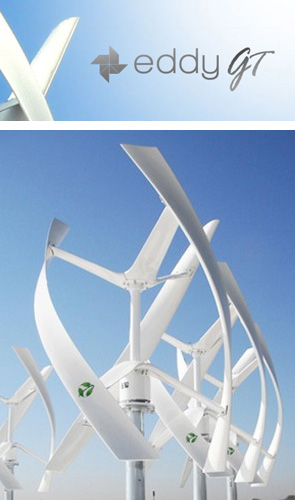

Urban Green Energy is proud to announce the eddyGT - a silent and powerful 1kW vertical axis wind turbine designed to offset energy consumption for any location or application. The grid-tie functionality provides users with a compact renewable energy solution that feeds back to the local electric grid. Mount the eddyGT on a tower or a roof and harness the power of wind from any direction!
General
Axis Vertical
Height 2.70 m (8.85 ft)
Width 1.80 m (5.91 ft)
Weight 175 kg (386 lb)
Swept Area 4.62 m (50 ft )
Blade Materials Carbon Fiber and Fiberglass
Performance
Rated Power 1000 W
Cut-in Wind Speed 3 m/s (6.7 mph)
Cut-out Wind Speed 30 m/s (67 mph)
Rated RPM 180 RPM
Survival Wind Speed 55 m/s (123 mph)
Rated Wind Speed 12 m/s (27 mph)
Annual Energy at 5 m/s 1250 kWh
Noise Level at 12 m/s 38 dB
Electric Generation
Generator Type Three-Phase Permanent Magnet
Rated Output Off-Grid 24 Vdc Grid-Tie 600 Vdc
