  • Offer Profile
  • Panasonic Factory Solutions Europe
    Your partner for production equipment and automated manufacturing solutions.
    • Electronics Manufacturing Solutions
    • Robot & Welding Systems
    • Solution Engineering

    Panasonic Factory Solutions Europe, headquartered in Ottobrunn, near Munich, provides industrial products, solutions and services in Europe. The company’s portfolio covers production equipment for the electronic industry, software solutions, welding robots and automated manufacturing solutions across a broad range of industries.

    Panasonic Factory Solutions Europe consists of the following business units:
    • Electronics Manufacturing Solutions (Pick & Place equipment, printers and laser markers for the SMT and THT manufacturing)
    • Robot & Welding Systems (Welding and Handling Robots, turn-key PerformArc Cells, Laser Welding systems)
    • Solution Engineering (Software Solutions like PanaCIM and ProcessTracker for smart manufacturing and digitalization for Industry 4.0)
Product Portfolio
  • Robot & Welding system solutions

  • TAWERS from Panasonic:

    The integrated robot & welding solution, all from one manufacturer using a common CPU.
      • TAWERS - The Arc Welding Robot System

      • Robot and controller combined with welding power source and servo wire feeder in one unit. All from one manufacturer.

        Robot and controller fused with welding power source and servo wire feeder to one unit. Faster, better and worldwide unique. All from one manufacturer that pays off.

        TAWERS offers all these welding processes:

        • SP-MAG
        • Hyper DIP Puls (HD-Puls)
        • Active Wire Process (AWP)
        • Hot Active and Active Aluminum Process
        • MAG-Heat
        • MTS-CO2
        • MIG Synchron Puls
        • PULL AC-MIG and DC-TIG
        • ZI-Tech Process
          • TAWERS WG3 Arc welding system

          • The TAWERS-WG3 Arc Welding System with integrated 350 ampere inverter pulse power source is suitable for MAG, MIG and TIG welding applications.

            Optimum welding processes are achieved by utilising an integrated inverter power source within the robot controller, ensuring complete synergy within the common control system.

            This ensures that the established benefits and advantages of the existing TAWERS Fusion Technology are also now available for use for the range of MIG, MAG and DC TIG welding process.
          • TAWERS WGH3 Arc welding system

          • The TAWERS WGH3 Arc Welding System with integrated 450 ampere inverter pulse power source is suitable for both MAG and MIG Welding applications.

            Optimum welding processes are achieved by utilising an integrated inverter power source within the robot controller, ensuring complete synergy within the common control system.

            This ensures that the established benefits and advantages of the existing TAWERS Fusion Technology are also now available for use with WGH3.
          • TAWERS Software

          • The TAWERS “Weld Navigation” Software is an unique feature that will make your weld development much easier and faster.

            The “Weld Navigation” feature can be compared to a navigation system in the car. It guides the user in the parameter choice utilising a range of “on screen” information data pages ensuring the required welding target is realised.
            To find the best welding parameter for the application you need only to select joint type and material thickness.
            The remaining parameter will be automatically calculated by the configured synergy curve and welding speed.
            Additionally it’s possible to influence the design of throat thickness or joint length to adjust the joint design to specialised requirements. “Weld Navigation”, will automatically re-calculate the new parameter instantly.

            New opportunities are now created allowing less experienced programmers with limited welding knowledge to seek and achieve perfect welding results within a short time. It will also allow the welding “expert” to reduce routine remedial work enabling them to concentrate their skill and know-how on product optimization.
        • PERFORMARC welding systems

        • PERFORMARC welding robot systems: modular concept, a turnkey and universally usable solution. All from one manufacturer.

          Panasonic PERFORMARC welding robot systems providing exactly, what welding customer expect. They are of a modular concept, developed using standard reliable Panasonic components. We provide turnkey, cost-efficient and universally usable solutions. All from a single manufacturer – Without interfaces.

          Customer benefits:

          • Easy settings – Only one Teach Pendant for robot and power source
          • Reduced running cost – Only one Panasonic technician needed for any training and maintenance
          • Cost-efficient production of welding components
          • High quality welding with high production rate
          • Economical and flexible complete system solution

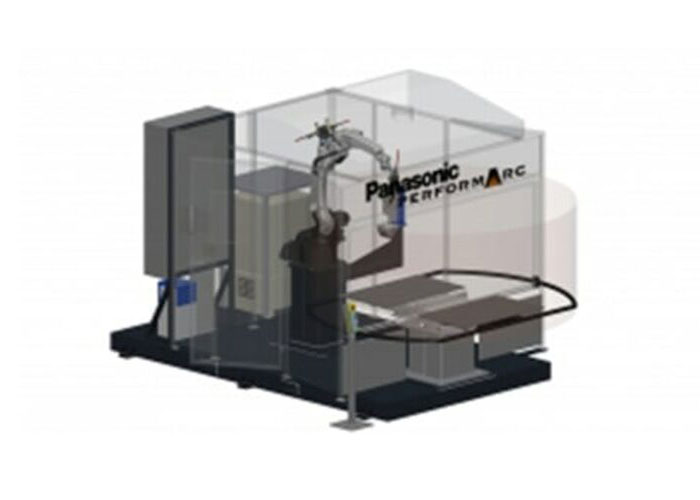

            • PERFORMARC MT (Manual turntable)

            • The Pansonic arc welding robot cell PERFORMARC MT (Manual Turntable) is of a modular concept, developed using standard reliable Panasonic components.

              The Panasonic standard cell is also available in the following specifications:
              • PERFORMARC MT
              • PERFORMARC MT-XL (large work envelope)
              • PERFORMARC MT-XXL (extra-large work envelope)
            • PERFORMARC ET (Electrical turntable)

            • The Pansonic arc welding robot cell PERFORMARC ET (Electrical Turntable) is a modular concept, developed using standard reliable Panasonic components.

              The Panasonic standard cell is available in the following specifications:
              • PERFORMARC ET PERFORMARC ET-XL (large work envelope)
              • PERFORMARC ET-XXL (extra-large work envelope)
              • PERFORMARC ET-2PD (with 2 external axes PanaDice)
              • PERFORMARC ET-2PD-XL (with 2 external axes PanaDice and large work envelope)
              • PERFORMARC ET-2DK-250 (with 2 tilt and turn positioners)
              • PERFORMARC ET-2DK-500 (with 2 tilt and turn positioners)
            • PERFORMARC H-Frame

            • The Panasonic arc welding robot cell PERFORMARC H-frame is developed to meet requirements of various industry applications.

              The system design allows for the coverage of a wide range of different sized work components by utilizing twin workstation manipulation.

              The cell comprises of the latest technically advanced Panasonic robot and welding components seamlessly integration into a system configuration for simple user-friendly control.

              The torsion-free base frame design ensures accurate position location of the robot and work piece manipulation providing the capability to pick up and move the total system without any need of programming correction.

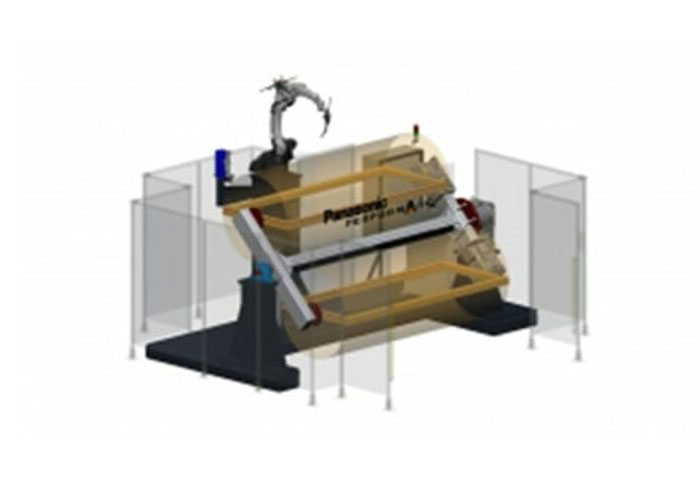

            • PERFORMARC FW (Ferris wheel)

            • The Panasonic arc welding robot cell PERFORMARC FW-3PD (with 3 external axes PanaDice) is of a modular concept, developed using standard reliable Panasonic components.

              The Panasonic standard cell is also available in the following specifications:
              • PERFORMARC FW-3PD-2000
              • PERFORMARC FW-3PD-2500
              • PERFORMARC FW-3PD-3000
              • PERFORMARC FW-3PD-3500
            • PERFORMARC TT (Table-Table)

            • The Panasonic arc welding robot cell PERFORMARC TT (Table-Table) is of a modular concept, developed using standard reliable Panasonic components.

              The Panasonic standard cell is also available in the following specifications:
              • PERFORMARC TT
              • PERFORMARC TT-2PD-150
              • PERFORMARC TT-2PD-250 (with 2 external axes PanaDice)
              • PERFORMARC TT-2PD-500 (with 2 external axes PanaDice)
              • PERFORMARC TT-2DK-300 (with 2 tilt and turn positioners)
              • PERFORMARC TT-2DK-500 (with 2 tilt and turn positioners)
            • PERFORMARC Pa-c-TT (Connect Cell)

            • Your requirement - our craft: economical, versatile,… Just weld it!
              The PA-c-TT Connect cell combines a 6-axis robot with an integrated power source with the versatility of a compact and easy-to-use welding solution for small-and medium-sized production sites.

              The PA-c-TT Connect cell combines all the advantages of a complete 6-axis robot with the unique selling point of the integrated power source at an unbeatable price/performance ratio with the simplest applicability and production reliability.

              The requirement to implement practical solutions for welding tasks in a straightforward and fast manner, even for small series and quantities, was realized with this cell plug-and-weld-concept.

              Especially small- and medium-sized companies are increasingly faced with the challenge of implementing cost-effective automation systems for welding small quantities. With the concept of PA-c-TT cell, Panasonic realizes the economic efficiency with the increasingly difficult situation to find qualified employees.

              The standard PA-c-TT cell includes:
              • Robot controller with integrated power source TAWERS WG3 MAG/MIG/TIG welding process incl. Pulse
              • Base plate, socket for robot, two welding tables
              • Protective enclosure, service door, electrical monitored
              • Horizontal, manually movable door, electrical monitored or interlocked with light barriers
              • 6-Axis Manipulator TM-1400
              • Gas-cooled torch 350A, cable management, torch safety holder

              Due to the well-thought-out cell design, the PA-c-TT cell can be relocated easily to meet a flexible space requirements at the production site. With 2-stations and appropriate safety technology, the design of the cell entitles Panasonic to CE certification of the entire system.

              Your advantage: an economical, flexible, production-securing automated welding system.
          • LAPRISS (Laser Processing Robot Integrated System Solution)

          • Panasonic provides complete system solutions according to the concept ‘All from one manufacturer’ with the new development of laser welding: LAPRISS!

            LAPRISS (Laser Processing Robot Integrated System Solution) uses the Panasonic servo control technology for controlling the laser trepanning head to generate several welding pattern and beam functions. This technological advantage makes the laser head extremely compact and light weight with a payload weight of only 4kg.

            An advantage of this low weight is to allow the laser head to be mounted to the high speed compact Panasonic TM series of robots. The result is a complete system with unique compactness and a seamless interface between the process and automation components.

            Because of its unique solution, LAPRISS has the potential to replace existing large foot print welding systems with a solution providing high speed that is immensely flexible and dramatically reduces floor space requirements.
              • Industrial robots

              • Industrial welding and handling robots with a wide range of robotic application. Available as G3 version with full digital communication to our power sources or as WG3 Version with TAWERS technology.

                Panasonic provides industrial welding and handling robots with a wide range of robotic application.

                All robots are available as G3 Version with full digital communication to our Panasonic power sources or as WG3 Version with TAWERS technology. One advantage of TAWERS systems is the fusion of power source, controller, wire feeder servo motor and robot which share one CPU and are able to communicate very quickly.
                  • TS series

                    • reach: 841 and 971mm;
                    • payload: 8kg

                    TS series industrial robot line-up
                    • maximum motion speed: 540°/s (average of all axes)
                    • supports two cable management systems
                    • various installation types (floor/ceiling/wall)

                    External cable management system

                    External torch cable and wire

                    (+) Big and therefore good wire curvature

                    (-) Large interior due to cable weight and movement

                    Through-arm cable management system

                    Torch cable and wire through the hollow shaft

                    (+) Small interior due to outside lying cables

                    (-) Problematic wire management

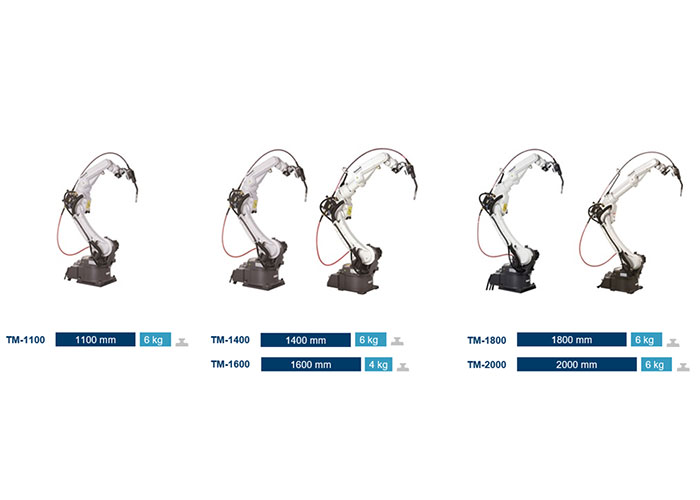

                  • TM series

                  • This welding robot series features an externally or internally mounted torch cable, and a high resolution encoder with a highly rigid arm.

                    Panasonic presents the TM Welding Robot Series, this being the all new and unique generation of robots.

                    Customers have the possibility to decide freely whether to use an externally or internally mounted torch cable to match requirements of their applications.

                    Additionally the robot series benefit from a highly rigid arm structure and an improved and efficient servo motor, which provides an enhanced harmonious movement for the positioning of the welding torch.

                    With an all new high resolution encoder working in combination with the highly rigid arm, the TM robots provide improved path accuracy. Through this the TM robot fits optimally the requirements of a flexible and efficient welding process.
                  • TL Series

                  • With a maximum reach of 2 metres, these speed of these robot arms in the major axis is amongst the fastest in industry.

                    The new developed TL Robot series by Panasonic has the opportunity to work in a 2 meter working area for wide and maximum reachable welding procedures.

                    With the efficient and rapid mechanical system this robot is the fastest robot on the market. Compared to former products the speed of the major axis is adjusted to its maximum.

                    An integrated wire feeder and an optional usable wire guiding are only two outstanding advantages of the new Panasonic robot model.

                    The new torch design allows an optimal adjustment of the welding torch according to the installed TCP-properties. Through this an improved path accuracy and therefore an optimal welding result can be achieved.

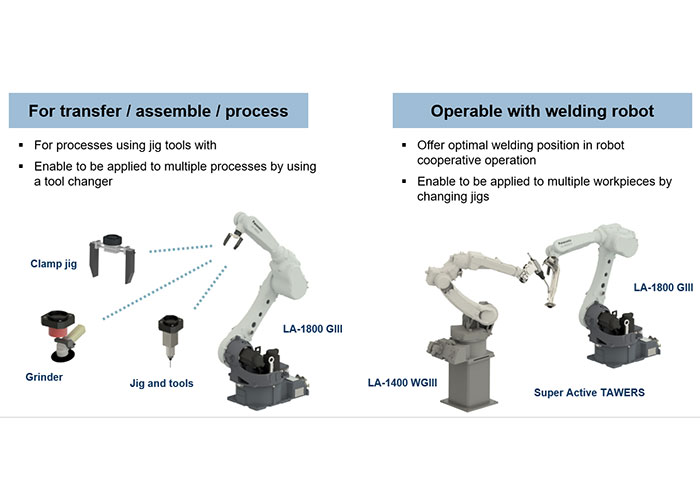

                  • Handling Robots

                  • Payload capacities of up to 220kg and a maximum working reach of 2666mm.
                    The Panasonic YS- & HS-G3 series provides an additional field of application capabilities within the existing robot product range.

                    Offering payload capacities of up to 220 kg and a maximum working range of 2666 mm. The YS-080G3 and HS-220G3 provide enhanced benefits for production automation solutions requiring work handling.

                    Used in combination with a Panasonic welding robot, the movements of both robots can be fully synchronized using the “Harmonizer Function”. This feature ensures the relative welding torch position to the work piece is maintained automatically. The programming of the weld position becomes as easy as working with a fixed work piece, ensuring that out-of-position welding can be avoided
                • Peripherals

                • Panasonic positioner as well as peripherals which will optimally fit to your production requirements.

                  You need a customized additional solution for your Panasonic robot?

                  No problem!

                  We provide different kind of Panasonic positioner as well as peripherals which will optimally fit to your production requirements.
                    • AC servo motors

                    • With the help of AC Servo Motors the functionality of positioners can be increased and furthermore additional applications are possible.

                      A flexible solution from Panasonic! The AC-Servo Motors are free programmable and help improve synchronism with robots, enables smoother movement, and enhances productivity.
                    • Positioner

                    • RJB, RJR and RJC series positioners built to move in synchronicity with robots. Very high positional accuracy.

                      Panasonic RJB, RJR and RJC-Series positioners are built to move in harmony with robots and are designed for maximum flexibility to meet the needs of your applications.

                      Customer benefits:
                      • More powerful: Graduated range of models for payloads from 100 kg up to 1.000 kg and more per planetary axis.
                      • More precise: Very high positioning accuracy
                      • Extension of robot controller for external axes: control up to 6 external axes simultaneous
                    • Welding torches

                    • MIG/MAG/TIG welding torches can be quickly and easily changed; long lifetime; very slim design.
                  • Power sources

                  • MIG/MAG/TIG welding power sources for manual or automatic welding.
                    • High quality welding
                    • Simple operation
                    • Full digital control
                    • Excellent arc start
                    • Low spatter welding
                      • Manual welding power sources

                      • Panasonic provides MIG/MAG/TIG inverter pulse welding power sources and wire feeders with intelligent remote control units for manual welding.

                        All parts are based on the latest generation of Panasonic digital technology. It has 100% digital controlled ensuring high quality welding and easy access to the IT world via PC based interface.

                        Customer benefits:
                        • High quality welding
                        • Simple operation
                        • Full digital control
                        • Excellent arc start
                        • Low spatter welding
                      • Robotic power sources

                      • MIG/MAG/TIG inverter pulse welding power sources for use with Panasonic's automated welding robots.

                        Panasonic provides MIG/MAG/TIG inverter pulse welding power sources for automatic welding with Panasonic welding robots.

                        All power sources are based on the latest generation of Panasonic digital technology. The full digital control enables a fully digital communication between robot controller and power source for high quality welding.

                        Customer benefits:
                        • High quality welding
                        • Full digital control
                        • Excellent arc start Low spatter welding
                    • Panasonic Factory Solutions Europe

                    • Your partner for production equipment and automated manufacturing solutions.

                      • Electronics Manufacturing Solutions
                      • Robot & Welding Systems
                      • Solution Engineering

                      Panasonic Factory Solutions Europe, headquartered in Ottobrunn, near Munich, provides industrial products, solutions and services in Europe. The company’s portfolio covers production equipment for the electronic industry, software solutions, welding robots and automated manufacturing solutions across a broad range of industries.

                      Panasonic Factory Solutions Europe consists of the following business units:
                      • Electronics Manufacturing Solutions (Pick & Place equipment, printers and laser markers for the SMT and THT manufacturing)
                      • Robot & Welding Systems (Welding and Handling Robots, turn-key PerformArc Cells, Laser Welding systems)
                      • Solution Engineering (Software Solutions like PanaCIM and ProcessTracker for smart manufacturing and digitalization for Industry 4.0)
                        • Microelectronics Solutions

                        • Delivering the latest systems for: plasma dicing and dry etching of wafers; plasma cleaning of wafers and substrates; and high quality ultrasonic flip-chip bonding of bare ICs.

                          High quality & high precision equipment

                          With decades of experience - including as a manufacturer ourselves - we are continually improving our technologies and developing new solutions.

                          We provide a line-up of cutting-edge microelectronics equipment to help our customers reduce production costs and increase quality.
                            • APX300 Dry Etcher

                            • The perfect dry etching equipment for silicon and compound semiconductors.

                              The APX300 (option S) Dry Etcher is the perfect dry etching equipment for silicon and compound semiconductors. It incorporates a multi-wafer direct cooling system for optimal control of wafer temperature, as well as MSC-ICP (Multi-Spiral Coil type ICP) and BM-ICP (Beamed-type ICP) plasma sources to generate high density plasma. In this way, it achieves a uniform etching profile in a very short timeframe.

                              Building upon the single wafer process chamber of the previous model (Panasonic E620), combined with enhanced process options and two different handling systems, the APX300 (option S) is extremely fast and covers a wide range of process demands.

                              Features and benefits of Panasonic's APX300 (option S) Dry Etcher
                              The Panasonic APX300 (option S) Dry Etcher can process wafers such as power devices, SAW filters, communication devices, MEMS sensors and many more. The APX300 (option S) is the successor to the previous best-selling Panasonic E620 and utilizes the same single wafer process chamber.

                              Two plasma sources are available: MSC-ICP (Multi-Spiral Coil type ICP) and BM-ICP (Beamed-type ICP). MSC-ICP is Panasonic's latest technology, developed to realize highly accurate processing. BM-ICP offers higher electron density and achieves faster processing, covering a wide range of process demands.

                              In addition, two types of handling systems are available: Atmospheric Loading Supply and Vacuum Load Lock Supply.

                              The Panasonic APX300 (option S) Dry Etcher is CE certified.
                            • APX300 Plasma Dicer

                            • Plasma dicing is becoming increasingly attractive in the semiconductor market. Dies are becoming smaller and thinner and manufacturers are facing difficulties such as increasing material loss due to the width of the dicing line, mechanical damage to the dies from chipping and increasingly longer processing times due to line-by-line mechanical dicing.

                              Panasonic’s APX300 Plasma Dicer solves these challenges and simultaneously provides a higher quality product with a lower cost of production.

                              Features and benefits of Panasonic's APX300 Plasma Dicer
                              Plasma dicing requires a dicing street mask. After the mask is applied to the surface of the wafer and the dicing streets are exposed, the plasma process etches the exposed streets by a chemical reaction.

                              By using a chemical etching process, a chipping-free and particle-free process is achieved. Thanks to the use of mask patterning, narrower street widths are possible – allowing more chips to be designed onto the wafer. Furthermore, the mask patterning allows complete flexibility in chip size, shape and position.

                              The benefits of the Panasonic APX300 Plasma Dicer are:
                              • Particle-free and damage-free process
                              • Higher chip strength
                              • Yield improvements

                              The Panasonic APX300 is available in a stand-alone single chamber (1 chamber) or a multi chamber (1, 2, or 3 chambers) configuration.

                              Panasonic can provide a plasma dicing total solution to achieve a damage-free, particle-free, higher throughput and lower overall cost of production.

                              The Panasonic APX300 is CE certified.
                            • MD-P200 Die Bonder

                            • High accuracy, high quality, ultrasonic flip-chip device bonding.

                              The MD-P200 Die Bonder offers the capability of multiple small die stacking which contributes to the downsizing of valuable devices. A variety of epoxy-supplying methods contributes to flexible production. Flip-chip and thermosonic bonding capabilities contribute to higher density and performance for valuable devices.

                              Features and benefits of Panasonic's MD-P200 Die Bonder
                              Unit Level Manufacturing by the synchro-motion of dispensing and bonding

                              The MD-P200's die bonding is carried out immediately after epoxy dispensing, thereby making it possible to finish the bonding operation before the epoxy has deteriorated. This realizes stable and high quality bonding at all bond positions on a substrate. In addition, the bonding stage camera enables pre-bonding inspection immediately after epoxy dispensing and post-bonding control immediately after the bonding of a die. This process enables manufacturing with real-time quality inspection.

                              User-friendly operation
                              A large touch panel and interactive software realize an easy and reliable operating environment for all users from beginners to experts.
                            • MD-P300 Flip-chip Bonder

                            • High yield, high throughput ultrasonic flip-chip bonding.

                              The MD-P300 Flip-chip Bonder is process-flexible, combining flip-chip and thermosonic bonding in a single, small-footprint solution.

                              The MD-P300 contributes to the cost-effective production (high yield, high throughput) of value-added devices. The MD-P300 can achieve high speed and high accuracy bonding through its low gravity point and lightweight bonding head.

                              The MD-P300 supports 300 mm (12") wafers, and is an ideal solution for COB hybrid assembly in combination with an in-line Panasonic SMT placement machine.

                              The MD-P300 is capable of fast cycle times and a placement accuracy of +/-5 μm at 0.5 seconds per IC (dry run) - with thermosonic processes at 0.65 seconds, including process times.

                              Features and benefits of the Panasonic's MD-P300 Flip-chip Bonder

                              Easy process exchange
                              Bonding processes are available by switching the bonding tools, which can be performed by the customer by configuring the C4 dipping unit.

                              Real-time inspection
                              The bonding stage camera enables post-bonding inspection immediately after die bonding. This system enables manufacturing with real-time quality inspection.

                              User-friendly operation
                              A large touch panel and interactive software realize an easy and reliable operating environment for all users from beginners to experts.
                              • Process versatility
                              • Ideal for processors, CMOS, MEMS and power devices
                              • Fast and accurate
                            • PSX307 Plasma Cleaner

                            • Plasma cleaning utilizing parallel plate plasma cleaning technology.

                              The PSX307 Plasma Cleaner provides 1.5 times the productivity of conventional plasma cleaners.

                              Panasonic's parallel plate plasma chamber technology delivers superior etch uniformity compared to conventional batch-type plasma cleaner systems.

                              By using an argon plasma treatment, ultra-thin gold-plated electrodes can be wire-bonded reliably without the formation of nickel compounds. The savings achieved in cheaper gold plating can provide the ROI justification alone.

                              The PSX307 Plasma Cleaner's other capabilities include surface modification by oxygen plasma, improving mold resin adhesion and under-fill wettability, and reducing the incidence of peel-off, voids, and cracks.

                              Panasonic's Plasma Monitoring System suppresses abnormal discharges for a secure and efficient production process.

                              The option to include traceability functionality ensures high level process quality as well.

                              Features and benefits of Panasonic's PSX307 Plasma Cleaner
                              When an extra-thin gold-plated electrode is used, nickel compounds are formed on the surface after the heat treatment by the die bonding cure. These nickel compounds impair wire bonding performance, and thus thin gold-plated electrodes are considered unsuitable for wire bonding. However, treatment with argon plasma eliminates these nickel compounds, enabling reliable wire bonding to be performed on an extra-thin and (importantly) cheap gold-plated electrode.

                              Surface reforming by oxygen radically improves mold resin adhesion and under-fill wettability.

                              The benefits of the Panasonic PSX307 are:
                              • Uniform parallel plate plasma cleaning
                              • Speed - up to 360 substrates/strips per hour
                              • High productivity - in-line processing for improved bonding, overmolding and underfill
                              • Semi S2/S8 compliance
                              • Ar, O2 or mixed gas plasma possible
                              • Panasonic original
                              • Plasma Monitoring System to suppress abnormal discharges
                              • Traceability functionality
                              • Flexibility for various types of production

                              The Panasonic PSX307 is CE certified.
                            • PSX307A Plasma Cleaner

                            • Wafer level parallel plate plasma cleaning technology.

                              Building upon the PSX307 Plasma Cleaner, the PSX307A Plasma Cleaner features an enlarged plasma chamber capacity that improves productivity. In addition, the PSX307A system is able to handle full wafers (both bare and on dicing frames).

                              Besides the increased capacity, Panasonic's original Plasma Monitoring System suppresses abnormal discharges resulting in a secure and efficient production process.

                              Additionally, the option to include a traceability functionality ensures high level process Quality.

                              Features and benefits of Panasonic's PSX307A Plasma Cleaner
                              Surface cleaning and modification of wafers and substrates improves bondability and adhesivity in subsequent process steps.

                              The PSX307A Plasma Cleaner increases production capabilities by offering an enlarged chamber capacity, which enables more wafers and / or substrates to be processed.

                              The benefits of the Panasonic PSX307A are:
                              • Panasonic original Plasma Monitoring System to suppress abnormal discharges
                              • Traceability functionality
                              • Flexibility for various types of production
                              • Achieves high quality products by plasma cleaning and pre-forming from wafer process to assembly process
                          • Laser marking

                          • State of the art high precision laser marking, supplementary to your smart production line.

                                • LPS-C

                                • The LPS-C is a high precision marking system, including recognition of the PCB mark and automatic correction of the X-Y coordinates before marking.

                                  Features
                                  Panasonic's LPS-C significantly improves the quality and process of marking. To avoid peeling off barcode-stickers or the smearing of printed marks, laser marking directly on the surface is a reliable alternative.

                                  High-precision marking with a minimum cell size of 0.1 mm × 0.1 mm. In addition, the system can mark at high speed of 0.3 s/mark. As well as characters and numbers, the LPC-S is able to mark barcodes and 2D-codes.

                                  The LPS-C has an automatic serialisation function which avoids wrong or duplicate serial numbers. This machine is an in-line solution and can be placed in any SMT production line and be fully integrated with PanaCIM.

                                  Key features
                                  • The automated laser marking reduces material cost because no inks and labels are needed.
                                  • The LPS-C can be integrated in any production line for a fully automated, cycle time optimized production process.
                                  • An offline editor allows the editing of marking coordinates and conditions.
                                  • Marking data and verification information can be stored and exported via LAN and SD Card.
                            • Printing (SMT)

                            • High-quality, reliable screen-printing technology for producing any assembly.

                                • SPG2

                                • The single-lane printer SPG2 offers high-precision printing in combination with a high degree of automation for labor and effort-saving SMD-printing.

                                  Features
                                  The printing performance of the SPG2 can be carried out in 14s with a process repeatability of ± 15μm. Larger circuit boards up to 510mm x 510mm can be handled without restrictions. A new programmable squeegee angle increases the filling pressure by up to 10%.

                                  The SPG2 can be equipped with the vacuum cleaning function, to enable a printing process without cleaning paper or cleaning agents. Additionally, it can be equipped with the optional automatic solder paste feed.

                                  The SPG2 can be linked into the Panasonic software environment, e.g. in the MES solution PanaCIM Gen2, Process Tracker and the MMS maintenance module in connection with the MFO manufacturing optimizer. Together with the integrated connection, the SPG2 is a trendsetting screen printer for Industry 4.0 applications.

                                  The SPG2 is Panasonic's latest printer for innovative high-mix manufacturing environments. The printer is equipped with additional functions and automation solutions for an even more cost-efficient SMD printing.

                                  Together with Panasonic’s software solutions, the SPG2 is a trendsetting screen printer for Industry 4.0 applications. Various features minimize the line management.
                                • SPV

                                • The high-speed printer SPV features an average print cycle time of just 10s for precise SMD-printing, PCB-transfer, recognition and stencil-cleaning.

                                  Features
                                  The SPV Stencil Printer offers a variety of options to suit different PCBs and production processes for consistent high quality.

                                  With its high 10s/PCB cycle time, the SPV eliminates bottlenecks and ensures quality by self-cleaning after every PCB. Three conveyors and the PCB identification function provide different automatic printing set ups for a high throughput. With the machine-to-machine-communication option the SPV Screen Printer is using APC correction data to correct positional printing errors.

                                  The SPV Stencil Printer can print multiple 350x300mm (M-size) boards simultaneously. This lowers WIP inventory and reduces changeover times by processing up to 4 unique products at once.

                                  The configuration minimizes capital expenditure by reducing printer investment by 50% and maximize the floor space utilization with new hybrid board handling concept and the multi-stage board handling conveyors.
                                • SPV-DC

                                • With two lanes, the SPV-DC features high precise SMD-printing, PCB-transfer, recognition and stencil-cleaning for high volumes without changeover time.

                                  Features
                                  The Stencil Printer SPV-DC enables high efficiency dual lane production in a compact design.

                                  The printer is designed for high speed production without changeovers.

                                  To reduce running costs the SPV-DC is equipped with the award-winning paperless cleaning function.

                                  Solder paste can refill automatically.

                                  Solder mask and the final printing result can be verified with an internal inspection.

                                  With the machine-to-machine-communication option the SPV-DC is using correction data to correct positional printing errors.

                                  The high-speed printer SPV-DC can print on board sizes from 50 x 50mm to 350 x 300mm. With the dual lanes the printer provides a cycle time of 13s, including transfer, positioning, recognition, high-precision printing and respective cleaning. Due to the non-stop changeover, the SPV-DC allows you to prepare the next production while running the printing process.
                                • APC

                                • Panasonic's Adaptive Process Control (APC) system realizes high-quality placement through excellent feed-forward and feed-back communication technology.

                                  Features

                                  Mounting feed-forward function
                                  Components can be placed correctly based on the solder printing position.

                                  Placement skip data feed-forward/Block recognition data feed-forward

                                  Placement machine recognition time reduction based on feed-forward discrepancy data. Misplacement of components using a modular placement machine can be prevented based on feed-forward solder/land* printing defect block data.
                                  *When inspecting lands on which package components are placed using flux epoxy.

                                  Printing position data feedback
                                  The solder printing position misalignment is measured by the inspection machine. The positioning correction is transferred by means of feedback to the screen printer. The solder printing area is measured by the inspection equipment. The stencil cleaning direction can be compared with the reference value by means of feedback.
                              • Mounting (SMT)

                              • Best-in-class placement solutions from entry level to more complex requirements for any mix, any volume, any time smart manufacturing.

                                  • NPM-WX / NPM-WXS

                                  • The NPM-WX, the latest generation of the NPM platform, is the perfect solution for the expanding and digital future in electronics assembly.
                                    • Also available as a single-beam solution NPM-WXS.

                                    Features
                                    The NPM-WX represents the next generation of Panasonic’s mounting production concept “Smart manufacturing”. The platform represents higher line throughput and improved quality at lower cost thanks to integrated automated systems. APC system and automatic recovery are integrated to provide autonomous line control. The incorporated floor-management system and remote-operation option improve utilisation combined with lower labour costs. Feeder set-up and component supply navigation systems are available, helping to reduce the work variations.

                                    The NPM-WX can handle a wide variety of components, from 0402 chip components up to large components with a max. size of 150x25x40 mm. Parts can be supplied from tape, stick or tray-feeder . Feeder-cart flexibility can be provided by selecting the existing 30-input feeder cart or inserting two 17-input feeder carts. 4 different types of placement heads are available. Max. placement speed is 86,000 cph with a placement accuracy of +/-25 μm. Thanks to NPM-WX’s integrated systems, component diversity and available options, it represents the perfect solution for automated SMT production for all kinds of product.

                                    The machine is fully compatible with other NPM-systems and can therefore also be fully integrated into existing production lines. Connection and control via Panasonics iLNB is ensured to provide full control of production and required management data.

                                    This platform is also available as a single-beam solution:

                                    NPM-WXS single beam allows various operations ranging, from NPM-series backup to multiple connection configuration.
                                  • NPM-DX

                                  • High placement quality and high throughput are the characteristics of Panasonic’s NPM-DX, the next generation of smart pick and place equipment.

                                    Features
                                    The NPM-DX provides a greater line throughput, better quality and lower production cost featuring an autonomous line control, which guaranties a stable operation based on automatic functionality. This functionality in combination with the machine set up offers a labor-saving production with improved utilization.

                                    In combination with the Panasonic software environment and embedded into an Industry 4.0 philosophy, the user can expect a modern shop floor management system including various remote operation options, feeder setup navigation, component supply navigation etc.

                                    In total, the NPM-DX reduces downtimes and increase the line throughput.

                                    With 92 400 cph and a feeder capacity for up to 136 reels, the NPM-DX is the ideal solution to meet the expectation of an evolving electronics assembly industry.

                                    The NPM-DX can process PCB sizes of up to 510 x 590 mm and place large connectors (up to 150 x 25mm) and other components (up to 120 x 90mm).

                                    This and other features make the NPM-DX the best solution for high volume-mix manufacturing.
                                  • NPM-W2 / NPM-W2S

                                  • The NPM-W2 combines accurate component placement, precise SPI and AOI inspection and reproductive adhesive dispensing in one high-speed solution.
                                    • Also available as a single-beam platform NPM-W2S.

                                    Features
                                    Higher productivity and quality thanks to the integration of printing, placement and inspection processes make the NPM-W2 one of the most flexible and versatile pick-and-place solutions on the market.

                                    This machine provides the user with a tool that allows him to choose between high speed or high accuracy, depending on the PCB requirements.

                                    In addition, the NPM-W2 is optimised for larger boards and larger components, such as PCBs up to 750 x 550 mm and components up to 150 x 25 x 30 mm (L,W,H). For high productivity, dual lanes can be used.

                                    The multifunctional NPM-W2 is equipped with a 12-nozzle head and can place 38,500 components. 120 feeders can be mounted.

                                    Additionally, the NPM-W2 can automatically inspect solder depots and components according to the production data.

                                    As a third function, the NPM can be fitted with the conventional HDF discharge mechanism, which ensures high-quality non-contact dispensing with a screw valve-dispenser.

                                    This platform is also available as a single-beam solution:

                                    NPM-W2S single beam allows various operations ranging, from NPM-series backup to multiple connection configuration.
                                  • AM100

                                  • The AM100 offers highest reliability, capacity and flexibility combined with cost-efficiency and gradual scalability in one high-mix solution.

                                    Features
                                    The AM100 meets the high standards of reliability, capacity and flexibility that customers look forward to in a cost-efficient, gradationally scalable, high-mix SMT solution. It only takes one machine to start off production and extra units and/or technologies can be easily integrated according to requirements.

                                    The single-head (single beam) of Panasonic's AM100 modular placement machine is able to place an impressive component array including: 0402 mm to 120 x 90 x 2 8mm, odd-shaped components, large connectors, as well as advanced packaging types e.g.

                                    The single solution AM100 provides high net productivity and versatility.

                                    Equipped with a 14-nozzle head and 160 feeders the AM100 can place an impressive component range.

                                    On top the non-stop changeover allows you to prepare the next product process during running production.

                                    An off-line setup support station and a feeder set-up navigator option improves operating time and minimizes the downtime.
                                  • NPM-VF

                                  • Panasonic's all-rounder pick-and-place machine that handles both SMT and THT components as standard or odd-form components in one placement order.

                                    Features
                                    The NPM-VF is equipped with a double portal. The SMD and THT components are placed by one placement head per portal. A wide variety of vacuum pipettes and grippers are available. The pick and place machine can be used in single or dual lane mode.

                                    The NPM-VF reaches a speed of up to 4,500cph and can process component sizes from 5x5mm up to 130x35mm and 60mm height.

                                    Active cutting and clinching tools are integrated which detach THT components from the radial and axial feeders. Clinching directions as well as pin lengths per THT component can be defined via the assembly program.

                                    Beside the radial and axial feeders, the NPM-VF can be equipped with all common standard feeder systems for SMD components.

                                    The flexible NPM-VF is an ideal machine for cycle-optimized production, especially for companies that must process both types of components due to the increased demand from power electronics for THT assemblies.

                                    This efficient pick and place machine contributes to reduce manpower requirements and to consistent production with high productivity, flexibility and high-quality pick and place results.
                                • Insertion (THT/PTH)

                                • Panasonic's insertion platforms for radial and axial processes with high density and high speed.
                                  PTH / THT (Pin Through Hole / Through Hole Technology) solutions.

                                    • NPM-VF

                                    • Panasonic's all-rounder pick-and-place machine that handles both SMT and THT components as standard or odd-form components in one placement order.

                                      Features
                                      The NPM-VF is equipped with a double portal. The SMD and THT components are placed by one placement head per portal. A wide variety of vacuum pipettes and grippers are available. The pick and place machine can be used in single or dual lane mode.

                                      The NPM-VF reaches a speed of up to 4,500cph and can process component sizes from 5x5mm up to 130x35mm and 60mm height.

                                      Active cutting and clinching tools are integrated which detach THT components from the radial and axial feeders. Clinching directions as well as pin lengths per THT component can be defined via the assembly program.

                                      Beside the radial and axial feeders, the NPM-VF can be equipped with all common standard feeder systems for SMD components.

                                      The flexible NPM-VF is an ideal machine for cycle-optimized production, especially for companies that must process both types of components due to the increased demand from power electronics for THT assemblies.

                                      This efficient pick and place machine contributes to reduce manpower requirements and to consistent production with high productivity, flexibility and high-quality pick and place results.
                                    • RL132

                                    • The RL132 high-speed radial THT-insertion machine, with a cycle time of 0.14 s/component, offers outstanding technology in an efficient footprint.

                                      Features
                                      The RL132 combines functionality and speed with an insertion rate up to 25,700cph (.14s/component), a board processing sizes up to 650 x 381mm, a 33% reduction in PCB transfer time, up to 18% reduction in electrical and air consumption per insertion and an improved parts lifespan for a very low cost of ownership.

                                      This through-hole machine features a 4-pitch span and is configurable with 40 or 80 components inputs. Meanwhile, its dual split carriage enables machine function at exchange mode and parts replenishment during production. The RL132 was designed for a non-stop productivity.

                                      The Lead V cut method enables the RL132 to insert radial lead components at a speed of 0.14s/component. Either a 2-pitch (2.5mm/5.0mm), 3-pitch (2.5mm/5.0mm/7.5mm) or 4-pitch (2.5mm/5.0mm/7.5mm/10.0mm) option can be selected.

                                      The fixed feeder unit method and an out-of-component detection function allow ongoing component replenishment and long-term runs. PCB of 650mm x 381mm can be processed.
                                    • AV132

                                    • The small and efficient AV132 has a performance of 30,000 cph. Due to the stand-out features the AV132 is a high-speed axial THT-insertion machine.

                                      Features
                                      Supplied with a 40 or 80 component feeder with optional jumper wire, the compact supply unit configuration of the AV132 can fit both ammo pack and reel. The dual partition configuration enables a fast changeover. The next job can be set up while the current one is being processed.

                                      Capable of inserting components in four directions: 0°, 90°, 180°, and 270°, the AV132 optimizes productivity by simultaneously handling 26 and 52mm taped components and providing fast, full auto-recovery.

                                      The AV132 can reduce loading times by running two PCBs simultaneously, enabling efficient production due to a speed of 0.12s/component and a transfer speed of 2s/PCB.

                                      The fixed feeder unit and the out-of-component detection feature allow to replenish components while maintaining long-term non-stop runs.

                                      Preparation in advance or equipment operation during component change-over is possible.
                                    • RG131

                                    • This radial THT-insertion machines RG131 and RG131-S increase and improve productivity, provide expanded board sizes and increasing component input.

                                      Features
                                      The RG 131 is the successor of the RHSG. By supporting 3/4 pitches, expanding the range of board sizes and increasing component insertion rate, this high-density radial component insertion machine increases productivity.

                                      High speed insertion at a rate of between 0.25s and 0.6s per component can be achieved, even for large-size components with 3-pitch (2.5mm/5.0mm/7.5mm) or 4-pitch (2.5mm/5.0mm/7.5mm/10.0mm) configurations.

                                      A comprehensive self-correction function ensures high reliability.

                                      With large numbers of component supply and dual-partitioned component supply units, long-term operation can be obtained.

                                      A total of up to 80 types of components can be mounted.

                                      With large numbers of component supply and dual-partitioned component supply units, long-term operation can be achieved easily with the RG131. A total of up to 80 types of components can be mounted, with up to 32 (16 + 16) types of large components. The two separate component supply units enable components to be exchanged and replenished during operation.

                                      Panasonic offers also the RG131-S platform version with smaller footprint. Higher productivity expanding board size range and increasing component input.
                                  • Final Assembly, Test & Packaging (FATP)

                                  • Odd-form and multiple applications, cost-reducing solutions.
                                    Replacement of manual process by trusted automated technology.

                                    The Final Assembly Test Packaging (FATP) philosophy provides a total solution-based on Panasonic worldwide production experiences. In cooperation with the customer and external system integrators, Panasonic develops a concept for highly efficient, cost-saving final assembly lines.

                                    Integrated into a MES-environment Panasonic electronic manufacturing solutions, PLR or double-arm robots and potential external solutions are combined for various applications like in the consumer electronics, automotive or automation industry.

                                    Based on the process management method and the cooperation with excellent system integrators, Panasonic is able to design assembly lines, which ensure the process and product quality on the highest level.

                                    All process steps are fully monitored and visualized. Machines and robots out of the internal and external portfolios are put together individually, configurated according to the customer needs.
                                      • NPM-VF

                                      • Panasonic's all-rounder pick-and-place machine that handles both SMT and THT components as standard or odd-form components in one placement order.

                                        Features
                                        The NPM-VF is equipped with a double portal. The SMD and THT components are placed by one placement head per portal. A wide variety of vacuum pipettes and grippers are available. The pick and place machine can be used in single or dual lane mode.

                                        The NPM-VF reaches a speed of up to 4,500cph and can process component sizes from 5x5mm up to 130x35mm and 60mm height.

                                        Active cutting and clinching tools are integrated which detach THT components from the radial and axial feeders. Clinching directions as well as pin lengths per THT component can be defined via the assembly program.

                                        Beside the radial and axial feeders, the NPM-VF can be equipped with all common standard feeder systems for SMD components.

                                        The flexible NPM-VF is an ideal machine for cycle-optimized production, especially for companies that must process both types of components due to the increased demand from power electronics for THT assemblies.

                                        This efficient pick and place machine contributes to reduce manpower requirements and to consistent production with high productivity, flexibility and high-quality pick and place results.
                                      • PLR

                                      • The FATP-solution is using robots, automatization and production control to realize a high-quality, fully automated low-cost production system.

                                        Features
                                        Panasonic’s Parallel Link Robot (PLR) is available for a number of applications such as PTH component insertion, assembly, adhesive application, soldering and wiring and other work that is still carried out manually downstream of the SMT production line.

                                        The PLR is a device that can easily be programmed for various different production applications that are to be automated. These include the insertion of electronic components of different types and sizes, wiring, assembly, applying adhesives, soldering and labelling.

                                        A combination of multiple applications with just one system is also possible. The incorporation of PLRs at the end of an SMT line makes it possible to comply with quality specifications and simplifies complicated placement procedures, such as processing special components. A reduction in production costs can also be expected.

                                        The simple “direct teaching” method is carried out by means of hand-guided “learning”, in which the movement of a human hand is recorded and stored with extreme precision. The 6-axis PLR can work for 24 hours a day; unlike normal robots, no typical specialist or programming knowledge is required to program it.
                                    • Ultrahigh accurate 3-D profilometer (UA3P)

                                    • Designed to measure aspherical lenses & molds, semiconductor wafers, and any other precision component requiring nanometer level accuracy

                                      The Panasonic UA3P profilometer series is designed to measure aspherical lenses & molds, semiconductor wafers, and any other precision component requiring nanometer level accuracy ranging up to 200mm x 200mm. Different machine models are available to meet your optical & high aspect ratio metrology needs.

                                      The UA3P-300, UA3P-4 and UA3P-5 all offer users the accuracy of AFM technology with the measurement range of a CMM. Our unique approach uses atomic force probe technology in the stylus and HeNe laser-based interferometric XYZ axis positioning.

                                      Couple this technology with a solid granite-base and you have a robust metrology system that can be used on the factory floor and still deliver 0.1um level total uncertainty.

                                      Features & benefits

                                      • Ultra-accurate measurement in only 3 minutes
                                      • Automatic NC program generation
                                      • Extensive library of optional software
