- We offer our customers multi-technology lithium-ion battery systems dimensioned to meet their specific application needs within a given operating environment, depending on whether they require high energy density or high cycle stability and fast charging, or a combination of both.
Leclanché Technology
-
Leclanché a multi technology company
At Leclanché we develop energy storage technology and battery systems for many decades combining our century long expertise in the best solution for our customers.
The choice of the right energy storage technology is determined by the application.
Lithium Ion technology
-
Introduction

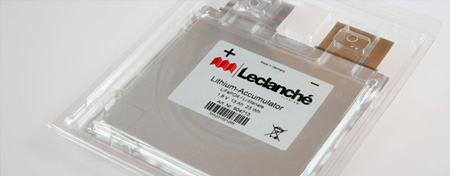

A lithium ion battery cell is based on a technology where lithium ions are the charge ‘carrier’ and can move back and forth from the cathode (positive current collector) to the anode (negative current collector). Cathode and anode are electrically isolated from each other with a separator. An electrochemical cell consists of two currents. One external electric current, and one internal ionic current. The separator is designed to allow for an ionic current, but not an electric current.
Therefore a separator is used which has the double function to isolate and to allow the ions to pass through.
When charging the battery the ions move from the cathode (positive) to the anode (negative). When discharging the ions move back to the cathode.
This process can be repeated a number of times during the life of the battery cell which is called the cycle life of a battery
High quality manufacturing yields high performance cellsOne of the most important factors for the performance of a battery cell is the way the cell is produced. The production of a cell consists of several steps bringing it from raw material all the way to an assembled, activated cell that is ready for operation.
Leclanché is unique in using a water based production process for the electrodes which eliminates the need to use polluting solvents and therefore we have a more sustainable production process.
Leclanché, in its factory in Germany, has a fully automated production line where both Lithium Titanate Oxide and Lithium Graphite/NMC cells are produced. The production starts with the processing of the powders through coating on the anode and the cathode. Next the cathodes and anodes are assembled in a roll to roll process together with the ceramic separator. All these layers are laminated to assure optimal integrity of the cell and ensure maximum performance over its life.
Once all these layers are stacked, a tab is welded onto the cathodes and anodes and next they are inserted into a pouch. After adding the electrolyte, the pouches are sealed and formed during which they are charged for the first time in their life.
After the formation the cells undergo a final quality check and they are ready to go into the application.
Modules & Systems
-
The battery system
Battery cells don’t make a system yet. They have to be integrated into a battery module together with a Battery Management System, a Battery Controller and Switch Unit.
Leclanché provides battery modules with integrated Battery Management System (BMS) that monitors the temperature and operating voltage of each individual cell in the module and takes care of balancing the cells.
Leclanché designed the battery modules to accommodate both Lithium Graphite/NMC and Lithium Titanate Oxide cells. Individual battery modules are built into a string to reach the right level of energy storage and the required voltage levels for the application. Each string is controlled by a string controller.
Battery modules and systems area available for both stationary applications in 19” rack mount format and for mobile applications.
In stationary applications the racks are built into systems with airflow cooling. Mobile applications often need customized battery packs because of space limitations. The cooling strategy for these battery packs has to be aligned with the available space and surrounding.
For these applications Leclanché developed the flexible mobile system which can be fitted with cooling systems based on water or air flow systems.
The applicationIn all applications the battery system has to cooperate seamlessly with the energy source and the load. Be it in a bus or in a microgrid, a ferry or an electricity grid, the battery has to be charged and discharged at the right speed and the right moment.
This requires a seamless integration of the battery management system, the charge/discharge controller and the overlying energy management system.
Products
Titanate industrial storage
-
The TiRack63 is a storage rack for large scale energy storage applications based on Leclanché powerful Lithium Titanate cells. The main benefit of this rack is that it can be used for 15000 charge/discharge cycles at 100% Depth of Discharge. The racks can be charged at a high rate of 3C (300A) and discharge at the same high rate providing a lot of power.
TiRacks are used to build large storage systems in containers or in buildings.
Each TiRack includes:- 15 lithium Titanate modules
- One Rack controller to monitor and manage the rack
- Switch unit to connect/disconnect the rack in the large system
This product has been developed to address a number of applications where a lot of power is required like:
- Grid stabilization in on-grid applications
- Providing short term power to cover the first seconds in a grid failure incident to industrial users.
- Managing the integration of renewable energy (solar and wind) into off grid applications with diesel generators (e.g. mining),
Main Features
- 63 kWh storage capacity
- Long cycle life of 15000 cycles at 100% Depth of Discharge
- Rapid charging and discharging at 3C
- Modular setup – start small and grow when needed
Graphite/NMC industrial storage
-
The Graphite Rack is a storage rack for large scale energy storage applications based on Leclanché high energy Lithium Graphite/NMC cells. The main benefit of this rack is that it can be used for 8000 charge/discharge cycles at 80% Depth of Discharge. The racks can be charged at a high rate of 1C (300A) and discharge at 2.3C to provide a high flow of energy when required.
Graphite Racks are used to build large storage systems in containers or in buildings.Each Graphite Rack includes:
- 10 Lithium Graphite/NMC modules
- One Rack controller to monitor and manage the rack
- Switch unit to connect/disconnect the rack in the large system
This product has been developed to address a number of applications where a lot of power is required like:
- Grid stabilization in on-grid applications
- Shifting renewable energy to off load at a later moment (e.g. at night)
- Managing the integration of renewable energy (solar and wind) into off grid applications with diesel generators (e.g. mining),
- Providing backup power for extended time.
Main Features
- 96 kWh storage capacity
- Long cycle life of 8000 cycles at 80% Depth of Discharge
- Rapid charging at 1C and discharging at 2.3C
- Modular setup – start small and grow when needed
Storing solar energy (ApollionCube)
-
The Apollion Cube is our best attempt at squaring the circle: it’s a compact and high performance storage system with lithium-ion technology at an outstanding price/performance ratio.
Quality/ Safety
Hazard-free operation is guaranteed using tried and tested technology, integrated cell monitoring and a redundant safety concept. Like all our batteries, the Apollion Cube has also been certified by independent testing institutes.
The storage system is developed according to standards and tested by independent institutes, such as TÃV Rheinland. A 7 year pro-rata warranty gives your investment sufficient additional protection.
Performance characteristics
The Apollion Cube is a power pack in the form of a cube with a high quality design and 6.7 kWh of nominal storage capacity. In order to increase the capacity, up to 12 systems can be combined together to form a battery with over 80 kWh. Efficient operation is ensured through constant temperature control and high-speed charging capability.
With the Apollion Cube we do not only increase the flexibility and capacity of a storage system, but we give you full control. You can keep a constant eye on your system via PC, Tablet or Smartphone thanks to continuous performance monitoring. You can revert to a wide range of charge controllers by SMA. Other well-known systems give a wider range of possible configurations.
Storing solar energy (ApollionBox)
-
ApollionBox
With the Apollion Box, switching from old storage technologies, lead acid batteries, is finally possible - and it’s plain and simple.
When starting
You don't want a large battery or only need it as a backup solution to fall back on occasionally? You want to extend battery capacity without high installation costs in the future? You want to familiarize yourself with the technology? Then the Apollion Box is right for you!
Accessories: black start cable
Enables the restart of the battery if it has reached minimum capacity.
When switching
You want state of the art battery technology with a longer lifespan and greater power, but without the risk of dangerous gas build-up? Exchange your old technology and take advantage of the benefits of the Apollion Box’s lithium-ion technology.
SRS2025
-
The SRS2025 Home & Small Business product portfolio has been specially developed for the professional and demanding user of battery storage systems. High-quality battery cells ensure higher power output and lower capacity Ioss throughout their operational life than is the case for systems with commercially available consumer cells.
SRS2025 products allow your applications to grow with your needs. The possibilities are endless- from local energy management with PV systems, complex hybrid power plants up to central connection to extensive cloud services.
Main Features:- High-performance AC-coupled complete package
- Three-phase inverter with 20 kW power output
- lntegrated 25 kWh battery storage system
- Parallel operation with existing PV systems of any size
- Emergency power capability without mains with simultaneous PV use
- Up to 100% unbalanced Ioad in emergency power mode
- Internal or external system protection (GS protection)
- Grid forming for self-contained, isolated systems (black start)
- Energy management system with high performance apps
- Compact design and easy to install
TiBox
-
Energy storage systems by Leclanché are far ahead of their time. This is guaranteed both by the lithium-titanate technology and the patented ceramic separator as well as the innovative raw materials and the water-based electrode manufacturing. With 15,000 charging and discharging cycles and a reclaimable storage capacity of 95% the TiBox sets standards of a new dimension.
The TiBox can be fully charged or discharged within one hour. It is, to the greatest possible extent, tolerant against temperature variations. A storage system for all who demand the highest standards of innovative technology and sustainable longevity.
Perfectly matched components from in-house production for maximum safety
Owing to the unique separator technology, the core element of the lithium-titanate cells, the security of the Leclanché storage systems is far above average. The ceramic separator renders the cell essentially insusceptible to thermal failure. As a result of the exclusive use of our own technology the system and the cell are perfectly matched, offer the highest performance and the highest degree of safety.
Additional safety measures on the system level guarantee a carefree use even in residential buildings. Certified installation partners will provide a reliable installation and will also be pleased to be your contact for issues relating to the operation and optimization of the system. Tested by TÃV Rheinland (German Association for Technical Inspection) Leclanché storage systems meet all important safety standards.
Applications:- Optimized self-consumption against cost increase.
- Reliable storage systems for more security.
- Valuable domestic electricity for an additional income.
Solar street lighting – light without the powerline
-
Providing light at night even in remote locations is important for safety and security. However in many locations there is no ready infrastructure to connect streetlights.
Powering streetlights also requires a lot of energy which most of time is generated by conventional (coal- or gas fired) power installations, creating CO2 and other greenhouse gasses.
Local power, local light
Generating the energy for the streetlight locally with solar PV panels has a lot of benefits but to convert the solar power into night-time light it needs to be stored.
Leclanché provides a complete solar streetlight storage solution which consists of Leclanché Lithium Ion battery modules together with a battery management system and light control system.
The battery modules are based on Leclanché Lithium Titanate cells which provide a lifetime of more than 20 years to the streetlamp with a very high reliability.
Their large operational temperature range from -20°C to +55°C make them very suitable for operation in remote areas both in cool and in warm climates. Streetlights with Leclanché battery modules are operating in the desert in Abu-Dhabi where the temperature inside the mast easily reached over 50 degrees.
Markets & Solutions
Transportation
-
Battery solutions for transportation
Leclanché is leading the market with technologies for transportation applications. Our two lithium ion technologies offer very distinct capabilities enabling to design battery systems that are optimally geared for the application of the customer.
Lithium Titanate Oxide – high power
In most transportation applications a lot of power is needed for instant, short term traction and torque. To provide this in an electrical vehicle a battery has to be able to rapidly discharge and provide the energy for this torque.
Leclanché’s Lithium Titanate Oxide (LTO) batteries are best suited for this.
Lithium Graphite/NMC – lots of energy
For longer travel distances a lot of energy is needed. Once the vehicle is in motion, a battery that can gradually and efficiently discharge it’s energy to the drivetrain is the needed solution.
For this Leclanché provide its Lithium Graphite/NMC (G/NMC) batteries which have a high energy density.
Design with our customers
In each project a specific design for the battery system has to be made. Leclanché has an experienced team of engineers and specialists who work with our customers to design the battery pack optimised for their application and fitting in the available space in the vehicle. Through the whole design-in process we support our customers coming to the best solution.
Buses
-
Energy storage solutions for transportation
A key component in the powertrain electrification is on-board electrical energy storage, which is usually a battery. The battery works as an energy buffer in hybrid vehicles, and as a single energy source in full-electric vehicles. The most suitable of the modern battery technologies is lithium-ion that can be optimized for required energy and power. Leclanché can provide a high power option (LTO) and a high energy option (G/NMC) with the same form factor and a revolutionary hybrid battery that combines both of them.
The most optimal battery cell chemistry is determined by the discharge and charge power requirements (operating strategy) as well as ambient conditions. In a full electric bus driving can usually be done with an energy-type cell, but a power-type cell (LTO) is often more feasible due to the operating strategy. A single bus can operate a full shift with a relatively small battery if the battery is charged at bus stops or at the bus terminal.
Industrial machinery
-
Energy storage solutions for Industrial machinery
Leclanché’s lithium-ion battery solutions offer unparalleled energy density and performance for electric and hybrid applications while offering at the same time advanced safety and reliability. Our solutions remain highly efficient without adding unnecessary weight and our modular design ensures the optimal use of all available space in the machine. Excellent lifetime and fast charging provide compelling cost of ownership.
Leclanché is thus able to provide comprehensive energy storage solutions for industrial machines such as AGVs, forklifts, material handling equipment, and special working machines. Our systems offer a range of benefits and functionalities: energy regeneration in cyclic load profiles, emission-free and silent operation, optimization and downsizing of the prime mover and improved maneuverability.
The most optimal battery cell chemistry is determined by the discharge and charge power requirements, as well as ambient conditions. Leclanché provides two lithium-ion battery technologies within the same form factor: Lithium Titanate Oxide (LTO) a high power battery and Lithium Graphite/NMC (G/NMC) a high energy battery. A Leclanché battery system may be adapted to any machine equipped with an electric powertrain.
Marine
-
Energy storage solutions for marine applications
The marine market continues to rely on traditional propulsion power systems, which no longer fulfil the requirements for the clean and efficient use of energy. New emission and noise regulations prohibit the use of conventional solutions in ports, natural reserves, special marinas, and other low-emissions or low-noise areas. Leclanché battery solutions in diesel-electric or full-electric systems offer substantial savings thanks to reduced diesel / oil consumption as well as decreased maintenance and service costs. High safety, availability and efficiency are further essential reasons to rely on Leclanché battery solutions in all marine applications.
Our storage system has multiple functions:- acts as a small uninterrupted power supply (UPS) for emergency back-up for critical equipment such as navigation, lights, steering and firefighting;
- acts as a large UPS for silent vessel operation;
- offers an alternative contingency reserve (replace spinning reserve as hot standby)
- provides power boost energy storage for short term vessel pull power or top speed vessel operation;
- allows peak shaving for economy of operation;
- acts as green energy storage with a secondary fuel tank for wind, solar, hydro or shore power; and
- allows for battery-only operation for short to medium distances.
AGV and Robotics
-
Leclanché fast charging high power battery packs for AGVs
Innovative companies look at automating material handling to improve efficiency and decrease operational costs. But the batteries used in these automatically guided vehicles have been far from innovative. Lead acid technology hasn’t evolved much in the last century, but with the introduction of lithium-ion amazing new concepts of energy storage are available.
Leclanché lithium titanate oxide (LTO) technology is perfectly suited for AGVs resulting in ultra-fast charge batteries.
A full recharge in less than 9 minutes!AGV and robotics applications help to reduce recurring tasks typically performed by humans. Our customers have the challenge to design systems with a minimum of space, the lowest possible costs and the highest reliability. With our ultra-fast charging technology the efficiency of each vehicle increases and optimizes the available surface for key operations. We offer a solution that achieves the fastest payback time for the initial investment and operational expenses.
Our specialists can help you optimize the required system requirements for battery, charger, docking station and service level agreement including remote management.
Microgrid solutions / Utilities / Grid
Microgrids
-
Battery storage to create stable micro grids
Remote power generation
In many areas it is not simply to plug into the wall outlet and have electricity. Very often on islands and in remote villages or industries, connecting to the main grid can be very expensive or even impossible.
Electricity often comes from diesel generators. This, however, requires a stable and expensive supply of diesel fuel, and involves high maintenance costs. The result is electricity production that is 4 to 10 times more expensive than in other well-supplied areas – as well as being noisy and polluting.
Renewable energy sources
In this context, solar and wind energy are rapidly gaining ground in these applications as their costs have declined steeply.
These sources of energy are dependent on nature: clouds cause the output of a solar plant to decline rapidly, for example an increase in wind speeds results in a sudden surge in the output of the wind turbine. In this regard, Leclanché’s Lithium Ion-based battery storage systems act as a stabilizer in a microgrid system, with their ability to constantly absorb or inject power from and to the system
Diesel Saving
-
Save diesel and money through energy storage
Energy storage to reduce diesel consumption
Diesel generators run up to 3 times more efficient when they are running at full capacity yet in many applications they are only used at a fraction of their capacity. Additionally, running at a low load causes damage to the generator. This shortens the maintenance intervals and increases operational expenses.
By combining a diesel generator with a storage system, the use of the generator can be optimized and it can even be switched off. This leads to significant savings by:- Reducing fuel consumption
- Increasing maintenance intervals and extending the life of the generator
Renewable energies save fuel. Leclanché battery solutions combined with solar and/or wind generation offer independence from rising diesel costs. This is particularly true in remote areas not connected to the utility grid where battery storage is a core component of a microgrid system.
Any electricity system that runs on diesel generators will benefit from significant savings in consumption by implementing a battery storage system, which- handles peaks in demand without burning extra diesel;
- optimizes generator efficiency to reduce energy wastage; and
- automatically switches off the diesel generator during the day to rely on energy supply from the battery’s combined with a solar powered system.
Grid Ancillary Services
-
Battery storage for grid ancillary services
Providing Grid Services with a battery system
Historically the electricity supply system is characterized by stable generation and variable loads. However in most countries renewable electricity production is rapidly becoming the cheapest source of electricity. Renewable energy sources have a continuously changing production profile with clouds moving over solar plants or variations in wind at wind turbines.
There is an increasing need for flexibility options to maintain stable grid operations!
Battery energy storage systems to provide primary control reserveAdvantages of a Battery Energy Storage System
- A Battery Energy Storage System (BESS) is able to inject energy into the grid or absorb it from the grid when needed.
- The operational costs of a BESS are low compared to a conventional power station burning gas, diesel or coal to provide primary control reserve. There is very little energy required to operate a BESS.
- Additional benefit is that a BESS is scalable and flexible. Its capacity can always be increased by adding additional storage racks or containers.
- A BESS can be installed in just 6 months, compared to a standard power station dependent on the approval delay and delivery time. It can also easily be moved to another location when required.
- A BESS does not harm the environment.
Home and small business storage
-
Energy storage for home and business
Solar energy has no limits.
Solar installations produce energy when most people are not at home. The challenge therefore lies in the capacity to store this energy for consumption when you really need it, like in the evening and in the morning at home, or during the day for small businesses.
Energy storage systems by Leclanché are far ahead of their time. They are easy to install and are compatible with the main inverter solutions on the market. Whether you decide to use Lithium-ion Graphite/NMC technology or the unique Lithium Ion Titanate technology, your battery will last as long as your solar installation.
Our ApollionBox™, ApollionCube™, TiBox™ or our SR2025 storage system are all designed for a lifespan of up to 15 years, between 5000 and 15000 charge/discharge cycles. All systems come with a seven-year warranty.
The storage system will allow you to reach a level of autonomy never achieved so far (close to 80% depending on the installation) and provides multiple additional benefits:- you will significantly reduce your electricity bill;
- there are tax benefits in most countries;
- you are contributing to reducing CO2 emissions while saving money;
- you avoid paying heavy peak power charges from your electricity provider by shaving demand peaks;
By choosing a Leclanché home storage solution, you not only opt for an innovative and high-output energy storage system, you are also endorsing an economically intelligent solution; and Leclanché home and small business solutions remove your dependency on electricity providers and future price increases. You’re in control of your own electricity. Custom Designed Batteries
-
Battery packs designed for application
Leclanché employs more than 100 years of experience in battery R&D and manufacturing to find energy solutions for its customers whether they operate in:
- Industrial domains
- Medical
- Defence
- Instrumentation
- Power tools
- Marine applications
- Charge stations
- Robotics
- Small mobility
- Automated Guided Vehicle
- Systems tracking
- Smart Cities PV-coupled Street Lighting
Leclanché’s engineering teams will accompany you from the initial concept and design through to mass production of your professional solution.
Consulting: from concept to prototype- 100 years experience in cell manufacturing and battery design
- Chemical & technical expertise in a wide range of battery technologies
- Specific expertise and emphasis around safety
- Test equipment for batteries
Development: from concept to mass production
Leclanché provides full services in the whole chain to develop a battery solution for any application. In this process we have in-house expertise to help our clients in every stage of this process from initial conception through to full mass production.
Leclanché is the only European battery manufacturer who has in-house certification capability for UN38 certification. Consumer Goods
-
Battery & Lighting solutions for professionals
As early as the beginning of the 19th century, Georges Leclanch̩ Рentrepreneur and inventor of the dry battery Рsupplied the Belgian Telegraph Administration and the Dutch Railways with his battery solutions. Today, Leclanch̩ continues to provide professionals with a full range of primary cells, alkaline batteries, NiMh, Nicd batteries, lead acid batteries, lithium ion batteries, as well as professional lighting solutions.
As a specialist for batteries, rechargeable accumulators, and portable lighting solutions, Leclanché offers a wide range of products to be used in a variety of fields, such as alarms and security systems, electronic devices, watches, instrumentation and myriad industrial applications. Whatever your need, Leclanché has the solution.
Leclanché is fully dedicated to professional distribution channels, therefore we will not compromise on the quality of your primary cells, accumulators, or batteries.
Alkaline batteries
-
- Alkaline Professional
- Alkaline Value
- Alkaline Industrial
- Alkaline High Tech
- Other alkaline batteries
Lithium batteries
-
- 3V Lithium batteries
- Batteries for photography and electronics
- Leclanché Lithium batteries
- Other lithium batteries
Rechargeable products
-
- Ni-MH accumulators
- Ready to use Ni-MH accumulators
- Leclanché chargers
- Professional Ni-Cd accumulators
Lead acid batteries
-
- Lead acid batteries
- Odyssey Batteries
Lighting solutions
-
- Torch lamps
- Head lights
- Tactical lamps
- Lighting solutions for risk zones or difficult access zones
- Medical lamps
- Safety lamps
- Street lighting
