Emission monitoring since 1984
We are a family-owned enterprise based in Neckarsulm-Obereisesheim, Germany, which manufactures high quality and durable portable and stationary Emission Monitoring Systems for the HVAC / Installers market and industrial applications. Our wide range of products includes instruments for mobile and stationary gas analysis, biogas and syngas analysis, automotive exhaust gas analysis as well as precision digital manometers.
Continuous innovation is the source of our success. Our measurement technology is not only fulfilling the current requirements of our global customers, we constantly seek to anticipate future developments and implement those in our measuring devices.
We also attach great importance to quality - with our employees, our suppliers and our production material. The high quality in all aspects of production makes our instruments robust and durable. We produce our analyzers in accordance with globally recognized quality standards in our new, modern manufacturing facility.
Visit us on:
Product Portfolio
MOBILE ANALYSIS
HANDHELD ANALYZERS

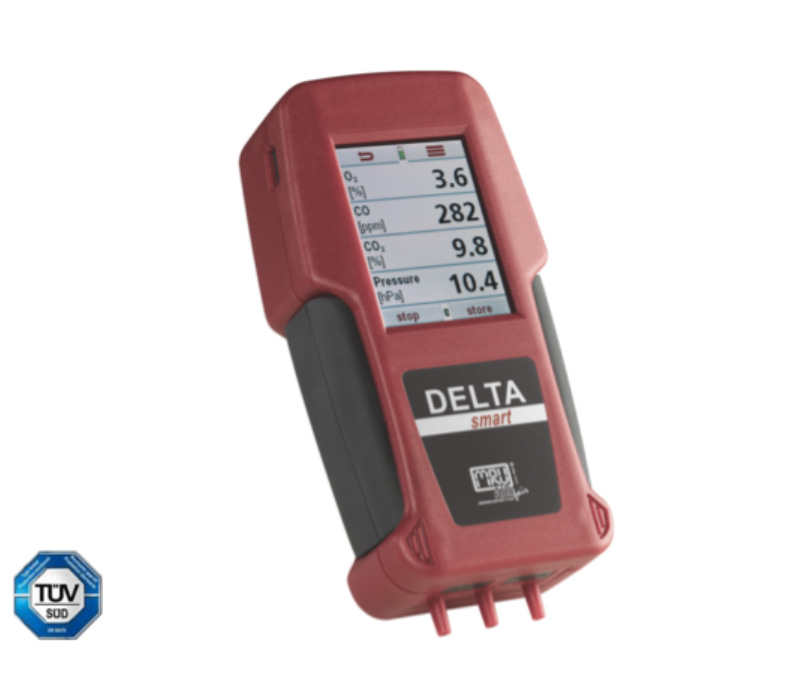

DELTAsmart
-
Modern and powerful flue gas analyser for residential and commercial heating installations.
- Modern technology, high accuracy and performance
- Colour and backlit touchscreen, intuitive and easy to use
- Up to 3 electrochemical cells for O2, CO and NO
- Compatible with new MRU App "MRU4u" *
- TÜV approved according to EN 50379-1+2 (model B) resp. 50379-3 (model E), ByRgG 309
- DELTAsmart combustion analyser version E, incl. standard gas sampling probe and wall plug
(Basic equipment: gas sampling probe with fixed, Ø 8 x 250 mm stainless steel tube and 1,5 m triple silicone gas sampling hose, O2-sensor (0…21%), non-H2-compensated CO-sensor (0…2.000 ppm), condensate trap with Teflon coated particulate filter, MSM sensor technology, Stack/Differential pressure (± 100 mbar), Differential temperature measurement, high-capacity Lithium-Ion rechargeable battery, Mini-USB interface, SD card slot) - Robust ABS transport case with compartments for accessories
- Infrared high speed thermal printer
- Additional Teflon coated particular filter

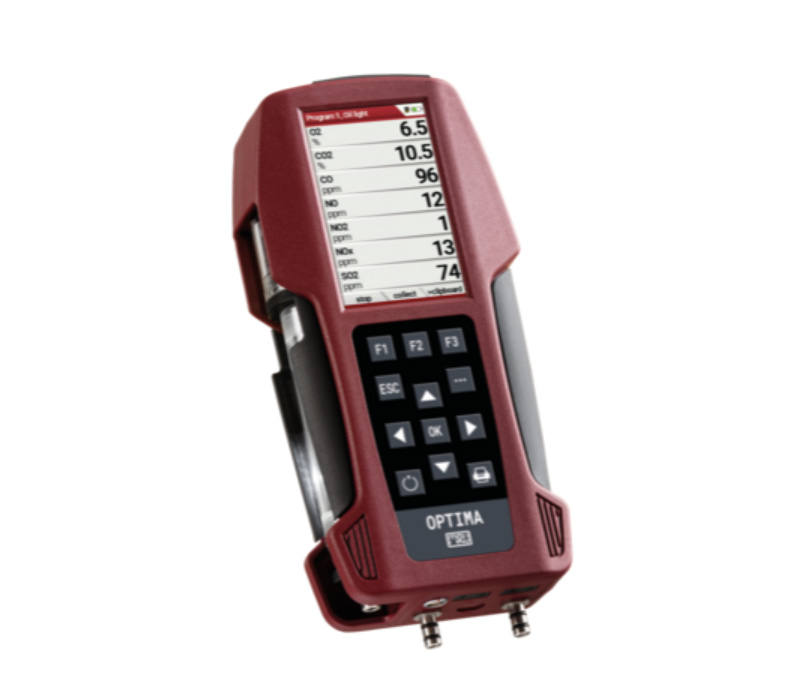

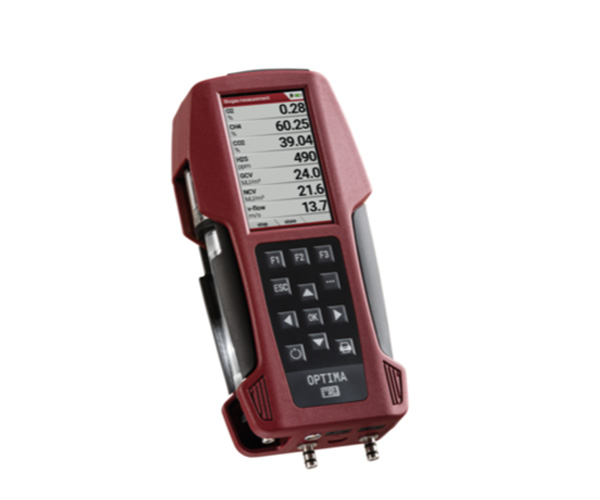

OPTIMA
-
The slim multi talent handheld flue gas analyser using up to 7 sensors.
- new, high resolution 4" display for better readability and more information
- new menu design with many graphical displays
- illuminated condensate separator with optional water stop
- easy connection of Bluetooth™ printer and MRU4u App
AVAILABLE as a Biogas analyzer.
PORTABLE ANALYZERS

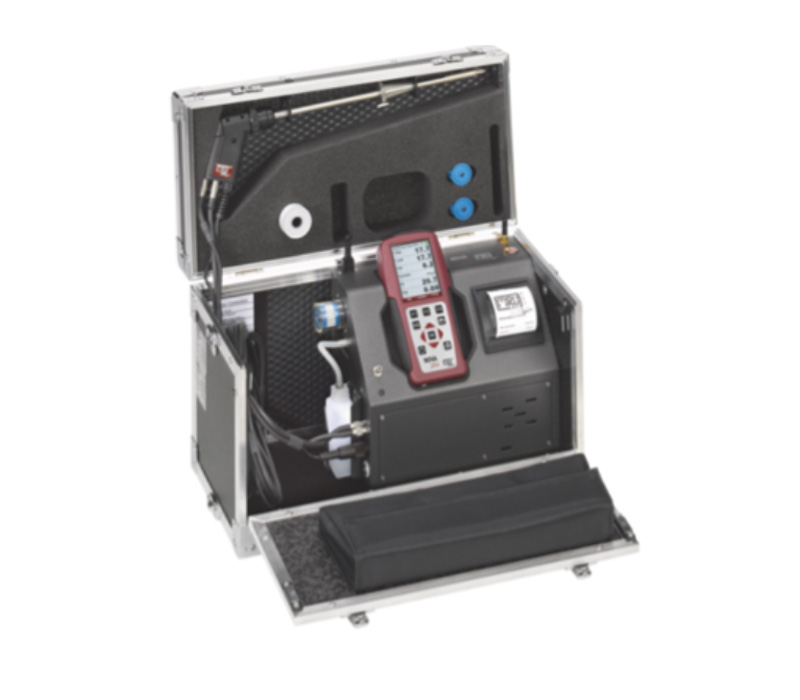

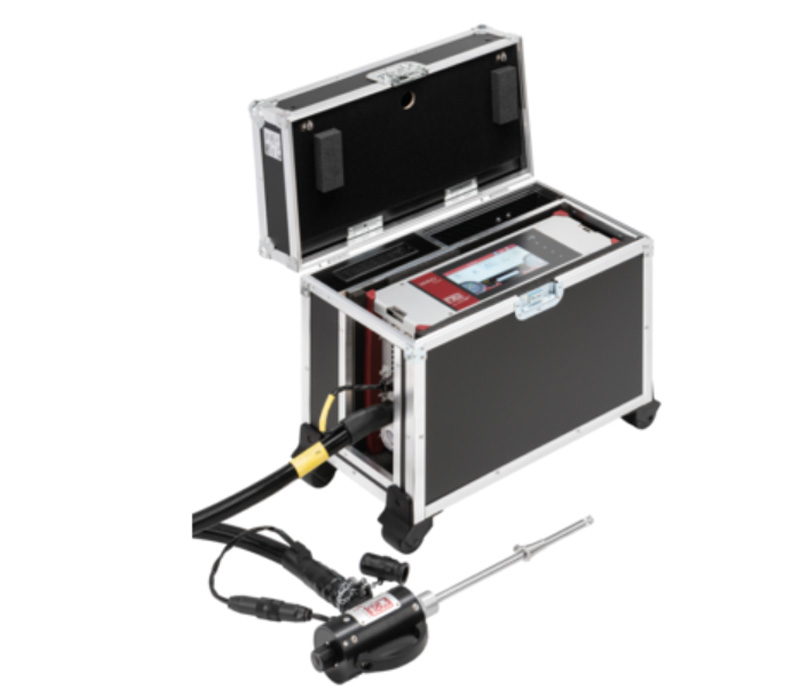

NOVAplus "MCERTS"
-
Portable flue gas analyzer "MCERTS-certified"
- Complying with MCERTS performance standards for transportable emission monitoring systems
- Maximum flexibility through wireless remote control
NOVAplus MCERTS base unit:
- Robust metal enclosure mounted to an aluminium framed case
- Docking station for remote control with inductive charging function of RCU
- Built-in speedprinter
- Auto-zero solenoid valve for long-term measurementsand internal sample gas flow monitoring and alarm
- Peltier gas cooler with automatic condensate draining pump, with condensate monitoring and alarm
- Emission calculations like: : mg/m3, NOx as mg/m3 NO2, true measurement of NOx = NO + NO2, including O2 referencing (normalisation) to user settable value
- High energy lithium-ion battery and universal grid power supply 100-240Vac / 50-60 Hz, 12 Vdc, 60
- Industrial gas sampling probe using heated, easy replaceable quartz glass wool filter, with 2700 mm unheated Viton sample line and gas temperature measurement with K-type thermocouple (without exchangeable probe tubes)
NOVAplus MCERTS included remote control unit "Comfort":
- Wireless remote control of all instrument functions
- Backlit 3,5“TFT colour display
- Automatic measurement with data storage of measured values on SD card
- SD card (2 GB), mini USB port, internal memory for 16.000 data sets
- Contactless battery charging
- Lithium-ion battery with inductional charging, for approx. 30 hours mains free operation
- Differential pressure 0 ... +/- 100 mbar
- Gas flow velocity and mass flow measurement by using of Pitot tube (option)

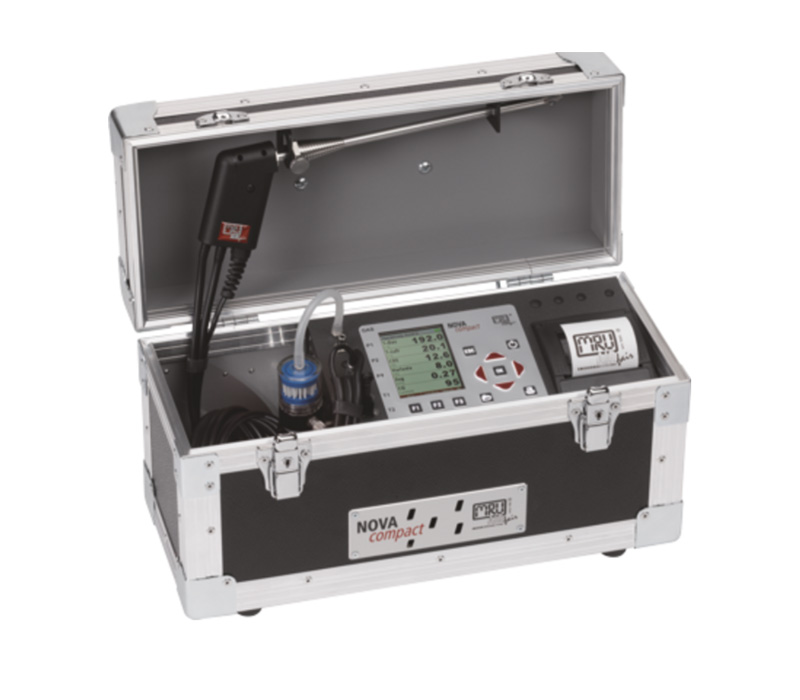

NOVAcompact
-
Portable, compact flue gas analyser for emission monitoring and combustion control
- Very compact and extremely rugged gas analyser
- Fully equipped for all kind of adjustment and monitoring tasks at combustions
- Intuitively and comfortable to use
Basic Equipment:
- Longlife Oxygen (O2)-Sensor (0 … 21%)
- CO-Sensor (0 … 4.000/overload 10.000 ppm)
- Fresh air purging for CO-sensor-protection
- Flue gas probe with 250mm probe length and 2,2 m sampling line
- Speedprinter, built-in
- Lithium-Ion battery (approx. 10 hours operation)
- 3,5“ TFT colour display and LED-lit keypad
- Mini-USB-socket and SD card slot
- Differential pressure- und differential temperature measurement
- Very robust, compact aluminium framed case (423x240x176mm)
NOVAplus
-
Portable flue gas analyser for up to 8 gas emission measurements
For emission monitoring and combustion checking of various industrial sites. The combination of infrared measurement technology and electrochemical sensors ensures versatility and reliable analysis even of small measuring ranges. NOVAplus EMI – portable industrial measurement at attractive budget prices.
- O2 measurement: 0 - 25,00%, using new longlife O2 sensor
- Gas temperature: Up to 800°C using stainless steel / up to 1.100°C using Inconel steel probe tubes
- Combustion air temperature: 0 - 300°C (short plug for ambient air is included)
- Stack / Differential pressure: -100 mbar ... +100 mbar
- Differential temperature measurement
- O2 referencing (normalisation): To user settable value
- Emission calculations: Like mg/m3, with true measurement of NO(x) = NO + NO2 and NO(x) as mg/m3 NO2
- Complete combustion calculation: Using large, country specific fuel type list
- Gas sampling pump: Strong, high performance for high suction sampling
- Condensate separator: Large with PTFE (Teflon) coated PTFE filter
- Docking station: For remote control with wireless, inductive charging of remote control unit RCU
- Data Interface: Mini-USB interface to PC and SD-card slot for large volume data logging, incl. SD-card
- Internal data storage: For up to 16.000 measurements!
- Battery: High energy Li-Ion battery, for up to 10 hrs operation time
- Power supply: Wall-plug, universal grid power supply, 100-240Vac/50-60Hz / 12V dc
NOVAplus Biogas
-
Biogas analyser for semi-continuous measurements
- Biogas Analyzer with wireless remote control unit for semi-continuous analyzing processes
- Optionally upgradable for measurements of flue gas at the cogeneration engine
- Compatible with new MRU App "MRU4u" (only Android)*
- Robust solid metal housing in an aluminium framed case
- Wireless remote control unit for all functions
- Light and compact for easy handling
- Docking station for remote control with inductive charging function
- Built-in speed printer
- Built-in solenoid valve for automatic zeroing
- Internal sample flow monitoring with alarm function
- Gas cooler with automatic condensate drainage
- Data storage on SD card
PORTABLE ANALYZERS NDIR

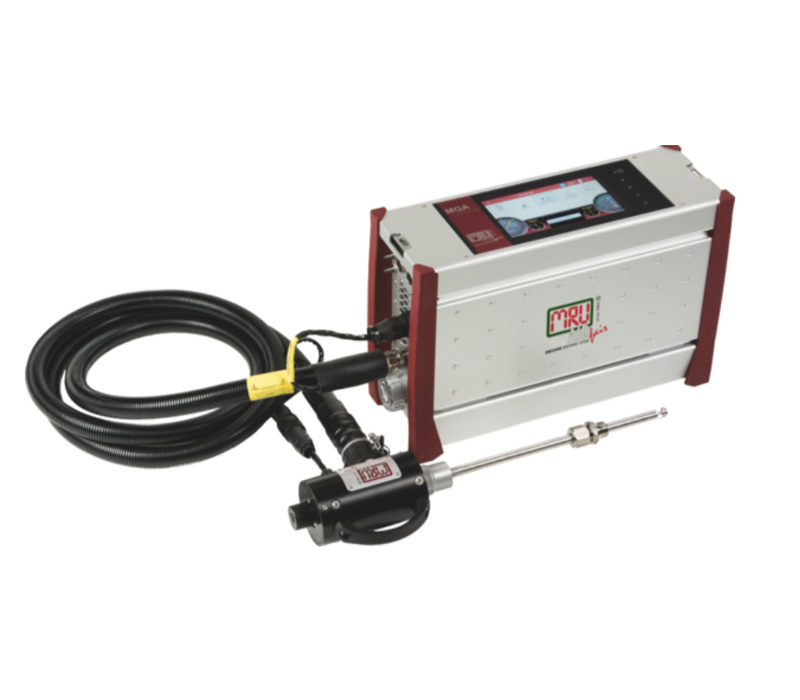

MGAprime
-
High end flue gas emission analyser for emission monitoring of various industrial sites
- Precise and very stable offset measuring technique by means of non dispersive infrared (NDIR) technique, for enhanced long time measurements
- Up to 8 gas NDIR measurement: CO/CO2/C3H8/CH4/SO2/NO/NO2/N2O/H2 and oxygen with either long-life O2-ECS or O2-PM (paramagnetic cell)
- Remote control via smartphone or tablet using VCN server via LAN/WLAN (no remote control via MRU4u app)
- Wireless data transfer via Bluetooth dongle or WLAN dongle or via VNC server using LAN/WLAN
- Integrated, efficient dual heat exchanger gas cooler (Peltier type) with dual automatic condensate draining pumps
- Using single beam through sample cell for NDIR measurements
- Automatic zeroing by means of 3-way solenoid valve, internal sample flow volume measurement
- Strong, regulated sample gas pump and easy replaceable, effective PTFE filter
- Internal sample flow monitoring with display and alarm
- Zero gas (ambient air) air inlet nozzle and passive VENT outlet of sample gas (for use inside laboratories)
- O2 referencing (normalisation) to user settable value
- Large fuel type list incl. self choose fuels with user definable parameters
- Complete combustion calculation using country specific fuel type list
- Automatic internal test and control of soft- and hardware functions
- Automatic measurement incl. data logging function
- 7” high-resolution (800x480 pixel) TFT colour display with swipe and touch technique, with LINUX operating system
- Results stored in database - possibility to view entire measurement session in graphical form, create measurement reports, export data to CSV files, and more
- PC communication via LAN - Ethernet
- Data transfer to PC over LAN Ethernet (RJ45 socket) or USB
- Analog outputs (8-channels), analog inputs (4-channels)
- Modern and robust design, Aluminium enclosure with rubber molded impact protection for use in harsh industrial environment
Different product variants available.

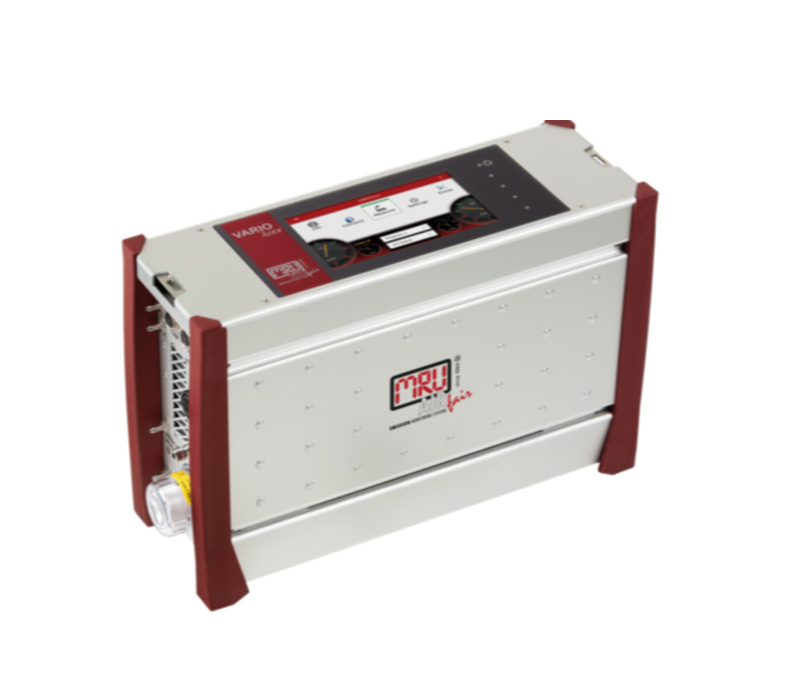

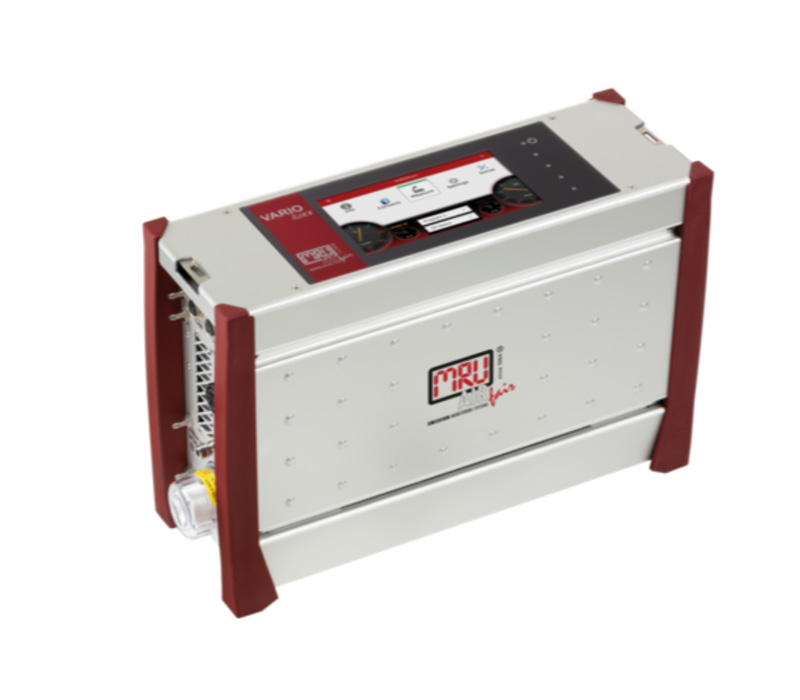

VARIOluxx
-
Portable stack gas emission analyser for long time measurements of industrial combustions
- precise measuring technique by means of infrared (3-gas) and electrochemical cells (6-gas)
- most suitable for precise low Nox measurements and other toxic gas emissions measurement according
to new MCP Directive 2015/2193 for medium combustion plants with rated power <50 MW - all important interfaces are available, such as Ethernet (LAN), WLAN, Bluetooth, USB, RS485, 8 channel analog Outputs
- Remote control via smartphone or tablet using VCN server via LAN/WLAN (no remote control via MRU4u app)
- Integrated, efficient electrical gas cooler (Peltier cooler) with automatic condensate draining pump
- Automatic zeroing by means of 3-way solenoid valve, internal sample flow volume measurement
- Strong, regulated sample gas pump and easy replaceable, effective PTFE filter
- Zero gas (ambient air) inlet nozzle and separate passive VENT outlet nozzle for sample gas
- O2 measurement included, using long-life electrochemical cell
- Stack gas temperature measurement up to 1.200°C (optional up to 1.700°C)
- Differential pressure or stack gas pressure +/- 100 hPa
- Combustion air temperature up to 500°C, using adequate NiCrNi probes
- Automatic measurement incl. data logging function
- Large fuel type list incl. self choose fuels with user definable parameters
- Complete combustion calculation using country specific fuel type list
- O2 referencing (normalisation) to user settable value
- Automatic internal test and control of soft- and hardware functions
- Linux OS & large, high-contrast and backlit 7" (840x480) graphical display
- Display with easy, intuitive touch panel and all measured data at one sight
- Graphical data visualization, csv or pdf reporting file
- Data transfer to PC over LAN Ethernet (RJ45 socket) or USB
- 8 channel analog output 4-20mA and 4 channel analog input 4-20mA
Different product variants available.
PRECISION DIGITAL MANOMETER

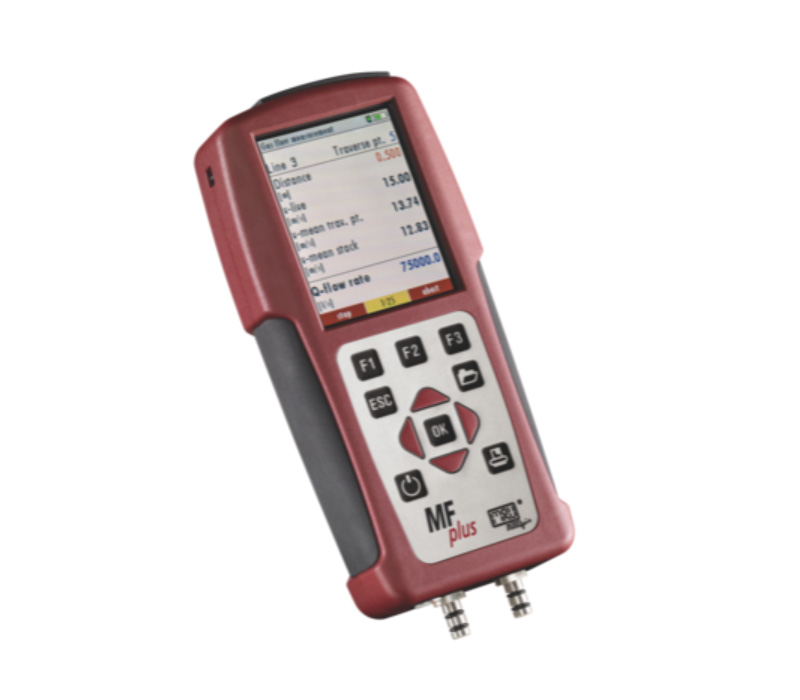

MFplus "16911"
-
Dedicated to travers points volumetric flow rate measurement in industrial stacks compliant to European Standard EN 16911-1, to ISO 10780 and to USEPA 40CFR part 60, method 2
- Compatible for all pitot tubes available on the market
- Intuitively, bright colours graphic interface
- High accurancy pressure sensors, temperature compensated
- Dual K-type thermocouple connectors
- Long time operation using the NiMH built-in battery
- Internal storage and SD card high volume data storage
- 100mbar high accuracy pressure / differential pressure
- 1000°C temperature / differential temperature, K-type
- Barometric pressure
- User free selectable, all metric and imperial units
- Instant and average data, dry and wet gas data, etc
- User free editable (duct size, gas data, nr traverse points)
- Site and data storage (up to 16.000 measurements)
- Via built-in SD-card, in CSV format
- Brilliant 3,5“ TFT colour display
- Li-Ion Battery for 30 hrs operation time
- Robust enclosure, dirt resistant keypad, metal connectors
- 90 x 205 x 38 mm (w / h / d)
- Lightweight - approx. 500 g
- Mini-USB (data transfer and charging)
- Universal wall plug charger 100…240Vac / 5Vdc / 1A

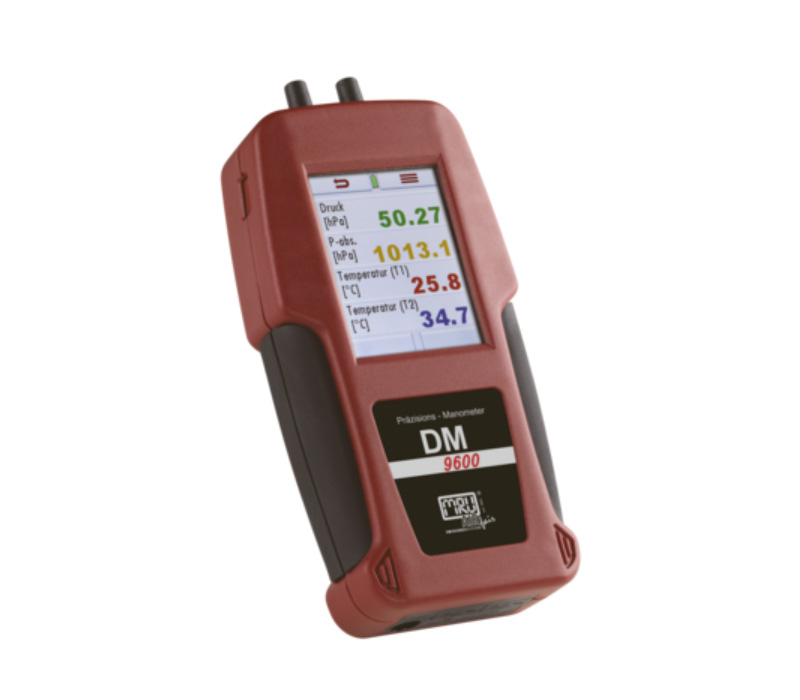

DM 9600
-
Precision manometer for accurate pressure-, differential pressure and temperature measurements
- Measuring range either ±75hPa, ±150hPa, ±1.000hPa or even ±10.000 hPa (±10 bar)
- Suitable for measuring gas flow pressure nozzle pressure, furnace pressure, stack draught and many more
- Temperature measurements using standard K-type thermocouple
- With optional HC probe usable also as gas "sniffer“
- Touch colour display for intuitive operation and best readability
- Temperature compensated pressure sensor
- 2 separate K-type thermocouple sockets for standard NiCrNi thermocouples
- 2,8" touch, colour display
- Fibreglass reinforced enclosure with integrated fixing magnets
- Infrared printing interface
- USB socket for data transfer and battery charging
- Micro SD-card Slot
- Li-Ion battery for up to 20 h Operation
- Internal data storage of 1000 measurements and 500 sites
- All international measuring units selectable as mbar, inchH2O, etc
- Graphical display of measurement
- Automatic zeroing for long time stability of readings
- Concurrent measurement of pressure and temperature (K-type thermocouple)
Different product variants available.
GS LEAKAGE DETECTORS

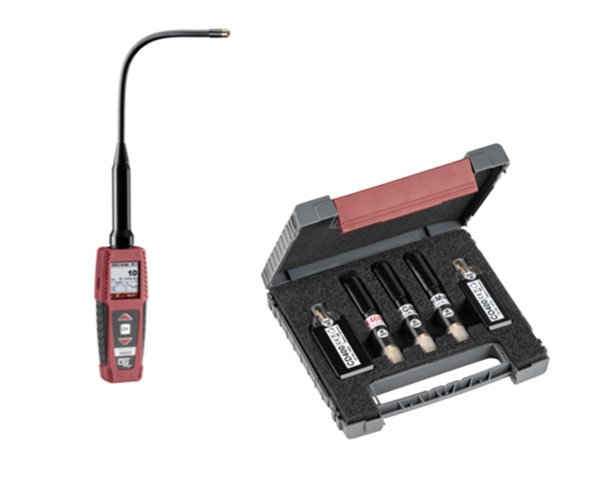

400GD
-
Multifunctional detector and measuring device
- Reliable gas leak detection and spillage test with only one system
- Adjustable alarm thresholds
- Optical alarm at the sensor and on the display of the device
- Acoustic and vibration alarm by the device
- Strong Lithium-Ion battery, chargeable via Mini-USB socket
- Freely adjustable alarm threshold (Vibration)
- Sensor exchange possible during current operation; device identificates the sensor automatically
- Acoustical, optical and haptical alarm
- Indication of gas concentration in ppm, % and %LEL (HC sensor)
- Adjustment factors are stored in the sensor, so it can be used with different devices
- TFT colour display
- Handy device with dirt resistant keypad
- Integrated Lithium-Ion battery
- Power supply for battery charging
500GD
-
Multifunctional detector and measuring device (with suction feature) = measuring results in less than 2 sec.
- Fast, selective and powerful with suction feature
- Reliable gas leak detection and spillage test with only one system
- Adjustable alarm thresholds
- Optical alarm at the sensor and on the display of the device
- Acoustic and vibration alarm by the device
- Strong Lithium-Ion battery, chargeable via Mini-USB socket
- Fast measurement results due to integrated suction feature (<= 2 seconds)
- Search mode for quick leak detection
- Reliable zeroing, even with contaminated ambient air
- Display in ppm for precise location of gas leaks and determination of the gas concentration
- Sensor change during operation possible, automatic recognition by the device
- Adjustable alarm thresholds (only leak detection)
- Optical alarm on the display of the device (only leak detection)
- Acoustic and vibration alarm by the device (only leak detection)
- Clear graphic display (TFT)
- Strong Lithium-Ion battery, chargeable via Mini-USB socket
- Display of measurement results also as QR code (forwarding measuring results via e-mail)

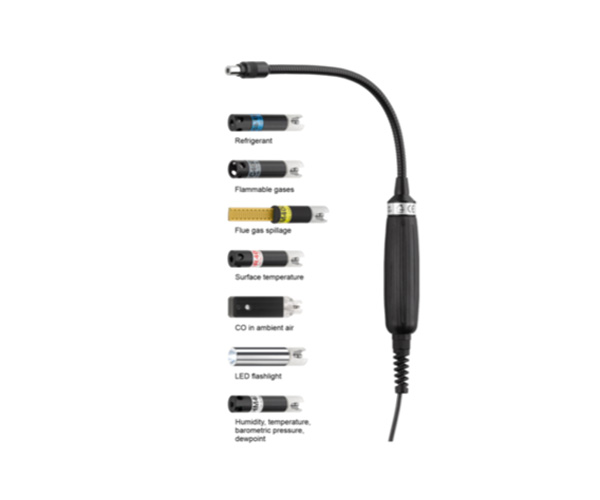

Detector Probe
-
Multifunctional detector probe and measuring device
- Reliable gas leak detection
- spillage detection
- indoor climate measurement
- contactless temperature measurement
- measurement of carbon monoxide in ambient air
- measurement of carbon dioxide in ambient air
- with just one system
- Compatible to all MRU-devices with AUX-socket, e.g. SPECTRAplus, DM9600, DPM9600
- Sensor change during operation due to automatic identification by the device
- Optical alarm at the sensor and on the display of the device
- Acoustic alarm by the device
- Adjustable alarm thresholds
- Indication of measuring results in ppm or %LEL
- 2,0 m cable and flexible gooseneck
- Calibration factors stored in the sensor, thus same sensor useable with different devices
- Easiest handling: Sensor change during operation possible
REFRIGERATION AND AIR CONDITIONING
400GD
-
Multifunctional detector and measuring device
- Reliable gas leak detection and spillage test with only one system
- Adjustable alarm thresholds
- Optical alarm at the sensor and on the display of the device
- Acoustic and vibration alarm by the device
- Strong Lithium-Ion battery, chargeable via Mini-USB socket
- Freely adjustable alarm threshold (Vibration)
- Sensor exchange possible during current operation; device identificates the sensor automatically
- Acoustical, optical and haptical alarm
- Indication of gas concentration in ppm, % and %LEL (HC sensor)
- Adjustment factors are stored in the sensor, so it can be used with different devices
- TFT colour display
- Handy device with dirt resistant keypad
- Integrated Lithium-Ion battery
- Power supply for battery charging
500GD
-
Multifunctional detector and measuring device (with suction feature) = measuring results in less than 2 sec.
- Fast, selective and powerful with suction feature
- Reliable gas leak detection and spillage test with only one system
- Adjustable alarm thresholds
- Optical alarm at the sensor and on the display of the device
- Acoustic and vibration alarm by the device
- Strong Lithium-Ion battery, chargeable via Mini-USB socket
- Fast measurement results due to integrated suction feature (<= 2 seconds)
- Search mode for quick leak detection
- Reliable zeroing, even with contaminated ambient air
- Display in ppm for precise location of gas leaks and determination of the gas concentration
- Sensor change during operation possible, automatic recognition by the device
- Adjustable alarm thresholds (only leak detection)
- Optical alarm on the display of the device (only leak detection)
- Acoustic and vibration alarm by the device (only leak detection)
- Clear graphic display (TFT)
- Strong Lithium-Ion battery, chargeable via Mini-USB socket
- Display of measurement results also as QR code (forwarding measuring results via e-mail)

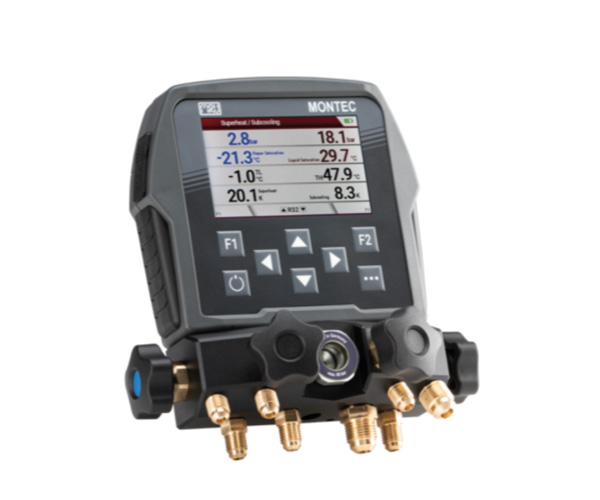

MONTEC
-
Digital Manifold for installation and service in the field of refrigeration and air conditioning. An ideal tool for installation and service at air conditioning units and heat pumps.
- Integrated, robust vacuum sensor: High precision for evacuation monitoring.
- Refrigerant compatibility: All refrigerants, including A3 types such as Propane (R290).
- Powerful battery: Designed for long-term measurement operations.
- Bluetooth accessories: Supports temperature clamps and external pressure sensors.
- Smart Control: Dedicated app for device/accessory control, software updates, and measurement logging.
- 4" IPS-TFT graphic display: Large screen providing optimal readability, even in direct sunlight.
- Industrial keypad: Ergonomic design suitable for use while wearing gloves.
- Durable construction: Robust, fiberglass-reinforced housing with IP54 protection class.
- Large unit memory: High capacity for storing numerous measurements; ideal for long-term data logging.
- Genuine glass sight glass: High-quality material for clear visibility of refrigerant flow.
- Expanded connectivity: Additional connections for two temperature clamps using Type-K plugs.
- Hands-free operation: Includes a comfortable mounting hook for ease of use in the field.
- Security: Includes an option to fit an anti-theft device.
PERSONAL PROTECTION DEVICES
Multi Gas Detector
-
Reliable, maintenance free multi gas detector (H2S, CO, HC, O2) for 36 months after activation
No charging ever! No calibration necessary! (Can be calibrated if required)
- Hydrogen Sulfide (H2S): Reliable testing for toxic gas detection.
- Carbon Monoxide (CO): Accurate monitoring for safety in enclosed spaces.
- Oxygen (O2): Precise measurement of oxygen levels to prevent depletion or enrichment.
- Combustible Gases (H): Detection of explosive or flammable hazards.
- Simple Operation: User-friendly interface—just turn it on for immediate use.
- Low Maintenance: Designed for easy upkeep and long-term reliability.
- 24/7 Protection: Provides continuous assurance against toxic gases for three full years.

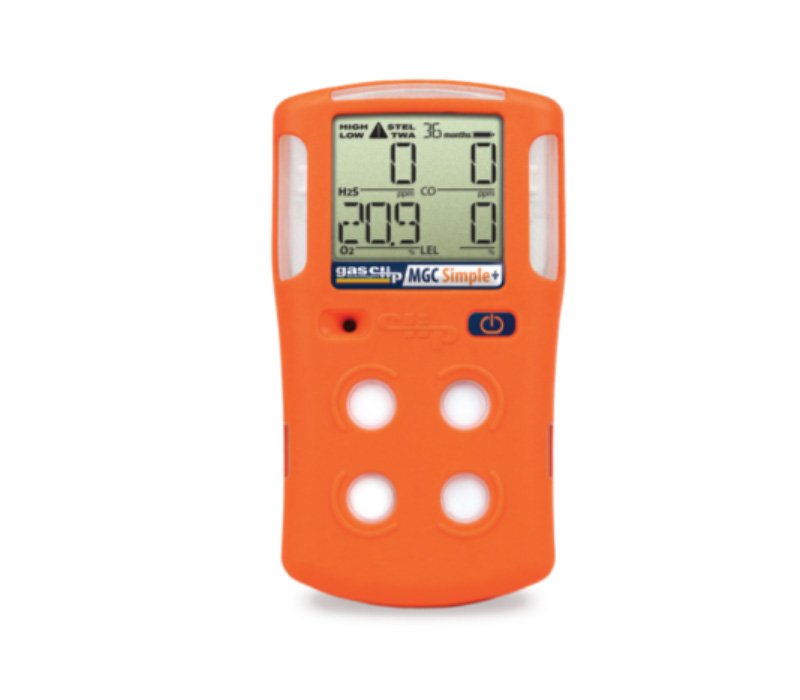

4-Gas-Detector
- Hydrogen sulfide (H2S)
- Carbon monoxide(CO)
- Oxygen(O2)
- Combustibles (LEL)
- 36 months operation after activation
- IECEx CSA 16.0038 Ex ia IIC T4 Ga
- Operating temperature -20° C ... +50° C
- Dimensions H: 120,65; W: 69,85; D: 31,75 mm
- Weight 220,2 g
- IP 68
Single Gas Detector
-
Reliable, maintenance free protection (CO) for 24 months after activation
- Single gas clip carbon monoxide (CO)
- completely maintenance free
- safe operation due to always-on-mode
- 24 month unlimited operating time
- visual, vibrating and audible alarm
- Simple one button operation
- Programmable display modes:
- (1) real time concentration
- (2) life remaining
- (3) life remaining or real time gas reading data - bright, all around visual, loud audible and noticable, mechanical alarm
- event log of alarms (downloadable with optional accessory only)
- solvent resistant, signal colored rubber protected housing
- IP 67 protection level
- rear side stainless steel crocodile clip
MOBILE ANALYSERS FOR INDUSTRIAL APPLICATIONS
MGAprime Q
-
Portable Automatic Measuring System (PAMS) suitable as an alternative method for the standard reference method for calibrating and validating stationary AMS in the context of QAL2 and AST in accordance with EN 14181
- Certifications: Includes free-of-charge MRU calibration certificate and TÜV certificate.
- HPI Gas Sampling Probe Head:
- Integrated heater for the low-dust gas filter cartridge.
- 3m heated Teflon sampling line with user-settable analyzer temperature regulation.
- Gas temperature measurement using K-type (NiCrNi) thermocouple.
- Includes low-dust gas filter cartridge and one Ø12 x 300mm exchangeable probe tube.
- APE Acid Dosage System: Includes 10% $H_{3}PO_{4}$ (phosphoric acid) system.
- Gas Cooling: Integrated, efficient dual heat exchanger gas cooler (Peltier type) with dual automatic condensate draining pumps.
- Operational Controls: Automatic zeroing via 3-way solenoid valve and internal sample flow volume measurement.
- Pump & Filtration: Strong, regulated sample gas pump and easily replaceable, effective PTFE filter.
- Ports: Zero gas (ambient air) inlet port and VENT outlet for sample gas.
- Temperature Measurement:
- Stack gas temperature measurement up to 1,200°C.
- Combustion air temperature measurement up to 500°C.
- Pressure Measurement: Differential pressure measurement range of +/- 100 mbar.
Different product variants available.
VARIOluxx Syngas
-
Portable syngas analyser for long-term measurements of special gases (syngas)
Outstanding benefits
- Within most compact space one electrochemical O2 sensor (or one paramagnetic O2 sensor) as well as an infrared bench (CO+CO2+CH4) work jointly to generate precise measuring results
- All important interfaces are available, such as Ethernet (LAN), WLAN, Bluetooth, USB, RS485, 8 channel analog Outputs
- Remote control via smartphone or tablet using VCN server via LAN/WLAN (no remote control via MRU4u app)
Applications
- Steel industry: coke oven gas, blast furnace gas
- Biomass or coal catalytic oxidation (gasification)
- Waste gasification process, plasma gasification process
- Steam reforming of liquid hydrocarbons (refinery gas etc)
- Flare gases, research … and others
- O2 sensor (either electrochemical longlife sensor or paramagnetic sensor)
- Integrated, electrical gas cooler (Peltier) and automatic condensate draining pump
- Strong sample gas pump and external accessible particulate Teflon filter
- Automatic zeroing by means of 3-way solenoid valve, user programmable
- Internal sample flow monitoring with display and alarm
- Linux OS and large baklit 800 x 480 colour display, with touch and swipe technigue
- With universal analog input (AUX socket) for external transmitter connection
- Data memory for approx. 10.000 measurements, optional USB Stick for additional data storage
- Automatic interval measurement program
- Data-visualization and evaluation software MRU4win
- Universal power supply: mains 90-265 Vac /105 W
- Internal Li-Ion battery for 1 hours mains free operation
- Automatic selftest and control of soft- and hardware functions
- Modern, rugged aluminium enclosure with rubber molded impact protection
STATIONARY INDUSTRIAL ANALYSIS
Emission Monitoring Systems

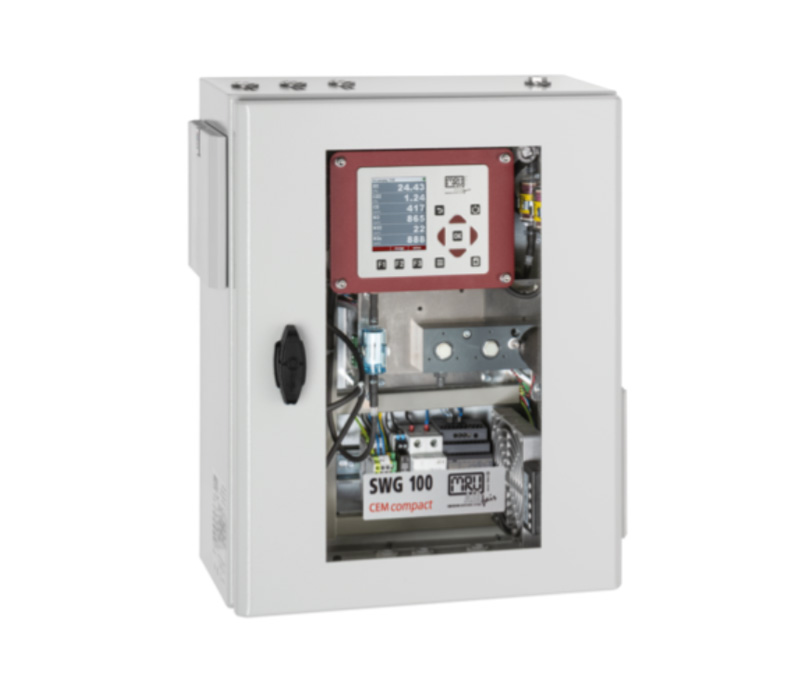

SWG 100 CEMcompact
-
Compact Multigas-Analyser for combustion analysis
- use of most modern NDIR-technology
- optional O₂-measurement with electrochemical or paramagnetical sensor
- automatic zero point calibration with clean ambient air using separate calibration gas inlet port
- single heat exchanger Peltier gas cooler with automatic condensate draining pump
- up to max. 3 electrochemical gas sensors (ECS) for measurement of O₂, CO, NO
- max. 2 unheated sample gas inlets with PTFE-sample gas pipe
- optional use of a paramagnetical O₂-measurement
- connection of up to max. 2 heated, self-regulating probes HD and HD-GW for sampling of dusty gases
- internal gas flow monitoring
- alarm at clogged probe or internal filter
- gas sampling from low pressure –100 mbar up to +50 mbar possible
- regulated sample gas pump with sample gas flow monitoring and alarm
- filtering of acid gases to protect the internal gas flow sensor
- solenoid valve for automatic zero calibration with clean ambient air
- solenoid valve for manual calibration
- up to 2 gas inlets for unheated PTFE 4/6 mm gas pipes
- device operation via TFT-colour display, key pad and RS485-interface (Modbus RTU)
- password protected, intuitive operation incl. diagnosis software
- IP54 steel housing 500 x 433 x 210 mm (W x H x D), with corrosion-resistant laquer RAL 7035

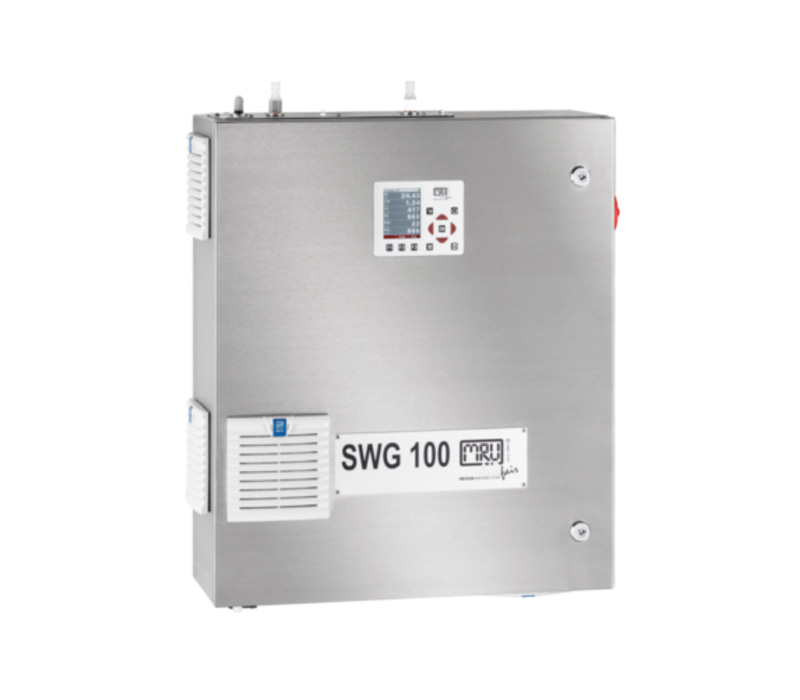

SWG 100 CEM
-
Low cost, non complying stationary analyser for continuous emission monitoring and combustion checking
SWG 100 CEM is designed for the use in the harsh industrial environment of different combustion sites where flue gas emissions must be continuously monitored, e.g.:
- Small power plants, small gas turbines
- Cogeneration heat and power engines (CHP)
- Waste incinerators, ovens and kilns
- Industrial heaters and dryers
- Food industry steam boilers
- Biomethane and methane boilers
- Ethanol and palm oil plants
- Field replaceable, plug&play pre-calibrated sensors
- Very compact industrial design, for up to 6 gas simultaneous measurement
- Use of low cost but reliable electrochemical cells for O2, CO, NO, NO2, SO2 and an infrared module (NDIR) for CO2 measurement
- Advanced sample gas preparation for fast and reliable measurements
- Flexible platform can be used for various combustion applications
- Direct and continuous / discontinuous measurement, with pressure and temperature
- Compensation of all main flue gas parameters
- External measurements (temperature, pressure, etc) by reading of ext. standard signal
- Analyser system can be configured with different gas sampling probes and sampling lines to optimize the sample gas preparation (Option)
- Simple installation, ready to run delivery and easy to maintain
Different product variants available.

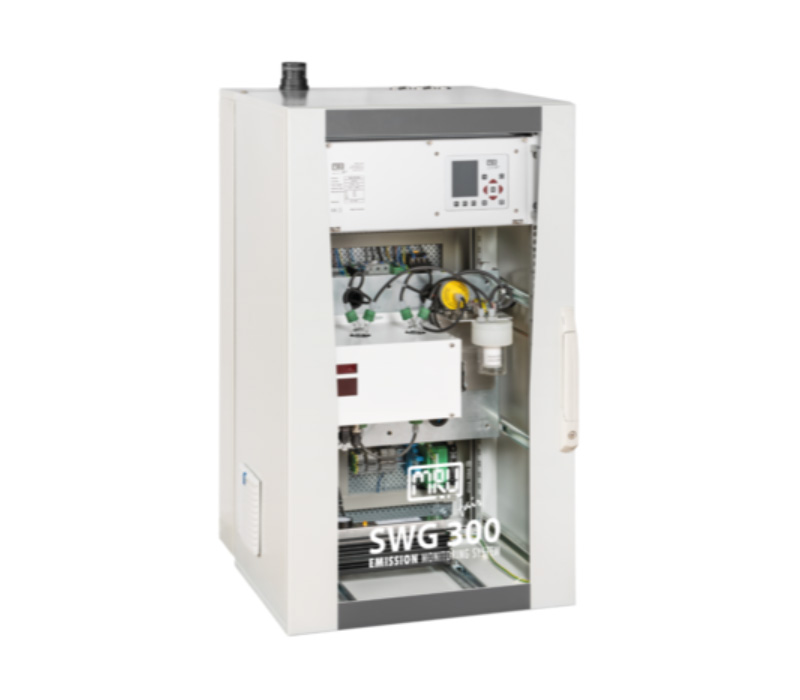

SWG 300 IND
-
Continuous Emission Monitoring System (Indoor)
- Low sample flow extraction of only 50 l/h, to enhance the operation of sample gas preparation
- Use of optimized NDIR technology with improved accuracy and without zero offset
- O₂ measurement with a long-life electrochemical or a paramagnetic sensor
- True NOx and SO₂ measurements through use of heated gas sampling probe and gas sampling line
- Heated and temperature regulated acid mist catch & drain system for raw flue gas measurements with high acid aerosols
- Complete heavy duty sample conditioning system for extractive cold and dry system
- Ready to log, display and transfer data from dust concentra- tion monitor DM 401 and flow rate monitor DF 252.
- Low sample flow extraction of only 50 l/h, to enhance the operation of sample gas preparation
- Use of optimized NDIR technology with improved accuracy and without zero offset
- O₂ measurement with a long-life electrochemical or a paramagnetic sensor
- True NOx and SO₂ measurements through use of heated gas sampling probe and gas sampling line
- Heated and temperature regulated acid mist catch & drain system for raw flue gas measurements with high acid aerosols
- Complete heavy duty sample conditioning system for extractive cold and dry system
- Ready to log, display and transfer data from dust concentra- tion monitor DM 401 and flow rate monitor DF 252.
- IP54 steel cabinet 630 x 1.012 x 612 mm (W x H x D), with grey powder coating laquer, for wall mounting
- With lockable acrylic front door and fan ventilation through the cabinet for use in clean ambient air
- M&C Peltier gas cooler with dual heat exchanger with double automatic condensate draining pumps
- Efficient sample gas filtration using PTFE sintered particulate filter
- Condensate monitoring and alarm on display and gas sampling stop in case of alarm
- Prepared for 10 % H3PO4 dosage in case of auto-cal or low SO₂/NO₂ measurements
- Strong sample gas pump with sample gas flow monitoring and alarm
- Filtration of acid gases to protect the internal sample gas flow sensor
- Solenoid valve for auto-zero with clean ambient air
- Solenoid valve for calibration gas, with aluminum fine pressure regulator at cal. gas inlet port
- Main control unit 19" – 4U with human machine interface, prepared for measurement modules
SWG 19
-
Multigas-Analyser for combustion-, emission- and syngas analysis
- Use of optimized NDIR-Technology with improved accuracy without zero point-drifts for up to 8 gases
- O2-measurement with an electrochemical or paramagnetical sensor
- Bypass operation by means of integrated sample gas pump
- Application adapted infrared measuring technique for
- emissions of flue gases
- combustion optimization
- analaysis of syngases
- IP21 aluminum enclosure 19" / 4U,
- integrated sample gas pump, for low, regulated 50 lpm sample flow
- with internal sample flow monitoring, value and alarm on-display
- safety water stop filter and condensate alarm device
- all measurements displayed as volumetric ppm or % and mg/Nm3 as well
- 5 off open collector pull-down contacts for optional use of external solenoid valves
- sample gas conditioner "Ext. ready" signal for start internal gas pump (bypass mode)
- stainless -steel gas connectors 1/8" ID female threads, suitable for users own bulkhead compression fittings
- human machine interface with colour TFT display and keyboard
- RS485-USER interface with user free Modbus RTU protocol for digital data transfer
- RS485-INT interface for the optional external I/O modules with 4 ... 20mA analog outputs
Combustion Optimization Systems
SWG 19
-
Multigas-Analyser for combustion-, emission- and syngas analysis
- Use of optimized NDIR-Technology with improved accuracy without zero point-drifts for up to 8 gases
- O2-measurement with an electrochemical or paramagnetical sensor
- Bypass operation by means of integrated sample gas pump
- Application adapted infrared measuring technique for
- emissions of flue gases
- combustion optimization
- analaysis of syngases
- IP21 aluminum enclosure 19" / 4U,
- integrated sample gas pump, for low, regulated 50 lpm sample flow
- with internal sample flow monitoring, value and alarm on-display
- safety water stop filter and condensate alarm device
- all measurements displayed as volumetric ppm or % and mg/Nm3 as well
- 5 off open collector pull-down contacts for optional use of external solenoid valves
- sample gas conditioner "Ext. ready" signal for start internal gas pump (bypass mode)
- stainless -steel gas connectors 1/8" ID female threads, suitable for users own bulkhead compression fittings
- human machine interface with colour TFT display and keyboard
- RS485-USER interface with user free Modbus RTU protocol for digital data transfer
- RS485-INT interface for the optional external I/O modules with 4 ... 20mA analog outputs
OMS 420 Ex
-
O2 & COe in-situ monitoring system for use in hazardous area zone 2
The O2 and COe monitor is dedicated for continuous combustion optimisation at:
- various industrial furnaces/ovens/boilers, with hazard of explosive atmosphere
- petroleum refinery plants
- petrochemical plants
- gas separation, blast furnace, coke oven or ther syngas plants
- Hazardous area designation of use: Zone 2 or Class 1, Div 2, Gr A/B/C/D
- Special IP 65 pressurized cabinet and z-purge controller, complying to II 3G Ex pz II T3 Gc
- Easy and fast, on site replaceable detector head with sensors (O2 & COe)
- Integrated control unit with backlit display, operating key pad, dual galvanic isolated 4 ... 20 mA output and digital output RS 485 (Modbus RTU)
- Stainless steel SS316Ti flange 4" ANSI-150Ibs with flow guidance probe tubes, from 250mm up to 2m length
- Unique hot solid electrolyte sensor for combustible COe-measurement without need for sample dilution with air as required for catalytic bead sensors (Pellistors) (Option)
- Unique blow-back system for dusty flue gases (Option)
- Integrated auto-calibration for accurate measurements (Option)
- Dust tight and water proof enclosure, with optional ATEX heater for very low ambient air temperatures or optional ATEX Vortec cooler for high ambient temperatures

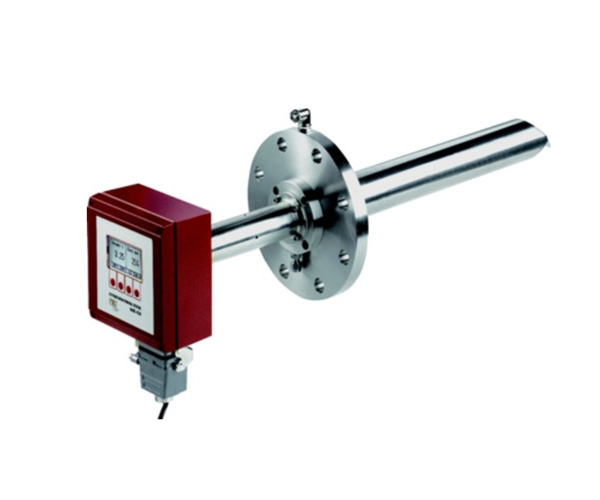

OMS 420
-
Compact in-situ probe for combustion optimization
Compact in-situ probe
- Using heated ZrO2 sensor for wet O2 analysis up to 600°C flue gas temperature
- With optional special heated solid electrolyte sensor for combustibles measurement
- Compact probe with flow guidance (hollow) tube, with or without back-purge for flue gas temperature up to 600°C
- For high temperature application up to 1.000 °C or respectively 1700°C, see models OMS420RT and OMS420HT
- 4"ANSI 150lbs or DN65 PN6 flange with Ø 60mm probe tube and different lengths
- Reference air inlet through natural difusion, no air pump is required
- Rugged industrial plug for power supply and data transfer (2x analog 4-20 mA galvanic isolated, digital RS 485 with Modbus RTU protocol
Available OPTIONS like:
- COe- combustibles gas measurement
- Back-purge using compressed air, with solenoid valve control by means of transmitter electronics, incl. adjustable purging intervals (recommended for high dust sites)
Dust Opacity Monitoring System
DM 401
-
Optical Dust Monitoring System
- ransceiver and retroreflector, double path transmissiometry with microprocessor technology
- Continuous air purging required to protect optics from stack dust
- Small, light weight low power supply and operating costs
- Opacity or mg/m³ (after on site calibration)
- Long-life green LED source
- No moving parts – minimal maintenance
- Simple installation, commissioning and operation
- High measuring accuracy
- PC based setup, control and data logging
Gas Velocity Measurements
DF 252
-
Continuous measurement of flue gas flow velocity (m/sec) using dynamic pressure measurement principle with averaging Pitot tubes
- Unit in weatherproof glass fiber housing
- Stainless steel probe tube 300 to 1000 mm with differential pressure transmitter and control unit in head of probe
- Flow rate calculation (m3/sec) after entering the stack surface
- With flue gas temperature and absolute pressure measurements
- With optional heater for low ambient temperature and optional blow-back for dusty flue gas
MFplus "16911"
-
Dedicated to travers points volumetric flow rate measurement in industrial stacks compliant to European Standard EN 16911-1, to ISO 10780 and to USEPA 40CFR part 60, method 2
Professional solution with:
- Compatible for all pitot tubes available on the market
- Intuitively, bright colours graphic interface
- High accurancy pressure sensors, temperature compensated
- Dual K-type thermocouple connectors
- Long time operation using the NiMH built-in battery
- Internal storage and SD card high volume data storage
- 00mbar high accuracy pressure / differential pressure
- 1000°C temperature / differential temperature, K-type
- Barometric pressure
- User free selectable, all metric and imperial units
- Instant and average data, dry and wet gas data, etc
- User free editable (duct size, gas data, nr traverse points)
- Site and data storage (up to 16.000 measurements)
- Via built-in SD-card, in CSV format
- Brilliant 3,5“ TFT colour display
- Li-Ion Battery for 30 hrs operation time
- Robust enclosure, dirt resistant keypad, metal connectors
- 90 x 205 x 38 mm (w / h / d)
- Lightweight - approx. 500 g
- Mini-USB (data transfer and charging)
- Universal wall plug charger 100…240Vac / 5Vdc / 1A
BIOGAS ANALYSIS
OPTIMA Biogas
-
Biogas analyser for fast complete biogas analysis
- Multigas analyser, designed for biogas measurements as well as engine fluegas
- With unique multipurpose probe*: simultaneous gas sampling and flow monitoring possible
- Compatible with new MRU App "MRU4u" *
* Option
** Requires option "Bluetooth"- Prepared for measurement of up to 4(7) gas components
- · Including dedicated, intuitive software for biogas/ landfill gas/ exhaust gas measurement
- With biogas/ exhaust gas/ differential pressure measurement (0 … +/- 300 mbar)
- Differential temperature measurement (0 … 1.200°C)
- Large condensate separator with PTFE (Teflon) coated PTFE filter
- Backlit 4“ TFT high resolution colour display
- Mini-USB interface to PC and SD-card slot for large volume data logging, incl. SD-card
- Internal data storage for up to 16.000 measurements!
- High volume data storage to SD card (CSV format)
- High energy Li-Ion battery, for up to 14 hrs operation time
- IRDA interface for high speed infrared thermal printer
- Modern, slim line enclosure with fixing magnets
- Robust stainless steel gas connectors
- Rechargeable battery via USB port
- Wall-plug, universal grid power supply 90-240Vac / 50-60Hz
NOVAplus Biogas
-
Biogas analyser for semi-continuous measurements
- Biogas Analyzer with wireless remote control unit for semi-continuous analyzing processes
- Optionally upgradable for measurements of flue gas at the cogeneration engine
- Compatible with new MRU App "MRU4u" (only Android)*
- Robust solid metal housing in an aluminium framed case
- Wireless remote control unit for all functions
- Light and compact for easy handling
- Docking station for remote control with inductive charging function
- Built-in speed printer
- Built-in solenoid valve for automatic zeroing
- Internal sample flow monitoring with alarm function
- Gas cooler with automatic condensate drainage
- Data storage on SD card

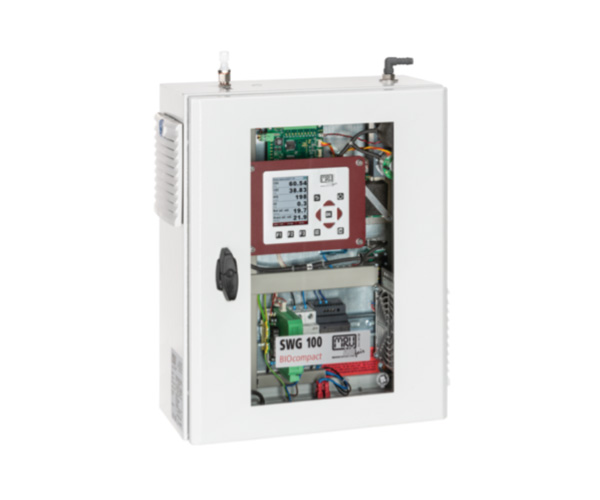

SWG 100 BIO compact
-
Stationary biogas measuring system for discontinuous measurements
Cost effective stationary biogas analyser designed for:
- Discontinuous measurement, user settable up to 24 measurements per 24 hours
- Use in the harsh industrial environment of combined heat and power (CHP) engine gas monitoring
- Accurate measurements, incl. plug & play pre-calibrated sensors
- Up to 2 sites monitoring (times sharing technique)
The analyser samples dry biogas, pressurized or low pressure gas and can be used for single or dual point sampling of:
- Cogeneration heat and power engines (CHP)
- Municipal or industrial waste water treatement sites
- Small scale AD plants with dry fermentation
- Landfill sites
- Plug & play, pre-calibrated sensors
- Safety in use with gas flow restrictor orifice at gas inlet and ventilation
- Efficient sample gas preparation for fast and reliable measurements
- Sampling from low suction up to high pressure gas
- No dilution of the sample gas, neither use of compressed air is required
- Discontinuous measurement, user settable up to 24 measurements per 24 hours
- Up to 2 sites monitoring (time sharing technique) with only one analyzer
- Data storage and event logging on SD card
- IP 54 cabinet for use in harsh environment
- Ready to run delivery, minimum installation work, low service downtime
- May be installed outside or inside
SWG 100 Biogas
-
Stationary Biogas-measuring system for continuous measurements
The complete, ready to use biogas analyzer is the SWG100 industrial solution to be used with:
- Biogas (anaerobic digestion) plants
- Cogeneration heat and power engines (CHP)
- Municipal or industrial waste water treatment sites
- Coal seam gas sites (coal bed methane)
- Food and animal waste processing plants
- Biomethan (gas to grid) plants
- Landfill sites
- Industry compatible rugged design for harsh industrial use
- Standard system safety included with continuously monitored fan ventilation of cabinet, gas flow restrictor orifice at gas inlet and CH4 gas detector
- Efficient sample gas preparation for fast and reliable measurements
- Sampling from low suction up to high pressure gas
- No dilution of the sample gas, neither use of compressed air is required
- Direct and continuous/discontinuous measurement, with pressure and temperature compensation
- Up to 10 sites monitoring (time sharing technique) with only one analyzer
- Ready to run delivery, minimum installation work
SWG 100 Bio-Ex
-
Stationary Biogas-measuring system for continuous measurements in Ex-zone 2
For use in hazardous area zone 2, with compliance to EN 60079-0, EN 60079-15 and cabinet
marking II 3G Ex ec nC IIC T6 Gc (without internal heater)
The biogas analysis system SWG100 Biogas-Ex is the rugged, ready to use industrial gas analyser for:
- Biogas (anaerobic digestion) plants. Ethanol plants, pulp & paper plants
- Cogeneration heat and power engines (CHP)
- Biomethane plants
- Landfill gas monitoring and CHP
- Municipal or industrial waste water treatment plants
- Coal seam gas sites
- IP 65 stainless steel cabinet, special contruction for use in hazardous area zone 2
- Electric sample gas cooler and condensate draining pump
- Regulated sample gas pump with sample gas flow monitoring and adjustment
- Internal sample flow sensor with filtration od acid sample gas in front of sensor
- Solenoid valve for auto-zero (with clean ambient air) and for automatic calibration
- Sample gas supply cut-off in case of system alarm
- All stainless steel gas connectors 1/8"ID threads
- Flow restrictor orifice gas inlet for high pressure site
- Multiple sampling point monitoring (up to 4 sites Monitoring) with one analyser
- All password protected, intuitive software guided menu with diagnosis software and logbook
Different product variants available.
BIOGAS ANALYSIS
SWG 19
-
Multigas-Analyser for combustion-, emission- and syngas analysis
- Use of optimized NDIR-Technology with improved accuracy without zero point-drifts for up to 8 gases
- O2-measurement with an electrochemical or paramagnetical sensor
- Bypass operation by means of integrated sample gas pump
- Application adapted infrared measuring technique for
- emissions of flue gases
- combustion optimization
- analaysis of syngases
- IP21 aluminum enclosure 19" / 4U,
- integrated sample gas pump, for low, regulated 50 lpm sample flow
- with internal sample flow monitoring, value and alarm on-display
- safety water stop filter and condensate alarm device
- all measurements displayed as volumetric ppm or % and mg/Nm3 as well
- 5 off open collector pull-down contacts for optional use of external solenoid valves
- sample gas conditioner "Ext. ready" signal for start internal gas pump (bypass mode)
- stainless -steel gas connectors 1/8" ID female threads, suitable for users own bulkhead compression fittings
- human machine interface with colour TFT display and keyboard
- RS485-USER interface with user free Modbus RTU protocol for digital data transfer
- RS485-INT interface for the optional external I/O modules with 4 ... 20mA analog outputs
VARIOluxx Syngas
-
Portable syngas analyser for long-term measurements of special gases (syngas)
Outstanding benefits
- Within most compact space one electrochemical O2 sensor (or one paramagnetic O2 sensor) as well as an infrared bench (CO+CO2+CH4) work jointly to generate precise measuring results
- All important interfaces are available, such as Ethernet (LAN), WLAN, Bluetooth, USB, RS485, 8 channel analog Outputs
- Remote control via smartphone or tablet using VCN server via LAN/WLAN (no remote control via MRU4u app)
Applications
- Steel industry: coke oven gas, blast furnace gas
- Biomass or coal catalytic oxidation (gasification)
- Waste gasification process, plasma gasification process
- Steam reforming of liquid hydrocarbons (refinery gas etc)
- Flare gases, research … and others
- O2 sensor (either electrochemical longlife sensor or paramagnetic sensor)
- Integrated, electrical gas cooler (Peltier) and automatic condensate draining pump
- Strong sample gas pump and external accessible particulate Teflon filter
- Automatic zeroing by means of 3-way solenoid valve, user programmable
- Internal sample flow monitoring with display and alarm
- Linux OS and large baklit 800 x 480 colour display, with touch and swipe technigue
- With universal analog input (AUX socket) for external transmitter connection
- Data memory for approx. 10.000 measurements, optional USB Stick for additional data storage
- Automatic interval measurement program
- Data-visualization and evaluation software MRU4win
- Universal power supply: mains 90-265 Vac /105 W
- Internal Li-Ion battery for 1 hours mains free operation
- Automatic selftest and control of soft- and hardware functions
- Modern, rugged aluminium enclosure with rubber molded impact protection

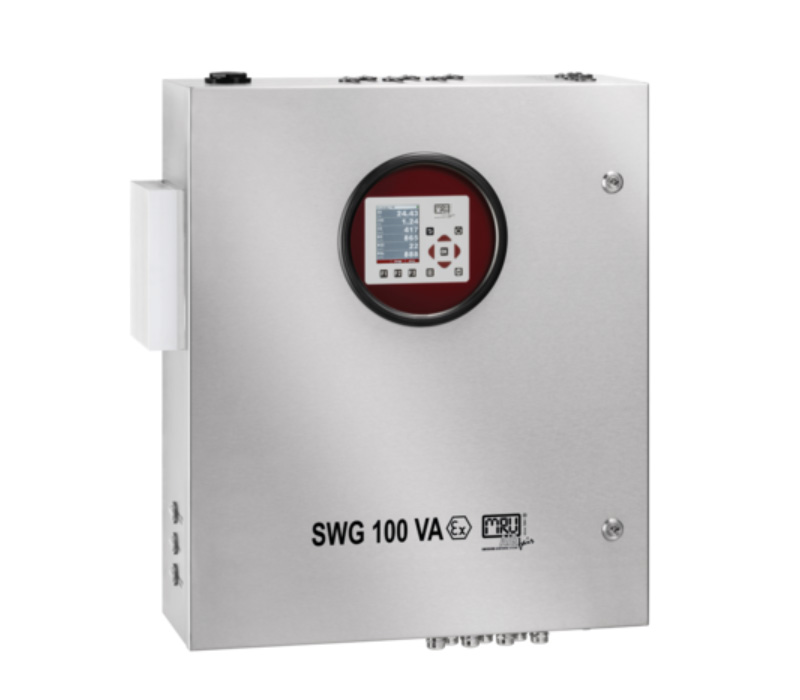

SWG 100 VA-Ex
-
The stationary system for continuous Syngas applications in Ex-zone 2, also for H2 measurements up to 100%
The special features:
- Completely stainless steel piping
- Process gas recirculation
- IP 65 stainless steel housing
- High-precision infrared measurement technology for CO, CO2, CH4
- Thermal conductivity technology for H2
- Paramagnetic O2 measurement
- Gas sampling in the pressure range from -100 mbar up to +200 mbar
- Integrated gas cooler with maintenance-free condensate drainage
- Measurement of up to 6 gas sampling pointsAreas of application
- Biomass and waste gasification
- Biomethane injection
- Coal gasification, coal liquefaction, synthetic fuel
- Pyrolysis applications and steam reforming
- Syngas analysis in laboratories and research
- All piping and fittings inside the analyzer made of stainless steel
- Including paramagnetic O2 measuring cell 0 - 25.00%
- Including NDIR for CO - CO2 - CH4 analysis (with selective CH4 measurement), 0...100% CO / 0...100% CO2 / 0...100% CH4
- Including H2 - thermal conductivity detector - measurement 0...100%
- Electric sample gas cooler (Peltier type) and automatic condensate drain via controlled solenoid valve
- Regulated sample gas pump with sample gas flow monitoring
- Internal sample gas flow sensor
- Solenoid valve for automatic zero adjustment (with clean ambient air or nitrogen) and for manual calibration
- 1x calibration gas inlet
- 1x stainless steel sample gas inlet from -150 mbar to +200 mbar - 1/8" internal thread - incl. flame arrester
- 1x outlet for process gas recirculation made of stainless steel - ¼" internal thread - incl. flame arrestor
- 1x zero gas outlet
- Interruption of the sample gas supply in the event of a system alarm by a "fail-safe" solenoid valve (normally closed)
- Inlet for connecting nitrogen to purge the syngas-carrying parts to prevent an explosive mixture inside
- External box for power supply, for automatic power interruption in the event of danger
- Gas detector (%LEL CH4) for continuous monitoring of the air in the analyzer housing
- Operation via TFT color display with membrane keypad and RS485 interface (Modbus RTU)
- Intuitive menus
- 110...230 Vac / 47 - 63 Hz / 200 W power consumption
SWG 100 Syngas
-
Stationary Analyzer for Syngas - Applications
The complete, ready to use analyzer SWG100 Syngas
is the industrial solution for:- biomass, coal and waste gasification plants
- cogeneration heat and power engines (CHP) using syngas
- small scale syngas analysis for research institutes and lab
MRU analyzer, series SWG100 Syngas is designed for use
in industrial safe areas or inside laboratories as well.
The analyzer can be installed in outdoor or indoor location,
can sample dry or wet syngas, pressurized or low pressure
gas and can be used from multiple sampling points.- IP 54 stainless steel cabinet, with monitored, continuous venting
- accurate measurements, using infrared, electrochemical and thermal conductivity technology
- sampling from low suction -100mbar up to high pressure +200mbar of gas pipe
- no dilution of sample gas is required
- integrated gas cooler with condensate draining pump
- direct and continuous measurement, with pressure and temperature compensation
- multiple sampling point monitoring (up to 8 sites monitoring) with one analyzer
- flow restrictor orifice gas inlet for high pressure site
- with sample gas cut-off and power supply shut-off in case of alarm
- industry compatible rugged design , easy and fastest service design
SOFTWARE
MRU4u
-
MRU App for Android and iOS
- Remote control of measuring units
- Visualizing, storing and sharing measuring data
- Compatible* with DELTAsmart, OPTIMA7, NOVAcompact, NOVAplus and DM/DPM9600
* When equipped with BT-LE-Modul (Dual-Mode)
- Starting, storing and exporting measurements
- Visualizing measuring data as table or graph
- Measuring protocols: allocate to sites, ammend with remarks or photographs, mail as CSV-file or screenshot
- Intuitively structured concept of operation
- Numerous possibilities of user settings
- Predefined fuel types and measuring programs
- Add pictures, comments or sites to the measuring data
MRU4win
-
MRU PC software for Windows (Windows 10 and newer)
- Simultaneous live-tracking of measurements of serveral devices
- Manage customer and facility data as well as corresponding measuring data
- Create, print and export measurement protocols
- Numerous adjustments possible for a variety of applications
- Works with: DELTAsmart, SPECTRA/OPTIMA, NOVAcompact, NOVAplus, DPM 9600, VARIOluxx, MGAprime/Q, SWG 100/200/300
ONE programme - two versions: Differences between light version (free of charge) and full version
BIOGAS ANALYSIS
Installers / Boiler Manufacturers
-
Portable flue gas analysers to check the combustion performance of resiential and commercial boilers.

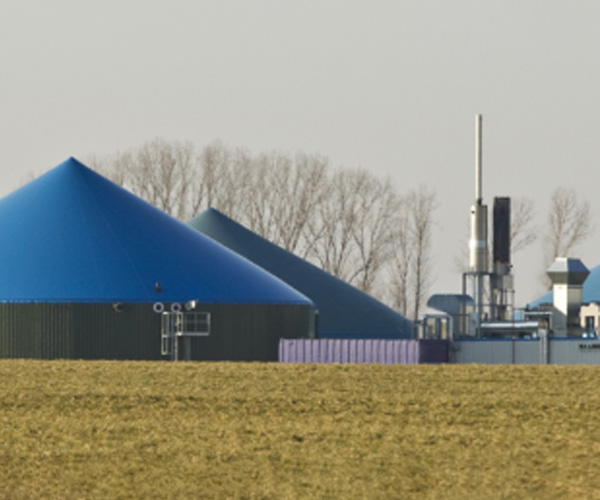

Biogas / Landfill / CHP / Syngas
-
Portable and stationary biogas analysers to monitor the quality and biogas composition of different biogas sites.

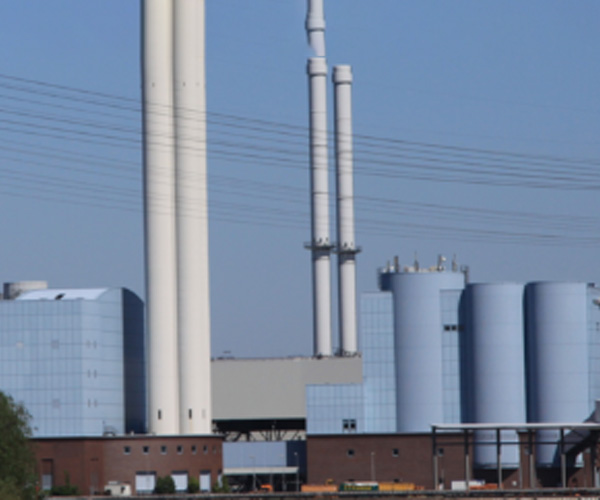

Power plants
-
Portable and stationary gas analysers to check and/or continuous monitor emissions or combustions at power plants.
Gas Turbines / Compressor Stations
-
Portable and stationary gas analysers to check and/or continuous monitor emissions at gas turbines or compressor stations.

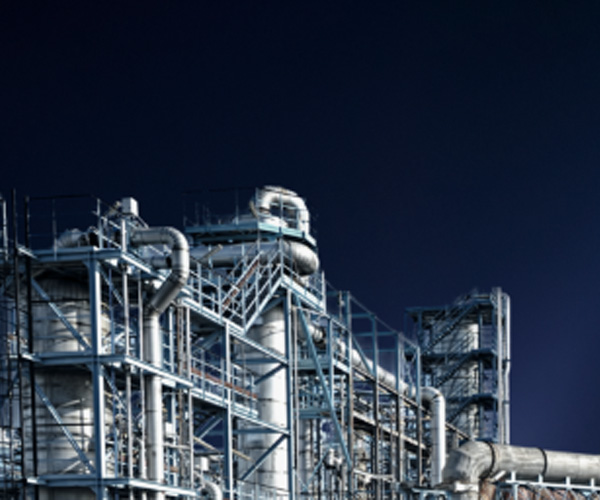

Refineries / Petrochemie
-
Portable and stationary gas analysers to check and/or continuous monitor emissions and combustion process in the hazardous area zone 2.

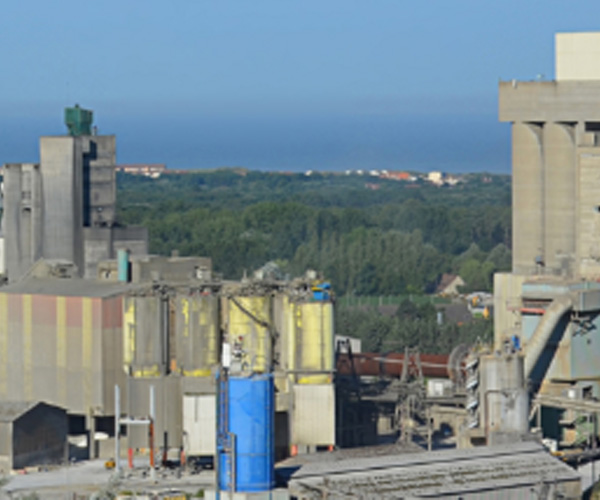

Cement industry
-
Portable and stationary gas analysers to check and/or continuous monitor emissions and combustion process in the hazardous area zone 2.
Iron / Steel Industry
-
Portable and stationary gas analysers to check and/or continuous monitor emissions at steel mills.
Automotive Exhaust Gas Analysis
-
Compact and lightweight automotive exhaust gas analysis with NDIR technology. Suitable for local control measurements, fast and mobile use.
Universities / Laboratories / Research
-
Portable and stationary gas analysers for industrial applications of all kinds.
hydrogen - analysis
-
Portable gas analysers, especially suitable for H2-Analysis
Analysers for industrial vehicles
-
The low-cost, compact solution just for CO - measurements at gas-powered industrial vehicles
