With the development of our first high-performance industrial robots in the 1960's, NACHI proved its high innovative abilities in the field of automation. Since then, NACHI has continuously increased its range of industrial robots.
Today, NACHI provides customized automation solutions with robots for all application areas. Whether loading/unloading of machine tools and injection molders or spot and seam welding in the automotive and steel construction industries, picking, packaging, and palletizing of all kinds of components, as well as positioning and assembling small components in electronics manufacturing.
Nachi's new robot, CZ10, has several people-friendly functions and structures.
Makes it easier to install a robot with various applications.
Collaborative people-friendly design
Nachi's new robot, CZ10, has several people-friendly functions and structures.
Makes it easier to install a robot with various applications.
Stops safely when contact is made with person.
Stops when collision is detected.
Easy Programming
Pinch Points Eliminated.
All specifications subject to change without notice.
Max. reach: | 1300mm |
Payload: | 10kg |
Axes: | 6 |
Repeatability: | ±0.1mm |
Protection Rating Body: | IP54 |
Space-saving thanks to overhead drive with vertical movement of the first axis. Requires no floor space. Highly dynamic axis movements for productive and efficient mounting and installing in electric and electronics manufacturing. Simple and collision-free programming thanks to internal cable and hose runs and hollow wrists.
Max. reach: | 450mm |
Payload: | 2kg (1kg rated) |
Axes: | 6 |
Repeatability: | ±0.02mm |
Protection Rating Body: | IP20 |
Max. reach: | 450mm |
Payload: | 2kg (1kg rated) |
Axes: | 6 |
Repeatability: | ±0.02mm |
Protection Rating Body: | IP20 |
Max. reach: | 450mm |
Payload: | 3kg (2kg Rated) |
Axes: | 4 |
Repeatability: | ±0.014mm |
Protection Rating Body: | IP20 |
Max. reach: | 450mm |
Payload: | 3kg (2kg Rated) |
Axes: | 4 |
Repeatability: | ±0.014mm |
Protection Rating Body: | IP20 |
MR series
Flexible and complex positioning and motion can be available by 7-axes structure.
Minimizing installation space.
7-axes structure
Flexible and complex positioning and motion can be available by 7-axes structure.
Compact body, powerful arm
Minimizing installation space.
Payload 20kg MAX 30kg
Max. reach: | 1260mm |
Payload: | 20kg |
Axes: | 7 |
Repeatability: | ±0.06mm |
Protection Rating Body: | IP65 |
Max. reach: | 1398mm |
Payload: | 20kg |
Axes: | 7 |
Repeatability: | ±0.06mm |
Protection Rating Body: | IP65 |
Max. reach: | 2050mm |
Payload: | 35kg |
Axes: | 7 |
Repeatability: | ±0.07mm |
Protection Rating Body: | IP67 |
Max. reach: | 2050mm |
Payload: | 50kg |
Axes: | 7 |
Repeatability: | ±0.07mm |
Protection Rating Body: | IP67 |
World’s fastest lightweight compact robot
The MZ series are the world’s fastest lightweight compact robots. These robots are available in dust-proof and drip-proof specifications, with multiple installation orientations that provide flexibility to automate a variety of processes for an all-round compact high-performance robot.
The hollow wrist construction for the MZ series includes an internal path for wiring, which provides a streamlined profile for working in confined spaces.The MZ25, which has a vast workspace, is the latest addition to the MZ series.
This high-speed and precise robot was designed with advanced CAD tools for a very lightweight, but strong, rigid structure, which helps improve cycle time by 12%
Max. reach: | 350mm |
Payload: | 1kg |
Axes: | 6 |
Repeatability: | ±0.02mm |
Protection Rating Body: | IP40 |
Max. reach: | 1102mm |
Payload: | 3.5kg |
Axes: | 6 |
Repeatability: | ±0.03mm |
Protection Rating Body: | IP67 |
Max. reach: | 541mm |
Payload: | 4kg |
Axes: | 6 |
Repeatability: | ±0.02mm |
Protection Rating Body: | IP40 (IP67) |
Max. reach: | 723mm |
Payload: | 7kg |
Axes: | 6 |
Repeatability: | ±0.02mm |
Protection Rating Body: | IP67 |
Max. reach: | 723mm |
Payload: | 7kg |
Axes: | 6 |
Repeatability: | ±0.015mm |
Protection Rating Body: | IP67 |
Max. reach: | 912mm |
Payload: | 7kg |
Axes: | 6 |
Repeatability: | ±0.03mm |
Protection Rating Body: | IP67 |
Max. reach: | 912mm |
Payload: | 7kg |
Axes: | 6 |
Repeatability: | ±0.02mm |
Protection Rating Body: | IP67 |
Max. reach: | 723mm |
Payload: | 10kg |
Axes: | 6 |
Repeatability: | ±0.03mm |
Protection Rating Body: | IP67 |
Max. reach: | 1202mm |
Payload: | 10kg |
Axes: | 6 |
Repeatability: | ±0.025mm |
Protection Rating Body: | IP67 |
Max. reach: | 1454mm |
Payload: | 12kg |
Axes: | 6 |
Repeatability: | ±0.04mm |
Protection Rating Body: | IP67 |
Max. reach: | 1454mm |
Payload: | 12kg |
Axes: | 6 |
Repeatability: | ±0.04mm |
Protection Rating Body: | IP67 |
Max. reach: | 1882mm |
Payload: | 25kg |
Axes: | 6 |
Repeatability: | ±0.05mm |
Protection Rating Body: | IP67 |
Wide envelope and environment protection makes the MC-series a valuable robot for various kind of manufacturing processes.
Easy installation by compact design, and powerful wrist supports to transfer large or heavy works.
Suitable for various purpose.
Wide envelope and environment protection makes MC-series a valuable robot for various kind of manufacturing processes.
Compact design
Easy installation by compact design, and powerful wrist supports to transfer large or heavy works.
Max. reach: | 1722mm |
Payload: | 20 (max. 22) kg |
Axes: | 6 |
Repeatability: | ±0.06mm |
Protection Rating Body: | IP65 |
Max. reach: | 2050mm |
Payload: | 35kg |
Axes: | 6 |
Repeatability: | ±0.07mm |
Protection Rating Body: | IP54 (Option: IP65/67) |
Max. reach: | 2050mm |
Payload: | 50kg |
Axes: | 6 |
Repeatability: | ±0.07mm |
Protection Rating Body: | IP54 (Option: IP65/67) |
Max. reach: | 2050mm |
Payload: | 70kg |
Axes: | 6 |
Repeatability: | ±0.07mm |
Protection Rating Body: | IP54 (Option: IP65/67) |
SRA Series
Ultra-fast spot welding robot
The ultimate spot welding robot. Using higher speeds and vibration damping properties, we greatly improved productivity by shortening cycle times by 30% (compared with our existing models). Improvements were made in three areas, weight reduction, higher rigidity, and faster controls.
The compact design allows for high-density installation layouts, and maintenance is streamlined, making periodic inspections and parts replacement easy. The lighter weight and latest in motor drive controls have reduced power consumption by 15% over existing models, reducing environmental impact.The hollow arm version of the shelf mount for the 166kg and 210kg are now available.
Max. reach: | 2654mm |
Payload: | 100kg |
Axes: | 6 |
Repeatability: | ±0.1mm |
Protection Rating Body: | IP54 |
Max. reach: | 2071mm |
Payload: | 100kg |
Axes: | 6 |
Repeatability: | ±0.1mm |
Protection Rating Body: | IP5 |
Max. reach: | 2654mm |
Payload: | 100kg |
Axes: | 6 |
Repeatability: | ±0.1mm |
Protection Rating Body: | IP54 |
Max. reach: | 2044mm |
Payload: | 100kg |
Axes: | 6 |
Repeatability: | ±0.1mm |
Protection Rating Body: | IP54 |
Max. reach: | 1634mm |
Payload: | 100kg |
Axes: | 6 |
Repeatability: | ±0.1mm |
Protection Rating Body: | IP54 |
Max. reach: | 1634mm |
Payload: | 100kg |
Axes: | 6 |
Repeatability: | ±0.1mm |
Protection Rating Body: | IP54 |
Max. reach: | 3099mm |
Payload: | 120kg |
Axes: | 6 |
Repeatability: | ±0.15mm |
Protection Rating Body: | IP54 |
Max. reach: | 2654mm |
Payload: | 133kg |
Axes: | 6 |
Repeatability: | ±0.1mm |
Protection Rating Body: | IP54 |
Max. reach: | 2951mm |
Payload: | 133kg |
Axes: | 6 |
Repeatability: | ±0.15mm |
Protection Rating Body: | IP54 |
Max. reach: | 2951mm |
Payload: | 133kg |
Axes: | 6 |
Repeatability: | ±0.15mm |
Protection Rating Body: | IP54 |
Max. reach: | 2654mm |
Payload: | 166kg |
Axes: | 6 |
Repeatability: | ±0.15mm |
Protection Rating Body: | IP54 |
Max. reach: | 2654mm |
Payload: | 166kg |
Axes: | 6 |
Repeatability: | ±0.1mm |
Protection Rating Body: | IP54 |
Max. reach: | 3087mm |
Payload: | 166kg |
Axes: | 6 |
Repeatability: | ±0.1mm |
Protection Rating Body: | IP54 |
Max. reach: | 2951mm |
Payload: | 166kg |
Axes: | 6 |
Repeatability: | ±0.15mm |
Protection Rating Body: | IP54 |
Max. reach: | 3086mm |
Payload: | 166kg |
Axes: | 6 |
Repeatability: | ±0.1mm |
Protection Rating Body: | IP54 |
Max. reach: | 3383mm |
Payload: | 166kg |
Axes: | 6 |
Repeatability: | ±0.15mm |
Protection Rating Body: | IP54 |
Max. reach: | 2674mm |
Payload: | 210kg |
Axes: | 6 |
Repeatability: | ±0.15mm |
Protection Rating Body: | IP54 |
Max. reach: | 2654mm |
Payload: | 210kg |
Axes: | 6 |
Repeatability: | ±0.15mm |
Protection Rating Body: | IP54 |
Max. reach: | 3087mm |
Payload: | 210kg |
Axes: | 6 |
Repeatability: | ±0.15mm |
Protection Rating Body: | IP54 |
Max. reach: | 3106mm |
Payload: | 210kg |
Axes: | 6 |
Repeatability: | ±0.15mm |
Protection Rating Body: | IP54 |
Max. reach: | 2575mm |
Payload: | 220kg |
Axes: | 6 |
Repeatability: | ±0.15mm |
Protection Rating Body: | IP54 |
Max. reach: | 2575mm |
Payload: | 220kg |
Axes: | 6 |
Repeatability: | ±0.15mm |
Protection Rating Body: | IP54 |
Max. reach: | 2674mm |
Payload: | 240kg |
Axes: | 6 |
Repeatability: | ±0.2mm |
Protection Rating Body: | IP54 |
Max. reach: | 2792mm |
Payload: | 250kg |
Axes: | 6 |
Repeatability: | ±0.2mm |
Protection Rating Body: | IP54 |
Max. reach: | 3972mm |
Payload: | 1000kg |
Axes: | 6 |
Repeatability: | ±0.3mm |
Protection Rating Body: | IP54 |
Max. reach: | 3101mm |
Payload: | 280kg |
Axes: | 6 |
Repeatability: | ±0.2mm |
Protection Rating Body: | IP54 |
Max. reach: | 2771mm |
Payload: | 350kg |
Axes: | 6 |
Repeatability: | ±0.2mm |
Protection Rating Body: | IP54 |
Max. reach: | 3756mm |
Payload: | 400kg |
Axes: | 6 |
Repeatability: | ±0.3mm |
Protection Rating Body: | IP54 |
Max. reach: | 2890mm |
Payload: | 600kg |
Axes: | 6 |
Repeatability: | ±0.3mm |
Protection Rating Body: | IP54 |
Max. reach: | 2890mm |
Payload: | 700kg |
Axes: | 6 |
Repeatability: | ±0.3mm |
Protection Rating Body: | IP54 |

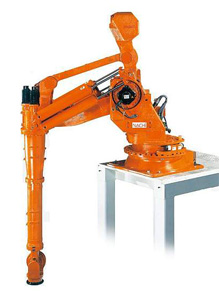

LP series
High performance based on the large capacity motor and the enhanced optimized motion control.
Improvement of 20% compared with the conventional model.
High-speed handling
1,800 packages per hour at maximum. (for 130kg loads)
(Improvement of 20% compared with the conventional model.
High performance based on the large capacity motor and the enhanced optimized motion control
* Motion pattern: 400mm in vertical direction, 2,000mm in horizontal direction and 60 degree in swivel movement.
Flexible palletizing
Flexible layout of work-piece of various shapes/sizes due to the wide operation range (Pallet area size: 1,600mm squares and the hight is up to 2,212mm)
Hadling with suitable hand (option) for the work-piece is available
Compact layout
The large motion range and the space saving design reducing the interference amount realize the compact and flexible design of the equipments.
Easy operation
Easy setup due to an interactive interface.
Easy programming by interactive program generator.
Max. reach: | 3210mm |
Payload: | 130kg |
Axes: | 4 |
Repeatability: | ±0.3mm |
Protection Rating Body: | IP54 |
Max. reach: | 3210mm |
Payload: | 180kg |
Axes: | 4 |
Repeatability: | ±0.4mm |
Protection Rating Body: | IP54 |
Max. reach: | 3210mm |
Payload: | 210kg |
Axes: | 4 |
Repeatability: | ±0.4mm |
Protection Rating Body: | IP54 |

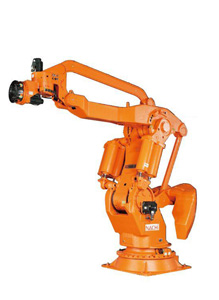

MC palletizing series
High speed Heavy payload by the Hollow wrist structure.
Heavy loader palletizing
High speed Heavy payload by the Hollow wrist structure
This robot has enough lifting power to handle jobs loading and stacking beverages, bricks, plastic resins, concrete and other heavy goods.
Max. reach: | 2771mm |
Payload: | 470kg |
Axes: | 6 |
Repeatability: | ±0.2mm |
Protection Rating Body: | IP54 |
Max. reach: | 3756mm |
Payload: | 500kg |
Axes: | 5 |
Repeatability: | ±0.3mm |
Protection Rating Body: | IP54 |
MC Heavy Loader Series
Heavy loader robot
With high wrist torque and large operating envelope, these robots are opening up a new era of heavy loading robots.Simple construction has no counterweights or parallel linkage on MC350 and MC280L models.
Compact arm design requires minimal installation space for a heavy payload robot. Welding cables and hoses routed inside hollow arms provide excellent life.
Max. reach: | 3101mm |
Payload: | 280kg |
Axes: | 6 |
Repeatability: | ±0.2mm |
Protection Rating Body: | IP54 |
Max. reach: | 2771mm |
Payload: | 350kg |
Axes: | 6 |
Repeatability: | ±0.2mm |
Protection Rating Body: | IP54 |
Max. reach: | 3756mm |
Payload: | 400kg |
Axes: | 6 |
Repeatability: | ±0.3mm |
Protection Rating Body: | IP54 |
Max. reach: | 2771mm |
Payload: | 470kg |
Axes: | 6 |
Repeatability: | ±0.2mm |
Protection Rating Body: | IP54 |
Max. reach: | 3756mm |
Payload: | 500kg |
Axes: | 5 |
Repeatability: | ±0.3mm |
Protection Rating Body: | IP54 |
Max. reach: | 2890mm |
Payload: | 600kg |
Axes: | 6 |
Repeatability: | ±0.3mm |
Protection Rating Body: | IP54 |
Introducing the intelligent robot controller based on Windows.

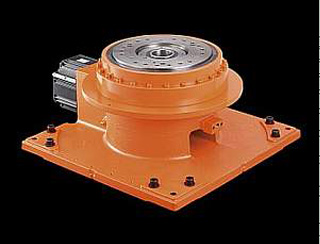

Robots and additional axis are easy to operate by using the teach pendant.
Vision and force sensors, as well as networks, are managed in one place.
Basic specifications for controller
Item | Specifications |
---|---|
Controllable axes | 6 |
Maximum controllable axes | 8 |
External dimensions [mm] | 300 (W) × 600 (D) × 1050 (H) |
Max. I/O | 2048 |
Maximum programmes | 9999 |
Position reader | Absolute encoder |
Protection rating | IP54 |
Power supply | three-phase 400 V, AC |
Ambient temperature/humidity | 0 to 40°C (50/60Hz) / 20 to 85% (without condensation) |
Robot monitoring function | PL d (Cat. 3), optional: PL e |
Basic specifications for controller
Item | Specifications |
---|---|
Controllable axes | 6 |
Maximum controllable axes | 8 |
External dimensions [mm] | 580 (W) × 542 (D) × 1180 (H) |
Max. I/O | 2048 |
Maximum programmes | 9999 |
Position reader | Absolute encoder |
Protection rating | IP54 |
Power supply | three-phase 400 V, AC |
Ambient temperature/humidity | 0 to 40°C/20 to 85% (without condensation) |
Robot monitoring function | PL d (Cat. 3), optional: PL e |
Basic specifications for controller
Item | Specifications |
---|---|
Controllable axes | 6 |
Maximum controllable axes | 7 |
External dimensions [mm] | 369 (W) × 490 (D) × 250 (H) |
Max. I/O | 2048 |
Maximum programmes | 9999 |
Protection rating | IP20 |
Power supply | one-phase 230 V, AC |
Ambient temperature/humidity | 0 bis 40°C/20 bis 85% (without condensation) |
Robot monitoring function | PL d (Cat. 3), optional: PL e |
Basic specifications for controller
Item | Specifications | ||
---|---|---|---|
Model | CFDL1-0000 | CFDL2-0000 | CFDL4-0000 |
Maximum controllable units | 1 | 2 | 4 |
Maximum controllable axes | 6 axes/unit | ||
External dimensions [mm] | 369 (W) × 490 (D) × 250 (H) | 369 (W) × 560 (D) × 327 (H) | |
Protection rating | IP20 | ||
Power supply | one-phase 230 V, AC | ||
Ambient temperature/humidity | 0 to 40°C (50/60 Hz) / 20 to 85% (without condensation) |
