  • Offer Profile
  • AMI Förder- und Lagertechnik GmbH is one of the leading providers of high performance conveyors for material handling, from incoming goods to production, picking and final inspection to despatch. Our product range stretches from light conveyors to heavy-duty conveyors for loads of up to 2,500 kg.

    To you, this means that planning, engineering, production and installation of ma-chines and equipment are all provided from one single source. Based on detailed analyses, we plan and produce turnkey conveyor systems or upgrade existing equipment. Intensive and continuous consultation throughout the project is a matter of course.
Product Portfolio
  • INTRALOGISTICS / CONVEYOR SYSTEMS

  • Ultimately, having a design that matches up with customer requirements is key to creating a material flow system or complete intralogistics system that functions as a single unit. Components must be precisely matched to the conveyor task at hand - whether manual or power-operated - and combined to achieve efficiency and good overall productivity. The modular AMI component range includes a comprehensive spectrum of manual and power-operated conveyor technology components for transporting lightweight and heavy goods. This perfectly adapted modular system can be used to meet diverse requirements efficiently, economically, and with the right degree of automation. The possibilities offered by its modular design, and the ability to expand or adapt conveyor systems at any time - for instance if the customer's product range is expanded - help meet the operator's need for a sustainable long-term investment.
      • COMPLETE SOLUTIONS

      • With more than 200 employees, the company develops, plans, produces and implements individual components and complete intralogistics solutions. Supported by appropriate software solutions, AMI takes the requirements of digitalization into account.

        The high vertical range of manufacture of over 87% also enables AMI to deliver at any time and to respond to individual customer requirements. In addition, our portfolio includes robot-assisted units for manufacturing and assembly as well as fully automated production lines for a wide range of industrial applications. Realized projects in numerous European and non-European countries also show the way of AMI into international user markets of intralogistics.

      • COMPONENTS

      • Our components for your success - manual and powered conveyor technology

        • Manual light conveyor technology
        • Powered light conveyor technology
        • Manual heavy duty conveyor
        • Driven heavy load conveying technology
        • Automation technology

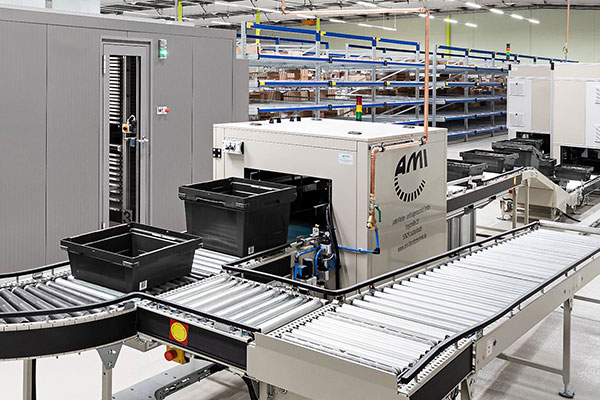

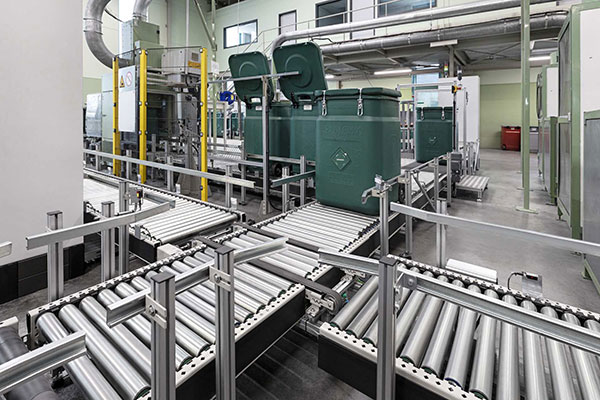

      • LIGHT-DUTY CONVEYOR SYSTEMS

      • Innovative solutions for production and shipping

        AMI's light materials handling product range offers an extensive assortment of manual and powered components, as well as subsystems for designing an efficient material flow for light goods. The portfolio ranges from manual roller conveyors to powered belt and roller conveyors and vertical conveyors.

        Wherever production processes and shipping procedures need to be designed efficiently and economically, components and systems from AMI's light materials handling technology are the right choice/target. With the special conveyor technology for light goods - transported in totes or cartons - intralogistics processes can be optimized in almost all industries, for example in mechanical engineering, in the automotive industry, in medical technology, in pharmaceutical trade as well as in e-commerce and in the paper, plastics industry.

        Like all AMI materials handling systems and plants, light materials handling technology is based on a sophisticated modular system of components, modules as well as intelligent control systems and a wide range of standardized accessories.

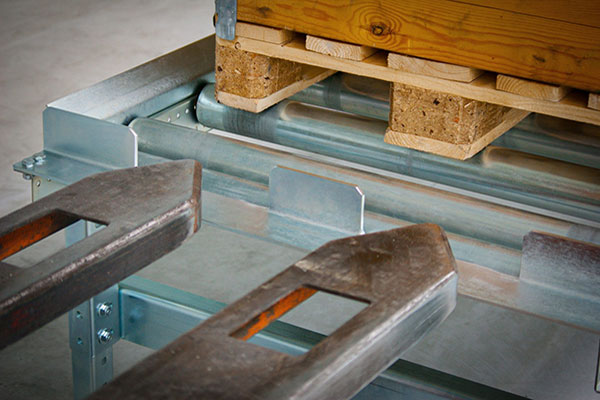

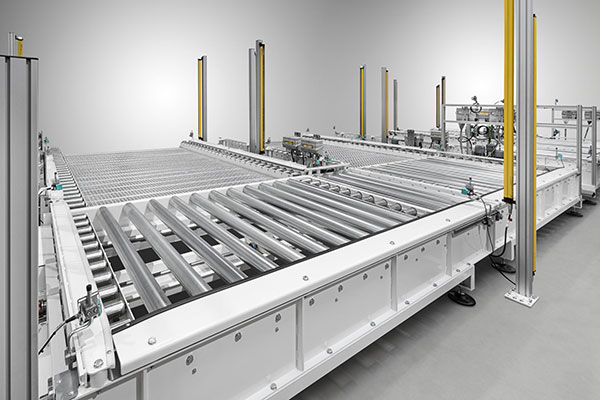

      • HEAVY-DUTY CONVEYOR SYSTEMS

      • Transporting heavy loads remains a unique challenge for conveyor technology. We implement the operator's transportation needs using the right conveyor technology, based on the weight, dimensions and properties of the goods to be transported. Frequently, this involves complex sets of requirements that our planners and designers use to develop the best and most efficient system possible.

        Frequently, we are able to create individual systems and complete equipment for transporting heavy cargo using standard components from the modular AMI system. The spectrum of conveyed goods ranges from loaded pallets to pallet boxes to containers and special load carriers. Thanks to our high degree of vertical integration, we can go beyond the standard to meet individual requirements and create even complex systems to transport heavy cargo, with components developed in-house. Maintaining ongoing delivery capabilities, outstanding quality and system availability is our mission.

        Our heavy-duty conveyor systems are used, for instance, in the automotive industry, in mechanical engineering and in many other industries and areas of production and warehousing.

      • AUTOMATISIERUNG

      • Digitalization is advancing rapidly. At the same time, the complexity of processes and systems in production and intralogistics is increasing. In order to be able to exploit the potential offered here, the networking of all partially and fully automated systems involved in the internal value chain is an important prerequisite. The exchange of data between components of conveyor and storage technology as well as robot-supported systems, such as those used in order picking, palletizing or handling in production, is a key element in this context.

      • EFFICIENT STORAGE

      • OPTIMIZED STORAGE DENSITY

        All stored goods have individual storage locations and can be stored and retrieved as quickly as possible thanks to direct access "No need to relocate".

        Due to the intelligent, flexible and automatically adjustable height design, a very efficient usable volume of the warehouse is achieved. Orders can be picked and staged completely on load carriers if required. Simple manual stock removal is also possible in the event of a power failure.

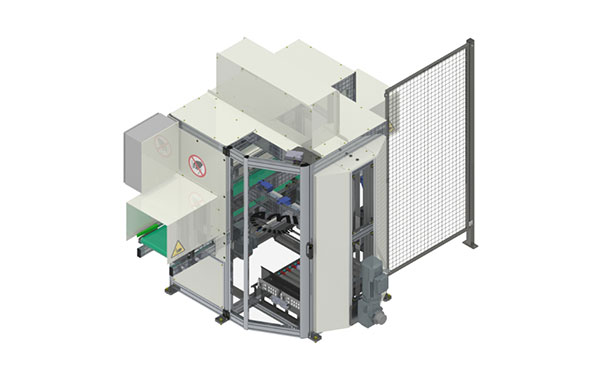

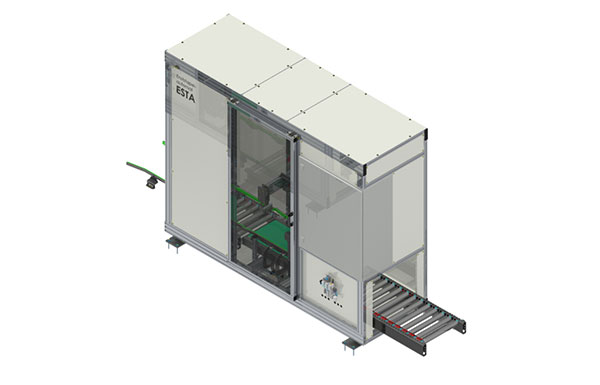

    • SYSTEM SOLUTION FOR YOUR AUTOMATION

    • Digitalization is advancing rapidly. At the same time, the complexity of processes and systems in production and intralogistics is increasing. In order to be able to exploit the potential offered here, the networking of all partially and fully automated systems involved in the internal value chain is an important prerequisite. The exchange of data between components of conveyor and storage technology as well as robot-supported systems, such as those used in order picking, palletizing or for handling in production, is an elementary part of this.

      In order to find the right level of automation for the respective project requirements, we work together with our customers to develop the right and consistently effective automation solution from a single source. In this way

      In this way, high performance and efficiency can be generated from an intralogistics system or a material flow system in the manufacturing industry that is implemented with the appropriate components and subsystems. In addition, unnecessary interfaces are avoided and maximum flexibility is achieved.

      The interaction of modern control technologies with our innovative components of conveyor and storage technology - also on individual customer request - stands for this as well as the possible connection to our Warehouse Logistics Solution software AMI WLS-4.0.

      • EFFICIENT STORAGE

      • All stored goods have individual storage locations and can be stored and retrieved as quickly as possible through direct access "No transfer necessary".

        Due to the intelligent, flexible and automatically adjustable height design, a very efficient usable volume of the warehouse is achieved. Orders can be picked and staged completely on load carriers if required. Simple manual stock removal is also possible in the event of a power failure.

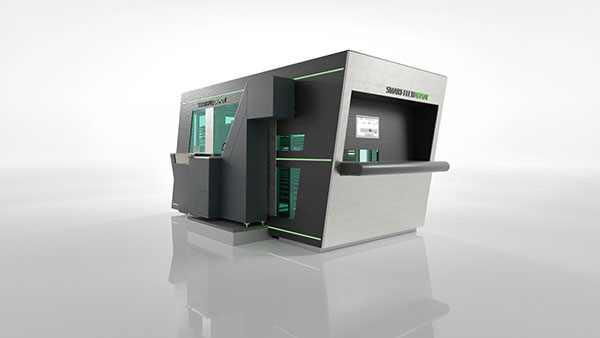

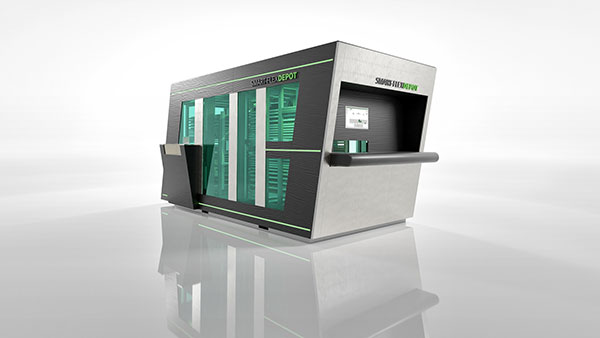

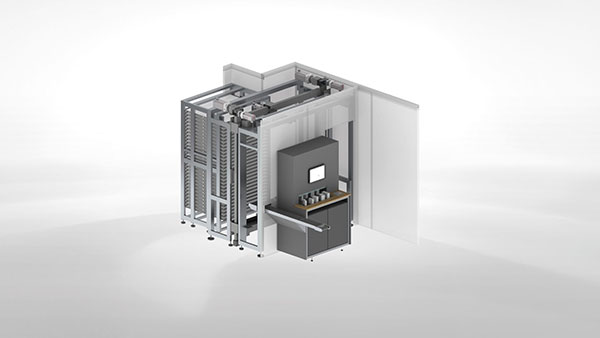

          • SMART-FLEXDEPOT

          • Intelligent, flexible storage and picking with highest useful volume and resulting storage density.

            The intelligent, flexible and automatically adjustable height design achieves the highest usable storage volume currently available on the market.

            With the SMART-FLEXDEPOT, the entire drawer is filled as a useful storage area. All stored goods have individual storage locations and can be stored and retrieved as quickly as possible through direct access - thus eliminating the need for time-consuming relocation.

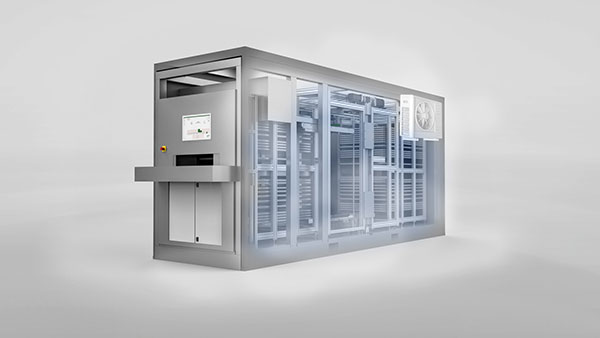

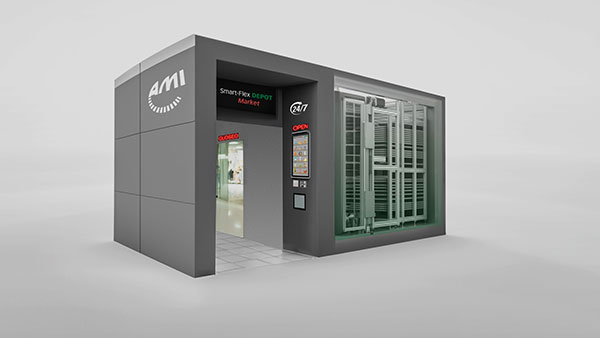

          • CUSTOM SMART-FLEXDEPOT

          • EFFICIENT USABLE VOLUME

            Based on chaotic storage, maximum storage capacity is achieved with an absolutely small footprint - no more transferring of stock is necessary. Storage optimization is automatic. Thanks to the intelligent, flexible and automatically adjustable height design, a very efficient storage useful volume is achieved. Orders can be picked and staged completely on load carriers if required. Simple manual removal of stored goods is possible at any time, even in the event of a malfunction.

            The latest air conditioning technology is used in our product to ensure a constant temperature in an energy-efficient manner.

            Available in low operating temperatures without any problems!

        • OUR COMPONENTS

        • Each conveyor system, and each intralogistics system, is only as good as the individual components it contains. This is the foundation of the mission we at AMI have made our own. With our system components, we can bring a high level of efficiency to your material flow. AMI offers a high degree of vertical integration at 87 percent, outstanding “Made in Germany” product quality, a modern machine fleet and a well-trained team of employees.

          AMI components and modules for intralogistics are in use across sectors in many different departments for small and mid-sized industry and trading companies, as well as in large companies. Our system modules offer you an extensive range of power-operated components such as roller conveyors, curved roller conveyor sections, converters, push units, belt conveyors, vertical conveyors and power-operated accordion roller conveyors. In addition, technical information on the products allows customers to directly select the right components. Integrated into your intralogistics systems, AMI components can be used to transport your products, such as cardboard boxes, containers and empty drink crates reliably and efficiently.

          With proven system accessories such as supports lateral guides and end stops, customers can design a system for almost any application easily and economically.

            • MANUAL LIGHT CONVEYOR TECHNOLOGY

                • Omni wheel conveyor ASRB48-3-70 / ASRB48-4-70

                • The all-side roller conveyor ASRB 48-3-70 / ASRB 48-4-70 is used, for example, for use at working/picking stations or for installation in roller conveyor systems.
                  The use of all-side roller conveyors allows products with a fixed base to be flexibly changed in their conveying direction very easily by manual operation.

                  • Load capacity (max.)
                    75 kg/m* (max.)
                  • ambient temperature
                    0 to + 50°C
                  • Roller pitch A
                  • 37,5 / 50 mm
                  • Clamping length A
                    300 - 450 mm (in 50 mm steps)
                  • Roller pitch B
                    62.5 / 75 / 100 / 125 / 150 / 200 mm
                  • Clamping length B
                    300 - 800 mm (in 50 mm steps)
                  • roller track length
                    each multiple of the roller pitch (min. 2x) up to max. 3.000 mm
                  • role type
                    all-side roller
                  • roll diameter
                    48 mm
                  • roll material
                    plastic
                  • variants
                    3 or 4 ton rolls
                  • U-profile frame
                    20/60/20x2 mm, galvanised steel**, profile height 60 mm, top edge of roll is 9 mm above U-profile frame

                  *Surface load: guide values for NB 300, 2 supports and pitch 62.5 mm
                  **other versions on request

                • Ball roller table KRT70

                • The KRT 130 ball roller table is used, for example, at work / picking stations or for installation in roller conveyor systems.
                  By using ball roller tables, products with a solid base can be flexibly changed in their conveying direction very easily by manual operation.

                  • Load capacity (max.)
                    KRT 15- Ø15 mm/ 120 kg /m² ; KRT 22- Ø22 mm/ 120 kg /m²
                  • ambient temperature
                    0 to + 50°C
                  • clamping lengths
                    300 - 1200 mm (in 50 mm steps)
                  • division of roles
                    Ball transfer unit Ø 15 50 / 62,5 / 75 / 100 / 125 / 150 / 200 mm
                  • division of roles
                    Ball transfer unit Ø 22 62,5 / 75 / 100 / 125 / 150 / 200 mm
                  • field lengths
                    min. 250 mm or 5 x ball pitch up to max. 3,000 mm, or a multiple of the ball pitch
                  • role type
                    Steel ball with sheet metal housing
                  • ball diameter
                    Ø 15 mm, Ø 22 mm
                  • disposition
                    straight or offset by 45
                  • superstructure
                    Sturdy sheet metal construction, depending on design galvanised steel, powder-coated or stainless steel
                  • U-profile frame
                    20 x 60 x 20 mm, galvanised steel**, profile height 60 mm. Also available as ball roller panel for retrofitting.

                  *Surface load: guide values for NB 300, span 1.5 m and pitch 62.5 mm.
                  **other versions on request

                • Ball roller table KRT130

                • The KRT 130 ball roller table is used, for example, at work / picking stations or for installation in roller conveyor systems.
                  By using ball roller tables, products with a solid base can be flexibly changed in their conveying direction very easily by manual operation.

                  • Load capacity (max.)
                    KRT 15- Ø15 mm/ 120 kg /m² ; KRT 22- Ø22 mm/ 120 kg /m²
                  • ambient temperature
                    0 to + 50°C
                  • clamping lengths
                    300 - 1200 mm (in 50 mm steps)
                  • division of roles
                    Ball transfer unit Ø 15 50 / 62,5 / 75 / 100 / 125 / 150 / 200 mm
                  • division of roles
                    Ball transfer unit Ø 22 62,5 / 75 / 100 / 125 / 150 / 200 mm
                  • field lengths
                    min. 250 mm or 5 x ball pitch up to max. 3.000 mm, or a multiple of 62,5
                  • role type
                    Steel ball with sheet metal housing
                  • ball diameter
                    Ø 15 mm, Ø 22 mm
                  • disposition
                    straight or offset by 45
                  • superstructure
                    Sturdy sheet metal construction, depending on design galvanised steel, powder-coated or stainless steel
                  • U-profile frame
                    36 x 120 x 36 mm, galvanised steel**, profile height 120 mm. Also available as ball roller panel for retrofitting.

                  *Surface load: guide values for NB 300, span 1.5 m and pitch 62.5 mm.
                  **other versions on request

                • Low friction roller conveyor LRB 20-62

                • The economical low-resistance roller conveyor LRB 20-62 is used for gravity-driven transport of small piece goods by means of gradients. The low friction roller conveyor LRB 20-62 is mostly used for manual order picking.

                  • Load capacity (max.)
                    PVC carrying rollers 30 kg/m*, steel carrying rollers 60 kg/m*, aluminium carrying rollers 60 kg/m*, aluminium carrying rollers 60 kg/m*.
                  • Required gradient
                    2-5%, depending on condition and weight
                  • ambient temperature
                    0 to +50 °C
                  • clamping length
                    200 - 500 mm (in 50mm steps)
                  • division of roles
                    25 mm
                  • Roller conveyor lengths
                    each multiple of the roller pitch (min. 2x) up to max. 3.000 mm
                  • role type
                    Smooth-running roller with plastic roller bearing
                  • roll diameter
                    20 mm
                  • roll material
                    galvanized steel, PVC, aluminium
                  • U-profile frame
                    20 x 60 x 20 mm, galvanised steel**, profile height 60 mm, top edge of roll is 1.5 mm above U-profile frame

                  *Surface load: guide values for NB 300, span width 1.5 m and pitch 25 mm
                  **other versions on request

                • Low friction roller conveyor LRB 30-63

                • The economical low-resistance roller conveyor LRB 30-63 is used for gravity-driven transport of small piece goods by means of gradients. The low friction roller conveyor LRB 30-63 is mostly used for manual order picking.

                  • Load capacity (max.)
                    PVC carrying castors 40 kg/m*, steel carrying castors 75 kg/m*, aluminium carrying castors 75 kg/m*
                  • Required gradient
                    2-5%, depending on condition and weight
                  • ambient temperature
                    0 to +50 °C
                  • clamping length
                    200 - 600 mm (in 50mm steps)
                  • division of roles
                    37,5 mm
                  • Roller conveyor lengths
                    each multiple of the roller pitch (min. 2x) up to max. 3.000 mm
                  • role type
                    Smooth-running roller with plastic roller bearing
                  • roll diameter
                    30 mm
                  • roll material
                    galvanized steel, PVC, aluminium
                  • U-profile frame
                    20 x 60 x 20 mm, galvanised steel**, profile height 60 mm, top edge of roll 3 mm above U-profile frame

                  *Surface load: guide values for NB 300, span 1.5 m and pitch 37.5 mm
                  **other versions on request

                • Low friction roller conveyor LRB 50-70

                • The economical low-resistance roller conveyor LRB 50-70 is used for gravity-driven transport of small piece goods by means of gradients. The low friction roller conveyor LRB 50-70 is mostly used for manual order picking.

                  • Load capacity (max.)
                    PVC carrying castors 75 kg/m*, steel carrying castors 120 kg/m*, aluminium carrying castors 120 kg/m*
                  • Required gradient
                    2-5%, depending on condition and weight
                  • ambient temperature
                    0 to + 50°C
                  • clamping lengths
                    200 - 800 mm (in 50 mm steps); for roll PVC/aluminium
                  • clamping lengths
                    200 - 1200 mm (in steps of 50 mm); roll galvanised steel
                  • division of roles
                    62.5 / 75 / 100 / 125 / 150 / 200 mm
                  • Roller conveyor lengths
                    each multiple of the roller pitch (min. 2x) up to max. 3.000 mm
                  • role type
                    Smooth-running roller with plastic roller bearing
                  • roll diameter
                    50 mm
                  • roll material
                    galvanized steel, PVC, aluminium
                  • U-profile frame
                    20 x 60 x 20 mm, galvanised steel**, profile height 60 mm, top edge of roll is 10 mm above U-profile frame

                  *Surface load: guide values for NB 300, span 1.5 m and pitch 62.5 mm
                  **other versions on request

                • Low friction roller conveyor LRB 50-100

                • The economical low friction roller conveyor LRB 50-100 is used for gravity-driven transport of small piece goods by means of gradients. The low friction roller conveyor LRB 50-100 is mostly used for manual order picking.

                  • Load capacity (max.)
                    PVC carrying castors 75 kg/m*, steel carrying castors 120 kg/m*, aluminium carrying castors 120 kg/m*
                  • Required gradient
                    2-5%, depending on condition and weight
                  • ambient temperature
                    0 to +50 °C
                  • clamping length
                    200 - 800 mm (in 50 mm steps); for roll PVC/aluminium
                  • clamping length
                    200 - 1200 mm (in steps of 50 mm); roll galvanized steel
                  • division of roles
                    62.5 / 75 / 100 / 125 / 150 / 200 mm
                  • Roller conveyor lengths
                    each multiple of the roller pitch (min. 2x) up to max. 3.000 mm
                  • role type
                    Smooth-running roller with plastic roller bearing
                  • roll diameter
                    50 mm
                  • roll material
                    galvanized steel, PVC, aluminium
                  • U-profile frame
                    20 x 100 x 20 mm, galvanised steel**, profile height 100 mm, roll top edge 30 mm under U-profile frame

                  *Surface load: guide values for NB 300, span 1.5 m and pitch 62.5 mm
                  **other versions on request

                • Light duty roller conveyor LRB 50-130

                • The optimum roller conveyor when the highest demands are placed on technical properties and optical quality. With an all-round closed C-profile and countersunk screw connections, it is the optimum roller conveyor for order picking. It can be seamlessly integrated into all environments and the AMI modular system allows a fast and cost-effective upgrade to a driven roller conveyor without accumulation pressure. The extensive range of system accessories allows individual adaptation to your requirements.

                  • Load capacity (max.)
                    PVC carrying castors 75 kg/m*, steel carrying castors 120 kg/m*, aluminium carrying castors 120 kg/m*
                  • Required gradient
                    2-5%, depending on condition and weight
                  • ambient temperature
                    0 to +50 °C
                  • clamping length
                    100 - 1200 mm (in 50mm steps)
                  • division of roles
                    62.5 / 125 / 187.5 / 250 mm
                  • Roller conveyor lengths
                    each multiple of the roller pitch (min. 2x) up to max. 3.000 mm
                  • role type
                    Smooth-running roller with plastic roller bearing
                  • roll diameter
                    50 mm
                  • roll material
                    galvanized steel, PVC, aluminium
                  • execution
                    The rollers can be supplied as smooth-running rollers or as a reinforced variant for later conversion to driven roller conveyors.
                  • U-profile frame
                    36 x 120 x 36 mm, powder-coated as required RAL colour**, profile height 120 mm, top edge of roll is 10 mm above U-profile frame

                  *Surface load: guide values for NB 300, span 1.5 m and pitch 62.5 mm
                  **other versions on request

                • Smooth running roller cam LRK 20-62

                • The economical low friction roller cam LRK 20-62 is used for gravity-driven transport of small piece goods by means of gradients. The low friction roller cam LRK 20-62 is the perfect complement to our low friction roller conveyor LRB 20-62.

                  • Load capacity (max.)
                    PVC carrying rollers 30 kg/m*, steel carrying rollers 60 kg/m*, aluminium carrying rollers 60 kg/m*, aluminium carrying rollers 60 kg/m*.
                  • Required gradient
                    2-5%, depending on condition and weight
                  • ambient temperature
                    0 to + 50°C
                  • clamping lengths
                    200 - 500 mm (in 50 mm steps)
                  • inside radius
                    450 mm / 800 mm
                  • division of roles
                    25 mm / 25 mm
                  • angles
                    30° / 45° / 60° / 90° ; 30,6° / 45° / 59,4° / 90°
                  • role type
                    Smooth-running roller with plastic roller bearing
                  • roll diameter
                    20 mm
                  • roll material
                    galvanized steel, PVC, aluminium
                  • U-profile frame
                    20 x 60 x 20 mm, galvanised steel**, profile height 60 mm, top edge of roll is 1.5 mm above U-profile frame

                  *Surface load: guide values for NB 300, 2 supports and 25 mm pitch
                  **other versions on request

                • Smooth running roller cam LRK 30-63

                • The economical low friction roller cam LRK 30-63 is used for gravity-driven transport of small piece goods by means of gradients. The low friction roller cam LRK 30-63 is the perfect complement to our low friction roller conveyor LRB 30-63.

                  • Load capacity (max.)
                    PVC carrying castors 40 kg/m*, steel carrying castors 75 kg/m*, aluminium carrying castors 75 kg/m*
                  • Required gradient
                    2-5%, depending on condition and weight
                  • ambient temperature
                    0 to + 50°C
                  • clamping lengths
                    200 - 600 mm (in 50 mm steps)
                  • inside radius
                    450 mm / 800 mm
                  • division of roles
                    37.5 mm / 37.5 mm
                  • angles
                    31,5° / 45° / 58,5° / 90° ; 30° / 45° / 60° / 90°
                  • role type
                    Smooth-running roller with plastic roller bearing
                  • roll diameter
                    30 mm
                  • roll material
                    galvanized steel, PVC, aluminium
                  • U-profile frame
                    20 x 60 x 20 mm, galvanised steel**, profile height 60 mm, top edge of roll 3 mm above U-profile frame

                  *Surface load: guide values for NB 300, 2 supports and 37.5 mm pitch
                  **other versions on request

                • Smooth running roller cam LRK 50-70

                • The LRK 50-70 economical low-friction roller cam is used for gravity-driven transport of small piece goods by means of gradients. The low friction roller cam LRK 50-70 is the perfect complement to our low friction roller conveyor LRB 50-70.

                  • Load capacity (max.)
                    PVC carrying castors 75 kg/m*, steel carrying castors 120 kg/m*, aluminium carrying castors 120 kg/m*
                  • Required gradient
                    2-5%, depending on condition and weight
                  • ambient temperature
                    0 to + 50°C
                  • clamping lengths
                    200 - 800 mm (in 50 mm steps)
                  • clamping lengths
                    200 - 1200 mm (in steps of 50 mm); roll galvanised steel
                  • inside radius
                    450 mm / 800 mm
                  • division of roles
                    39 mm / 62.5 mm
                  • angles
                    30° / 45° / 60° / 90° ; 31,5° / 45° / 58,5° / 90°
                  • role type
                    Smooth-running roller with plastic roller bearing
                  • roll diameter
                    50 mm
                  • roll material
                    galvanized steel, PVC, aluminium
                  • U-profile frame
                    20 x 60 x 20 mm, galvanised steel**, profile height 60 mm, top edge of roll is 10 mm above U-profile frame

                  *Surface load: guide values for NB 300, 2 supports and pitch 62.5 mm
                  **other versions on request

                • Smooth running roller cam LRK 50-100

                • The LRK 50-100 economical low-friction roller cam is used for gravity-driven transport of small piece goods by means of gradients. The low friction roller cam LRK 50-100 is the perfect complement to our low friction roller conveyor LRB 50-100.

                  • Load capacity (max.)
                    PVC carrying castors 75 kg/m*, steel carrying castors 120 kg/m*, aluminium carrying castors 120 kg/m*
                  • Required gradient
                    2-5%, depending on condition and weight
                  • ambient temperature
                    0 to + 50°C
                  • clamping lengths
                    200 - 800 mm (in 50 mm steps)
                  • clamping lengths
                    200 - 1200 mm (in steps of 50 mm); roll galvanised steel
                  • inside radius
                    450 mm / 800 mm
                  • division of roles
                    39 mm / 62.5 mm
                  • angles
                    30° / 45° / 60° / 90° ; 31,5° / 45° / 58,5° / 90°
                  • role type
                    Smooth-running roller with plastic roller bearing
                  • roll diameter
                    50 mm
                  • roll material
                    galvanized steel, PVC, aluminium
                  • U-profile frame
                    20 x 100 x 20 mm, galvanised steel**, profile height 100 mm, roll top edge 30 mm above U-profile frame

                  *Surface load: guide values for NB 300, 2 supports and pitch 62.5 mm
                  **other versions on request

                • Low friction roller conveyor LRO 48-70

                • The economical LRO 48-70 low-friction roller conveyor is used for gravity-driven transport of small piece goods by means of gradients.
                  The LRO 48-70 smooth-running roller conveyor is mostly used for manual order picking.

                  • Load capacity (max.)
                    PVC rolls 75 kg/m*, steel rolls 100 kg/m*
                  • Required gradient
                    2-5%, depending on condition and weight
                  • ambient temperature
                    0 to + 50°C
                  • clamping lengths
                    300 - 450 mm (in 50 mm steps)
                  • clamping lengths
                    300 - 800 mm (in 50 mm steps)
                  • division of roles
                    37.5 / 50 mm ; 62.5 / 75 / 100 / 125 / 150 / 200 mm
                  • Roller conveyor lengths
                    each multiple of the roller pitch (min. 2x) up to max. 3.000 mm;
                  • Roller type
                    Smooth-running wheels with mounted axle
                  • roll diameter
                    48 mm
                  • roll material
                    Galvanised steel, PVC
                  • U-profile frame
                    20 x 60 x 20 mm, galvanised steel**, profile height 60 mm, top edge of roll 9 mm above U-profile frame

                  *Surface load: guide values for NB 300, span 1.5 m and pitch 62.5 mm
                  **other versions on request

                • Low friction roller conveyor LRO 48-100

                • The economical LRO 48-100 smooth-running roller conveyor is used for gravity-driven transport of small piece goods by means of gradients.
                  The LRO 48-100 smooth-running roller conveyor is mostly used for manual order picking.

                  • Load capacity (max.)
                    PVC rolls 75 kg/m*, steel rolls 100 kg/m*
                  • Required gradient
                    2-5%, depending on condition and weight
                  • ambient temperature
                    0 to + 50°C
                  • clamping lengths
                    300 - 450 mm (in 50 mm steps)
                  • clamping lengths
                    300 - 800 mm (in 50 mm steps)
                  • division of roles
                    37.5 / 50 mm ; 62.5 / 75 / 100 / 125 / 150 / 200 mm
                  • Roller conveyor lengths
                    each multiple of the roller pitch (min. 2x) up to max. 3.000 mm;
                  • Roller type
                    Smooth-running wheels with mounted axle
                  • roll diameter
                    48 mm
                  • roll material
                    Galvanised steel, PVC
                  • U-profile frame
                    20 x 60 x 20 mm, galvanised steel**, profile height 100 mm, top edge of roll is 31 mm above U-profile frame

                  *Surface load: guide values for NB 300, span 1.5 m and pitch 62.5 mm
                  **other versions on request

                • Smooth-running roller curve LROK 48-70

                • The economical LROK 48-70 smooth-running roller curve is used for gravity-driven transport of small piece goods by means of gradients.
                  The low friction roller curve LROK 48-70 is the perfect complement to our low friction roller conveyor LRO 48-70.

                  • Load capacity (max.)
                    PVC rolls 75 kg/m*, steel rolls 100 kg/m*
                  • Required gradient
                    2-5%, depending on condition and weight
                  • ambient temperature
                    0 to + 50°C
                  • clamping lengths
                    300 - 450 mm (in 50 mm steps)
                  • clamping lengths
                    300 - 800 mm (in 50 mm steps)
                  • inside radius
                    800 mm / 800 mm
                  • division of roles
                    37.5 / 50 mm ; 62.5 / 75 / 100 / 125 / 150 / 200 mm
                  • angles
                    30° / 45° / 60° / 90° ; 31,5° / 45° / 58,5° / 90°
                  • role type
                    Smooth-running wheels with mounted axle
                  • roll diameter
                    48 mm
                  • roll material
                    Galvanised steel, PVC
                  • U-profile frame
                    20 x 60 x 20 mm, galvanised steel**, profile height 60 mm, top edge of roll 9 mm above U-profile frame

                  *Surface load: guide values for NB 300, 2 supports and pitch 62.5 mm
                  **other versions on request

                • Smooth-running roller curve LROK 48-100

                • The economical LROK 48-100 smooth-running roller curve is used for gravity-driven transport of small piece goods by means of gradients.
                  The low friction roller curve LROK 48-100 is the perfect complement to our low friction roller conveyor LRO 48-100.

                  • Load capacity (max.)
                    PVC rolls 75 kg/m*, steel rolls 100 kg/m*
                  • Required gradient
                    2-5%, depending on condition and weight
                  • ambient temperature
                    0 to + 50°C
                  • clamping lengths
                    300 - 450 mm (in 50 mm steps)
                  • clamping lengths
                    300 - 800 mm (in 50 mm steps)
                  • inside radius
                    800 mm / 800 mm
                  • division of roles
                    37,5 / 50 mm ; 62,5
                  • angles
                    30° / 45° / 60° / 90° ; 31,5° / 45° / 58,5° / 90°
                  • role type
                    Smooth-running wheels with mounted axle
                  • roll diameter
                    48 mm
                  • roll material
                    Galvanised steel, PVC
                  • U-profile frame
                    20 x 60 x 20 mm, galvanised steel**, profile height 100 mm, top edge of roll is 31 mm above U-profile frame

                  *Surface load: guide values for NB 300, 2 supports and pitch 62.5 mm
                  **other versions on request

              • MANUAL HEAVY DUTY CONVEYOR TECHNOLOGY

                  • Heavy duty roller conveyor SRB50

                  • The manual heavy-duty roller conveyor SRB50-85 is used for gravity-driven transport of heavy piece goods. The modular heavy-duty roller conveyor SRB50-85 can be adapted to the respective customer requirements by extensive AMI system accessories, e.g. side guides and end stops.

                    • Load capacity (max.)
                      250 kg/m* (max.)
                    • ambient temperature
                      0 to +30 °C
                    • clamping length
                      200 - 1000 mm (in 50mm increments)**
                    • division of roles
                      78 / 104 / 130 / 156 / 182 mm
                    • Roller conveyor lengths
                      max. 3,000 mm (a multiple of the roller pitch)
                    • role type
                      Carrying roller with metal carrying roller bearing
                    • roll diameter
                      50 mm
                    • roll material
                      Galvanised steel**
                    • U-profile frame
                      40/80/40 mm, galvanised steel**, profile height 60 mm, top edge of roll 5 mm above U-profile frame

                    *Surface load: guide values for NB 300, span 1.5 m and pitch 78 mm
                    **other versions on request

                  • Heavy duty roller conveyor SRB60

                  • The manual heavy-duty roller conveyor SRB60-90 is used for gravity-driven transport of heavy piece goods. The modular heavy-duty roller conveyor SRB60-90 can be adapted to the respective customer requirements by extensive AMI system accessories, e.g. side guides and end stops.

                    • Load capacity (max.)
                      600 kg/m* (max.)
                    • ambient temperature
                      0 to +30 °C
                    • clamping length
                      200 - 1100 mm (in 50mm increments)**
                    • division of roles
                      78 / 104 / 130 / 156 / 182 mm
                    • Roller conveyor lengths
                      max. 3,000 mm (a multiple of the roller pitch)
                    • role type
                      Carrying roller with metal carrying roller bearing
                    • roll diameter
                      60 mm
                    • roll material
                      Galvanised steel**
                    • U-profile frame
                      40/80/40 mm, galvanised steel**, profile height 60 mm, top edge of roll is 10 mm above U-profile frame

                    *Surface load: guide values for NB 300, span 1.5 m and pitch 78 mm
                    **other versions on request

                  • Heavy duty roller conveyor SRB80

                  • The manual heavy-duty roller conveyor SRB80-100 is used for gravity-driven transport of heavy unit loads. The modular heavy-duty roller conveyor SRB80-100 can be adapted to the respective customer requirements by extensive AMI system accessories, e.g. side guides and end stops.

                    • Load capacity (max.)
                      800 kg/m* (max.)
                    • ambient temperature
                      0 to +30 °C
                    • clamping length
                      200 - 1100 mm (in 50mm increments)**
                    • division of roles
                      104 / 130 / 156 / 182 mm
                    • Roller conveyor lengths
                      max. 3,000 mm (a multiple of the roller pitch)
                    • role type
                      Carrying roller with metal carrying roller bearing
                    • roll diameter
                      80 mm
                    • roll material
                      Galvanised steel**
                    • U-profile frame
                      40/80/40 mm, galvanised steel**, profile height 60 mm, top edge of roll 200 mm above U-profile frame

                    *Surface load: guide values for NB 300, span 1.5 m and pitch 78 mm
                    **other versions on request

                  • Pallet feeding segment PAS60

                  • The manual pallet loading station PAS-60 is used to load standard Euro pallets according to DIN EN 13698-1 with e.g. hand pallet trucks, electric pallet trucks or forklift trucks. The manual pallet loading station is also offered individually for other pallet types in other lengths and widths. It is the perfect complement for our manual heavy-duty roller conveyors. Alternatively, our product range also includes driven pallet feeding stations. Thanks to the extensive AMI system accessories, such as instructions, side guides and end stops, the modular manual pallet loading station 60 can be adapted to the respective customer requirements.

                    • Load capacity (max.)
                      1200 kg/m* (max.)
                    • ambient temperature
                      0 to +30 °C
                    • clamping length
                      872 / 1,272 mm**
                    • division of roles
                      78 / 104 / 130 / 156 / 182 mm
                    • Roller conveyor lengths
                      max. 3,000 mm (a multiple of the roller pitch)
                    • role type
                      Carrying roller with metal carrying roller bearing
                    • roll diameter
                      60 mm
                    • roll material
                      Galvanised steel**
                    • U-profile frame
                      40/80/40 mm, galvanised steel**, profile height 60 mm, top edge of roll is 10 mm above U-profile frame

                    *Surface load: guide values for NB 300, span 1.5 m and pitch 78 mm
                    **other versions on request

                  • Pallet removal segment PES60

                  • The manual pallet removal station 60 is used for the removal of standard Euro pallets according to DIN EN 13698-1 with e.g. hand pallet trucks, electric pallet trucks or forklift trucks. The manual pallet loading station is also offered individually for other pallet types in other lengths and widths. It is the perfect complement for our manual heavy-duty roller conveyors. Alternatively, our product range also includes driven pallet removal stations. Thanks to the extensive AMI system accessories, such as briefings,
                    The modular manual pallet removal station PES-60 can be adapted to the respective customer requirements by means of side guides and end stops.

                    • Load capacity (max.)
                      1200 kg/m* (max.)
                    • ambient temperature
                      0 to +30 °C
                    • clamping length
                      872 / 1,272 mm**
                    • division of roles
                      78 / 104 / 130 / 156 / 182 mm
                    • Roller conveyor lengths
                      max. 3,000 mm (a multiple of the roller pitch)
                    • role type
                      Carrying roller with metal carrying roller bearing
                    • roll diameter
                      60 mm
                    • roll material
                      Galvanised steel**
                    • U-profile frame
                      40/80/40 mm, galvanised steel**, profile height 60 mm, top edge of roll is 10 mm above U-profile frame

                    *Surface load: guide values for NB 300, span 1.5 m and pitch 78 mm
                    **other versions on request

                • POWERED LIGHT CONVEYOR TECHNOLOGY

                • Each conveyor system, and each intralogistics system, is only as good as the individual components it contains. This is the foundation of the mission we at AMI have made our own. With our system components, we can bring a high level of efficiency to your material flow. AMI offers a high degree of vertical integration at 87 percent, outstanding “Made in Germany” product quality, a modern machine fleet and a well-trained team of employees.

                  AMI components and modules for intralogistics are in use across sectors in many different departments for small and mid-sized industry and trading companies, as well as in large companies. Our system modules offer you an extensive range of power-operated components such as roller conveyors, curved roller conveyor sections, converters, push units, belt conveyors, vertical conveyors and power-operated accordion roller conveyors. In addition, technical information on the products allows customers to directly select the right components. Integrated into your intralogistics systems, AMI components can be used to transport your products, such as cardboard boxes, containers and empty drink crates reliably and efficiently.

                  With proven system accessories such as supports lateral guides and end stops, customers can design a system for almost any application easily and economically.

                    • Small belt conveyor KGF 65

                    • Small belt conveyor KGF65-KA
                      The small belt conveyor KGF65-KA has a head drive (K) and a slip-on gear (A). The KGF65-KA is used for the transport of mainly horizontal loads...

                      Small belt conveyor KGF65-KV
                      The small belt conveyor KGF65-KV has a head drive (K) and a primary reduction gearing (V). The KGF65-KV is used to transport mainly horizontal and horizontal loads.

                      Small belt conveyor KGF65-KT
                      The small belt conveyor KGF65-KT has a head drive (K) and a drum motor (T). The KGF65-KT is used to transport mainly horizontal and horizontal loads.

                      Small belt conveyor KGF65-MA
                      The small belt conveyor KGF65-MA has a central drive (M) and a slip-on gear (A). The KGF65-MA is used for the transport of mainly...

                      Small belt conveyor KGF65-MV
                      The small belt conveyor KGF65-MV has a central drive (M) and a primary reduction gearing (V). The KGF65-MV is used to transport mainly horizontal and horizontal conveyors....

                      Small belt conveyor KGF65-MT
                      The small belt conveyor KGF65-MT has a central drive (M) and a drum motor (T). The KGF65-MT is used for the transport of mainly horizontal loads...

                    • Belt conveyor GF 80

                    • Belt conveyor GF80-KA
                      The GF 80-KA belt conveyor has a head drive (K) with slip-on gear (A). The GF 80-KA is used for the transport of mainly horizontal and inclined loads.

                      Belt conveyor GF80-KT
                      The belt conveyor GF 80-KT has a head drive (K) with drum motor (T). The GF 80-KT is used for the transport of mainly horizontal and inclined loads.

                      Belt conveyor GF80-620-MI
                      The belt conveyor GF80-620-MI has a central drive (M) and an internal drive (I). The drive station has a clamping stroke of 620 mm. The GF 80-620-MI finds...

                      Belt conveyor GF80-620-MA
                      The GF 80-620-MA belt conveyor has a central drive (M) and a slip-on gear (A). The drive station has a clamping stroke of 620 mm. The GF 80-620-MA finds its...

                      Belt conveyor GF80-1300-MI
                      The belt conveyor GF 80-1300-MI has a central drive (M) and an internal drive (I). The drive station has a clamping stroke of 1300 mm. The GF80-1300-MI finds...

                      Belt conveyor GF80-1300-MA
                      The belt conveyor GF 80-1300-MA has a central drive (M) with slip-on gear (A). The drive station has a clamping stroke of 1300 mm. The GF80-1300-MA finds its...

                      Belt conveyor GF80-1980-MI
                      The belt conveyor GF 80-1980-MI has a central drive (M) and an internal drive (I). The drive station has a clamping stroke of 1980 mm. The GF80-1980-MI finds...

                      Belt conveyor GF80-1980-MA
                      The belt conveyor GF 80-1980-MA has a central drive (M) with slip-on gear (A). The drive station has a clamping stroke of 1980 mm. The GF80-1980-MA finds its...

                      Inclined belt conveyor SGF80-620-MI
                      The inclined belt conveyor SGF80-620-MI has a central drive (M) and an internal drive (I). The drive station has a clamping stroke of 620 mm. The GF 80-620-MI...

                    • Belt conveyor GF 90

                    • Belt conveyor GF90-KA
                      The GF 90-KA belt conveyor has a head drive (K) with slip-on gear (A). The GF 90-KA is used for the transport of mainly horizontal and inclined loads.

                      Belt conveyor GF90-KV
                      The belt conveyor GF 90-KV has a head drive (K) with primary reduction gearing (V). The GF 90-KV is used for the transport of mainly horizontal and inclined loads.

                      Belt conveyor GF90-MA
                      The GF 90-MA belt conveyor has a central drive (M) with slip-on gear (A). The GF 90-MA is used to transport mainly horizontal and horizontal loads.

                      Belt conveyor GF90-MV
                      The GF 90-MV belt conveyor has a central drive (M) with primary reduction gearing (V). The GF 90-MV is used for the transport of mainly horizontal and inclined loads.

                    • Roller conveyor (24V) ARF 50-130-MPÜ

                    • The driven roller conveyor ARF 50-130-MPÜ is equipped with a motor roller drive, which exaggerates further rollers by Poly-V belts. The conveyor is designed without protruding edges and screws. The idlers are fixed in the side walls with plastic clips and can therefore be removed and cleaned quickly and without tools. Due to the use of Motr rollers, the driven roller conveyor ARF 50-130-MPÜ is designed as a zero pressure accumulation conveyor as standard. The new technology enables accumulation without pneumatics and thus ensures flexible application possibilities. The stowage space lengths can be varied by using additional motor rollers. It is used for transporting goods to be conveyed horizontally, such as containers, piece goods, trays and cardboard boxes.

                      • Line load (max.): 50 kg / per stowage space*
                      • ambient temperature: +5 to +40 °C
                      • installation area: dry operation in closed rooms
                      • clamping length: 350 - 1050 mm (50 mm steps)
                      • division of roles: 60 / 90 / 120 / 150 mm
                      • conveying length: 120 - 3000 mm
                      • role type: Carrying roller with ball bearing / Poly-V drive head
                      • roll diameter: 50 mm
                      • roll material: Galvanised steel **
                      • Power of the drives: 40 W; connection 24 VDC
                      • Speeds (max.): max. 60 m/min at max. 35 kg / max. 48 m/min at max. 50 kg
                      • C-profile frame:
                        C-profile frame: 40 x 125 x 40 mm, powder-coated steel as required RAL colour**
                        Top edge of roll is 10 mm above profile frame

                      *Surface load: guide values for NB 350, span width 1.5 m and pitch 60 mm
                      **other version on request

                    • Roller conveyor curve (24V) ARK 50-130-MPÜ

                    • Powered roller conveyor curve ARK50-130-MPÜ is equipped with a poly-V belt overdrive, and has conical carrier rollers.

                      • Carrying capacity (max.): 50 kg / per accumulation zone*
                      • ambient temperature: +5 to +40 °C / Cooling zone available
                      • installation area: dry operation in enclosed facilities
                      • Width: 350 - 1050 mm (50 mm increments) **
                      • Rollers: 7 / 10 / 14 / 20 pcs
                      • Inner radius: 760 mm
                      • Angle: 30 / 45 / 60 / 90° **
                      • role type: Conical roller / Poly-V Head
                      • roll diameter: 50 mm, with conical plastic taper
                      • roll material: Galvanised steel with conical plastic taper
                      • Drive power : 40 W; Connection 24 VDC
                      • Speeds (max.): max. 60 m/min at max. 35 kg / max. 48 m/min at max. 50 kg
                      • Frame: C-Profile: 40/125/40x3 mm, powdercoated steel
                        Top edge of the roller is 5 mm above the profile frame**

                      *Surface load: Reference value at width NB 350, span 1.5 m and roller pitch 60 mm
                      **others on request

                    • Roller conveyor curve (24V) ARK 50-130-MRÜ

                    • Powered roller conveyor curve ARK50-130-MPÜ is equipped with a round belt overdrive and has conical carrier rollers.

                      • Carrying capacity (max.): 35 kg / per accumulation zone*
                      • ambient temperature: +5 to +40 °C / Cooling zone available
                      • installation area: dry operation in enclosed facilities
                      • Width: 350 - 1050 mm (50 mm increments) **
                      • Rollers: 7 / 10 / 14 / pcs
                      • Inner radius: 535 mm
                      • Angle: 30 / 45 / 60 / 90° **
                      • role type: Conical roller / Poly-V Head
                      • roll diameter: Conical roller / Round-belt Head
                      • roll material: Galvanised steel with conical plastic taper
                      • Drive power: 40 W; Connection 24 VDC
                      • Speeds (max.): max. 48 m/min at max. 35 kg
                      • Frame
                        C-Profile: 40/125/40x3 mm, powdercoated steel
                        Top edge of the roller is 5 mm above the profile frame**

                      *Surface load: Reference value at width NB 350, span 1.5 m and roller pitch 60 mm
                      **others on request

                    • Roller conveyor gate (24V) ARF 50-130KL-MPÜ

                      • Carrying capacity (max.): 50 kg / per accumulation zone*
                      • ambient temperature: +5 to +40 °C / Cooling zone available
                      • installation area: dry operation in enclosed facilities
                      • Width: 350 - 1050 mm (50 mm increments)
                      • Roller pitch: 60 / 90 / 120 / 150 mm
                      • conveyor lengths: max. 3000mm
                      • role type: Roller with ball bearing / Poly-V head
                      • roll diameter: 50 mm
                      • roll material: Galvanised steel**
                      • Power of the drives: 40 W; Connection 24 VDC
                      • Speeds (max.): max. 60 m/min at max. 35 kg / max. 48 m/min at max. 50 kg
                      • profile frame: C-profile frame: 36/120/36x3 mm, powder-coated, upper edge of roll is 10 mm above profile frame**

                      *Surface load: guide values for NB 350, span 1.5 m and pitch 60 mm
                      **other materials on request

                    • Roller merge (24V) ARZ 50-130-MPÜ

                    • Powered roller merge ARZ50-130 is used to infeed/outfeed conveyed goods on conveyors.

                      • Carrying capacity (max.) : 50 kg / per accumulation zone*
                      • ambient temperature: +5 to +40 °C / Cooling zone available
                      • installation area: dry operation in enclosed facilities
                      • Width: 350 - 1050 mm (50 mm increments)
                      • Roller pitch: 60 mm
                      • angle: 30 / 45°
                      • role type: Roller with ball bearing / Poly-V head
                      • roll diameter: 50 mm
                      • roll material: Galvanised steel**
                      • Power of the drives: 40 W; Connection 24 VDC
                      • Speeds (max.): max. 60 m/min at max. 35 kg / max. 48 m/min at max. 50 kg
                      • profile frame
                        C-Profile: 40/125/40x3 mm, powdercoated steel Top edge of the roller is 5 mm above the profile frame**

                      *Surface load: guide values for NB 350, span 1.5 m and pitch 60 mm
                      **other materials on request

                    • Roller conveyor alignment (24V) ASRF 50-130-MPÜ

                      • Carrying capacity (max.): 50 kg / per accumulation zone*
                      • ambient temperature: +5 to +40 °C / Cooling zone available
                      • installation area: dry operation in enclosed facilities
                      • Width: 350 - 1050 mm (50 mm increments)
                      • Roller pitch: 60 mm
                      • Module length: 1500 or 600 - 3000 mm (accumulation zone x quantity)
                      • role type: Roller with ball bearing / Poly-V head
                      • Inclination: 15,5° or 5-7,5° depending on width
                      • roll diameter: 50 mm
                      • roll material: Galvanised steel**
                      • Power of the drives: 40 W; Connection 24 VDC
                      • Speeds (max.): max. 60 m/min at max. 35 kg / max. 48 m/min at max. 50 kg
                      • profile frame: C-Profile: 40/125/40x3 mm, powdercoated steel Top edge of the roller is 5 mm above the profile frame**

                      *Surface load: guide values for NB 350, span 1.5 m and pitch 60 mm
                      **other materials on request

                    • Roller flap (400V) ARF 50-130KL 400V

                    • The ARF 50-130 power-operated roller conveyor in the standard version is equipped with a flat belt drive. The conveyor is designed without any protruding edges or screws. The carrier rollers are placed loose in the side pieces and can be removed and cleaned quickly and without tools. Power-operated roller conveyor ARF 50-130 is designed as a low-dynamic pressure conveyor belt as a standard, and can be converted easily to a roller conveyor with no dynamic pressure using our extensive AMI system accessories. The conveyor is used to transport materials moved horizontally, such as containers, cargo, panels and cardboard packaging.

                      • Line load (max.)
                        120 kg/m*
                      • ambient temperature
                        0 to +50 °C
                      • installation area
                        dry operation in closed rooms
                      • clamping length
                        200 - 1200 mm (50 mm increments)**
                      • division of roles
                        62.5 / 125 / 187.5 / 250 mm
                      • conveyor lengths
                        875 to 30000 mm (multiple of roller pitch)
                      • role type
                        Carrying roller with plastic bearing base and ball bearing
                      • roll diameter
                        50 mm
                      • roll material
                        Galvanised steel**
                      • Power of the drives
                        0.37 - 0.75 kW; connection for 220/240 - 380/415 V, 50 Hz. Protection class IP 54
                      • Speeds (max.)
                        72 m/min
                      • profile frame
                        C-profile frame: 36/120/36x3 mm, powder-coated, upper edge of roll is 10 mm above profile frame**

                      *Surface load: guide values for NB 300, span 1.5 m and pitch 62.5 mm
                      **other materials on request

                    • Roller conveyor curve (400V) ARK 50-RT

                    • Powered roller conveyor curve ARK50-RT is only equipped with a tangential round belt, and has conical rollers.

                      • Carrying capacity (max.)
                        50 kg / per accumulation zone*
                      • ambient temperature
                        +0 to +40 °C / Cooling zone available
                      • installation area
                        dry operation in enclosed facilities
                      • Width
                        300 - 1200 mm (50 mm increments) **
                      • Rollers
                        7 / 10 / 14 / 20 pcs
                      • Inner radius
                        800 mm
                      • Angle
                        30 / 45 / 60 / 90° **
                      • role type
                        Conical roller / Poly-V Head
                      • roll diameter
                        50 mm, with conical plastic taper
                      • roll material
                        Galvanised steel with conical plastic taper
                      • Drive power
                        0.37 - 0.55 kW; Connection for 220/240 - 380/415 V, 50 Hz. Protective class IP 54
                      • Speeds (max.)
                        72 m/min
                      • Frame
                        Profile frame powdercoated, the top edge of the rollers is 10 mm above the profile frame

                      *Surface load: Reference value at width NB 350, span 1.5 m and roller pitch 62,5 mm
                      **others on request

                    • Powered flexible roller conveyor ASCRB 40

                    • The driven scissor roller conveyor ASCRB-40 is used for the horizontal transport of piece goods, containers or packages. Due to its design, the ASCRB-40 is particularly suitable for loading and unloading trucks or vans, for linking machines and systems, or as a stand-alone solution. In addition, the scissor roller conveyor can be easily pushed together and quickly moved to the respective location, for example in a distribution centre.

                      • Line load (max.): 50 kg/m
                      • ambient temperature: -5 to +50 °C
                      • installation area: dry operation in closed rooms
                      • clamping length: 450, 600, 750, 900 mm **
                      • division of roles: 45 - 125 mm (infinitely adjustable)
                      • conveyor lengths: 1350 - 25000 mm **
                      • role type: Carrying roller with deep groove ball bearing
                      • roll diameter: 40 mm
                      • roll material: Galvanised steel
                      • Power of the drives: 0.09 kW per segment; connection for 220/240 - 380/415 V, 50 Hz, protection class IP 54
                      • velocities: 10 - 40 m/min, adjustable
                      • scaffolding: Profiled scissor elements galv. galvanized, supports made of welded square tube 40x40 powder coated
                      • castors: Swivel castors D 200 x 50 mm

                      ** other versions on request

                    • ARF 50-130-MPÜ

                      • Carrying capacity (max.): 50 kg/m
                      • ambient temperature: +5 to +50 °C
                      • installation area: dry operation in closed rooms
                      • Width: 350 - 1050 mm (50 mm increments)
                      • Stroke: 20 mm (10 mm above / 10 mm below the conveying height)
                      • Stroke movement: pneumatically by pneumatic cylinder
                      • Stroke time: 0.4 sec.
                      • Power of the drives: max. 60 m/min at max. 35 kg / max. 48 m/min at max. 50 kg
                      • Frame
                        Cover: Sheet metal substructure, powdercoated steel**

                      ** other versions on request

                    • Popup-Diverter 24V

                      • Carrying capacity (max.): 50 kg/m
                      • ambient temperature: +5 to +40 °C
                      • installation area: dry operation in closed rooms
                      • Width: 450 / 650 / 850 mm **
                      • Roller pitch : 75 mm
                      • Swivel angle: max. +/- 45°, optionally 90° left or right
                      • Swivel time : 0.4 sec.
                      • Power of the drives: 40 W; Connection for 24 VDC
                      • Frame
                        Cover: Sheet metal substructure, powdercoated steel**

                      ** other versions on request

                    • Rotary extractor/diverter DRA

                    • The rotary diverter from AMI is the heart of modern assembly and sorting systems. Plastic containers, cardboard boxes, single packages and wrappers can be outfed quickly, precisely and reliably from the conveyor path, as well as on parallel and transverse tracks. Benefit from the flexibility of the AMI rotary diverter: it is mounted in an appropriate location on the conveyor path and can easily be converted during equipment overhauls, modifications, or logistics changes. This eliminates the need to separate conveyor technology as in conventional switch systems. In contrast to many other switch systems, the AMI rotary diverter also works with moving closed cargo series, while offering much more efficient sorting. In addition, AMI rotary diverters can be retrofitted as a flexible addition to an existing system, increasing capacity to meet almost any level of demand.

                    • Sorter turn table

                    • The “High Speed” rotary sorting table is used to automatically sort packages of many different sizes. The rotary table is a servo motor powered sorting unit. It works at a high power range and ensures excellent reliability.

                  • Automation Components

                  • Digitisation is progressing rapidly. At the same time, the complexity of processes and equipment in production and intralogistics is increasing. In order to be able to exploit the potential offered here, the networking of all systems involved and fully automated in the internal value chain is an important prerequisite. The exchange of data between conveyor and storage technology components and robot-supported systems, such as those used in order picking, palletizing or handling in production, is fundamental.

                    In order to find the right degree of automation for the respective project requirements, we work together with our customers to develop the right and consistent automation solution from a single source. In this way, high performance and efficiency can be generated from the intralogistics system or a material flow system in the manufacturing industry implemented with the appropriate components and subsystems. In addition, unnecessary interfaces are avoided and maximum flexibility is achieved.

                    The interaction of modern control technologies with our innovative components of conveyor and storage technology - also on individual customer request - stands for this as does the possible connection to our Warehouse Logistics Solution software AMI WLS-4.0.
