Buender & Schmitt
  • Offer Profile
  • Our main task consists in development and production of filling and closing machinery, and also the manufacturing of individual format sets and cups for the packing guidance.
Product Portfolio
  • Filling and capping machines

  • Our main task consists in development and production of filling and closing machinery, and also the manufacturing of individual format sets and cups for the packing guidance.

    All products are featured by the highest quality, reliability and efficiency. All our products are compatible the one with the other.
    We produce consciously and exclusively in Germany. The very high share of own components allows us to offer at any time and within the shortest delays individually customized solutions.

      • Screw cap closers

      • Whatever may be, spray bottle, crucible or canister, screwed, bounced or originality closure – we will turn them their head!

        • up to 12,000 pcs/h
        • great choice of possible closing types
        • screwing against torque
        • free programmable or servo drive
        • simple and rapid retrofitting for other formats
        • cap sorters, elevators and final control possible
          • Screw cap closer VER 001

          • half automatic, single place closing machine with clocked working regime for closing of all kind of bottles up to a max. height of 300mm, cans and crucibles up to a max. Ø of 100mm, as well as cups and canisters – up to a width of 100mm. The recipients pass into the machine via conveyor, singularized by free adjustable cycle time to be centered under the screwing head. The cap closing station with pneumatic command is equipped by a gripper screwing head.

            The machine is furnished with sockets for bottles and caps.
          • Screw cap closing machine VER001L

          • full automatic inline Capping machine type VER 001-L, to seal bottles and containers. The bottles run on the conveyor into the machine. The bottles become separated through different speed of the conveyorbelt and the side belts wich are guiding the cans through the machine. The sealing head catch the cap from the cap station and bolt the cap together with the bottle without stopping the canister also without splashing. The equipment includes a 3m long conveyor with frequency controlled drive. All windows and doors are designed with safety switches. The electric control consists PLC of Siemens SPS S7. Pneumatic components are from Festo.
            The machine is delivered with one format set for bottles and caps.
          • Screw cap closing machine VER 002

          • Screw cap closing machine VER 002 Fully automatic, 2 place closing machine with clocked operating for closing of all kind of bottles up to a max. height of 300mm, cans and crucibles up to a max. Ø of 100mm, as well as cups and canisters up to a width of 100 mm. The recipients run along the conveyor into the worm shaped feeding conveyor to be handed over to the star conveyor. It centers the bottles beyond the equipped by two grip screwing heads closing station with pneumatic command. The machine is delivered with bottle and cap format set.
          • Screw cap closing machine VER 002S

          • Fully automatic, 1 place closing machine with clocked operating for spray pump caps with uptake and normal caps for grafting. The bottles run along the conveyor into the worm shaped feeding conveyor to be handed over to the star conveyor. It centers the bottles under the closing station. At the same time, the closing cap comes in the right position, the uptake being centered by pneumatics and put upon the bottle to be bounced to the bottle in the following. The screwing head takes now the cap from the plate to lead it to the bottle and to screw it upon.
            The machine is delivered with a format set of bottles and caps, including about 3m long transport conveyor with frequency commanded conveyor drive.
          • Screw cap closing machine VER 004

          • Fully automatic, 4 place circular closing machine for plastic screw caps. The bottles pass via conveyor into the machine to be singularized by the worm conveyor feeder. The star shaped feeder leads the bottles to the screwing stations to be centered. The screw spindle, which took the cap from the cap plate, declines to the bottle neck to screw the cap against adjustable torque.

            The machine is delivered with a format set of bottles and caps including an about 3m long transport conveyor with frequency commanded conveyor drive.
          • Screw cap closing machine VER 006

          • Fully automatic 6 place circular closing machine for plastic screw caps. The bottles pass via conveyor into the machine to be singularized by the worm conveyor feeder. The star shaped feeder leads the bottles to the screwing stations to be centered. The screw spindle, which took the cap from the cap plate, declines to the bottle neck to screw the cap against an adjustable torque.
            The machine is delivered with a format set of bottles and caps including an about 3m long transport conveyor with frequency commanded conveyor drive.
          • Trigger

          • Fully automatic circular screwing setup machine for spray pump caps with uptake and normal caps to be bounced upon.
            The bottles pass via conveyor into the machine, are singularized by the worm feeder to be handed over to the central star. Simultaneously the triggers are transported towards the machine in a predefined orientation.
            The screwing head takes place over the trigger head and the four press rolls are fixed to the union nut pneumatical. Each of them is powered. The suction pipe is taken pneumatic and centered over the bottles.
            The Trigger pumps are tightened by servo motors. The stroke movement is realised with servo driven lifting spindles. The machine stops when a non closed bottle is recognized. The machine is delivered with a format set of bottles and caps, including about 3m long transport conveyor with frequency commanded conveyor drive.
        • Fillers

        • If foaming, liquid or paste-like, if ampoule, tube or bottle, whatsoever – we will fill them their neck!

          • up to 18,000 pcs/h
          • smooth filling quantity adjustment from 2 to 20,000 ml
          • simple and rapid retrofitting for other formats
          • filling of the product with or without pucks
          • free programmable servo drives
          • low noise level
            • Piston dosage filler

            • Fully automatic linear filling machine with singularization or stop star for product singularization. The machine is completely equipped by mono pumps in the CIP convenient execution (e.g. for the food sector). The equipment contains a frequency commanded conveyor drive. The machine can be fitted for service with cups or for normal product filling. Other formats can be programmed via the machine management.

              All pumps, valves and cylinders are made of stainless steel. The supply tank contains 150 liters and is situated beyond the pumps. The residual depletion is made directly by the piston. The seals are made of Viton or Variseal.
              The machine is delivered with bottle format, but it can be retrofitted optionally in execution of the CIP-SIP.
            • Mohno pump filler

            • Fully automatic linear filling machine with singularization or stop star for product singularization. The machine is completely equipped by mono pumps in the CIP convenient execution (e.g. for the food sector). The equipment contains a frequency commanded conveyor drive. The machine can be fitted for service with cups or for normal product filling. Other formats can be programmed via the machine management.

              All pumps, valves and cylinders are made of stainless steel. Die residual depletion is made directly by the piston. The seals are made of Viton or Variseal.

              The machine is delivered with bottle format, optionally in the CIP-SIP execution.
            • Piston pump filler

            • Fully automatic, 12, 18 places, circular Piston dosage filler for bottles. The recipients being singularized on the machine inlet by worm conveyor to be handed over to the feeding star. This one leads the bottles upon the bottle table beyond the filling unit. The bottles table mounts and descends, so that the filling tube plunges into the bottle to perform the filling process. During the filling, the filling tube moves slowly out of the product in the bottle. At the run-out the filled bottle is taken by the run-out star shaped conveyor to be handed over to the transport conveyor for leaving out of the machine.

              All pumps, valves and cylinders are made of stainless steel. The residual depletion is made directly by the piston. The seals are made of Viton or Variseal.
            • Mohno pump filler rotating

            • Fully automatic rotating filling machine. The machine is completely equipped with mohno pumps in the CIP convenient execution (e.g. for the food sector). The equipment contains a frequency commanded conveyor drive. The machine can be fitted for service with cups or for normal product filling. Other formats can be programmed via the machine management.

              All pumps, valves and cylinders are made of stainless steel. The seals are made of Viton or Variseal.

              The machine is delivered with bottle format, optionally in the CIP-SIP execution.
              The machine is delivered with bottle format.

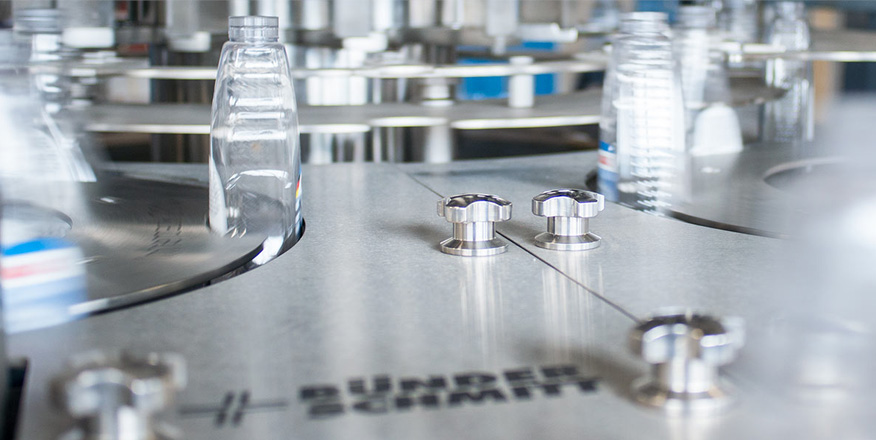

          • Sorters: Format sets

          • If plastics or stainless steel, if 6, 12 or 24 stars – we will provide you a good position!

            • optimal filling and closing results
            • allowing high flexibility and production efficiency
            • rapidly and simply changeable
            • short delivery delays
            • low production costs
