Reishauer
  • Offer Profile
  • Reishauer products have been exported for decades to all industrialized countries of the world and can be found in small and medium size companies as well as in large corporations.
    Reishauer gear grinding machines and diamond and CBN tools are in use wherever high quality products need to be produced economically to satisfy particular demands concerning accuracy, durability and reliability.
    Our company maintains an active worldwide representation network.
    Indications of this initiative are demonstrated at our subsidiaries in China, England, France, Germany, Japan, Russia and the USA.
Product Portfolio
  • Gear Grinding Machines

      • Continuous Generating Gear Grinding Machine RZ 60

      • The workhorse of planetary gear manufacture

        The RZ 60 gear grinder’s productivity sets the standard for high volume production of planetary pinions and remains the fastest machine on the market.

        Constant High Performance

        The RZ 60’s overriding design principle is the resolute reduction of unproductive times. This is based on its dual spindle technology, all axes movements and routines being uncompromisingly executed in parallel, the short reaction times of all spindles, and the high cutting speeds.

        The extremely rigid overall design leads to very high material removal rates and constant workpiece quality.

        All overtravel movements of the RZ 60 have been reduced and optimised to the absolute minimum. The electronic gearbox, which was fully developed by Reishauer, controls the perfect harmonisation of multiple NC axes and executes all routines in parallel such that idle times are almost completely eliminated.

        Two meshing sensors synchronise the gear parts to the threaded wheel during the rotation of the workspindle turret. Furthermore, sufficient time remains during the rotation of the turret to centrifuge off oil from the ground parts, even at cycle times shorter than 10 seconds. Additionally, the threaded wheels’ chosen extra width and the multi-rip full profile rolls reduce non-productive dressing times to a minimum.

        Short set-up times highlight the flexibility of the machine. Apart from disk-type workpieces, this machine equally handles shaft-type workpieces. Due to its compact design, and the fact that it comes fully equipped, it can be easily integrated into existing production lines.

        Last but not least: hundreds of RZ 60 machines that unflaggingly generate income for our customers are the best proof of the performance level of this machine.



        Working Range

        Dimensions that may differ can be verified upon request.
        • Workpiece diameter: 0 - 94 mm
        • Module range: 1 - 4.0 mm
        • Swivel angle (grinding head): ± 48 mm
        • Grinding stroke (max.): 180 mm
        • Shaft length (max.): 490 mm
        • Workpiece rpm (max.): 3000 min⁻¹
        • Workpiece weight (incl. workholding): 30 kg
        • Operating speed (max.): 100 m/s
        • Grinding wheel outside diameter (max.): 275 mm
        • Grinding wheel width: 125 / 160 mm
        • Diameter of dressing tools: 123 / 140 mm

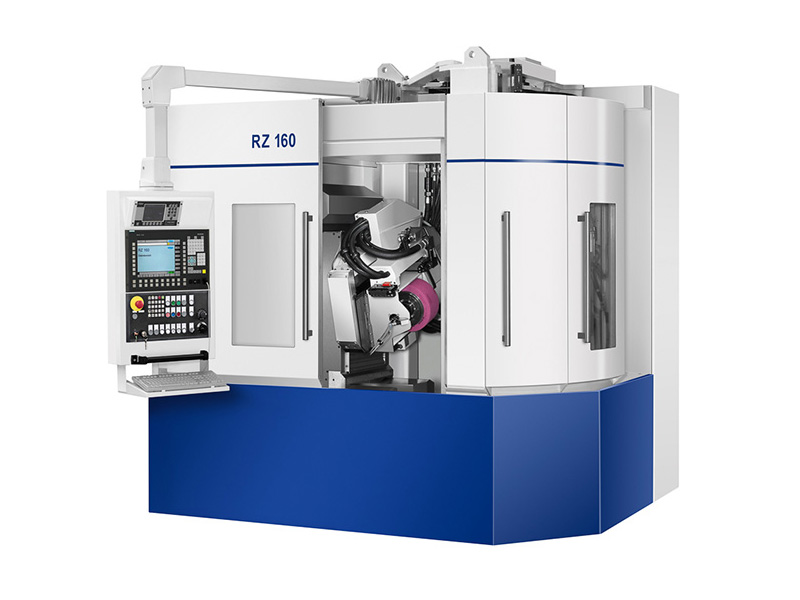

      • Continuous Generating Gear Grinding Machine RZ 160

      • The Automotive Gear Grinding Machine

        The machine that can handle all the gears that are used in automotive transmissions.

        The RZ 160 gear grinder’s productivity sets the industrial standard for the production of automotive gears. Its working range diameter of up to 160 mm and its module range of 0.5 to 4 covers all gears, disk-type or shaft-type parts that are used in automotive transmissions.

        Productivity and Flexibility

        Apart from its main field of application – high volume production of automotive gears – this machine is also suitable for flexible usage such as a single prototype gear or small lot size production, for example. This is exemplified by the design features of an additional grinding head for profile grinding, line dressing or the option of „onboard gear measuring”.

        Constant High Performance

        The RZ 160’s overriding design principle is based on its dual spindle technology, with all axes movements and routines being uncompromisingly executed in parallel, the short reaction times of all spindles, and the high cutting speeds.

        The optional swival-type dressing axis allows applying all of Reishauer’s dressing technologies such as line dressing, dressing with multi-rip full profile rolls and topological dressing.

        Short set-up times highlight the flexibility of the machine. Apart from disk-type workpieces, this machine equally handles shaft-type workpieces with its optional tailstock. The operating philosophy is identical to that of the other two types machines of the RZx60 family. As a result, operators that are familiar with the RZ 60 and RZ 260 can immediately, and productively, operate the RZ 160 machine.

        Due to its compact design, and the fact that it comes fully equipped, it can be easily integrated into existing production lines.

        Last but not least: hundreds of RZ 160 machines that unflaggingly generate income for our customers are the best proof of the performance level of this machine.

        Working range

        Given values that may differ can be verified upon request.
        • Workpiece diameter: 0 - 162 mm
        • Module range: 0.5 - 4.0 mm
        • Swivel angle (grinding head): ± 48°
        • Grinding stroke (max.): 180 mm
        • Shaft length (max.): 490 mm
        • Workpiece rpm (max.): 3000 min⁻¹
        • Workpiece weight (incl. workholding): 30 kg
        • Operating speed (max.): 100 m/s
        • Grinding wheel outside diameter (max.): 275 mm
        • Grinding wheel width: 125 / 160 mm
        • Diameter of dressing tools: 123 / 140 mm
      • Continuous Generating Gear Grinding Machine RZ 260

      • From automotive ring-gears to gears for medium-sized trucks

        The RZ 260 gear grinding machine covers the largest range of workpieces for the automotive industry. This includes all gears for car transmissions and gears of medium-sized trucks, ranging in diameter from 0 to 260 mm, and from module 0.5 to 5 mm.

        Constant High Performance

        The RZ 260’s overriding design principle is based on its dual spindle technology, with all axes movements and routines being uncompromisingly executed in parallel, the short reaction times of all spindles, and the high cutting speeds.

        The swivable C-dressing axis allows applying all of Reishauer’s dressing technologies such as line dressing, dressing with multi-rip full profile rolls and topological dressing.

        Short set-up times highlight the flexibility of the machine. Apart from disk-type workpieces, this machine equally handles shaft-type workpieces with its optional tailstock. The operating philosophy is identical to that of the other two types machines of the RZx60 family. As a result, operators that are familiar with the RZ 60 and RZ 160 can immediately, and productively, operate the RZ 260 machine.

        Due to its compact design, and the fact that it comes fully equipped, it can be easily integrated into existing production lines.

        Last but not least: hundreds of RZ 260 machines that unflaggingly generate income for our customers are the best proof of the performance level of this machine.

        Working Range
        Given values that may differ can be verified upon request.
        • Workpiece diameter: 0 - 262 mm
        • Module range: 0.5 - 5.0 mm
        • Swivel angle (grinding head): ± 48°
        • Grinding stroke (max.): 180 mm
        • Shaft length (max.): 490 mm
        • Workpiece rpm (max.): 1600 min⁻¹
        • Workpiece weight (incl. workholding): 50 kg
        • Operating speed (max.): 100 m/s
        • Grinding wheel outside diameter (max.): 275 mm
        • Grinding wheel width: 125 / 160 mm
        • Diameter of dressing tools: 123 / 140 mm
      • Continuous Generating Gear Grinding Machine RZ 410

      • The Job Shop Machine

        The RZ 410 gear grinding machine combines universality, high precision and robust material removal rates. This machine represents state-of-the-art gear grinding technologies. As the grinding oil flow is completely separated from the machine bed, it features extraordinary thermal stability.

        Flexibility and Productivity

        The grinding diameter range of 5 to 410 mm and its module range of 0.5 to 10 mm covers a wide range of gear grinding applications. Technologically speaking, the RZ 410 is identical to the larger grinding machines, the RZ 550 and RZ 1000, which, in the main, differentiate themselves in their grinding diameter ranges. Short set-up times excellent accessibility underscore the flexibility of this family of grinding machines.

        Profile grinding (tooth gap by tooth gap), line dressing and the on-board gear measuring option exemplify the wide field of application of these machines.

        The swivable dressing unit allows the application of all of Reishauer’s dressing technologies such as, among others, line dressing, dressing with multi-rib full profile rolls and topological dressing.

        The worldwide market acceptance of this machine speaks for itself.

        Working Range
        Given values that may differ can be verified upon request.
        • Workpiece diameter: 5 - 410 mm
        • Module range: 0.5 - 10.0 mm
        • Swivel angle (grinding head): ± 45°
        • Grinding stroke (max.): 300 mm
        • Shaft length (max.): 700 mm
        • Workpiece rpm (max.): 600 min⁻¹
        • Workpiece weight (incl. workholding): 600 kg
        • Operating speed (max.): 80 m/s
        • Grinding wheel diameter (max.): 300 mm
        • Grinding wheel width: 145 / 160 mm
        • Diameter of dressing rolls: 160 mm

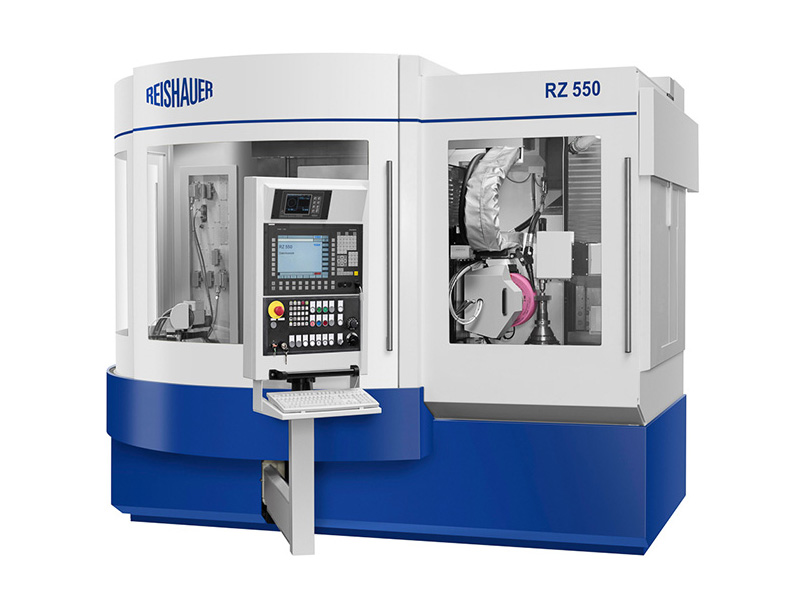

      • Continuous Generating Gear Grinding Machine RZ 550

      • Adding value to your gears

        The RZ 550 gear grinding machine combines universality, high precision and robust material removal rates. This machine embodies state-of-the-art gear grinding technologies. Furthermore, as the grinding oil flow is completely separated from the machine bed, it features extraordinary thermal stability.

        Flexibility and Productivity

        The grinding diameter range of 5 to 550 mm and its module range of 0.5 to 10 mm covers a wide range of gear grinding applications. Technologically speaking, the RZ 550 is identical to the smaller grinding machine RZ410 and the larger RZ 1000, which, in the main, differentiate themselves in their grinding diameter ranges. Short set-up times and excellent accessibility underscore the flexibility of this family of grinding machines.

        Profile grinding (tooth gap by tooth gap), line dressing and the on-board gear measuring option exemplify the wide field of application of these machines.

        The swivable dressing unit allows the application of all of Reishauer’s dressing technologies such as, among others, line dressing, dressing with multi-rib full profile rolls and topological dressing.

        The worldwide market acceptance of this machine speaks for itself.

        Working Range
        Given values that may differ can be verified upon request.
        • Workpiece diameter: 5 - 560 mm
        • Module range: 0.5 - 10.0 mm
        • Module range: ± 45°
        • Grinding stroke (max.): 300 mm
        • Shaft length (max.): 700 mm
        • Workpiece rpm (max.): 600 min⁻¹
        • Workpiece weight (incl. workholding): 600 kg
        • Operating speed (max.): 80 m/s
        • Grinding wheel diameter (max.): 300 mm
        • Grinding wheel width: 145 / 160 mm
        • Diameter of dressing rolls: 160 mm

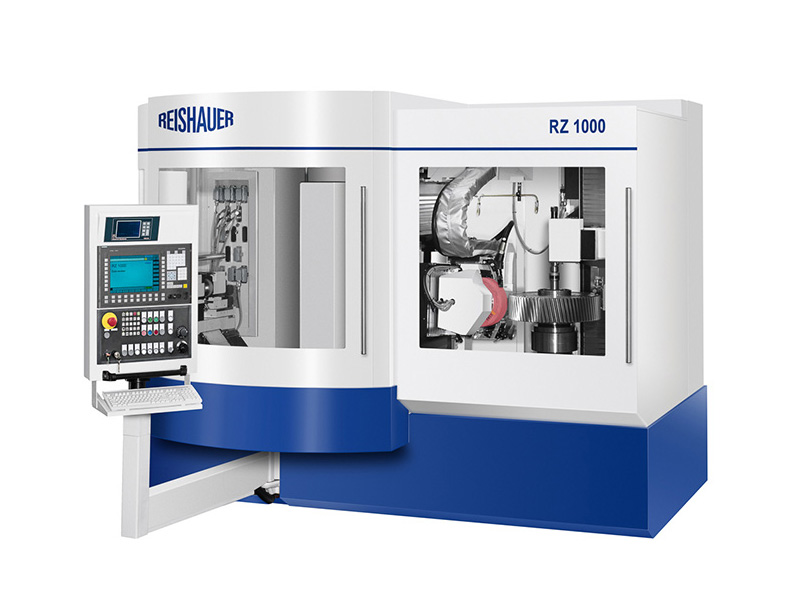

      • Continuous Generating Gear Grinding Machine RZ 1000

      • The Job Shop Machine

        The RZ 1000 gear grinding machine combines universality, high precision and robust material removal rates. This machine embodies state-of-the-art gear grinding technologies. Furthermore, as the grinding oil flow is completely separated from the machine bed, it features extraordinary thermal stability.

        Flexibility and Productivity

        With the grinding diameter up to 1000 mm and its module range of 0.5 to 10 mm, it covers teh widest wide range of gear grinding applications. Technologically speaking, the RZ 1000 is identical to the smaller grinding machines RZ410 and RZ 550, which, in the main, differentiate themselves in their grinding smaller diameter ranges. Short set-up times and excellent accessibility underscore the flexibility of this family of grinding machines.

        Profile grinding (tooth gap by tooth gap), line dressing and the on-board gear measuring option exemplify the wide field of application of these machines.

        The swivable dressing unit allows the application of all of Reishauer’s dressing technologies such as, among others, line dressing, dressing with multi-rib full profile rolls and topological dressing.

        The worldwide market acceptance of this machine speaks for itself.

        Working Range
        Given values that may differ can be verified upon request.
        • Workpiece diameter (max.): 1000 mm
        • Grinding wheel width: 145 / 160 mm
        • Grinding wheel diameter (max.): 300 mm
        • Operating speed (max.): 80 m/s
        • Workpiece weight incl. workholding (max.): 1200 kg
        • Workpiece rpm (max.): 600 min⁻¹
        • Shaft length (max.): 700 mm
        • Grinding stroke (max.): 300 mm
        • Swivel angle (grinding head): ± 45°
        • Module range: 0.5 - 10.0 mm
        • Diameter of dressing rolls: 160 mm
    • Tooling perfectly adapted to the grinding process

    • Reishauer tooling is an integral part of our “Circle of Competence”. In-house manufacturing of grinding wheels, diamond dressing tools and workholding ensures that our customers can utilize the full potential of the Reishauer generating gear grinding machines.

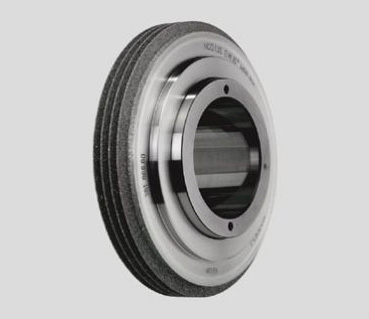

        • Diamond Dressing Tools

        • Diamond and CBN Tools

          The Reishauer Tool Division develops, produces and markets highly specialized diamond and CBN tools in electroplated bond for dressing, grinding, in addition to other special applications. High quality, in terms of precision tool life and wear resistance, is based on many years of experience and a great willingness to innovate.

          For Dressing of Cylindrical Grinding Wheels

          Reishauer strives for the best technical and cost effective solution in each Application. This also applies to our dressing discs and dressing rolls. The different tasks required for the manufacture of small, medium or large lot size, as well as specific demand regarding geometry and flexibility, determine the tool profile for each application. In combination with the corresponding dressing process, virtually all demands are met in the dressing of grinding wheels for the continuous generating grinding of involute and non-involute gear teeth. Reishauer’s engineering competence and manufacturing know how guarantee optimum process reliability.

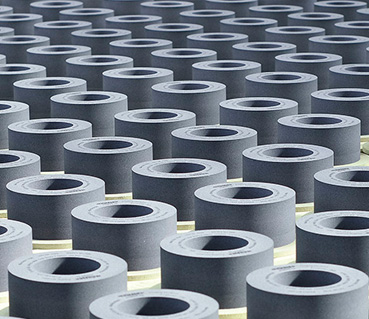

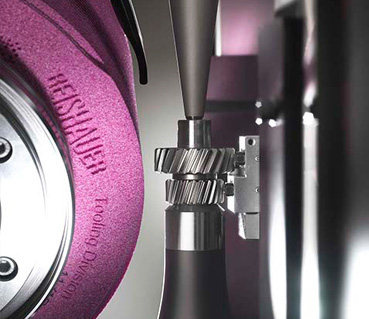

        • Grinding Wheels

        • In line with its performance portfolio – the Circle of Competence – Reishauer not only builds its gear grinding machines but also manufactures its proper grinding wheels, called threaded wheels, in its own factory in Central Switzerland.

          Within the gear grinding process, the grinding machine supplies the kinematics, i.e. the precise movements that control the threaded wheel. For its part, the threaded wheel must transfer these movements onto the workpiece by grinding it accurately to a defined size and a predetermined surface quality.

          A threaded wheel consists of three elements, all of which have to fulfil a specific purpose. These elements are: the abrasive grits, the bond and the pores. In short, the abrasive grits’ task is to perform the cutting of hardened steel to size and to a specified surface finish, all without generating any grinding burns.  The bond, the second element, holds the grits in place and must ensure the safety of the grinding process at high operating speeds. The pores, as the third element, give the grinding wheel an open structure to ensure that the coolant gets into the contact area during grinding, and that the chips generated during the process can be transported away from the grinding zone.

          Reishauer threaded wheels have designed specifically for the process of continuous generating grinding. Each and every threaded wheel is subjected to a rigorous quality checking procedure and marked with an indelible laser induced “birthmark” that ensures permanent product traceability.

        • Workholding

        • High-precision grinding results demand an equally high precision in clamping

          Reishauer builds on its own comprehensive knowledge of the gear grinding process and on this basis, develops and manufactures customer specific clamping devices. The connection « machine – clamping device – grinding wheel – dresser » - makes possible a grinding process that is optimally fine-tuned to specific quality.

          The specific use of base chucks for workpiece specific hydraulic arbours reduces the set-up time and increases productivity. This translates into the full use of the high economic potential of the Reishauer machine, whether for large or small scale production volumes.

          Customer benefits:

          • Perfectly tuned to the grinding machine
          • High accuracy and repeatability
          • Fast clamping cycles
          • Constant clamping pressure
          • Low wear due to chosen high-resistant steel
          • Long Service Life
          • Mounting clearance designed to requirements
      • Automation

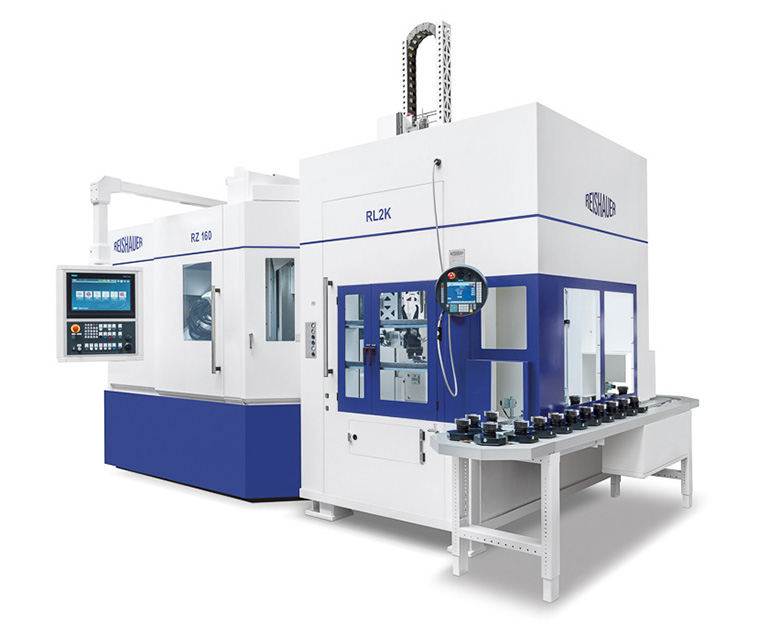

            • Part Loader System

            • The Reishauer automation maintains a firm grip on gears

              Reishauer’s own automation concept is an integral part of its performance portfolio. This part loading automation keeps pace with the machines fast cycle times, productivity and availability. Automation and machine are in perfect synch as they share their place of origin, the same CNC control philosophy and the same interfaces. Material flows can be easily synchronised and optimised to the specific operational requirements
