Product Line Up
RMV cameras
RMV = Rugged Machine Vision
As we have fielded more cameras and listened to customer needs, we developed an enhanced performance line of cameras, called RMV. We have redesigned our analog front end and digitize at 14 bits, we have reduced the camera read noise by 50% and are exceeding the sensor specifications in dynamic range.The RMV cameras have an extended operating temperature range, use military de-rated components and offer auto exposure and auto gain modes. We can customize all our RMV cameras to fit your needs!!
Highlights:
- Rugged industrial components
- Extended temperature range -50C to +85C (Camera Link)
- 14 bit sampling
- Super Low Noise (Analog Front End)
- Auto Exposure and auto gain modes
- various mount options
- endless customization option
- much more (see product summary sheet)
|
|
RMV-2M/RMV-8M
|
|

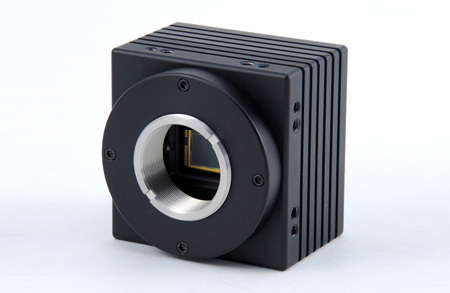

RMV-2M
The RMV-2001, RMV-2020, and RMV-2093 (HD) cameras, based
on the Truesense Imaging KAI-2001, KAI-2020 and KAI-2093 image sensors, are
workhorse 2 million pixel machine vision cameras in a 2" cube. The RMV-2001
and RMV-2020 features a resolution of 1600 x 1200 with 7.4 um square pixels.
The RMV-2093 has a resolution of 1920 x 1080, HDTV format, making it ideal
for applications requiring wide horizontal field-of-view. The RMV-2093 also
has 7.4 um square pixels.
These cameras are designed with Industrial temperature range active
components and its passive components have been de-rated to a stress factor
of 0.6, making them ideal for demanding industrial imaging applications.
Whether you are doing metrology, biometrics or wafer handling or inspection,
consider the RMV-20xx series of cameras.
Active Pixels: |
1600 x 1200 (KAI-2001 and KAI-2020) 1920 x 1080
(KAI-2093) |
Pixel Clock: |
40 Mhz |
Pixel Size: |
7.4um x 7.4um |
Frame Rate: |
33.6FPS (Dual Tap) 18.3FPS(Single Tap) |
Bit Depth: |
8, 10 or 12 |
Dynamic Range: |
60dB |
Power: |
12VDC - 4.7 Watts |
Interface: |
Camera Link Base Mode or Gigabit Ethernet |
Dimensions: |
37 x 37 x 57mm Camera Link
76 x 60 x 64mm GigE |
|
|
RMV-8M
The RMV-8M, based on the Truesense Imaging Inc KAI-8050
image sensors, is an impressive 8 mega pixel camera with a frame rate of 16
fps*.
Our RMV-8M camera offers outstanding quality and have additional features
such as low noise, low smear of -100dB, blooming suppression of >300x, full
14 bit sampling and much more. These cameras are also designed with
Industrial temperature range active components and its passive components
have been de-rated to a stress factor of 0.6, making them ideal for
demanding industrial imaging applications.
Whether you are doing metrology, LCD panel inspection, aerial mapping,
fundus photography or ophthalmic imaging, consider the RMV-8M series of
cameras.
Active Pixels: |
3296 x 2472 |
Pixel Clock: |
20, 30, 40 Mhz |
Pixel Size: |
5.5um x 5.5um |
Frame Rate: |
16FPS (Quad) 8FPS(Dual) 4FPS (Single) in CL
* 8FPS (Dual) 4FPS (Single) in GigE |
Bit Depth: |
8, 10 or 12 |
Dynamic Range: |
See Product Summary Sheets |
Power: |
12VDC - 6.4 Watts CL |
Interface: |
Camera Link Base Mode or Gigabit Ethernet |
Dimensions: |
66 x 66 x 79mm Camera Link F-mount |
|
|
RMV-4M
The RMV-4011, RMV-4021 and RMV-4022, based on the
Truesense Imaging KAI-4011, KAI-4021 and KAI-4022 image sensors, are
workhorse 4 million pixel machine vision cameras in a 2" cube.. These
cameras are also designed with Industrial temperature range active
components and its passive components have been de-rated to a stress factor
of 0.6, making them ideal for demanding industrial imaging applications.
Whether you are doing metrology, LCD panel inspection, aerial mapping,
fundus photography or ophthalmic imaging, consider the RMV-4M series of
cameras.
In binning mode, these cameras can achieve 50 frames per second !!!
Active Pixels: |
2048 x 2048 |
Pixel Clock: |
40 Mhz |
Pixel Size: |
7.4um x 7.4um |
Frame Rate: |
15.76FPS (Dual Tap) 8.46FPS(Single Tap) 50 FPS in binning mode |
Bit Depth: |
8, 10 or 12 |
Dynamic Range |
See Product Summary Sheets |
Power: |
12VDC - 4.7 Watts CL |
Interface: |
Camera Link Base Mode |
Dimensions: |
37 x 37 x 57mm Camera Link 76 x 60 x 64mm GigE |
|
|

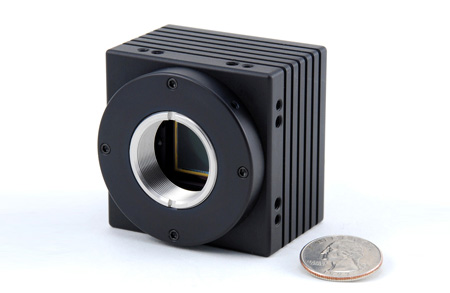

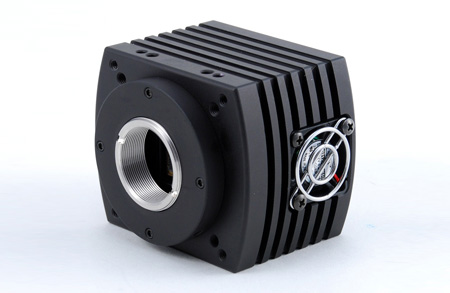

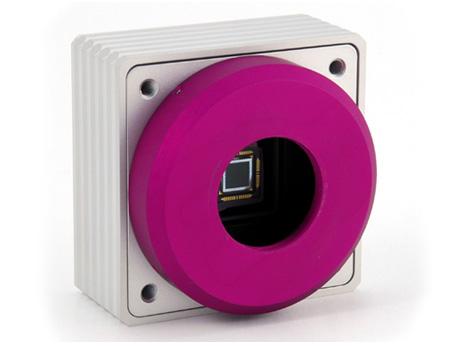

Standard C Mount Camera Link
|
|

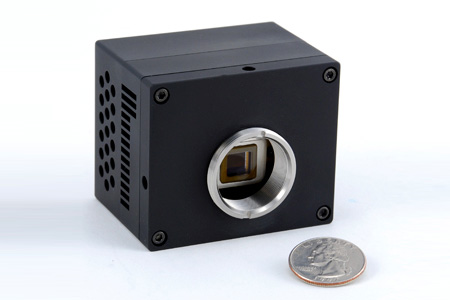

Standard C Mount GigE
|
|
RMV 11 MP
The RMV-11002, based on the Truesense Imaging Inc
KAI-11002 image sensor, is an impressive 11 megapixel camera in a 3" x 3" x
3.5" package. It is designed with Industrial temperature range active
components and its passive components have been de-rated to a stress factor
of 0.6, making it an ideal candidate for government, military and demanding
industrial imaging applications. We have developed a number of package
options based on our customers aerial, industrial and military megapixel
camera demands. If your application is Aerial mapping, reconnaissance,
surveillance, LCD panel inspection or portrait photography, consider the
RMV-11002.
Active Pixels: |
4008 x 2672 |
Pixel Clock: |
30 Mhz |
Pixel Size: |
9.0um x 9.0um |
Frame Rate: |
4.8FPS (Dual Tap) 2.5FPS(Single Tap) |
Bit Depth: |
8, 10 or 12 |
Dynamic Range |
55dB |
Power: |
12VDC - 6 Watts |
Interface: |
Camera Link Base Mode or Gigabit Ethernet |
Dimensions: |
Varies - see specific drawings |
|
|

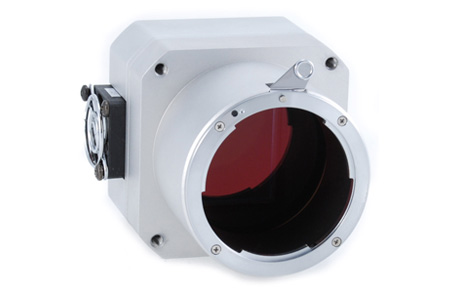

Standard F Mount Nikon/Flange Medium Format Hasselblad
|
|

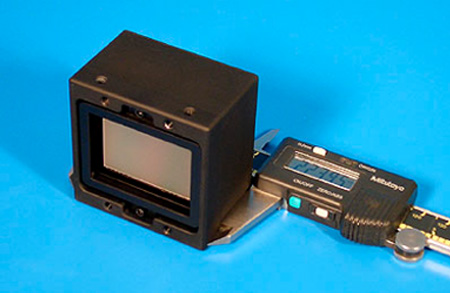

OEM Cube
|
|

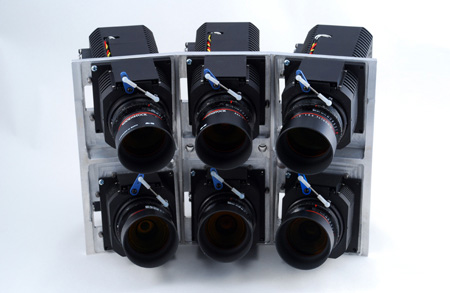

RMV-16M Large Format
RMV-16000, RMV-16050, RMV-16070
Specifically for Aerial
Imaging, we have created a Large Format Lens based version of our
RMV-16 mega pixel line of cameras. Designed specifically for Camera
Arrays and Persistent Surveillance, this camera has an integrated
iris controller which operates seamlessly with our deterministic
auto exposure algorithm. The sensor is tilt adjustable and factory
set for image plane flatness optimization. The cameras communicate
with each other via our inter-camera bus to allow one camera to
control all camera exposures and iris.
This workhorse camera is used by the US armed forces in various
projects.
They are available in several focal lengths, and with use either the
Kodak KAI-16000, KAI-16050 or KAI-16070 sensor - contact us for
further details.
|
|
|
|
|
|

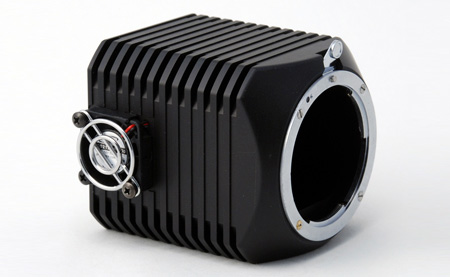

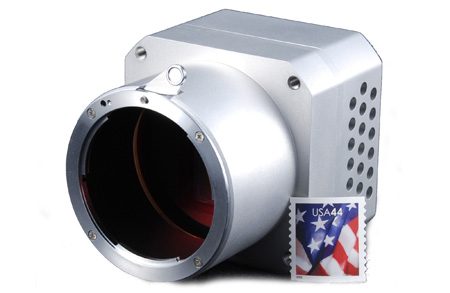

RMV 16000 MP
We are pleased to announce the introduction of our
RMV-16000, a 16 million pixel camera based on the Truesense Imaging Inc
KAI-16000 image sensor. As always, we have a number of case options
available from F-Mount to Medium Format or Large Format . This camera is
based on our very popular RMV-11002 platform.
Active Pixels: |
4872 x 3248 |
Pixel Clock: |
30 Mhz |
Pixel Size: |
7.4um x 7.4um |
Frame Rate: |
3.0FPS (Dual Tap) 1.5FPS(Single Tap) |
Bit Depth: |
8, 10 or 12 |
Dynamic Range |
60dB |
Power: |
12VDC - 6 Watts |
Interface: |
Camera Link Base Mode or Gigabit Ethernet |
Dimensions: |
Varies - see specific drawings |
|
|

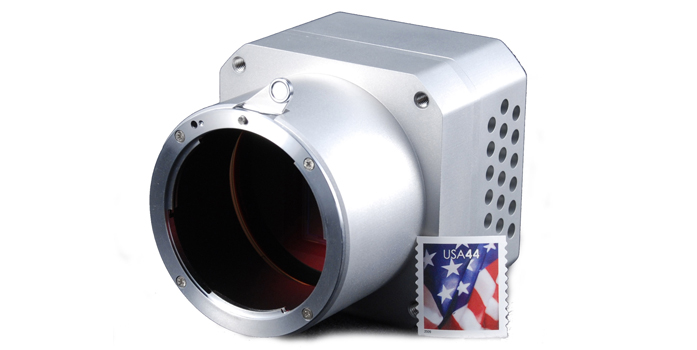

Standard F Mount Nikon
|
|
Flange Medium Format Hasselblad
|
|
RMV 16050/RMV 16070
|
|
RMV 16050
illunis is first again, this time with a 16 mega pixel
camera, using the KAI-16050 sensor
We are pleased to announce the introduction of our RMV-16050, a 16
million pixel camera based on the Truesense Imaging Inc KAI-16050 image
sensor. Using the latest 5.5 micron interline CCD sensor, these cameras
offer outstanding quality and performance, and have aditional features such
as low noise, low smear of -100 dB, blooming suppression of >300x, full 14
bit sampling and 12 bit data path. The RMV-16050 is a 16 mega pixel
progressive scan imager in APS-H optical format (32.36mm diagonal)
Active Pixels: |
4896 x 3264 |
Pixel Clock: |
20, 32 Mhz |
Pixel Size: |
5.5um x 5.5um |
Frame Rate: |
8 FPS (Quad Tap) 4 FPS (Dual Tap) 2 FPS(Single Tap) |
Bit Depth: |
8, 10 or 12 |
Dynamic Range: |
64dB |
Power: |
12VDC - 5.4W @ 32mhz |
Interface: |
Camera Link Base Mode or Gigabit Ethernet |
Dimensions: |
Contact us for CAD drawings |
|
|
RMV 16070
We are pleased to announce the introduction of our
RMV-16070, a 16 million pixel camera based on the Truesense Imaging Inc
KAI-16070 image sensor. Using the latest 7.4 micron interline CCD sensor,
these cameras offer outstanding quality and performance, and have aditional
features such as low noise, low smear of -112 dB, 40 times less smear than
the KAI-16000 , blooming suppression of >300x, full 14 bit sampling and 12
bit data path.
Active Pixels: |
4864 x 3232 |
Pixel Clock: |
30, 40 Mhz (48 Mhz optional) |
Pixel Size: |
7.4um x 7.4um |
Frame Rate: |
8 FPS (Quad Tap) 4 FPS (Dual Tap) 2 FPS(Single Tap) CL
4FPS (Dual) 2FPS (Single) in Gigabit Ethernet |
Bit Depth: |
8, 10 or 12 |
Dynamic Range: |
66dB (40Mhz) 70dB (30Mhz) |
Power: |
TBD |
Interface: |
Camera Link Base Mode or Gigabit Ethernet |
Dimensions: |
Contact us for CAD drawings |
|
|

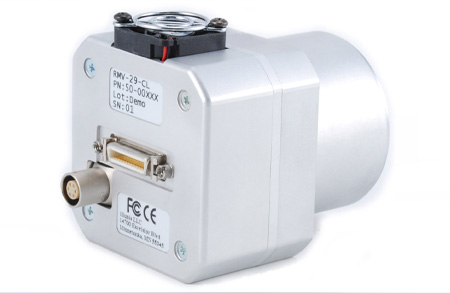

RMV 29 MP
illunis is first again, this time with a 29 mega
pixel camera
We are pleased to announce the introduction of our RMV-29M, a 29
million pixel camera based on the Truesense Imaging Inc KAI-29050 image
sensor. Using the latest 5.5 micron interline CCD sensor, these cameras
offer outstanding quality and performance, and have aditional features such
as low noise, low smear of -100 dB, blooming suppression of >300x, full 14
bit sampling and 12 bit data path. The RMV-29M is a 29 mega pixel
progressive scan imager in a 35mm optical format (43mm diagonal).
Active Pixels: |
6576 x 4384 |
Pixel Clock: |
30, 40, 48 Mhz |
Pixel Size: |
5.5um x 5.5um |
Frame Rate: |
4.8 FPS (Quad Tap) 2.4 FPS (Dual Tap) 1.2 FPS(Single Tap) |
Bit Depth: |
8, 10 or 12 |
Dynamic Range |
64dB (typical 70dB) |
Power: |
12VDC - 5.4W @ 30mhz, 6.4W @ 40mHz |
Interface: |
Camera Link Base Mode or Gigabit Ethernet |
Dimensions: |
Contact us for CAD drawings |
|
|
|
|
|
|

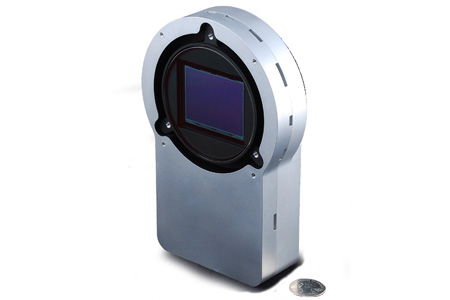

50 MP
We are pleased to announce the introduction of our
RMV-50M, a 50 million pixel camera based on the Truesense Imaging Inc
KAF-50100 image sensor. This camera includes a high reliability shutter and
is the perfect camera for document imaging, archival imaging or studio
portrait photography.
Other applications this camera is perfect for are aerial photography,
scientific.
Active Pixels: |
8176 x 6132 |
Pixel Clock: |
30 Mhz / 20 Mhz |
Pixel Size: |
6.0um x 6.0um |
Frame Rate: |
0.6 FPS (Dual Tap) 1.1 FPS(Four Tap) |
Bit Depth: |
8, 10 or 12 |
Dynamic Range |
70dB |
Power: |
12VDC - 10 Watts |
Interface: |
Camera Link Base Mode or Gigabit Ethernet |
Dimensions: |
Request Drawings |
|
|

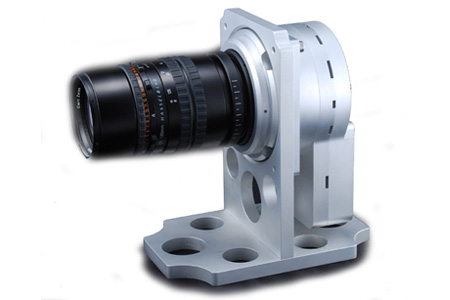

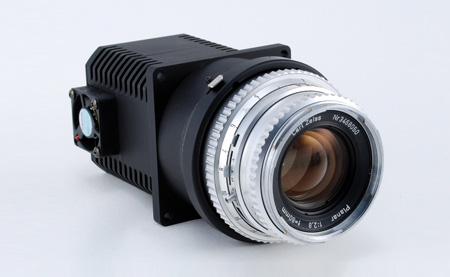

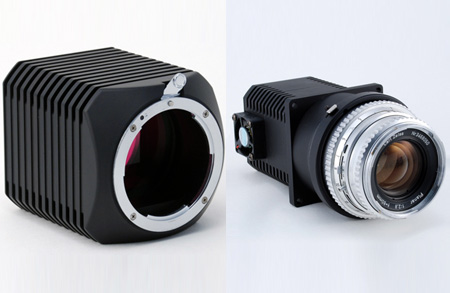

Hasselblad lens shown (bracket optional)
|
|
OEM version. Shutter not included but can be supplied
|
|
VMV cameras
|
VMV = Versatile Machine Vision
The VMV line of cameras offers the same high quality like all illunis
cameras, also at an affordable price. These cameras provide superb
resolution at 1 or 2 tap that will easily create, compliment or replace the
machine vision solution you need.
The VMV line of cameras, based on the new Truesense Imaging Inc.
TRUESENSE 5.5 micron image sensors, are workhorse machine vision cameras
providing extreme performance. These cameras offer outstanding quality and
have additional features such as low smear of -100dB, blooming suppression
of >300x, full 14 bit sampling and data paths, advanced triggering and much
more. Whether you are doing metrology, LCD panel inspection, aerial mapping,
fundus photography or ophthalmic imaging, consider the VMV series of
cameras.
Highlights:
- 5.5 micron sensors
- compact design
- high quality
- low priced
- limited customization options
Spect at a Glance:
Active Pixels: |
VMV-1M 1024 x 1024 KAI-01050 sensor
VMV-2M 1600 x 1200 KAI-02050 sensor
VMV-2MHD 1920 x 1080 KAI-02150 sensor
VMV-4M 2336 x 1752 KAI-04050 sensor
VMV-8M 3296 x 2474 KAI-08050 sensor |
Pixel Clock: |
40 Mhz |
Pixel Size: |
5.5um x 5.5um |
Frame Rate: |
See VMV product summary |
Bit Depth: |
8, 10 or 12 |
Dynamic Range |
64dB |
Power: |
12VDC - see product summary |
Interface: |
Camera Link Base Mode or Gigabit Ethernet |
Dimensions: |
60 x 60 x 28mm |
|
|
Standard C Mount Camera Link
|
|
Standard F Mount Camera Link
|
|
EMCCD cameras
We are pleased to announce the introduction of our EMV-VGA,
a 658 x 496 pixel camera based on the Texas Instruments™ TC246(7)RGB-B0
image sensor. This is a very exciting introduction for us. We now offer TEC
cooled, charge multiplication in a 2" cube! This camera is operational at an
incredible -40 to +71 Celsius temperature range !!! The camera is great for
low-light night vision - in color !!!
Active Pixels: |
658 x 496 |
Pixel Clock: |
15 Mhz |
Pixel Size: |
10um x 10um |
Frame Rate: |
38 FPS |
Bit Depth: |
8, 10 or 12 |
Dynamic Range |
84dB |
Power: |
12VDC - 6 Watts |
Interface: |
Camera Link Base Mode or Gigabit Ethernet |
Dimensions: |
50 x 57 x 67mm |
|
|
|
|
|
|
OEM and Custom
Let us design to your requirements
|
|
Our tool set is state of the art. We develop with Pro-e™
Wildfire for mechanical design, Protel™ for electrical design and layout and
Aldec/Xilinx™ for FPGA development in VHDL. We have developed a substantial
intellectual property portfolio in camera technology. Let us apply some to
your custom OEM application!
|
|
Our camera designs are very modular and generally consist
of 3 circuit assemblies:
1. Power Supply and interface.
2. Timing Generator.
3. CCD interface.
Typically, two of the three circuit boards remain unchanged from design to
design with only firmware changes required for new features or maybe a new
sensor board. Therefore adapting to a new sensor or custom features requires
very little development. We do all of our own timing generator design in
VHDL and can add modes and features to meet your requirements.
|
|
And here is an example of what we can do. You need
something unique? Let us know.
Our engineers love a challenge!
(300mm large format camera shown)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10R
|
|
