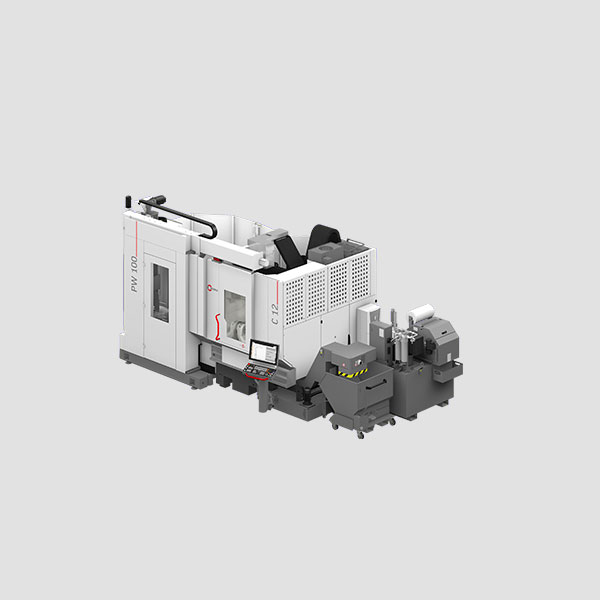

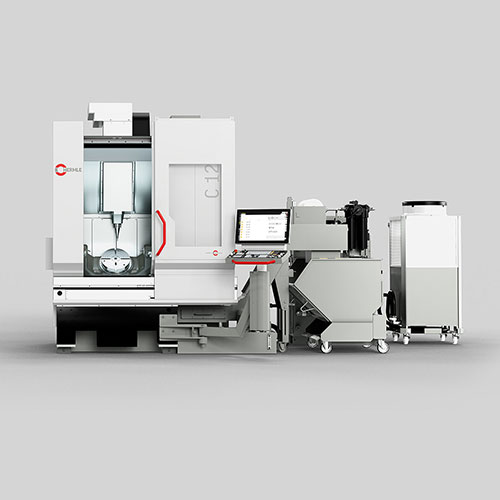

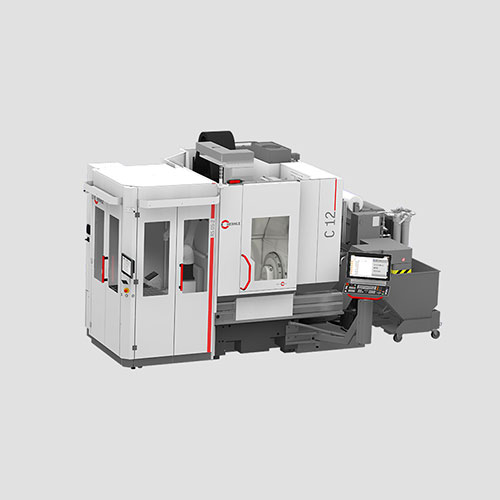

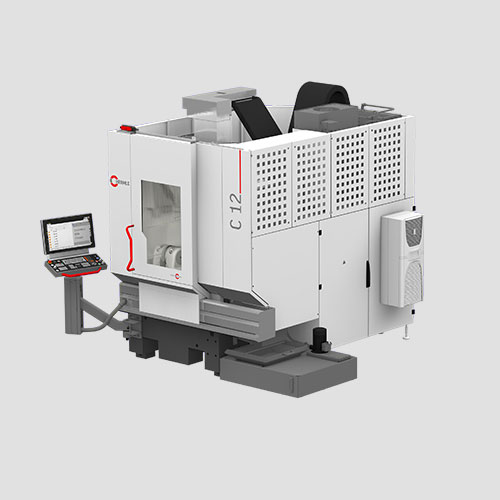

Maximum efficiency combined with a small footprint: The C 12 GEN2 is the most compact HERMLE machining centre in the High-Performance Line.

Designed for machining cubic parts up to 100 kg and is more than a match for larger models. The right speed is available for practically every application. The especially compact and space-saving C 12 GEN2 machining centre meets the ever increasing demands placed on speed and precision thanks to the corresponding HERMLE setups. It goes without saying that there are also many options available for more complex applications.

From the comprehensive fluid technology to the optimised chip management system and a wide range of cooling lubricant units: The entry-level model of the High-Performance Line has a number of highlights to offer, e.g. the right chip disposal equipment for removing all types of chip from the working area. The especially compact and space-saving machining centre can be transported without being dismantled and set up without a foundation.

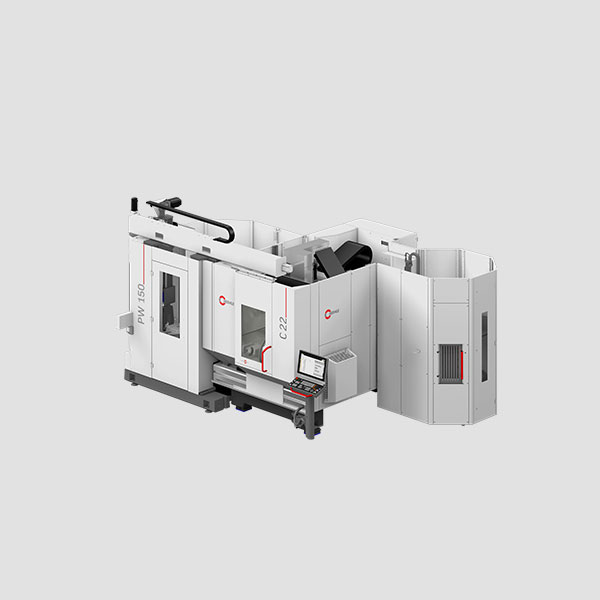

As the C 12’s bigger brother, the C 22 GEN2 High-Performance Line machining centre has the same collision circle with longer traverse paths and larger component dimensions – and that means a huge degree of flexibility.

This equipment impresses with a large number of features. This makes the C 22 GEN2 ideal for a particularly wide range of applications. Short process cycles, quick workflows and the highest possible machine dynamics: The flexible C 22 GEN2 machining centre is ideal for machining high-quality parts with excellent accuracy and small tolerances. As with most HERMLE machining centres, the height-adjustable control panel can be adjusted to suit the operator’s working height.

Cooling units, fluid cabinet and switch cabinet are fully integrated into the compact machine enclosure. The space-saving deployment of the chip conveyor helps both in daily operation and for maintenance and servicing. The especially flexible machining centre can be transported without dismantling and set up without a foundation.

HERMLE manufactures many components using lightweight construction and mineral casting technology. The high degree of own production, local suppliers and components with high efficiency factors also promote energy efficiency. Energy recuperation, high-quality servo drives and the legendary long service lives are all proof of the same high standards during actual operation.

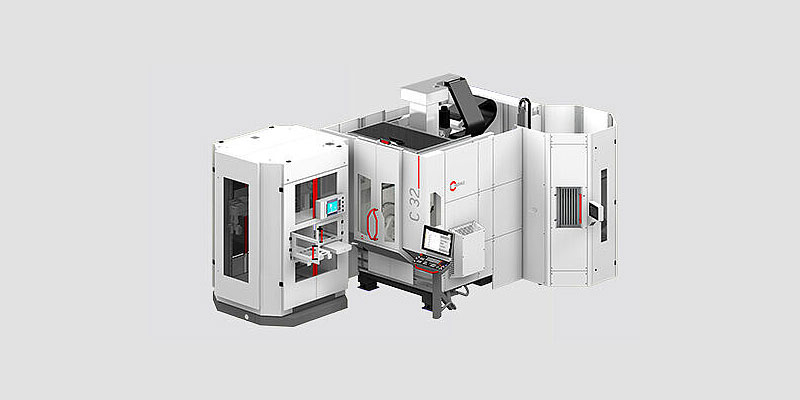

The C 32 GEN2 machining centre is able to workpieces weighing up to 1000 kg and cutting is undertaken in five axes simultaneously.

The machining centre mills even difficult-to-machine materials in record time and with perfect precision – even fully automated and always with unbeatable operating comfort! The range of applications for the C 32 GEN2 is extensive. The C 32 GEN2 machining centre has two axes in the workpiece and three axes in the tool. Dynamic positioning, short non-productive periods and secure holding in the desired machining position all go without saying. As does the very large working area in relation to the installation space. During this change process, the mechanics, which is fundamental to the precision and long-term accuracy of HERMLE products, was not altered. The key values of the machine remain exceptionally high, thereby clearly reaffirming its dominance in the field of 5-axis technology.

Numerous software and hardware components now feature cutting-edge technology. The entire electrical architecture has been revamped to incorporate ProfiNet as the communication bus, while a significant number of the sensors have been converted to IO Link (international standard). Furthermore, the entire drive network of Heidenhain machines has been revised and equipped with the latest generation of converters. These are all components that make the machines even more efficient. The entire platform introduces new technologies and functions, including cutting-edge interface technology and evaluation/diagnostic capabilities for enhanced service analysis in case of errors.

C 52 / C 52 U MT Machining centre

With the C 52, workpieces weighing up to 2000 kg can be machined in 5 axes simultaneously – with unbeatable precision and accuracy. The C 52 sets new standards: These are particularly valued in demanding industries such as machine construction, the automotive sector and aerospace. In short: wherever the highest precision and maximum efficiency are required. Ample dimensions, high-performance spindle drives and many useful innovations for practical work turn the C 52 / C 52 U MT machining centre into a top performer.

From the comprehensive fluid technology to the optimised chip management system and a range of cooling lubricant units to the hinged belt conveyor: This High-Performance Line model has a number of highlights to offer, e.g. the right chip disposal equipment for removing all types of chip from the working area. This high-performance machining centre can be transported without being dismantled and set up without a foundation.

HERMLE manufactures many components using lightweight construction and mineral casting technology. The high degree of own production, local suppliers and components with high efficiency factors also promote energy efficiency. Energy recuperation, high-quality servo drives and the legendary long service lives are all proof of the same high standards during actual operation.

C 62 / C 62 U MT Machining centre

The highly dynamic machining centre represents ultimately consistent design for efficient machining of CNS milled parts and CNC turned parts. Numerous features ensure high-precision and cost-effective working on workpieces up to 2500 kg in weight. Various optional extras simply add to the capabilities for innovative advanced machining. As with all Hermle machining centres, the C 62 / C 62 U MT offers various workpiece loading options to guarantee optimum operation.

From the comprehensive fluid technology to the optimised chip management system and a range of cooling lubricant units to the hinged belt conveyor: This High-Performance Line model has a number of highlights to offer, e.g. the right chip disposal equipment for removing all types of chip from the working area. This high-performance machining centre can be transported without being dismantled and set up without a foundation.

HERMLE manufactures many components using lightweight construction and mineral casting technology. The high degree of own production, local suppliers and components with high efficiency factors also promote energy efficiency. Energy recuperation, high-quality servo drives and the legendary long service lives are all proof of the same high standards during actual operation.

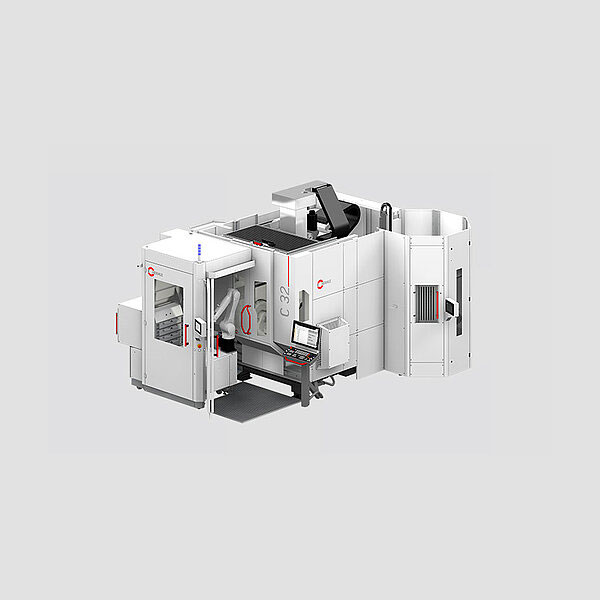

The C 32 GEN2 machining centre is able to workpieces weighing up to 1000 kg and cutting is undertaken in five axes simultaneously.

The machining centre mills even difficult-to-machine materials in record time and with perfect precision – even fully automated and always with unbeatable operating comfort! The range of applications for the C 32 GEN2 is extensive. The C 32 GEN2 machining centre has two axes in the workpiece and three axes in the tool. Dynamic positioning, short non-productive periods and secure holding in the desired machining position all go without saying. As does the very large working area in relation to the installation space. During this change process, the mechanics, which is fundamental to the precision and long-term accuracy of HERMLE products, was not altered. The key values of the machine remain exceptionally high, thereby clearly reaffirming its dominance in the field of 5-axis technology.

Numerous software and hardware components now feature cutting-edge technology. The entire electrical architecture has been revamped to incorporate ProfiNet as the communication bus, while a significant number of the sensors have been converted to IO Link (international standard). Furthermore, the entire drive network of Heidenhain machines has been revised and equipped with the latest generation of converters. These are all components that make the machines even more efficient. The entire platform introduces new technologies and functions, including cutting-edge interface technology and evaluation/diagnostic capabilities for enhanced service analysis in case of errors.

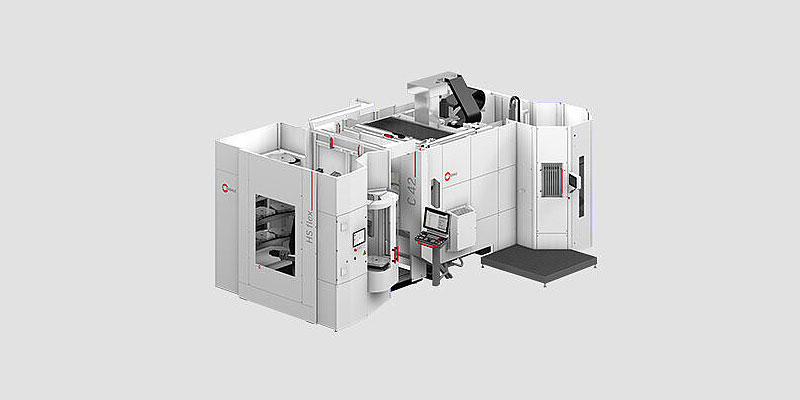

The C 42 GEN2 is the ongoing transition towards a new machine generation of the future.

The C 42 GEN2 machining centre from the High-Performance Line is an effective gateway into MT technology – thereby evolving seamlessly into a high-performance milling and turning centre. As a milling and turning centre, the C 42 / C 42 MT GEN2 responds to demands for the highest precision and very small tolerances through its traverse paths optimised to the workpiece dimension and well thought-through 5-axis usage. During this change process, the mechanics, which is fundamental to the precision and long-term accuracy of HERMLE products, was not altered. The key values of the machine remain exceptionally high, thereby clearly reaffirming its dominance in the field of 5-axis technology.

Numerous software and hardware components now feature cutting-edge technology. The entire electrical architecture has been revamped to incorporate ProfiNet as the communication bus, while a significant number of the sensors have been converted to IO Link (international standard). Furthermore, the entire drive network of Heidenhain machines has been revised and equipped with the latest generation of converters. These are all components that make the machines even more efficient. The entire platform introduces new technologies and functions, including cutting-edge interface technology and evaluation/diagnostic capabilities for enhanced service analysis in case of errors.
