WENZEL Group
Videos
Loading the player ...
  • Offer Profile
  • The WENZEL Group GmbH & Co. KG is one of the leading manufacturers of metrology solutions. The company has customers in many industries as automotive and aerospace, mechanical engineering, as well as subcontractors operating in these sectors. Subsidiaries and sales and service partners worldwide represent the company in more than 50 countries. The WENZEL Group employs around 630 people.
Product Portfolio
  • Coordinate Measuring Machines and Gear Metrology

      • Manual Measuring Machines

            • Manual 3D coordinate measuring machine XCite

            • Manual bridge-type CMM for the entry into the world of metrology

              XCite is the new manual 3D coordinate measuring machine for quick verification of simple parts. It enables the economical entry into the world of metrology. The compact sensor collects probe points, which are stored and evaluated with the powerful measuring software Metrosoft QUARTIS. Thus, reliable measurement values for different measuring tasks are generated with minimum effort.

              The XCite offers easy operation and an attractive starting price. The all-round system is suitable for quality control of components as well as for classic measurement of work pieces. It is an inexpensive alternative to gauges or multi-point measurement systems. Due to this properties the measuring machine can be also used in the production measurement.
        • Large Measuring Machines

            • 3D coordinate measuring machine LH Gantry

            • LH Gantry for measurements of large workpieces

              The LH Gantry is a CNC coordinate measuring machine in gantry design with touch-trigger or scanning probe system. The LH Gantry enjoys all of the attributes of the smaller LH Bridge machine family but has been configured to provide for the inspection of large and heavy parts.

              The WENZEL LH Gantry CMM showcases a monolithic design with an integral granite table negating the need for a special foundation. Due to their active pneumatic vibration damping and automatic temperature compensation, the LH Gantry is protected against vibration and thermal effects. The ‘high drives’ of the LH Gantry also ensure maximum stability even during dynamic movements.

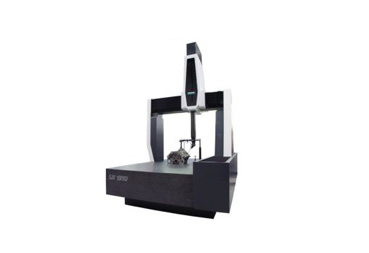

            • 3D coordinate measuring machine LH 1210

            • Bridge-type CMM with a large measuring range and excellent accessibility

              Precise, dynamic and reliable. The LH is a universal and flexible instrument for different applications. The revolutionary design of the new LH offers high mechanical accuracy, perfect ergonomics and dynamics. The new generation of LH is equipped with an incremental measuring system, which has a fine grating period, and excellent dirt immunity. As a result best position resolution and stability at high speed for all linear axes are possible.

              Intelligent software and accessory options and a comprehensive service package complete the top LH CMM concept.



            • 3D coordinate measuring machine LH 1512

            • Bridge-type CMM with a large measuring range and excellent accessibility

              The CNC-bridge design measuring machine LH is the perfect solution for all common measurement tasks. The machines of the LH Series are being used for quality control, process control, production control, the development of prototypes and reverse engineering. From miniature gears to rocket building, in small agile shops, at innovative mid-size enterprises or world-famous conglomerates – or simply wherever high measuring requirements define the demands.

              The LH machines are capable for a variety of probe head and scanner combinations. From fixed to motorized and adjustable probe heads. From simple measuring probes to high-precision and optical probe systems. The LH is suitable for demanding measuring tasks, fast form checks, extreme accuracy and scanning of any 2D and 3D curves and outlines.

              The LH Series stands out due to an excellent price-performance ratio and flexible applications. LH CMMs are a safe investment because they are very durable and versatile.
            • 3D coordinate measuring machine LHF

            • Bridge-type CMM for precise measurements of large workpieces

              When it is all about the accurate measurement of large gears or other high precision parts offers the LHF Gear high flexibility concerning ergonomics of the measuring volume. The at-grade design realizes excellent free moving space and easy loading of the measuring volume.


              Bridge type measuring machine for gear metrology

              Just as the 3D coordinate measuring machines of the LH Gear series is the LHF Gear equipped with a rotary table for the precise 4-axes-measurements of gearings. So gears and other rotationally symmetrical parts with a diameter greater than 4000 mm can be measured.
          • Medium Measuring Machines

              • 3D coordinate measuring machine LH

              • Medium bridge-type CMMs for highest dynamics and precision

                Precise, dynamic and reliable. The LH is a universal and flexible instrument for different applications. The revolutionary design of the new LH offers high mechanical accuracy, perfect ergonomics and dynamics. The new generation of LH is equipped with an incremental measuring system, which has a fine grating period, and excellent dirt immunity. As a result best position resolution and stability at high speed for all linear axes are possible.

                Intelligent software and accessory options and a comprehensive service package complete the top LH CMM concept.
              • 3D coordinate measuring machine XOrbit

              • Bridge-type CMM for mediumsized workpieces at an affordable price

                The WENZEL XOrbit is the ideal coordinate measuring machine, wherever the core aspects of measuring are required and where rapidity and ease of use are in demand. It can be used for checking incoming goods and throughout the production cycle until final inspection since it fulfils all major demands. Whether for individual or serial measurements, XOrbit is suitable for universal applications.

                The WENZEL XOrbit is a cost effective derivative of the world´s renowned WENZEL LH series. XOrbit utilizes the industry standard Renishaw heads, touch probe and scanning probes.

                XOrbit is the perfect CMM for companies purchasing their initial coordinate measuring machine, considering a 2nd user unit, or for the larger production operations needing to distribute multiple CMM’s. XOrbit has the optimum price/performance values.
            • Small Measuring Machines

                • 3D coordinate measuring machine LH 54

                • Bridge-type CMM LH for measurements of small workpieces

                  The CNC-bridge design measuring machine LH 54 is the perfect solution for all common measurement tasks. It is used for quality control, process control, production control, the development of prototypes and reverse engineering.

                  The LH 54 is capable for a variety of probe head and scanner combinations. From fixed to motorized and adjustable probe heads. From simple measuring probes to high-precision and optical probe systems. The LH is suitable for demanding measuring tasks, fast form checks, extreme accuracy and scanning of any 2D and 3D curves and outlines.

                  The LH 54 stands out due to an excellent price-performance ratio and flexible applications.
                  3D coordinate measuring machines from WENZEL are a safe investment because they are very durable and versatile.
                • 3D coordinate measuring machine Smart

                • Shop Floor Measuring Center for small to medium-sized manufacturing parts

                  The Smart is a shop-floor 3D coordinate measuring machine for a wide range of small and medium-sized components and can be supplied with touch trigger, scanning or optical probe systems. The Smart is used in different industries like mechanical engineering, automotive or plastics industries.

                  The CMM is stable in temperature, all guideways are encapsulated and protected against contamination. So the Smart could be used even in very rough environments. The measuring volume is freely accessible from three sides. Another advantage is the small footprint. The installation is very easy, because there is no air supply required.
                • 3D coordinate measuring machine XOrbit 55

                • Bridge-type CMM for small workpieces at an affordable price

                  The WENZEL XOrbit is the ideal coordinate measuring machine, wherever the core aspects of measuring are required and where rapidity and ease of use are in demand. It can be used for checking incoming goods and throughout the production cycle until final inspection since it fulfils all major demands. Whether for individual or serial measurements, XOrbit is suitable for universal applications.

                  The XOrbit 55 is WENZEL’s global CMM and is our most price efficient CNC model. It is a cost effective derivative of the world´s renowned WENZEL LH series. XOrbit utilizes the industry standard Renishaw heads, touch probe and scanning probes.

                  XOrbit is the perfect CMM for companies purchasing their initial coordinate measuring machine, considering a 2nd user unit, or for the larger production operations needing to distribute multiple CMM’s. XOrbit has the optimum price/performance values.
              • Horizontalarm Measuring Machines

                  • 3D coordinate measuring machine RSplus

                  • Open access from all sides with the horizontal-arm CMM

                    The RSplus is a CNC horizontal arm CMM and can be supplied with touch trigger, scanning or optical probe systems. The RSplus is suitable for full Body-in-White (BIW) automotive applications, mould and die and toolmakers. Typical parts are complete vehicle bodies and individual assembly groups, plastic interior parts, seats and large components of all kinds. The machines are also shop hardened allowing for their installation close to the point of production.

                    The linear guideways of the RSplus are side mounted. Precision roller bearings provide the highest level of speed and precision. The machine designs are modular allowing the machines to be build to suit an application precise measuring volume. The superior design and compact arrangement of the guide elements of the X axis provides perfect accessibility for measuring and maintenance tasks from all sides. By this construction, the CMM can easily be moved to another location.

                    Duplex models are supplied to increase the measuring range in the Y axis. The arms can work individually or in a joint coordinate system. The RSplus can also be operated manually. This allows for example the marking of models in mould making and design. Mobile control elements are optional and available for maximum flexibility and ergonomics.
                  • 3D coordinate measuring machine RA

                  • Durable and floor level horizontal-arm CMM for large part measurements

                    The RA is a CNC horizontal arm CMM and can be supplied with touch trigger, scanning or optical probe systems. The RA is mainly used in the automotive and supplier industries, tool and die making and for gauges and fixtures. The machines are also shop hardened allowing for their installation close to the point of production.

                    The mechanical bearing of the RA series are top mounted. This design allows the easy placement of heavy components up to complete vehicles on the CMM. Linear guideways ensure precise movement in the X axis; precision rollers support the Y and Z axes. The machines are available in duplex configuration (RAD) increasing Y measuring volume. The extremely stable steel band protection system prolongs the life of the working parts of the RA measuring machine. The arms can work individually or in a joint coordinate system. The machine designs are modular allowing the machines to be build to suit an applications precise measuring volume.

                    Mobile control elements are optionally available for maximum flexibility and ergonomics. The RA series is characterized by design simplicity, easy maintenance and high robustness. The RA can also be operated manually. This allows for example the marking of models in mould making and design.
                  • 3D coordinate measuring machine RAplus

                  • Horizontal-arm CMM for highest dynamics and precision

                    The RAplus is a CNC horizontal arm CMM and can be supplied with touch trigger, scanning or optical probe systems. The RAplus is mainly used in the automotive and supplier industries, tool and die making and for gauges and fixtures. The machines are also more shop hardened allowing for their installation close to the point of production. The machines are also shop hardened allowing for their installation close to the point of production.

                    The mechanical bearing of the RAplus series are top mounted. This design allows the easy placement of heavy components up to complete vehicles on the CMM.

                    RAplus machines are designed with higher dynamics to allow machines to pace production and measure more parts per hour. The Z axis is encapsulated for improved temperature stability. The RAplus Series is available in single or dual arm configurations. The RAplus can also be operated manually. This allows for example the marking of models in mould making and design.
                  • 3D coordinate measuring machine RUF

                  • The under arm solution with the horizontal-arm CMM

                    The under-floor measuring arm model RUF is the ideal supplement to an RAD and RADplus installation when difficult to access features need to be measured from below. The arm is available in manual or CNC models. The measuring range of the RUF depends on the selected RAD or RAD Plus machine. The arms can work individually or in a joint coordinate system. The use of touch Probe, Laser Scanning and Optical inspection applications is possible.
                  • 3D coordinate measuring machine RAX

                  • Horizontal-arm CMM for highest precision in large format

                    The RAX is the new state-of-the-art CNC horizontal arm CMM from the well-tried WENZEL R-Series and has been developed in close cooperation with one of the world´s leading car manufacturers. The RAX can be supplied with touch trigger, scanning or optical probe systems and is especially suitable for accurate measuring of high and large components. The innovative system can easily be used in the production environment.

                    The standard version of the RAX offers a large measuring range of 3100 mm in Z-Axis. The Y-Axis has a standard length of 1600 mm in single – or 3000 mm in duplex version. Due to the mirror-image structure of the duplex version the measuring range in X-Axis will optimally be utilized. Depending on the probe system the measuring range starts directly above the base plate in Z-Axis. The high-precision linear guideways in all axes meet the steady increasing demands of precision measurement technology. The X-axis guideways are integrated at floor-level into the base plate. This design allows the RAX to be fitted with heavy components to complete vehicles. The drives have been optimized based on the well-tried WENZEL technology for the new construction. The RAX can be equipped with multiple touch probes and software modules.

                    Mobile control elements are optional and available for maximum flexibility and ergonomics. Options such as the dynamic temperature compensation or active pneumatic vibration damping are also available for the new RAX.
                • Gear Metrology

                    • Gear measuring machines WGT 280

                    • Top class gear metrology

                      Features and Benefits
                      • High stability through granite base
                      • Identical thermal behavior in all axes and base
                      • High precision air bearing on linear axes
                      • Specially developed WENZEL Geco CNC controller for continuous 4-axes-measurement
                      • Use of continuous scanning probes and fully automated change racks
                      • Passive or active vibration damping
                      • Fully integrated measuring software for the measurement and analysis of divers gearings
                    • Gear measuring machines WGT 400 – WGT 3000

                    • Top class gear metrology

                      Features and Benefits
                      • Identical thermal behavior in all axes and base
                      • High precision air bearing on linear axes
                      • Specially developed WENZEL Geco CNC controller for continuous 4-axes-measurement
                      • Use of continuous scanning probes and fully automated change racks
                      • Passive or active vibration damping
                      • Fully integrated measuring software for measurement and analysis of diverse gearings
                    • 3D Gear measuring machines LH Gear

                    • The combination of gear and coordinate measuring machine

                      Features and Benefits
                      • 4-axes bridge type gear measuring machine with integrated rotary table
                      • High stability through granite base
                      • High precision air bearing on linear axes
                      • Aero- or hydrostatic rotary table
                      • Massive granite basement for superior stability
                      • Passive or active vibration damping
                      • Specially developed WENZEL Geco CNC controller for continuous 4-axes-measurement
                      • Use of continuous scanning probes and fully automated change racks
                      • Fully integrated measuring software for the measurement and analysis of divers gearings
                    • Gear measuring machines LHF Gear

                    • The combination of gear and coordinate measuring machine large parts

                      Features and Benefits
                      • 4-axes bridge type gear measuring machine with integrated rotary table
                      • Active dynamic temperature compensation
                      • Use of continuous scanning probes and fully automated change racks
                      • High precision air bearing on linear axes
                      • Extendable Y-axis for larger measuring volume
                      • Specially developed WENZEL Geco CNC controller for continuous 4-axes-measurement
                      • Fully integrated measuring software for the measurement and analysis of divers gearings and 3D coordinate measuring
                    • 3D Gear measuring machines LH Hybrid

                    • The bridge type measuring machine with tailstock for gear metrology

                      Features and Benefits
                      • 4-axes bridge type gear measuring machine with integrated rotary table
                      • Specially designed tailstock
                      • Active vibration damping
                      • High stability through granite base
                      • High precision air bearing on linear axes
                      • Aero- or hydrostatic rotary table
                    • Gear Software

                    • Easy parameter input, fast creation of measuring program
                      The WGT gear measuring machines are equipped with extensive modular measuring software. It provides broad functionality for the measurement and analysis of different types of gearing, tools and shafts.


                      Graphical user guidance for intuitive operability
                      The creation of measuring programs is carried out with the help of easy to use and intuitive input masks. Graphics support the user when entering the gearing parameters. After the selection of the different analyses a measurement program is created automatically.


                      Modular software concept for application oriented configuration
                      This software, certified by the German metrology institute PTB, is divided into the main menu TMain and into separate application oriented modules. TMain allows a comfortable management of part parameters and measurement results. The multifarious choices for software modules and options allow an application oriented configuration of the measuring system. This configuration can be adapted to changing requirements anytime.
                  • Industrial Computed Tomography

                      • CT-Workstation exaCT® M

                      • The new exaCT® M CT-Workstation is based on an innovative concept. During the design process WENZEL Volumetrik always focused on the needs of the user. The result is a computed tomography system which is not similar in selected points to other industrial CTs, but is superior point by point to these systems. The CT-Workstations exaCT® M is set up as a modular system. Because of its modular design it is optimal adjustable to requirements of differing measurement tasks. The workflow of measuring and analyzing is combined in an optimal way, as a desk is integrated in the CT-Workstation exaCT® M. Also integrated: Software, service, consulting and training.
                      • Desktop-CT exaCT® S

                      • The compact desktop CT exaCT® S is the ideal solution for volume measurement of small components. exaCT® S is small enough to fit on every desk and offers a maximum of performance in a minimum of space. The high resolution allows a detailed analysis, even of the smallest components. Possible analysis range from micro-measurements to micro-material-testing. Based on the modular concept differing system variants can be configured. The systems vary in power of the x-ray tube, size of the detector and measurement volume. Every variant of the exaCT® S line is characterized by its compact design, ergonomics and the idea of combining high efficiency and flexibility with a small footprint.
                      • Desktop-CT exaCT® XS

                      • The highly compact desktop CT exaCT® XS is the ideal solution for the volume measurement of small plastic parts and components with low density. Thanks to its optimized dimensions and low weight, it can be placed on desktops or portable trolleys easily. The device is controlled by a modern touch-screen monitor. The innovative and user friendly operating concept allows to set-up a measurement within a few minutes. All components of the exaCT® XS are integrated in one unit. This ensures a very small footprint. The excellent price-performance ratio of exaCT® XS makes computed tomography affordable even for small companies. The technical advantages are numerous. The stable and maintenance-free X-ray source in combination with the industrial detector from own production and the high-precision rotary table provide an excellent basis for metrological applications. The type-approval certificate under German law eliminates the authorization process in Germany. This ensures both the quick startup and the flexible modification of the installation site. You only need space on the desk and an electrical outlet for operation. The data is exchanged via a fast network-connection.
                      • Metrosoft QUARTIS

                      • Metrosoft QUARTIS is the established measuring software from WENZEL Metromec. This softwarew allows the dimensional evaluation of the data captured with an exaCT®. Metrosoft QUARTIS provides the comprehensive functionality of the worldwide used measuring software, even for the evaluation of inner structures.
                      • exaCT® Analysis

                      • The exaCT® Analysis is the software for surface generation which can be used to generate and process exact free-form surfaces from CT data. PointMaster modules are integrated to exaCT® Analysis.

                        They fulfill important functions for CT evaluations:
                        • Nominal-to-actual comparisons against 3D CAD models, display using colour rendering
                        • 3D porosity analysis
                        • Reverse engineering
                        • Innovative functions for iterative compensation of material shrinkage
                        • in injection and casting molds
                    • Optical Highspeed Scanning

                        • Optical CMMs

                            • CORE D

                            • Clamp the blade, push a button and the noncontact measurement is started! CORE-DS makes it possible. A robust and compact measuring system with high dynamics, specifically designed for the measurement of turbine blades on the production floor. CORE-DS is equipped with a white light sensor, which makes the measurement of highly reflective and polished surfaces possible.
                              CORE D was developed for the inspection of turbine blades in production environments.

                              Two different options are available for CORE D. CORE DG is an optical gauging system for single point measurements and CORE DS for single point measurement and scanning-mode.
                            • CORE M

                            • CORE M is a measuring system developed to fulfill the increasing demand for 100% testing. Fast and efficiently it can be used right where manufacturing takes place – in production.
                              The optical high speed scanning system is ideally adapted to the rough conditions of a direct production environment. CORE M is characterized by temperature stability, dirt and vibration resistance. High dynamic linear drives and the robust base machine of the 6-axis-measuring-system allows measurements at high speed.
                              Quick point acquisition is ensured by the innovative optical high intensity light sensor made by WENZEL ScanTec; on components difficult to access as well as on highly reflective surfaces; without time intensive repositioning of the part or pretreatment of surfaces.
                              CORE M has a measurement volume of 500 mm x 500 mm x 1500 mm and is therefore ideal for the measurement of large components. The comprehensive software package from WENZEL enables easy and fast evaluations even of complex parts like blades and blisk.
                            • MAXOS

                            • MAXOS is ideal for the measurement of large turbine blades and complex parts. This optical system especially meets the high expectations of the aerospace industry. With up to 6 axes, whereof 3 are rotary axes, even areas difficult to access can be measured fast and accurate. The unique technology allows the precise measurement of highly reflective surfaces.

                              Noncontact
                              • Measurement of highly reflective and polished surfaces without delustering
                              • Measurement of colored surfaces
                              • Small light spot providing high resolution
                          • Digitizing Systems

                                • MobileScan3D

                                • The mobile CNC measuring and digitizing system

                                  MobileScan3D is an extremely fast portable measuring and scanning solution, using state of the art PointMaster V5 Reverse Engineering and verification Software, it has the ability to automatically scan with CNC and very simple operation. With MobileScan3D processes and products can be optimized. The results are of high quality, precise and repeatable. MobileScan3D is a reliable tool for the measurement of first and control samples and prototypes as well as for actual-to-nominal comparison.

                                  Non-Contact
                                  • High resolution due to new ‘Blue-Ray’-Laser technology
                                  • Less sensitive to critical surface structures
                            • Measuring Software

                                • OpenDMIS

                                • For multiple parts; the approved measuring software OpenDMIS® is ideal. The intuitive user interface and seamless CAD integration enable the quick creation of measuring programs. OpenDMIS® supports DMIS standard as programming language and allows therefor easy exchange of measuring programs with other measuring systems.
                                • Win3DS Blade Software

                                • Win3DS is the solution for fully automated system integration of CORE; ideal for the complete analysis of turbine blades. For measurements with Win3DS nominal and parameterized data can be used. A powerful library with more than 500 functions allows the easy evaluation of blade concerning parameters – complete, inclusive different functions for alignment.
                                • PointMaster V5

                                • PointMaster is the successful and reliable software from WENZEL with the modules Reverse Engineering, Verification, CAM Milling and Computed Tomography.

                                  All modules are an integral part of the system solution based in the core software PointMaster. In addition the new release offers multicore acceleration with full 64 bit performance.

                                  The success of PointMaster is based on the completely object-oriented handling. Most functions are supported with automatic functions. The easy of use is one of the strong points of PointMaster. It is possible to learn PointMaster in a few hours. Another of PointMaster’s major plus points is the visual assistance provided by the interactive feature ‘Shading’. This displays both artefacts and any areas of discontinuity, as well as feature lines, which are the key for surface segmentation. New functions such as surface trimming by use of B-spline curves, importing surfaces created in CAD systems for surface reconstruction and geometric feature recognition round off the wide range of new features in PointMaster Version 5.0.
