  • AMSYS is a provider of advanced micromechanical sensors and sensor systems. With pressure measurement as its chief focus, the company supplies the entire spectrum of products in this field – from sensing elements to ready-to-use transmitters. Its largest range consists of OEM products which customers can use to configure their own sensors for all pressure measurement versions. Customized modifications are also possible above and beyond the standard product range.

    Besides the pressure sensors AMSYS also supplies inclinometer,  humidity sensors, temperature sensors and magnetic encoders
    to complete the product range of micromechanical sensors.

Product Portfolio
  • Pressure Sensors

  • AMSYS offers for all measuring methods (absolute pressure, relative pressure, etc.) a wide range of pressure sensors in different versions (calibrated, none calibrated, amplified, ready-to-use) and with analog and/or digital output.
      • Absolute Pressure Sensors

          • NEW: MS5803 digital high precision OEM-Sensormodul

          • Type: MS5803

            The MS5803-xxBA is a new generation of high resolution sensors with SPI & I²C interface. The sensor module includes a high linearity pressure sensor with an ultra low power 24 bit ADC with internal factory calibrated coefficients. It provides precise digital 24 bit pressure and temperature values and different operation modes that allow the user to optimize for conversion speed and current consumption. A high resolution temperature output allows the implementation of an altimeter/thermometer function without an additional sensor. Gel protection and an antimagnetic stainless steel cap allow the use in 100m waterproof altimeter/compass watches.

            The MS5803 is available in the following pressure ranges:

            MS5803-01BA: 10-1300mbar
            MS5803-02BA: 300-2000mbar
            MS5803-05BA: 0-6bar
            MS5803-14BA: 0-14bar
            MS5803-30BA: 0-30bar

            FEATURES

            • High resolution (MS5803-01BA) of 15cm (adjustable)
            • Fast conversion down to 1 ms (adjustable)
            • Supply voltage 1.8 to 3.6 V
            • Integrated temperature sensor
            • Operating temperature range: -40 to +85 °C
            • I²C and SPI interface up to 20 MHz
            • No external components (Internal oscillator)
            • RoHS compatible & Pb-free
            • Low power, 1 μA (standby < 0.15 μA)
            • Hermetically sealable for outdoor devices
            • Small size 6.2×6.4 mm
            • Excellent long term stability
          • Non calibrated silicon OEM-sensors without amplification

          • Type: MS52XX

            The MS52XX-YZ SMD pressure transducer series is designed for pressure sensor systems with highest demands on resolution and accuracy. The device consists of a silicon micro machined pressure measurement cell mounted on a 7.6 x 7.6mm² ceramic carrier protected by a metal cap. The MS52XX-YZ can be delivered in the "high sensitivity" option giving an output signal of up to 400mV Full Scale signal at 5V or a "high linearity" option with an output signal of 150mV Full Scale and an excellent linearity of typ. 0.05%FS.

            MS52XX-AZ, high sensitivity, absolute
            Pressure range 1 and12 bar, metal cap with or without gel protection
            2, 4 and 7bar version only on request

            MS52XX-BZ, high linearity, absolute
            Pressure range 1 and 12 bar, metal cap with or without gel protection
            2, 4 and 7bar version only on request

          • Calibrated Silicon OEM-pressure modules with digital pressure and temperature signal

          • Type: MS5806

            The MS5806-02BA is a new generation of high-resolution altimeter sensors from MEAS Switzerland with I²C bus interface. It is optimized for altimeters and variometers with an altitude resolution of 20 cm. The sensor module includes a high-linearity pressure sensor and an ultra low power 24 bit ΔΣ ADC with internal factory-calibrated coefficients. It provides a precise digital 24 Bit pressure and temperature value and different operation modes that allow the user to optimize for conversion speed and current consumption. A high-resolution temperature output allows the implementation of an altimeter/thermometer function without any additional sensor.

            The MS5806-02BA can be interfaced to virtually any microcontroller. The communication protocol is simple, without the need of programming internal registers in the device. This new sensor module generation is based on leading MEMS technology and latest benefits from MEAS Switzerland proven experience and know-how in high volume manufacturing of altimeter modules, which have been widely used for over a decade. The sensing principle employed leads to very low hysteresis and high stability of both pressure and temperature signal.

            *Modules are pressure sensors, whose output signals have to be calculated by an external microprocessor.
          • Calibrated Triple-Sensor with digital pressure, humidity and temperature signal

          • Type: MS8607-02B03

            The MS8607-02BA01 includes two sensors with distinctive MEMS technologies to measure pressure, humidity and temperature. The first sensor is a piezoresistive sensor providing pressure and temperature, and the second is a capacitive-type sensor providing relative humidity. Each sensor is interfaced to a ΔΣ ADC integrated circuit for digital conversion where the MS8607-02BA01 converts the uncompensated analog output voltages to a 24-bit digital value for the pressure and temperature measurements, and a 16-bit digital value for the relative humidity measurement.

            The module MS8607 features a very low standby current consumption of max. 0.24μA. It provides different operation modes that allow optimizing for speed and current consumption, therefore it can be adjusted to the individual application. The MS8607 is packaged in a QFN-package (5.0x3.0x1.0mm³).

            The MS8607-02BA01 is well suited for applications in the consumer electronic and industrial marketplace such as smart phones and tablet PCs, HVAC applications, weather stations, printers, home appliance and humidifiers.

            *Modules are pressure sensors, whose output signals have to be calculated by an external microprocessor.
          • Calibrated silicon OEM-pressure sensors with analog/digital pressure and temperature signal

          • Type: AMS 5812

            The AMS 5812 series of OEM sensors are fully signal conditioned, amplified, temperature compensated sensor in a dual in-line package (DIP) configuration with a 0,5 -4,5V/2,5 ±2V analog output und an I²C- interface.

            The AMS 5812 are calibrated and compensated in the temperature range of -25 – 85°C. High precision, high stability and low drift are the result of a combination between the MEMS technology and a microelectronics signal conditioning ASIC.

            The AMS 5812 series pressure sensors are based on a highly stable, piezoresistive pressure sensor chips mounted on a ceramic substrate. The electronically programmable ASIC is contained in the same package to provide calibration and temperature compensation.

            AMS 5812, for ultra low pressure, differential or bidirectional differential:
            0 - 0.075; 0 - 0.15PSI or ±0.075; ±0.15; PSI

            AMS 5812, for low pressure, differential or bidirectional differential:
            0 - 0.3; 0-0.8 and 0 -1.5PSI or ±0.3; ±0.8; ±1.5PSI

            AMS 5812, for standard pressure, differential or bidirectional differential, gage:
            0 - 3; 0 - 5; 0 - 15; 0 - 30; 0 - 60 and 0 - 100PSI or ±3; ±5; ±15PSI

            AMS 5812, for absolute pressure: 0 - 15PSI and 0 -30PSI

            AMS 5812, for barometric (absolute) pressure: 11 - 17.5PSI

          • Calibrated OEM-pressure sensor with analog and switching output

          • Type: AMS 5105

            The AMS 5105 series of OEM sensors are fully signal conditioned, amplified, temperature compensated sensors in a dual in-line package (DIP) configuration with a 0,5 -4,5 V /2,5±2V analog output und and two independent, logical switching outputs. They are qualified for absolute, relative and differential measurement.

            The AMS 5105 are calibrated and compensated in the temperature range of -25 – 85°C. High precision, high stability and low drift are the result of a combination between the MEMS technology and a microelectronics signal conditioning ASIC.

            The AMS 5105 series pressure sensors are based on a highly stable, piezoresistive pressure sensor chips mounted on a ceramic substrate. The electronically programmable ASIC is contained in the same package to provide calibration and temperature compensation.

            AMS 5105, for ultra low pressure, differential or bidirectional differential: 0 - 5; 0 - 10mbar or ±5; ±10mbar

            AMS 5105, for low pressure, differential or bidirectional differential: 0 - 20; 0 - 50; 0 - 100mbar or ±20; ±50; ±100mbar

            AMS 5105, for standard pressure, gage, differential or bidirectional differential: 0 - 200; 0 - 350; 0 -1000; 0 - 2000; 0 -4000, 0 - 7000mbar or ±200; ±350; ±1000mbar

            AMS 5105, for absolute pressure: 0 - 1000mbar and 0 - 2000mbar

            AMS 5105, for barometric (absolute) pressure: 750 – 1200mbar

          • Calibrated ceramic OEM-pressure sensors with analog output

          • Type: ME707

            The pressure sensor ME707consists of the ceramic pressure transducer ME501/505 and of a small PCB board with the complete signal conditioning electronic. The sensor is trimmed by LASER in span and offset. Mounting the ME707 is stress free; the signal output will be 0.5 to 4.5 Volt ratiometrical.

            The sensor impresses in a wide temperature operating range (-25°C…+125°C) with a low offset /offset drift. Because of the excellent chemical characteristics of the ceramics the pressure sensors of the ME707-series are resistant against nearly all aggressive media and are easy to mount. The ME707 is a ready-to-use product and doesn't need any additional electronic components.

            ME707, for relative pressure:
            0-0.5, 0-1, 0-2, 0-5, 0-10, 0-20, 0-50, 0-100, 0-200, 0-400, 0-600bar

            ME707, for absolute pressure:
            0-1, 0-2, 0-5, 0-10, 0-20, 0-50bar
          • Media isolated pressure sensor with analog output

          • Type: 86A

            The 86A is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing and is designed for o-ring mounting. The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. The 86A is designed for high performance, low pressure applications. A custom ASIC is used for temperature compensation, offset correction, and provides an amplified output of 0.5 to 4.5V.

            The 86A is designed for applications such as: level controls, tank level measurement, OEM equipment, corrosive fluids and gas measurement systems, sealed systems, manifold pressure measurement, barometric pressure measurement and submersible depth monitoring. Its gage type reference has a pressure range of 0-1 to 0-150psi while its absolute type reference ranges from 0-15 to 0-150psi.
          • Media isolated pressure sensor with digital output

          • Type: 85BSD

            The 85BSD is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. This 14-bit digital output pressure sensor supports I2C and SPI interface protocols in either a 3.3 or 5.0Vdc supply voltage.

            With a diaphragm of just 13mm in diameter, this ASIC calibrated piezoresistive silicon pressure sensor is designed to be weldable or threaded with process fittings for high performance, low pressure applications. It utilizes silicone oil to transfer pressure from its 316L stainless steel diaphragm to its sensing element.

            The 85BSD is configured in a backside, header-less design with a pressure range between 0-5 and 0-300psi in either absolute or gage reference type. Operating from -40°C to +125°C, it features both pressure and temperature read-out capabilities.

            This backside digital output pressure sensor can be used for various applications such as: level controls, tank level measurement, corrosive liquid or gas measurement systems, OEM equipment, sealed systems, manifold pressure measurement, barometric pressure measurement and submersible depth monitoring.
          • Ready-to-Use Pressure transmitter

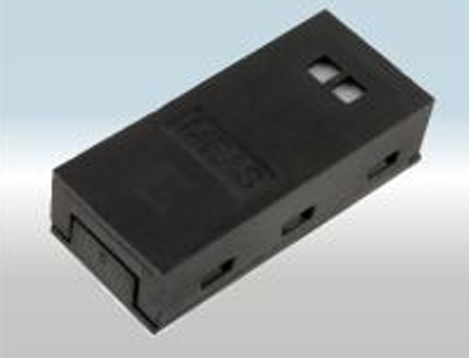

          • Type: AMS 4711

            AMS 4711 is a series of miniaturized pressure transmitters ready for use. AMS 4711 comes in a robust and compact plastic package (IP67) and is designed for fast screw assembly in a harsh industrial environment. An integrated CMOS-DSP and EEPROM provide state-of-the-art technology that allows for high accuracy in measurement capability.

            One process of AMS 4711 production is the calibration as well as the compensation of temperature dependent drift of offset and span. No additional adjustment on the part of the customer is necessary. The output provides a signal of 0...5V.

            AMS 4711 (ultra low pressure) pressure ranges: differential or bidirectional differential: 0-5; 0-10mbar or ±5 and ±10mbar

            AMS 4711 (low pressure) pressure ranges: differential or bidirectional differential: 0-20; 0-50; 0-100mbar or ±20; ±50 and ±100mbar

            AMS 4711 pressure ranges: gage, differential or bidirectional differential: 0-200; 0-350; 0-1000 and 0-2000mbar or ±200; ±350 and ±1000mbar

            AMS 4711 pressure ranges: absolute 1000 and 2000mbar

            AMS 4711 pressure range: barometric (absolute) 700-1200mbar
          • Transmitter AMS 3011

          • DESCRIPTION

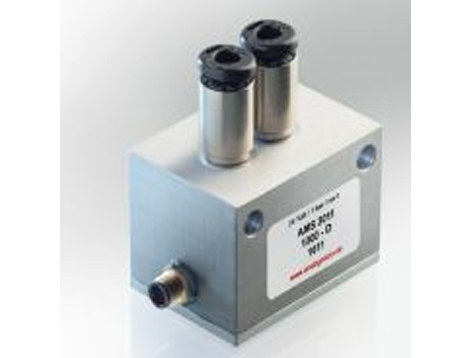

            AMS 3011 is a series of robust pressure transmitters in a matchbox-sized metal package (IP67). This series is available for various pressure types and suitable for high precision measurements in industrial indoor and outdoor applications as well as in medical instrumentation.
            An integrated CMOS-DSP and EEPROM provide state-of-the-art technology that allows for high accuracy in pressure measurement.
            One process of AMS 3011 production is the calibration as well as the compensation of temperature dependent drift of offset and span. All sensors in this series provide an analog output signal of 0 .. 5 V and can be powered within a wide supply voltage range of VS = 8 ..36 V.
            AMS 3011 comes in a rugged metal package with standard M5 female threads for pressure connection. Available with various pressure fittings and with or without connection cable.

            AMS 3011 (low pressure) pressure ranges:
            gage/differential or bidirectional differential: 0-50; 0-100 mbar or ±25; ±50 and ±100 mbar

            AMS 3011 pressure ranges:
            gage/differential or bidirectional differential: 0-200; 0-350; 0-500 mbar; 0-1,0; 0-2,0, 0-4,0; 0-7,0; 0-10,0 bar; ±200; ±350 und ±1000 mbar

            AMS 3011 pressure ranges:
            absolute 1000 and 2000mbar

            DESCRIPTION

            AMS 3011 is a series of robust pressure transmitters in a matchbox-sized metal package (IP67). This series is available for various pressure types and suitable for high precision measurements in industrial indoor and outdoor applications as well as in medical instrumentation.
            An integrated CMOS-DSP and EEPROM provide state-of-the-art technology that allows for high accuracy in pressure measurement.
            One process of AMS 3011 production is the calibration as well as the compensation of temperature dependent drift of offset and span. All sensors in this series provide an analog output signal of 0 .. 5 V and can be powered within a wide supply voltage range of VS = 8 ..36 V.
            AMS 3011 comes in a rugged metal package with standard M5 female threads for pressure connection. Available with various pressure fittings and with or without connection cable.

            AMS 3011 (low pressure) pressure ranges:
            gage/differential or bidirectional differential: 0-50; 0-100 mbar or ±25; ±50 and ±100 mbar

            AMS 3011 pressure ranges:
            gage/differential or bidirectional differential: 0-200; 0-350; 0-500 mbar; 0-1,0; 0-2,0, 0-4,0; 0-7,0; 0-10,0 bar; ±200; ±350 und ±1000 mbar

            AMS 3011 pressure ranges:
            absolute 1000 and 2000mbar

        • Relative Pressure Sensors

            • Non calibrated silicon OEM-sensors without amplification

            • Type: MS52XX

              The MS52XX-YZ SMD pressure transducer series is designed for pressure sensor systems with highest demands on resolution and accuracy. The device consists of a silicon micro machined pressure measurement cell mounted on a 7.6 x 7.6mm² ceramic carrier protected by a metal cap. The MS52XX-YZ can be delivered in the "high sensitivity" option giving an output signal of up to 400mV Full Scale signal at 5V or a "high linearity" option with an output signal of 150mV Full Scale and an excellent linearity of typ. 0.05%FS.

              MS52XX-AZ, high sensitivity, absolute
              Pressure range 1 and12 bar, metal cap with or without gel protection
              2, 4 and 7bar version only on request

              MS52XX-BZ, high linearity, absolute
              Pressure range 1 and 12 bar, metal cap with or without gel protection
              2, 4 and 7bar version only on request
            • Calibrated Silicon OEM-pressure modules with digital pressure and temperature signal

            • Type: MS5536

              The MS5536 is a high resolution factory calibrated gage pressure module. The leaded hybrids are compatible with standard PCB assembly technologies. The devices include a piezoresistive pressure measurement cell and an amplifier-A/D interface-IC. The 3-wire serial interface ensures simple communication with any microcontroller. The devices provide digital pressure and temperature information as 16-Bit data word each. In addition 64 bits of individual calibrated compensation coefficients are stored allowing a highly accurate software compensation of process spread and temperature effects.

              The devices have a very low standby current and automatic power down mode after each conversion. The optimal compromise about refresh rate and average current consumption can be defined by the application software.

              MS5536NJU: protected by a plastic cap with vertical port on a ceramic hybrid, 10x13mm
              Pressure range: -14.5 ... 6 PSI; operation temperature -40 ... +60°C

              MS5536PJU: protected by a plastic cap with vertical port on a ceramic hybrid, 10x13mm
              Pressure range: -6 ... 14.5 PSI; operation temperature -40 ... +60°C

              *Modules are pressure sensors, whose output signals have to be calculated by an external microprocessor
            • Calibrated Silicon OEM-pressure modules with digital pressure and temperature signal

            • Type: MS1620

              The MS1620 is a fully piezoresistive silicon pressure sensor for use in invasive blood pressure monitoring. The sensor is designed to be used with automated assembly equipment and can be dropped directly into a customer's disposable blood pressure housing. The sensor is designed to meet the requirements as described in the Association for the Advancement of Medical Instrumentation (AAMI) specification for Blood Pressure Transducers. The pressure sensor consists of a pressure sensing element mounted on a ceramic substrate. Thick-film resistors on the ceramic substrate are laser-trimmed for compensation and calibration. A plastic cap is attached to the ceramic substrate to provide an easy method of attachment to the customer’s assembly and protection for the sensing element. A dielectric gel is placed over the sensor to provide electrical and fluid isolation.

              Pressure range: -66...400mbar relative; Temperature range: 10... 40°C
            • Calibrated silicon OEM-pressure sensors with analog/digital pressure and temperature signal

            • Type: AMS 5915

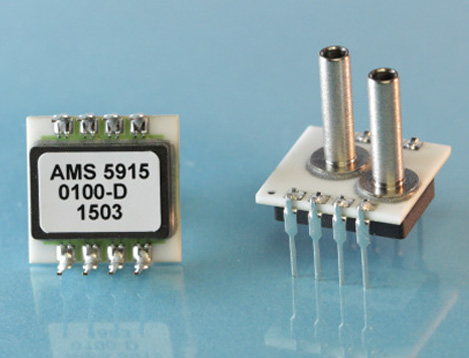

              AMS 5915 pressure sensors are a series of high-precision OEM sensors with a digital I²C-interface. They combine a micromachined, high quality piezoresistive measuring cell with a modern, digital signal conditioning mixed-signal CMOS-ASIC ona ceramic substrate. AMS 5915 is calibrated and compensated for across a wide temperature range of -25 to +85°C.

              AMS 5915 comes as a dual in-line package (DIP) for assembly on printed circuit boards (PCBs) and is fully operational without the need for any additional components. The electrical connection is made via the DIP solder pins; pressure is connected via two vertical metal tubes.

              The AMS 5915 series is available for the following pressure measuring methods in the stated pressure ranges:

              AMS 5915, for ultra low pressure, differential or bidirectional differential: 0 - 5; 0 - 10mbar or ±5; ±10mbar

              AMS 5915, for low pressure, differential or bidirectional differential: 0 - 20; 0 - 50; 0 - 100mbar or ±20; ±50; ±100mbar

              AMS 5915, for standard pressure, gage, differential or bidirectional differential: 0 - 200; 0 – 350; 0 -1000mbar or ±200; ±350; ±1000mbar

              AMS 5915, for absolute pressure: 0 – 1000mbar

              AMS 5915, for barometric (absolute) pressure: 750 – 1200mbar

              The AMS 5915 can be modified for customer specifications.
            • Calibrated silicon OEM-pressure sensors with analog/digital pressure and temperature signal

            • Type: AMS 5812

              The AMS 5812 series of OEM sensors are fully signal conditioned, amplified, temperature compensated sensor in a dual in-line package (DIP) configuration with a 0,5 -4,5V/2,5 ±2V analog output und an I²C- interface.

              The AMS 5812 are calibrated and compensated in the temperature range of -25 – 85°C. High precision, high stability and low drift are the result of a combination between the MEMS technology and a microelectronics signal conditioning ASIC.

              The AMS 5812 series pressure sensors are based on a highly stable, piezoresistive pressure sensor chips mounted on a ceramic substrate. The electronically programmable ASIC is contained in the same package to provide calibration and temperature compensation.

              Combining the sensor and the signal conditioning circuitry in a single package simplifies the use of advanced silicon micro machined pressure sensors. The pressure sensor 0.6x0.6 inch² can be directly mounted to a standard printed circuit board and no additional components are required for obtaining an amplified high level, calibrated pressure measurement.

              AMS 5812, for ultra low pressure, differential or bidirectional differential:
              0 - 0.075; 0 - 0.15PSI or ±0.075; ±0.15; PSI

              AMS 5812, for low pressure, differential or bidirectional differential:
              0 - 0.3; 0-0.8 and 0 -1.5PSI or ±0.3; ±0.8; ±1.5PSI

              AMS 5812, for standard pressure, differential or bidirectional differential, gage:
              0 - 3; 0 - 5; 0 - 15; 0 - 30; 0 - 60 and 0 - 100PSI or ±3; ±5; ±15PSI

              AMS 5812, for absolute pressure: 0 - 15PSI and 0 -30PSI

              AMS 5812, for barometric (absolute) pressure: 11 - 17.5PSI
            • Calibrated silicon pressure sensors with analog/digital pressure signal

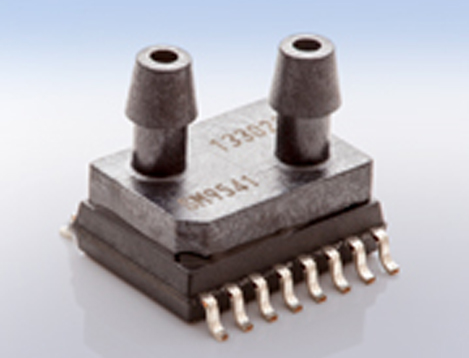

            • Type: SM9541

              The SM9541 Series is a digital, low pressure MEMS sensor family offering state-of-the-art pressure transducer technology and CMOS mixed signal processing technology to produce a digital, fully conditioned, multi-order pressure and temperature compensated sensor in JEDEC standard SOIC-16 with a dual vertical porting option. It is available in both compound gauge or differential pressure configurations. With the dual porting, a vacuum-gauge measurement is possible to minimize altitude errors due to changes in ambient pressure.

              Combining the pressure sensor with a signal-conditioning ASIC in a single package simplifies the use of advanced silicon micro-machined pressure sensors. The pressure sensor can be mounted directly on a standard printed circuit board and a high level, calibrated pressure signal can be acquired from the digital interface. This eliminates the need for additional circuitry, such as a compensation network or microcontroller containing a customer correction algorithm.
            • Calibrated OEM-pressure sensor with analog and switching output

            • Type: AMS 5105

              The AMS 5105 series of OEM sensors are fully signal conditioned, amplified, temperature compensated sensors in a dual in-line package (DIP) configuration with a 0,5 -4,5 V /2,5±2V analog output und and two independent, logical switching outputs. They are qualified for absolute, relative and differential measurement.

              The AMS 5105 are calibrated and compensated in the temperature range of -25 – 85°C. High precision, high stability and low drift are the result of a combination between the MEMS technology and a microelectronics signal conditioning ASIC.

              The AMS 5105 series pressure sensors are based on a highly stable, piezoresistive pressure sensor chips mounted on a ceramic substrate. The electronically programmable ASIC is contained in the same package to provide calibration and temperature compensation.

              AMS 5105, for ultra low pressure, differential or bidirectional differential: 0 - 5; 0 - 10mbar or ±5; ±10mbar

              AMS 5105, for low pressure, differential or bidirectional differential: 0 - 20; 0 - 50; 0 - 100mbar or ±20; ±50; ±100mbar

              AMS 5105, for standard pressure, gage, differential or bidirectional differential: 0 - 200; 0 - 350; 0 -1000; 0 - 2000; 0 -4000, 0 - 7000mbar or ±200; ±350; ±1000mbar

              AMS 5105, for absolute pressure: 0 - 1000mbar and 0 - 2000mbar

              AMS 5105, for barometric (absolute) pressure: 750 – 1200mbar
            • Calibrated ceramic OEM-pressure sensors with analog output

            • Type: ME75X

              The ME75x-series are monolithic piezoresistive ceramic pressure sensors with three different output signal options: ratiometric 0.5-4.5V, non-ratiometric 0-10V or 4-20mA (two wire). The pressure sensors are based on the sensor elements of the ME662 series and are available as gauge version in pressure ranges from 0-2bar to 0-400 bar.

              Pressure and temperature calibration is done electronically with an on-board ASIC. When the temperature changes, the electronics provide an offset and span correction as well as aging detection. Because of the excellent chemical characteristics of the ceramics the pressure sensors of the ME75x-series are resistant against nearly all aggressive media and are easy to mount.
            • Media isolated pressure sensor with analog output

            • Type: 86A

              The 86A is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing and is designed for o-ring mounting. The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. The 86A is designed for high performance, low pressure applications. A custom ASIC is used for temperature compensation, offset correction, and provides an amplified output of 0.5 to 4.5V.

              The 86A is designed for applications such as: level controls, tank level measurement, OEM equipment, corrosive fluids and gas measurement systems, sealed systems, manifold pressure measurement, barometric pressure measurement and submersible depth monitoring. Its gage type reference has a pressure range of 0-1 to 0-150psi while its absolute type reference ranges from 0-15 to 0-150psi.
            • Media isolated pressure sensor with digital output

            • Type: 86BSD

              The 86BSD is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. This 14-bit digital output pressure sensor supports I²C and SPI interface protocols, may come in a 3.3 or 5.0Vdc supply voltage and is designed for o-ring mounting.

              This small 16mm, ASIC calibrated pirezoresistive silicon pressure sensor is designed to be mountable with an o-ring seal for high performance, low pressure applications. It utilizes silicone oil to transfer pressure from its 316L stainless steel diaphragm to its sensing element.

              The 86BSD is configured in a backside, header-less design with a pressure range of 1 – 300psi in either absolute or gage reference type. Operating from -40°C to +125°C, it features both pressure and temperature read-out capabilities.

              This backside digital output pressure sensor can be used for various applications such as: level controls, tank level measurement, corrosive fluids and gas measurement systems, OEM equipment, sealed systems, manifold pressure measurement, barometric pressure measurement and submersible depth monitoring.
            • Ready-to-Use Pressure transmitter

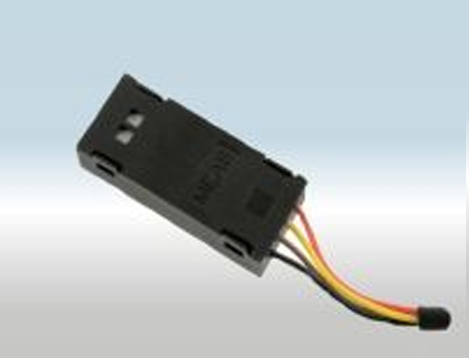

            • Type: AMS 4712

              AMS 4712 is a new series of miniaturized pressure transmitters ready for use. AMS 4712 comes in a robust and compact plastic package (IP67) and is designed for fast screw assembly in a harsh industrial environment. An integrated CMOS-DSP and EEPROM provide state-of-the-art technology that allows high accuracy in measurement capability.

              One process of AMS 4712 production is calibration as well as compensation of temperature dependent drift of offset and span. No additional adjustment on the part of the customer is necessary.
              The output provides a current-loop-signal of 4…20 mA in 2-wire-technology. This enables an interference-free transmission of the output signal, even via a large distance. Because AMS 4712 is ready for use, no additional components are required, except for a load resistor at the far end..

              AMS 4712 (ultra low pressure) pressure ranges: differential or bidirectional differential: 0-5; 0-10mbar or ±5 and ±10mbar

              AMS 4712 (low pressure) pressure ranges: differential or bidirectional differential: 0-20; 0-50; 0-100mbar or ±20; ±50 and ±100mbar

              AMS 4712 pressure ranges: gage, differential or bidirectional differential: 0-200; 0-350; 0-1000 and 0-2000mbar or ±200; ±350 and ±1000mbar

              AMS 4712 pressure ranges: absolute, 0-1000 and 0-2000mbar

              AMS 4712 pressure range: barometric (absolute) 700-1200mbar
            • Transmitter AMS 3011

            • DESCRIPTION

              AMS 3011 is a series of robust pressure transmitters in a matchbox-sized metal package (IP67). This series is available for various pressure types and suitable for high precision measurements in industrial indoor and outdoor applications as well as in medical instrumentation.
              An integrated CMOS-DSP and EEPROM provide state-of-the-art technology that allows for high accuracy in pressure measurement.
              One process of AMS 3011 production is the calibration as well as the compensation of temperature dependent drift of offset and span. All sensors in this series provide an analog output signal of 0 .. 5 V and can be powered within a wide supply voltage range of VS = 8 ..36 V.
              AMS 3011 comes in a rugged metal package with standard M5 female threads for pressure connection. Available with various pressure fittings and with or without connection cable.

              AMS 3011 (low pressure) pressure ranges:
              gage/differential or bidirectional differential: 0-50; 0-100 mbar or ±25; ±50 and ±100 mbar

              AMS 3011 pressure ranges:
              gage/differential or bidirectional differential: 0-200; 0-350; 0-500 mbar; 0-1,0; 0-2,0, 0-4,0; 0-7,0; 0-10,0 bar; ±200; ±350 und ±1000 mbar

              AMS 3011 pressure ranges:
              absolute 1000 and 2000mbar

              DESCRIPTION

              AMS 3011 is a series of robust pressure transmitters in a matchbox-sized metal package (IP67). This series is available for various pressure types and suitable for high precision measurements in industrial indoor and outdoor applications as well as in medical instrumentation.
              An integrated CMOS-DSP and EEPROM provide state-of-the-art technology that allows for high accuracy in pressure measurement.
              One process of AMS 3011 production is the calibration as well as the compensation of temperature dependent drift of offset and span. All sensors in this series provide an analog output signal of 0 .. 5 V and can be powered within a wide supply voltage range of VS = 8 ..36 V.
              AMS 3011 comes in a rugged metal package with standard M5 female threads for pressure connection. Available with various pressure fittings and with or without connection cable.

              AMS 3011 (low pressure) pressure ranges:
              gage/differential or bidirectional differential: 0-50; 0-100 mbar or ±25; ±50 and ±100 mbar

              AMS 3011 pressure ranges:
              gage/differential or bidirectional differential: 0-200; 0-350; 0-500 mbar; 0-1,0; 0-2,0, 0-4,0; 0-7,0; 0-10,0 bar; ±200; ±350 und ±1000 mbar

              AMS 3011 pressure ranges:
              absolute 1000 and 2000mbar

            • SM9543

            • DESCRIPTION

              The SM9543 is a digital, low pressure MEMS sensor family offering state-of-the-art pressure transducer technology and CMOS mixed signal processing technology to produce a digital, fully conditioned, multi-order pressure and temperature compensated sensor in JEDEC standard SOIC-16 with a dual vertical porting option. It is available a bidirectional differential pressure configuration. With the dual porting, a vacuum-gauge measurement is possible to minimize altitude errors due to changes in ambient pressure.

              Combining the pressure sensor with a signal-conditioning ASIC in a single package simplifies the use of advanced silicon micro-machined pressure sensors. The pressure sensor can be mounted directly on a standard printed circuit board and a high level, calibrated pressure signal can be acquired from the digital interface. This eliminates the need for additional circuitry, such as a compensation network or microcontroller containing a customer correction algorithm.

              SM9543 pressure range: ± 5mbar

              FEATURES
              • Calibrated pressure available through I²C-digital interface
              • Compensated temperature range: -5..65°C
              • Bidirectional and differential pressure configurations
              • Insensitive to mounting orientation
              • SO-16 package for surface mount
              • RoHS and REACH compliant
          • Differential Pressure Sensors

              • Non calibrated silicon OEM-pressure sensors without amplification

              • Type : SM5470-001

                Silicon Microstructures provides its most popular pressure sensor die in a surface mount dual in-line package (So-16) configuration. all parts in this series are compensated high performance die mountred in an injectio-molded package desinged for surface mounting.
                The low pressure series SM5470 incorporotes Silivon Microstructures unique low pressure die to achieve high performance in pressure ranges from 0.15 PSI (1kPa) to 1.5 PSI (10kPa) full scale in gauge and differential configuration.
              • Calibrated silicon OEM-pressure sensors without amplification

              • Type: SM565X

                The SM565X Series of OEM pressure transducers are fully calibrated, temperature compensated pressure devices in Dual-In-Line packages for printed circuit board mounting. These transducers offer improved performance as well as the option for either constant current or constant voltage excitation.

                The SM565X Series pressure transducers are constructed by attaching a highly stable piezoresistive pressure sensor chip to a ceramic substrate. Thick film resistors on the ceramic are laser trimmed during manufacturing to provide zero offset calibration, temperature compensation for zero offset and temperature compensation for sensitivity.

                SM5651, differential, gage
                Pressure range 0.15 to 0.3PSI (10mbar to 20mbar)
                Designed for constant current excitation
                Different connection configurations available

                SM5652, differential, gage
                Pressure range 0.15 to 1.5PSI (10mbar to 100mbar)
                Designed for constant voltage excitation
                Different connection configurations available
              • Calibrated silicon OEM-pressure sensors with analog/digital pressure and temperature signal

              • Type: AMS 5915

                AMS 5915 pressure sensors are a series of high-precision OEM sensors with a digital I²C-interface. They combine a micromachined, high quality piezoresistive measuring cell with a modern, digital signal conditioning mixed-signal CMOS-ASIC ona ceramic substrate. AMS 5915 is calibrated and compensated for across a wide temperature range of -25 to +85°C.

                AMS 5915 comes as a dual in-line package (DIP) for assembly on printed circuit boards (PCBs) and is fully operational without the need for any additional components. The electrical connection is made via the DIP solder pins; pressure is connected via two vertical metal tubes.

                The AMS 5915 series is available for the following pressure measuring methods in the stated pressure ranges:

                AMS 5915, for ultra low pressure, differential or bidirectional differential: 0 - 5; 0 - 10mbar or ±5; ±10mbar

                AMS 5915, for low pressure, differential or bidirectional differential: 0 - 20; 0 - 50; 0 - 100mbar or ±20; ±50; ±100mbar

                AMS 5915, for standard pressure, gage, differential or bidirectional differential: 0 - 200; 0 – 350; 0 -1000mbar or ±200; ±350; ±1000mbar

                AMS 5915, for absolute pressure: 0 – 1000mbar

                AMS 5915, for barometric (absolute) pressure: 750 – 1200mbar
              • Calibrated silicon OEM-pressure sensors with analog/digital pressure and temperature signal

              • Type: AMS 5812

                The AMS 5812 series of OEM sensors are fully signal conditioned, amplified, temperature compensated sensor in a dual in-line package (DIP) configuration with a 0,5 -4,5V/2,5 ±2V analog output und an I²C- interface.

                The AMS 5812 are calibrated and compensated in the temperature range of -25 – 85°C. High precision, high stability and low drift are the result of a combination between the MEMS technology and a microelectronics signal conditioning ASIC.

                The AMS 5812 series pressure sensors are based on a highly stable, piezoresistive pressure sensor chips mounted on a ceramic substrate. The electronically programmable ASIC is contained in the same package to provide calibration and temperature compensation.

                Combining the sensor and the signal conditioning circuitry in a single package simplifies the use of advanced silicon micro machined pressure sensors. The pressure sensor 0.6x0.6 inch² can be directly mounted to a standard printed circuit board and no additional components are required for obtaining an amplified high level, calibrated pressure measurement.

                AMS 5812, for ultra low pressure, differential or bidirectional differential:
                0 - 0.075; 0 - 0.15PSI or ±0.075; ±0.15; PSI

                AMS 5812, for low pressure, differential or bidirectional differential:
                0 - 0.3; 0-0.8 and 0 -1.5PSI or ±0.3; ±0.8; ±1.5PSI

                AMS 5812, for standard pressure, differential or bidirectional differential, gage:
                0 - 3; 0 - 5; 0 - 15; 0 - 30; 0 - 60 and 0 - 100PSI or ±3; ±5; ±15PSI

                AMS 5812, for absolute pressure: 0 - 15PSI and 0 -30PSI

                AMS 5812, for barometric (absolute) pressure: 11 - 17.5PSI
              • Calibrated pressure sensor with analog and switching output

              • Type: AMS 5105

                The AMS 5105 series of OEM sensors are fully signal conditioned, amplified, temperature compensated sensors in a dual in-line package (DIP) configuration with a 0,5 -4,5 V /2,5±2V analog output und and two independent, logical switching outputs. They are qualified for absolute, relative and differential measurement.

                The AMS 5105 are calibrated and compensated in the temperature range of -25 – 85°C. High precision, high stability and low drift are the result of a combination between the MEMS technology and a microelectronics signal conditioning ASIC.

                The AMS 5105 series pressure sensors are based on a highly stable, piezoresistive pressure sensor chips mounted on a ceramic substrate. The electronically programmable ASIC is contained in the same package to provide calibration and temperature compensation.

                AMS 5105, for ultra low pressure, differential or bidirectional differential: 0 - 5; 0 - 10mbar or ±5; ±10mbar

                AMS 5105, for low pressure, differential or bidirectional differential: 0 - 20; 0 - 50; 0 - 100mbar or ±20; ±50; ±100mbar

                AMS 5105, for standard pressure, gage, differential or bidirectional differential: 0 - 200; 0 - 350; 0 -1000; 0 - 2000; 0 -4000, 0 - 7000mbar or ±200; ±350; ±1000mbar

                AMS 5105, for absolute pressure: 0 - 1000mbar and 0 - 2000mbar

                AMS 5105, for barometric (absolute) pressure: 750 – 1200mbar

                The AMS 5105 can be modified for customer specifications.
              • Ready-to-Use Pressure transmitter

              • Type: AMS 4711

                AMS 4711 is a series of miniaturized pressure transmitters ready for use. AMS 4711 comes in a robust and compact plastic package (IP67) and is designed for fast screw assembly in a harsh industrial environment. An integrated CMOS-DSP and EEPROM provide state-of-the-art technology that allows for high accuracy in measurement capability.

                One process of AMS 4711 production is the calibration as well as the compensation of temperature dependent drift of offset and span. No additional adjustment on the part of the customer is necessary. The output provides a signal of 0...5V.

                AMS 4711 (ultra low pressure) pressure ranges: differential or bidirectional differential: 0-5; 0-10mbar or ±5 and ±10mbar

                AMS 4711 (low pressure) pressure ranges: differential or bidirectional differential: 0-20; 0-50; 0-100mbar or ±20; ±50 and ±100mbar

                AMS 4711 pressure ranges: gage, differential or bidirectional differential: 0-200; 0-350; 0-1000 and 0-2000mbar or ±200; ±350 and ±1000mbar

                AMS 4711 pressure ranges: absolute 1000 and 2000mbar

                AMS 4711 pressure range: barometric (absolute) 700-1200mbar
              • Transmitter AMS 3011

              • DESCRIPTION

                AMS 3011 is a series of robust pressure transmitters in a matchbox-sized metal package (IP67). This series is available for various pressure types and suitable for high precision measurements in industrial indoor and outdoor applications as well as in medical instrumentation.
                An integrated CMOS-DSP and EEPROM provide state-of-the-art technology that allows for high accuracy in pressure measurement.
                One process of AMS 3011 production is the calibration as well as the compensation of temperature dependent drift of offset and span. All sensors in this series provide an analog output signal of 0 .. 5 V and can be powered within a wide supply voltage range of VS = 8 ..36 V.
                AMS 3011 comes in a rugged metal package with standard M5 female threads for pressure connection. Available with various pressure fittings and with or without connection cable.

                AMS 3011 (low pressure) pressure ranges:
                gage/differential or bidirectional differential: 0-50; 0-100 mbar or ±25; ±50 and ±100 mbar

                AMS 3011 pressure ranges:
                gage/differential or bidirectional differential: 0-200; 0-350; 0-500 mbar; 0-1,0; 0-2,0, 0-4,0; 0-7,0; 0-10,0 bar; ±200; ±350 und ±1000 mbar

                AMS 3011 pressure ranges:
                absolute 1000 and 2000mbar

                DESCRIPTION

                AMS 3011 is a series of robust pressure transmitters in a matchbox-sized metal package (IP67). This series is available for various pressure types and suitable for high precision measurements in industrial indoor and outdoor applications as well as in medical instrumentation.
                An integrated CMOS-DSP and EEPROM provide state-of-the-art technology that allows for high accuracy in pressure measurement.
                One process of AMS 3011 production is the calibration as well as the compensation of temperature dependent drift of offset and span. All sensors in this series provide an analog output signal of 0 .. 5 V and can be powered within a wide supply voltage range of VS = 8 ..36 V.
                AMS 3011 comes in a rugged metal package with standard M5 female threads for pressure connection. Available with various pressure fittings and with or without connection cable.

                AMS 3011 (low pressure) pressure ranges:
                gage/differential or bidirectional differential: 0-50; 0-100 mbar or ±25; ±50 and ±100 mbar

                AMS 3011 pressure ranges:
                gage/differential or bidirectional differential: 0-200; 0-350; 0-500 mbar; 0-1,0; 0-2,0, 0-4,0; 0-7,0; 0-10,0 bar; ±200; ±350 und ±1000 mbar

                AMS 3011 pressure ranges:
                absolute 1000 and 2000mbar

              • SM9543

              • DESCRIPTION

                The SM9543 is a digital, low pressure MEMS sensor family offering state-of-the-art pressure transducer technology and CMOS mixed signal processing technology to produce a digital, fully conditioned, multi-order pressure and temperature compensated sensor in JEDEC standard SOIC-16 with a dual vertical porting option. It is available a bidirectional differential pressure configuration. With the dual porting, a vacuum-gauge measurement is possible to minimize altitude errors due to changes in ambient pressure.

                Combining the pressure sensor with a signal-conditioning ASIC in a single package simplifies the use of advanced silicon micro-machined pressure sensors. The pressure sensor can be mounted directly on a standard printed circuit board and a high level, calibrated pressure signal can be acquired from the digital interface. This eliminates the need for additional circuitry, such as a compensation network or microcontroller containing a customer correction algorithm.

                SM9543 pressure range: ± 5mbar

                FEATURES
                • Calibrated pressure available through I²C-digital interface
                • Compensated temperature range: -5..65°C
                • Bidirectional and differential pressure configurations
                • Insensitive to mounting orientation
                • SO-16 package for surface mount
                • RoHS and REACH compliant
            • Bidirectional Difference Pressure Sensors

                • Calibrated silicon OEM-pressure sensors with analog/digital pressure and temperature signal

                • Type: AMS 5915

                  AMS 5915 pressure sensors are a series of high-precision OEM sensors with a digital I²C-interface. They combine a micromachined, high quality piezoresistive measuring cell with a modern, digital signal conditioning mixed-signal CMOS-ASIC ona ceramic substrate. AMS 5915 is calibrated and compensated for across a wide temperature range of -25 to +85°C.

                  AMS 5915 comes as a dual in-line package (DIP) for assembly on printed circuit boards (PCBs) and is fully operational without the need for any additional components. The electrical connection is made via the DIP solder pins; pressure is connected via two vertical metal tubes.

                  The AMS 5915 series is available for the following pressure measuring methods in the stated pressure ranges:

                  AMS 5915, for ultra low pressure, differential or bidirectional differential: 0 - 5; 0 - 10mbar or ±5; ±10mbar

                  AMS 5915, for low pressure, differential or bidirectional differential: 0 - 20; 0 - 50; 0 - 100mbar or ±20; ±50; ±100mbar

                  AMS 5915, for standard pressure, gage, differential or bidirectional differential: 0 - 200; 0 – 350; 0 -1000mbar or ±200; ±350; ±1000mbar

                  AMS 5915, for absolute pressure: 0 – 1000mbar

                  AMS 5915, for barometric (absolute) pressure: 750 – 1200mbar
                • Calibrated silicon OEM-pressure sensors with analog/digital pressure and temperature signal

                • Type: AMS 5812

                  The AMS 5812 series of OEM sensors are fully signal conditioned, amplified, temperature compensated sensor in a dual in-line package (DIP) configuration with a 0,5 -4,5V/2,5 ±2V analog output und an I²C- interface.

                  The AMS 5812 are calibrated and compensated in the temperature range of -25 – 85°C. High precision, high stability and low drift are the result of a combination between the MEMS technology and a microelectronics signal conditioning ASIC.

                  The AMS 5812 series pressure sensors are based on a highly stable, piezoresistive pressure sensor chips mounted on a ceramic substrate. The electronically programmable ASIC is contained in the same package to provide calibration and temperature compensation.

                  Combining the sensor and the signal conditioning circuitry in a single package simplifies the use of advanced silicon micro machined pressure sensors. The pressure sensor 0.6x0.6 inch² can be directly mounted to a standard printed circuit board and no additional components are required for obtaining an amplified high level, calibrated pressure measurement.

                  AMS 5812, for ultra low pressure, differential or bidirectional differential:
                  0 - 0.075; 0 - 0.15PSI or ±0.075; ±0.15; PSI

                  AMS 5812, for low pressure, differential or bidirectional differential:
                  0 - 0.3; 0-0.8 and 0 -1.5PSI or ±0.3; ±0.8; ±1.5PSI

                  AMS 5812, for standard pressure, differential or bidirectional differential, gage:
                  0 - 3; 0 - 5; 0 - 15; 0 - 30; 0 - 60 and 0 - 100PSI or ±3; ±5; ±15PSI

                  AMS 5812, for absolute pressure: 0 - 15PSI and 0 -30PSI

                  AMS 5812, for barometric (absolute) pressure: 11 - 17.5PSI
                • Calibrated silicon pressure sensors with analog/digital pressure signal

                • Type: SM9541

                  The SM9541 Series is a digital, low pressure MEMS sensor family offering state-of-the-art pressure transducer technology and CMOS mixed signal processing technology to produce a digital, fully conditioned, multi-order pressure and temperature compensated sensor in JEDEC standard SOIC-16 with a dual vertical porting option. It is available in both compound gauge or differential pressure configurations. With the dual porting, a vacuum-gauge measurement is possible to minimize altitude errors due to changes in ambient pressure.

                  Combining the pressure sensor with a signal-conditioning ASIC in a single package simplifies the use of advanced silicon micro-machined pressure sensors. The pressure sensor can be mounted directly on a standard printed circuit board and a high level, calibrated pressure signal can be acquired from the digital interface. This eliminates the need for additional circuitry, such as a compensation network or microcontroller containing a customer correction algorithm.

                  SM9541 pressure ranges:
                  -1..20cmH2O (-1...20mbar)
                  -0.5..10cmH2O (-0.5...10mbar)
                  -5..40cmH2O (-5...40mbar)
                  -5..100cmH2O (-5...100mbar)
                • Calibrated OEM-pressure sensor with analog and switching output

                • Type: AMS 5105

                  The AMS 5105 series of OEM sensors are fully signal conditioned, amplified, temperature compensated sensors in a dual in-line package (DIP) configuration with a 0,5 -4,5 V /2,5±2V analog output und and two independent, logical switching outputs. They are qualified for absolute, relative and differential measurement.

                  The AMS 5105 are calibrated and compensated in the temperature range of -25 – 85°C. High precision, high stability and low drift are the result of a combination between the MEMS technology and a microelectronics signal conditioning ASIC.

                  The AMS 5105 series pressure sensors are based on a highly stable, piezoresistive pressure sensor chips mounted on a ceramic substrate. The electronically programmable ASIC is contained in the same package to provide calibration and temperature compensation.

                  AMS 5105, for ultra low pressure, differential or bidirectional differential: 0 - 5; 0 - 10mbar or ±5; ±10mbar

                  AMS 5105, for low pressure, differential or bidirectional differential: 0 - 20; 0 - 50; 0 - 100mbar or ±20; ±50; ±100mbar

                  AMS 5105, for standard pressure, gage, differential or bidirectional differential: 0 - 200; 0 - 350; 0 -1000; 0 - 2000; 0 -4000, 0 - 7000mbar or ±200; ±350; ±1000mbar

                  AMS 5105, for absolute pressure: 0 - 1000mbar and 0 - 2000mbar

                  AMS 5105, for barometric (absolute) pressure: 750 – 1200mbar
                • Ready-to-Use Pressure transmitter

                • Type: AMS 4711

                  AMS 4711 is a series of miniaturized pressure transmitters ready for use. AMS 4711 comes in a robust and compact plastic package (IP67) and is designed for fast screw assembly in a harsh industrial environment. An integrated CMOS-DSP and EEPROM provide state-of-the-art technology that allows for high accuracy in measurement capability.

                  One process of AMS 4711 production is the calibration as well as the compensation of temperature dependent drift of offset and span. No additional adjustment on the part of the customer is necessary. The output provides a signal of 0...5V.

                  AMS 4711 (ultra low pressure) pressure ranges: differential or bidirectional differential: 0-5; 0-10mbar or ±5 and ±10mbar

                  AMS 4711 (low pressure) pressure ranges: differential or bidirectional differential: 0-20; 0-50; 0-100mbar or ±20; ±50 and ±100mbar

                  AMS 4711 pressure ranges: gage, differential or bidirectional differential: 0-200; 0-350; 0-1000 and 0-2000mbar or ±200; ±350 and ±1000mbar

                  AMS 4711 pressure ranges: absolute 1000 and 2000mbar

                  AMS 4711 pressure range: barometric (absolute) 700-1200mbar
                • Transmitter AMS 3011

                • DESCRIPTION

                  AMS 3011 is a series of robust pressure transmitters in a matchbox-sized metal package (IP67). This series is available for various pressure types and suitable for high precision measurements in industrial indoor and outdoor applications as well as in medical instrumentation.
                  An integrated CMOS-DSP and EEPROM provide state-of-the-art technology that allows for high accuracy in pressure measurement.
                  One process of AMS 3011 production is the calibration as well as the compensation of temperature dependent drift of offset and span. All sensors in this series provide an analog output signal of 0 .. 5 V and can be powered within a wide supply voltage range of VS = 8 ..36 V.
                  AMS 3011 comes in a rugged metal package with standard M5 female threads for pressure connection. Available with various pressure fittings and with or without connection cable.

                  AMS 3011 (low pressure) pressure ranges:
                  gage/differential or bidirectional differential: 0-50; 0-100 mbar or ±25; ±50 and ±100 mbar

                  AMS 3011 pressure ranges:
                  gage/differential or bidirectional differential: 0-200; 0-350; 0-500 mbar; 0-1,0; 0-2,0, 0-4,0; 0-7,0; 0-10,0 bar; ±200; ±350 und ±1000 mbar

                  AMS 3011 pressure ranges:
                  absolute 1000 and 2000mbar

                  DESCRIPTION

                  AMS 3011 is a series of robust pressure transmitters in a matchbox-sized metal package (IP67). This series is available for various pressure types and suitable for high precision measurements in industrial indoor and outdoor applications as well as in medical instrumentation.
                  An integrated CMOS-DSP and EEPROM provide state-of-the-art technology that allows for high accuracy in pressure measurement.
                  One process of AMS 3011 production is the calibration as well as the compensation of temperature dependent drift of offset and span. All sensors in this series provide an analog output signal of 0 .. 5 V and can be powered within a wide supply voltage range of VS = 8 ..36 V.
                  AMS 3011 comes in a rugged metal package with standard M5 female threads for pressure connection. Available with various pressure fittings and with or without connection cable.

                  AMS 3011 (low pressure) pressure ranges:
                  gage/differential or bidirectional differential: 0-50; 0-100 mbar or ±25; ±50 and ±100 mbar

                  AMS 3011 pressure ranges:
                  gage/differential or bidirectional differential: 0-200; 0-350; 0-500 mbar; 0-1,0; 0-2,0, 0-4,0; 0-7,0; 0-10,0 bar; ±200; ±350 und ±1000 mbar

                  AMS 3011 pressure ranges:
                  absolute 1000 and 2000mbar

                • SM9543

                • DESCRIPTION

                  The SM9543 is a digital, low pressure MEMS sensor family offering state-of-the-art pressure transducer technology and CMOS mixed signal processing technology to produce a digital, fully conditioned, multi-order pressure and temperature compensated sensor in JEDEC standard SOIC-16 with a dual vertical porting option. It is available a bidirectional differential pressure configuration. With the dual porting, a vacuum-gauge measurement is possible to minimize altitude errors due to changes in ambient pressure.

                  Combining the pressure sensor with a signal-conditioning ASIC in a single package simplifies the use of advanced silicon micro-machined pressure sensors. The pressure sensor can be mounted directly on a standard printed circuit board and a high level, calibrated pressure signal can be acquired from the digital interface. This eliminates the need for additional circuitry, such as a compensation network or microcontroller containing a customer correction algorithm.

                  SM9543 pressure range: ± 5mbar

                  FEATURES
                  • Calibrated pressure available through I²C-digital interface
                  • Compensated temperature range: -5..65°C
                  • Bidirectional and differential pressure configurations
                  • Insensitive to mounting orientation
                  • SO-16 package for surface mount
                  • RoHS and REACH compliant
              • Barometric Sensors

                  • Calibrated Silicon pressure modules with digital pressure and temperature signal

                  • Type: MS5805

                    The MS5805-02BA is a new generation of high-resolution altimeter sensors from MEAS Switzerland with I²C bus interface. It is optimized for altimeters and variometers with an altitude resolution of 20 cm. The sensor module includes a high-linearity pressure sensor and an ultra low power 24 bit ΔΣ ADC with internal factory-calibrated coefficients. It provides a precise digital 24 Bit pressure and temperature value and different operation modes that allow the user to optimize for conversion speed and current consumption. A high-resolution temperature output allows the implementation of an altimeter/thermometer function without any additional sensor.

                    The MS5805-02BA can be interfaced to virtually any microcontroller. The communication protocol is simple, without the need of programming internal registers in the device. This new sensor module generation is based on leading MEMS technology and latest benefits from MEAS Switzerland proven experience and know-how in high volume manufacturing of altimeter modules, which have been widely used for over a decade. The sensing principle employed leads to very low hysteresis and high stability of both pressure and temperature signal.

                    *Modules are pressure sensors, whose output signals have to be calculated by an external microprocessor.
                  • Calibrated Triple-Sensor with digital pressure, humidity and temperature signal

                  • Type: MS8607-02B03

                    The MS8607-02BA01 includes two sensors with distinctive MEMS technologies to measure pressure, humidity and temperature. The first sensor is a piezoresistive sensor providing pressure and temperature, and the second is a capacitive-type sensor providing relative humidity. Each sensor is interfaced to a ΔΣ ADC integrated circuit for digital conversion where the MS8607-02BA01 converts the uncompensated analog output voltages to a 24-bit digital value for the pressure and temperature measurements, and a 16-bit digital value for the relative humidity measurement.

                    This sensor requires 8 pads for operation, uses I²C communication and operates at a 1.8 – 3.6V supply voltage. With an operating pressure range of 10 to 2000mBar, it has a pressure accuracy of ±2.0mBar (@25°C, 300…1200mBar) and pressure resolution of 0.016mBar. Operating at a humidity range of 0 – 100% R.H., it has a humidity accuracy of ±3.0% R.H. (@25°C, 20…80% R.H.) and humidity resolution of 0.04% R.H. In regards to temperature, this sensor operates at -40°C to +85°C with a temperature accuracy of ±2.0°C (-20°C…+85°C) and temperature resolution of 0.002°C.

                    The module MS8607 features a very low standby current consumption of max. 0.24μA. It provides different operation modes that allow optimizing for speed and current consumption, therefore it can be adjusted to the individual application. The MS8607 is packaged in a QFN-package (5.0x3.0x1.0mm³).

                    The MS8607-02BA01 is well suited for applications in the consumer electronic and industrial marketplace such as smart phones and tablet PCs, HVAC applications, weather stations, printers, home appliance and humidifiers.

                    *Modules are pressure sensors, whose output signals have to be calculated by an external microprocessor.
                  • Calibrated silicon pressure sensors with digital pressure and temperature signal

                  • Type: AMS 5915

                    AMS 5915 pressure sensors are a series of high-precision OEM sensors with a digital I²C-interface. They combine a micromachined, high quality piezoresistive measuring cell with a modern, digital signal conditioning mixed-signal CMOS-ASIC ona ceramic substrate. AMS 5915 is calibrated and compensated for across a wide temperature range of -25 to +85°C.

                    AMS 5915 comes as a dual in-line package (DIP) for assembly on printed circuit boards (PCBs) and is fully operational without the need for any additional components. The electrical connection is made via the DIP solder pins; pressure is connected via two vertical metal tubes.

                    The AMS 5915 series is available for the following pressure measuring methods in the stated pressure ranges:

                    AMS 5915, for ultra low pressure, differential or bidirectional differential: 0 - 5; 0 - 10mbar or ±5; ±10mbar

                    AMS 5915, for low pressure, differential or bidirectional differential: 0 - 20; 0 - 50; 0 - 100mbar or ±20; ±50; ±100mbar

                    AMS 5915, for standard pressure, gage, differential or bidirectional differential: 0 - 200; 0 – 350; 0 -1000mbar or ±200; ±350; ±1000mbar

                    AMS 5915, for absolute pressure: 0 – 1000mbar

                    AMS 5915, for barometric (absolute) pressure: 750 – 1200mbar

                    The AMS 5915 can be modified for customer specifications.
                  • Calibrated silicon OEM-pressure sensors with analog/digital pressure and temperature signal

                  • Type: AMS 5812

                    The AMS 5812 series of OEM sensors are fully signal conditioned, amplified, temperature compensated sensor in a dual in-line package (DIP) configuration with a 0,5 -4,5V/2,5 ±2V analog output und an I²C- interface.

                    The AMS 5812 are calibrated and compensated in the temperature range of -25 – 85°C. High precision, high stability and low drift are the result of a combination between the MEMS technology and a microelectronics signal conditioning ASIC.

                    The AMS 5812 series pressure sensors are based on a highly stable, piezoresistive pressure sensor chips mounted on a ceramic substrate. The electronically programmable ASIC is contained in the same package to provide calibration and temperature compensation.

                    Combining the sensor and the signal conditioning circuitry in a single package simplifies the use of advanced silicon micro machined pressure sensors. The pressure sensor 0.6x0.6 inch² can be directly mounted to a standard printed circuit board and no additional components are required for obtaining an amplified high level, calibrated pressure measurement.

                    AMS 5812, for ultra low pressure, differential or bidirectional differential:
                    0 - 0.075; 0 - 0.15PSI or ±0.075; ±0.15; PSI

                    AMS 5812, for low pressure, differential or bidirectional differential:
                    0 - 0.3; 0-0.8 and 0 -1.5PSI or ±0.3; ±0.8; ±1.5PSI

                    AMS 5812, for standard pressure, differential or bidirectional differential, gage:
                    0 - 3; 0 - 5; 0 - 15; 0 - 30; 0 - 60 and 0 - 100PSI or ±3; ±5; ±15PSI

                    AMS 5812, for absolute pressure: 0 - 15PSI and 0 -30PSI

                    AMS 5812, for barometric (absolute) pressure: 11 - 17.5PSI
                  • Calibrated pressure sensor with analog and switching output

                  • Type: AMS 5105

                    The AMS 5105 series of OEM sensors are fully signal conditioned, amplified, temperature compensated sensors in a dual in-line package (DIP) configuration with a 0,5 -4,5 V /2,5±2V analog output und and two independent, logical switching outputs. They are qualified for absolute, relative and differential measurement.

                    The AMS 5105 are calibrated and compensated in the temperature range of -25 – 85°C. High precision, high stability and low drift are the result of a combination between the MEMS technology and a microelectronics signal conditioning ASIC.

                    The AMS 5105 series pressure sensors are based on a highly stable, piezoresistive pressure sensor chips mounted on a ceramic substrate. The electronically programmable ASIC is contained in the same package to provide calibration and temperature compensation.

                    AMS 5105, for ultra low pressure, differential or bidirectional differential: 0 - 5; 0 - 10mbar or ±5; ±10mbar

                    AMS 5105, for low pressure, differential or bidirectional differential: 0 - 20; 0 - 50; 0 - 100mbar or ±20; ±50; ±100mbar

                    AMS 5105, for standard pressure, gage, differential or bidirectional differential: 0 - 200; 0 - 350; 0 -1000; 0 - 2000; 0 -4000, 0 - 7000mbar or ±200; ±350; ±1000mbar

                    AMS 5105, for absolute pressure: 0 - 1000mbar and 0 - 2000mbar

                    AMS 5105, for barometric (absolute) pressure: 750 – 1200mbar
                  • Ready-to-Use Pressure transmitter

                  • Type: AMS 4711

                    AMS 4711 is a series of miniaturized pressure transmitters ready for use. AMS 4711 comes in a robust and compact plastic package (IP67) and is designed for fast screw assembly in a harsh industrial environment. An integrated CMOS-DSP and EEPROM provide state-of-the-art technology that allows for high accuracy in measurement capability.

                    One process of AMS 4711 production is the calibration as well as the compensation of temperature dependent drift of offset and span. No additional adjustment on the part of the customer is necessary. The output provides a signal of 0...5V.

                    AMS 4711 (ultra low pressure) pressure ranges: differential or bidirectional differential: 0-5; 0-10mbar or ±5 and ±10mbar

                    AMS 4711 (low pressure) pressure ranges: differential or bidirectional differential: 0-20; 0-50; 0-100mbar or ±20; ±50 and ±100mbar

                    AMS 4711 pressure ranges: gage, differential or bidirectional differential: 0-200; 0-350; 0-1000 and 0-2000mbar or ±200; ±350 and ±1000mbar

                    AMS 4711 pressure ranges: absolute 1000 and 2000mbar

                    AMS 4711 pressure range: barometric (absolute) 700-1200mbar
                  • Transmitter AMS 3011

                  • DESCRIPTION

                    AMS 3011 is a series of robust pressure transmitters in a matchbox-sized metal package (IP67). This series is available for various pressure types and suitable for high precision measurements in industrial indoor and outdoor applications as well as in medical instrumentation.
                    An integrated CMOS-DSP and EEPROM provide state-of-the-art technology that allows for high accuracy in pressure measurement.
                    One process of AMS 3011 production is the calibration as well as the compensation of temperature dependent drift of offset and span. All sensors in this series provide an analog output signal of 0 .. 5 V and can be powered within a wide supply voltage range of VS = 8 ..36 V.
                    AMS 3011 comes in a rugged metal package with standard M5 female threads for pressure connection. Available with various pressure fittings and with or without connection cable.

                    AMS 3011 (low pressure) pressure ranges:
                    gage/differential or bidirectional differential: 0-50; 0-100 mbar or ±25; ±50 and ±100 mbar

                    AMS 3011 pressure ranges:
                    gage/differential or bidirectional differential: 0-200; 0-350; 0-500 mbar; 0-1,0; 0-2,0, 0-4,0; 0-7,0; 0-10,0 bar; ±200; ±350 und ±1000 mbar

                    AMS 3011 pressure ranges:
                    absolute 1000 and 2000mbar

                    DESCRIPTION

                    AMS 3011 is a series of robust pressure transmitters in a matchbox-sized metal package (IP67). This series is available for various pressure types and suitable for high precision measurements in industrial indoor and outdoor applications as well as in medical instrumentation.
                    An integrated CMOS-DSP and EEPROM provide state-of-the-art technology that allows for high accuracy in pressure measurement.
                    One process of AMS 3011 production is the calibration as well as the compensation of temperature dependent drift of offset and span. All sensors in this series provide an analog output signal of 0 .. 5 V and can be powered within a wide supply voltage range of VS = 8 ..36 V.
                    AMS 3011 comes in a rugged metal package with standard M5 female threads for pressure connection. Available with various pressure fittings and with or without connection cable.

                    AMS 3011 (low pressure) pressure ranges:
                    gage/differential or bidirectional differential: 0-50; 0-100 mbar or ±25; ±50 and ±100 mbar

                    AMS 3011 pressure ranges:
                    gage/differential or bidirectional differential: 0-200; 0-350; 0-500 mbar; 0-1,0; 0-2,0, 0-4,0; 0-7,0; 0-10,0 bar; ±200; ±350 und ±1000 mbar

                    AMS 3011 pressure ranges:
                    absolute 1000 and 2000mbar

                • Measuring Cells

                    • Piezoresistive silicon pressure measurement cells (dice)

                        • MS7212

                        • The MS7212 is an absolute silicon micro-machined pressure sensor for harsh environment. A vacuum reference
                          cavity is sealed on top of the sensitive silicon membrane by the anodic bonding of a Pyrex™ cap. The pressure,
                          applied on the backside, is converted in electrical signal by piezo-resistors implanted in the silicon membrane.
                          To improve the sensor stability, a drilled Pyrex™ is bonded on the backside. As the pressure port consists of
                          Pyrex™ and silicon, both stable in most of the chemicals, the MS7212 is suitable for media-resistive
                          applications.
                        • MS763

                        • The MS763 is a biomedical sensor. It has been designed as an implantable sensor where all the connections are
                          on one side. The bonding pads are large in order to glue or solder wires on.
                          The sensor element of the MS763 consists of a silicon micro-machined membrane. Implanted resistors sense
                          the deformation of the membrane by using of the piezo-resistive effect. The MS763 is available as a differential
                          sensor (MS763-S) without base Pyrex or as an absolute sensor with a 0.2 mm thick Pyrex (MS763-A).
                        • MS79005

                        • The sensor element of the MS79005 consists of a silicon micro-machined membrane. Implanted resistors make
                          use of the piezo-resistive effect to sense the membrane deflection and transform it in an electrical signal. This
                          sensor, which has outstanding linearity and span values, is available in various configurations. The absolute
                          pressure sensor employs a sealed vacuum reference cavity underneath the membrane. The Pyrex glass wafer
                          used for this sealing has a thickness of 0.2 mm (MS79005-A_0.2) or 0.5 mm (MS79005-A_0.5). Two gauge
                          versions available: one with a drilled Pyrex glass (MS79005-D) and the other without Pyrex glass (MS79005-S).
                      • Piezoceramic, calibrated measurement cells

                          • ME501/505

                          • The different types of the ME501/505 series are resistant ceramic pressure measurement cells produced in thick film technology. The measurement cell consists of a structured ceramic disc with a circular well which is sealed by a thin ceramic diaphragm. This thin diaphragm forms the pressure sensitive membrane on which the measuring bridges are printed. The measuring bridges are connected to the connection contacts on the diaphragm. Several connection configurations are offered. The transducers are designed in a way that the pressure sensitive part is exposed directly to the chemical media to be measured. Due to the very good chemical resistance, the transducers can be used in a wide variety of applications, including humidity, moisture and condensation effects. Different connector configurations available.

                            ME501, absolute, gage or sealed gage.
                            Pressure ranges: 0...0.5bar to 0…50bar.

                            ME505, sealed gage.
                            Pressure ranges: 0...100bar to 0...600bar.
                          • ME506

                          • The ME506 series are resistant ceramic pressure transducers produced in thick film technology. The measurement cell consists of a structured ceramic disc with a circular well which is sealed by a thin ceramic diaphragm. This thin diaphragm forms the pressure sensitive membrane on which the measuring bridges are printed. The measuring bridges are connected to the connection contacts on the diaphragm. Several connection configurations are offered.
                            The transducers are designed so that the pressure sensitive part is exposed directly to the chemical media to be measured. Due to the very good chemical resistance, the transducers can be used in a wide variety of applications, including humidity, moisture and condensation effects. Different connector configurations available.

                            Product only for high volume production.

                            ME506: pressure ranges absolute or relative
                            0…1 to 0…20bar
                          • ME509

                          • The ME509 is a resistant ceramic pressure transducer produced in thick film technology. The measurement cell consists of a structured ceramic disc with a circular well which is sealed by a thin ceramic diaphragm. This thin diaphragm forms the pressure sensitive membrane on which the measuring bridges are printed. The measuring bridges are connected to the connection contacts on the diaphragm. Several connection configurations are offered.

                            The transducer is designed so that the pressure sensitive part can be exposed directly to the chemical media to be measured. Due to the very good chemical resistance, the transducer can be used in a wide variety of applications, including humidity, moisture and condensation effects.

                            Pressure ranges 0..200mbar and 0…500mbar
                          • ME651

                          • The different types of the ME651 series are monolithic resistive ceramic pressure transducers produced in thick film technology. The bridge resistors are directly applied on the membrane. The transducers are designed in the way that the pressure sensitive part is exposed directly to the chemical media to be measured. Due to the very good chemical resistance, the transducers can be used in a wide variety of applications, including humidity, moisture and condensation effects. Different connector configurations are available.

                            ME651
                            Pressure ranges: 0...2bar to 0...600bar gage.
                        • Humidity Sensors

                            • Calibrated OEM humidity sensors with digital humidity and temperature output

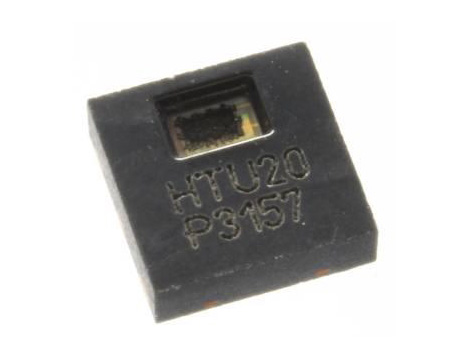

                                • HTU20D

                                • The new digital sensor HTU20D is a fully self contained capacitive humidity sensor combined with a bandgap temperature sensor. Every product is individually calibrated, compensated and finally tested. The HTU20D sensors are dedicated humidity and temperature plug and play sensors for OEM applications where reliable and accurate measurements are needed. HTU20D sensors are characterized by a 0 – 100% RH-range and by an extended temperature range. The humidity and tempera­ture digital outputs are in an I²C format and suitable for all micro-controllers. The resolution of HTU20D sensor can be changed by command (8/12bit up to 12/14bit for RH/T), whereby the measurement time and the current consumption can be modified. With the very low power consumption the sensors are dedicated for battery powered applications. Furthermore, low battery can be detected and a checksum improves communication reliability.

                                  Humidity and temperature response time as well as the recovering time (from condensing humidity) are in the range of a few seconds.

                                  Lot identification is printed on the sensor and an electronic identification code is stored on the chip – which can be read out by command.

                                  Embedded in a reflow solderable Dual Flat No leads (DFN) package of 3 x 3mm foot print with 0.9mm height the combined humidity and temperature sensor is designed for high volume and cost sensitive applications with tight space constraints. With made improvements and the miniaturization of the sensor the performance-to-price ratio has been improved.

                                  Optional PTFE filter/membrane (F) protects the HTU20D against dust, water immersion as well as against contamination by particles.
                                • HTU21D

                                • The new digital sensor HTU21D is a fully self contained capacitive humidity sensor combined with a bandgap temperature sensor. Every product is individually calibrated, compensated and finally tested. The HTU21D sensors are dedicated humidity and temperature plug and play sensors for OEM applications where reliable and accurate measurements are needed. HTU21D sensors are characterized by a 0 – 100% RH-range and by an extended temperature range. The humidity and tempera­ture digital outputs are in an I²C format and suitable for all micro-controllers. The resolution of HTU21D sensor can be changed by command (8/12bit up to 12/14bit for RH/T), whereby the measurement time and the current consumption can be modified. With the very low power consumption the sensors are dedicated for battery powered applications. Furthermore, low battery can be detected and a checksum improves communication reliability.

                                  Humidity and temperature response time as well as the recovering time (from condensing humidity) are in the range of a few seconds.

                                  Lot identification is printed on the sensor and an electronic identification code is stored on the chip – which can be read out by command.

                                  Embedded in a reflow solderable Dual Flat No leads (DFN) package of 3 x 3mm foot print with 0.9mm height the combined humidity and temperature sensor is designed for high volume and cost sensitive applications with tight space constraints. With made improvements and the miniaturization of the sensor the performance-to-price ratio has been improved.

                                  Optional PTFE filter/membrane (F) protects the HTU21D against dust, water immersion as well as against contamination by particles.

                                  AMSYS also offers the HTU21D mounted on a PCB with pins for prototyping and batch production (PHTU21) to faciliate the manual mounting of the sensor.
                              • Calibrated OEM humidity sensors with analog humidity and temperature output

                                  • HTU20-P

                                  • Because of his modular structure consisting of a capacitive polymer measuring cell and a special developed signal conditioning ASIC the HTU20P provides a high accuracy, a low hysteresis and temperature drift and also an excellent long time stability. The output signal is a 120Hz PWM-signal, which can be transformed by an additional low pass filter in an analogue DC-output signal. Through the pin-programming (SCK to VDD or SCK to GND) the output can be switched between a relative humidity and a temperature value.

                                    The HTU20P is a low-power-sensor with a maximum current consumption of 14µA/3Volt, so that he is suitable for mobile applications. The extended measuring range for relative humidity is between 0 and 100%. The accuracy varied to ±3 in the range of 20-80% (@25°C) up to 5% in the extended range. Temperature range is characterized by ±0.3°C (@25°C) und covers the range between -40 and +125°C. Relative humidity and temperature resolution constitutes by 10bit respective 12bit.

                                    After long term saturation phase the operating state of the HTU20P is operational after 10 seconds.

                                    The sensor is packaged in a reflow solderable Dual Flat No leads (DFN) housing. The 3x3x0.9mm³ foot print allows a construction of sensor systems with small dimensions.

                                    With made improvements and the miniaturization of the sensor the performance-to-price ratio has been improved.

                                    For Protection against dust, liquid film and contamination the humidity/temperature sensor HTU20P is also available with a PTFE filter/membrane as the version HTU20P(F).
                                  • HTU21-P

                                  • Because of his modular structure consisting of a capacitive polymer measuring cell and a special developed signal conditioning ASIC the HTU21P provides a high accuracy, a low hysteresis and temperature drift and also an excellent long time stability. The output signal is a 120Hz PWM-signal, which can be transformed by an additional low pass filter in an analogue DC-output signal. Through the pin-programming (SCK to VDD or SCK to GND) the output can be switched between a relative humidity and a temperature value.

                                    The HTU21P is a low-power-sensor with a maximum current consumption of 14µA/3Volt, so that he is suitable for mobile applications. The extended measuring range for relative humidity is between 0 and 100%. The accuracy varied to ±2 in the range of 20-80% (@25°C) up to 5% in the extended range. Temperature range is characterized by ±0.3°C (@25°C) und covers the range between -40 and +125°C. Relative humidity and temperature resolution constitutes by 10bit respective 12bit.

                                    After long term saturation phase the operating state of the HTU21P is operational after 10 seconds.

                                    The sensor is packaged in a reflow solderable Dual Flat No leads (DFN) housing. The 3x3x0.9mm³ foot print allows a construction of sensor systems with small dimensions.

                                    With made improvements and the miniaturization of the sensor the performance-to-price ratio has been improved.

                                    For Protection against dust, liquid film and contamination the humidity/temperature sensor HTU21P is also available with a PTFE filter/membrane as the version HTU21P(F).
                                • Calibrated Triple-Sensor with digital pressure- , humidity- and temperature output

                                      • MS8607-02B03

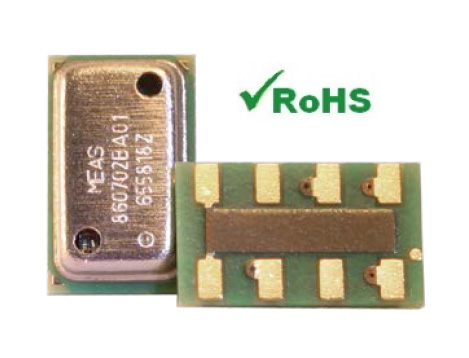

                                      • The MS8607-02BA01 includes two sensors with distinctive MEMS technologies to measure pressure, humidity and temperature. The first sensor is a piezoresistive sensor providing pressure and temperature, and the second is a capacitive-type sensor providing relative humidity. Each sensor is interfaced to a ΔΣ ADC integrated circuit for digital conversion where the MS8607-02BA01 converts the uncompensated analog output voltages to a 24-bit digital value for the pressure and temperature measurements, and a 16-bit digital value for the relative humidity measurement.

                                        This sensor requires 8 pads for operation, uses I²C communication and operates at a 1.8 – 3.6V supply voltage. With an operating pressure range of 10 to 2000mBar, it has a pressure accuracy of ±2.0mBar (@25°C, 300…1200mBar) and pressure resolution of 0.016mBar. Operating at a humidity range of 0 – 100% R.H., it has a humidity accuracy of ±3.0% R.H. (@25°C, 20…80% R.H.) and humidity resolution of 0.04% R.H. In regards to temperature, this sensor operates at -40°C to +85°C with a temperature accuracy of ±2.0°C (-20°C…+85°C) and temperature resolution of 0.002°C.

                                        The module MS8607 features a very low standby current consumption of max. 0.24μA. It provides different operation modes that allow optimizing for speed and current consumption, therefore it can be adjusted to the individual application. The MS8607 is packaged in a QFN-package (5.0x3.0x1.0mm³).

                                        The MS8607-02BA01 is well suited for applications in the consumer electronic and industrial marketplace such as smart phones and tablet PCs, HVAC applications, weather stations, printers, home appliance and humidifiers.

                                        *Modules are pressure sensors, whose output signals have to be calculated by an external microprocessor.
                                  • OEM humidity sensors with digital humidity and temperature output on PCB

                                        • PHTU21D

                                        • The new digital sensor PHTU21D consists of a fully self contained capacitive humidity sensor combined with a bandgap temperature sensor (HTU21-D) mounted on a printed circuit board. Every product is individually calibrated, compensated and finally tested. The PHTU21D sensors are dedicated humidity and temperature plug and play sensors for OEM applications where reliable and accurate measurements are needed. PHTU21D sensors are characterized by a 0 – 100% RH-range and by an extended temperature range. The humidity and tempera­ture digital outputs are in an I²C format and suitable for all micro-controllers. The resolution of PHTU21D sensor can be changed by command (8/12bit up to 12/14bit for RH/T), whereby the measurement time and the current consumption can be modified. With the very low power consumption the sensors are dedicated for battery powered applications. Furthermore, low battery can be detected and a checksum improves communication reliability.

                                          Humidity and temperature response time as well as the recovering time (from condensing humidity) are in the range of a few seconds.

                                          Lot identification is printed on the sensor and an electronic identification code is stored on the chip – which can be read out by command.
                                    • Humidity transmitter with analog humidity and temperature output

                                          • HTU(F)3535

                                          • DESCRIPTION

                                            The HTU(F)3535 are ready-to-use analog plug and play modules for accurate humidity and temperature measurement. The modules give out the relative humidity and temperature value (NTC) as analog signals, which can be easily converted into the corresponding humidity and temperature values by using a look-up table. The humidity and temperature response time as well as the recovery time (after complete condensation) amount to a few seconds. A supply voltage of 5 V is required.

                                            The HTU(F)3535 is suitable for demanding applications where power consumption is critical. They can be delivered with or without PTFE filter/membrane (particles and liquid protection).

                                            Available versions:
                                            HTU(F)3535PVBM: with medium male connector (Thru Hole)
                                            HTU(F)3535W100G26: with cable (length:10cm, 26 AWG)
                                            The HTU(F) modules are also deliverable with a supply voltage of 3 V.

                                            FEATURES
                                            • Humidity range: 0-100%RH
                                            • Temperature range: -40-80°C
                                            • Analog voltage output
                                            • Accuracy humidity measurement: ±2%RH
                                            • Accuracy T measurement: 1 - max. 2°C
                                            • Supply voltage 5.0 V
                                            • Low power consumption of 1.2 mA
                                            • Instantaneous desaturation after long periods in saturation phase
                                            • Ready-to-use housing
                                            • RoHS and REACH conform
                                      • Humidity transmitter with digital humidity and temperature output

                                            • HTU(F)3833

                                            • DESCRIPTION

                                              The HTU(F)3535 are ready-to-use analog plug and play modules for accurate humidity and temperature measurement. The modules give out the relative humidity and temperature value (NTC) as analog signals, which can be easily converted into the corresponding humidity and temperature values by using a look-up table. The humidity and temperature response time as well as the recovery time (after complete condensation) amount to a few seconds. A supply voltage of 5 V is required.

                                              The HTU(F)3535 is suitable for demanding applications where power consumption is critical. They can be delivered with or without PTFE filter/membrane (particles and liquid protection).

                                              Available versions:
                                              HTU(F)3535PVBM: with medium male connector (Thru Hole)
                                              HTU(F)3535W100G26: with cable (length:10cm, 26 AWG)
                                              The HTU(F) modules are also deliverable with a supply voltage of 3 V.

                                              FEATURES
                                              • Humidity range: 0-100%RH
                                              • Temperature range: -40-80°C
                                              • Analog voltage output
                                              • Accuracy humidity measurement: ±2%RH
                                              • Accuracy T measurement: 1 - max. 2°C
                                              • Supply voltage 5.0 V
                                              • Low power consumption of 1.2 mA
                                              • Instantaneous desaturation after long periods in saturation phase
                                              • Ready-to-use housing
                                              • RoHS and REACH conform
                                        • Temperature Sensors

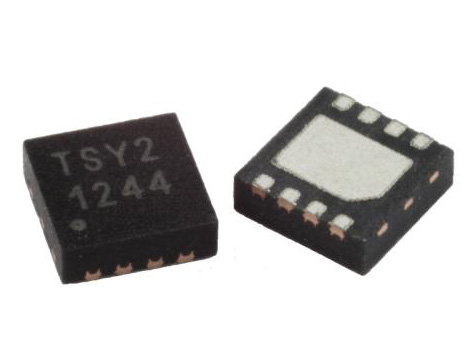

                                            • Calibrated OEM temperature sensors with digital output

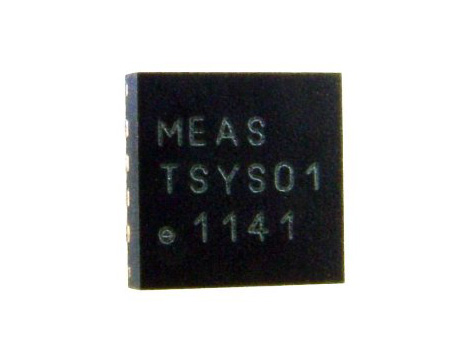

                                                • TSYS01

                                                • The TSYS01 is a single chip, versatile, new technology temperature sensor. The TSYS01 provides factory calibrated temperature information. It includes a temperature sensing chip, a 24 bit _Σ-ADC and an EEPROM. The essence of the digital 24 bit temperature value and the internal factory set calibration values lead to highly accurate temperature information accompanied by high measurement resolution.

                                                  The TSYS01 can be interfaced to any microcontroller by an I²C or SPI interface. This microcontroller has to calculate the temperature result based on the ADC values and the calibration parameters.

                                                  The basic working principle is:

                                                  Converting temperature into digital 16/24 bit ADC value
                                                  Providing calibration coefficients
                                                  Providing ADC value and calibration coefficients by SPI or I²C interface.
                                                  Calculation of the temperature values
                                                • TSYS02

                                                • The TSYS02 is a single chip, versatile, new technology temperature sensor. The TSYS02 provides factory calibrated temperature information. It includes a temperature sensing chip, a 24 bit _Σ-ADC and an EEPROM. The essence of the digital 24 bit temperature value and the internal factory set calibration values lead to highly accurate temperature information accompanied by high measurement resolution.

                                                  The TSYS02 can be interfaced to any microcontroller by an I²C interface. This microcontroller has to calculate the temperature result based on the ADC values and the calibration parameters.

                                                  The basic working principle is:

                                                  Converting temperature into digital 16 bit ADC value
                                                  Providing calibration coefficients
                                                  Providing ADC value and calibration coefficients by I²C interface
                                                  Calculation of the temperature values

                                                  The TSYS02 impresses with its accuracy of 0.2°C, whereby the accuracy and the temperature range can be adjusted on request. Additionally the TSYS02 features a very low current consumption (<18 μA ; Standby < 0.14 μA) and low self heating. Because of ist small size and the supply voltage of 3.3V the temperature sensor is especially suitable for mobile, battery bound applications.
                                              • Magneto Sensors

                                                    • KMA36

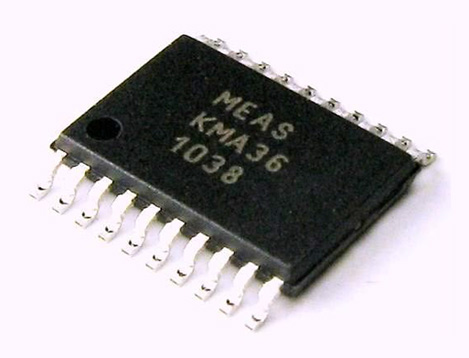

                                                    • The KMA36 is a universal magnetic encoder for precise rotational or linear measurement. These position sensors feature a system-on-chip technology that combines a magnetoresistive element along with analog to digital converter and signal processing in a standard small package. By using Anisotropic Magneto Resistive (AMR) technology, the KMA36 is able to determine contactlessly the magnetic angle of an external magnet over 360°, as well as the incremental position on a magnetic pole strip with 5 mm pole length. Its sleep and low power mode as well as automatic wake-up make the KMA36 ideal for many battery applications. Position data can be transmitted using a PWM or I²C interface. Using the programmable parameters, the user can have access to a wide range of configuration to ensure the maximum of freedom and functionalities.
                                                • Inclinometer

                                                    • Single axis inclinometer

                                                        • AccuStar

                                                        • The AccuStar® Electronic Clinometer is an extremely accurate angle measurement device. This compact and rugged sensor is ideal where space is critical and environmental conditions are serious design concerns.
                                                          The heart of the system is a patented, capacitance-based sensor with no moving parts. When rotated about its sensitive axis, this unique sensor provides an exceedingly linear variation in capacitance, which is electronically converted into angular data. The sensor and low-power CMOS electronics are encased in a rugged plastic housing ready to install as a system component or as a stand-alone device.
                                                          Designed for easy integration, with a choice of analog, ratiometric, digital or serial models, the clinometer produces an output signal corresponding to direction and magnitude of angular displacement.
                                                        • AccuStar IP 66

                                                        • The new AccuStar® IP-66 is designed for rugged industrial and outdoor applications. The die-cast, powder coated aluminum housing is suitable for the most hostile environments. Multiple input / output configurations provide for ease of implementation into your application. When utilizing the 0.5 to 4.5 volt dc. output, the AccuStar® IP-66 may be operated on a standard automotive 12-Volt dc. electrical supply. The water tight enclosure is suitable for use in tower crane and marine applications, under all weather conditions. The 4 to 20 mA current output signal is ideal for machine control applications requiring long cable runs and provides for excellent noise immunity. An 18 to 30 Volt dc power supply is required for the 4 to 20 current signal output. EMI and RFI components have been incorporated in to the circuit design to provide noise immunity under the most severe conditions. European CE certification, for EMI, RFI and ESD, is pending. The AccuStar® IP-66 may be calibrated for full scale output for ranges from +/- 3.0º to +/- 45º.
                                                      • Dual axis inclinometer

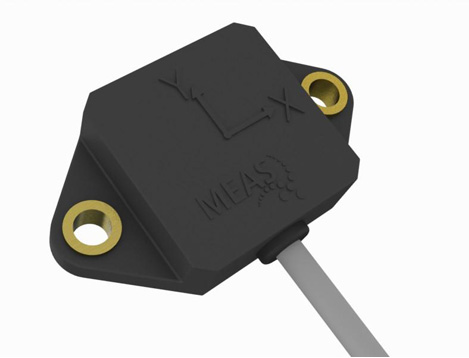

                                                          • DOG2-25

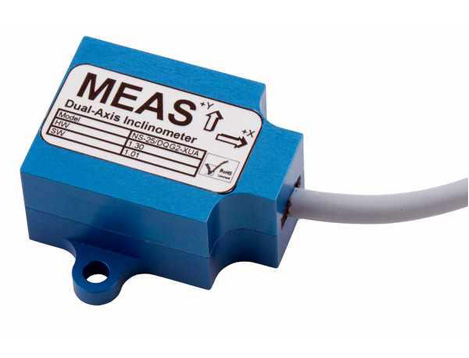

                                                          • The Dual Axis Inclinometer is mainly developed with focus on platform leveling, dynamic engine management, tip-over protection and tilt alarm. A fast response time and good accuracy makes this device the ideal choice for mobile leveling applications. It features digital signal processing including temperature compensation. The integrated filter improves performance and allows to use the sensor in many noisy environments (e.g. vibrations)
                                                          • AccuStar II/DAS-20

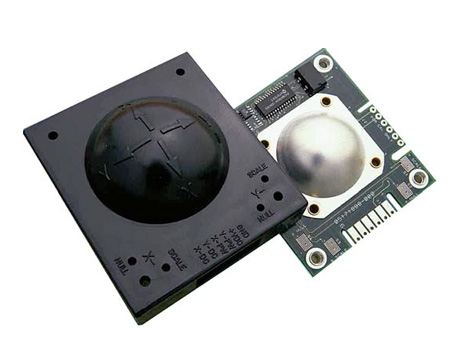

                                                          • AccuStar® II/DAS-20 combines the function of two clinometers in one package. The unique dome shaped design features a capacitance based sensor which produces output signals directly proportional to the relative tilt in two axes.
                                                            Designed for high volume applications, AccuStar® II/DAS-20 is priced to compete with much less capable mercury switches and other low cost level sensors.
                                                            There are four output connections providing a choice of ratiometric, pulse width modulation (PWM) digital output. A mating connector (sold separately) provides the user with an easy plug-in connection. Null and scale factor are ajustable.
                                                          • NS-25/DQL2-IXA

                                                          • The DQL-Series is a small inclinometer board with a dual axis tilt sensor, which works on the conductivity principle. An integrated microcontroller is used to process the sensor signals and apply temperature compensation. The system offers a simple and robust digital two wire interface similar to I²C.
