  • Offer Profile
  • Use our synergies
    Eggersmann sets new standards in recycling with its specially developed plants, concepts and products. We excel in a wide array of competencies based on five core areas.

    Have the advantage of our all-round line-up and benefit from our profound service from planning to operating your plants and components. Use our synergies for your project.
Product Portfolio
  • General contractor

  • Planning and construction of recycling facilities
    In its role as a general contractor, Eggersmann establishes public and commercial projects and is responsible for all work involved in planning and construction of recycling plants. These include
    • engineering
    • implementation planning
    • procurement
    • production and supply of machinery and conveying/handling systems
    • Installation
    • start-up
    • trial operation
    • turnkey handover of the plant
    • all the civil-engineering for the project
    With our effective deployment and smooth integration of professionals from all disciplines we can guarantee high levels of reliability at all stages of the project.
    Recycling plants supplied by Eggersmann are particularly well-integrated in terms of infrastructure, control and regulating systems. In order to ensure a smooth handover, our experts remain onsite until the system is up and running in normal operation.
      • Mechanical Treatment

      • Mixed or pre-sorted industrial and commercial waste contains raw materials that can be recovered by means of mechanical processing. Mechanical recycling equipment supplied by Eggersmann separates recyclable waste by composition and particle size to deliver the recovered raw materials in a particularly effective and efficient way, in accordance with application and material requirements.

        The size of each plant system is based on a detailed analysis of the substances being handled and the required quantities of recycled raw material. High-performance components developed by us in house guarantee maximum purity, reliability and fine-tuned capacity as required.

        The entire design and setup procedure is placed in the expert hands of our highly-qualified, multi-disciplinary team.
          • Biological Treatment

          • The natural fermentation-based recycling of organic waste provides us with a potentially inexhaustible source of energy.

            The fermentation of organic waste releases energy-rich methane gas, the high quality and economic efficiency of which makes it a viable alternative to fossil fuels. In addition to the recovery of biogas, Eggersmann recycling systems also provide nutrient-rich compost for use in the gardening and agricultural sectors.

            Modular concepts, modern ways of optimising efficiency and flexible applications are all charecteristic of the solutions supplied by Eggersmann.
              • Products

                  • Air belt separator BBS

                  • Principle
                    The separator classifies the input material in a light weight and a heavy weight fraction. The input material has to be free of fines and oversizes as far as possible. The input material has to be free- owing and may not agglutinate. For a good separation results, the ratio of the smallest to the largest particle should be 1: 4.

                    Functional Description
                    The input material must be evenly distributed on the acceleration belt. Under the head of the accelerating belt a nozzle is placed. The input material passes this nozzle in free fall. Very light components are blown out of the stream over the arch belt directly into the settling chamber. In the transfer area, very heavy parts fall down on a heavy material discharge belt. All other parts reach the arch belt. Over the radius of the arch belt they are also separated into light and heavy fractions.

                    In the settling chamber the light fraction is separated from the air stream. Due to calming of the air, the light particles can settle here and are discharged by the light material discharge belt.

                    Air Management / Integrated Filters
                    The separator operates in recirculation mode. A second fan extracts the dust-laden air through a filter from the settling chamber and transfers the cleaned air to the surroundings. The separated dust is supplied to the light material fraction.

                    Advantages
                    • High recovery rate of light fraction
                    • A lot of setting options allow an optimal separation result
                    • Integrated filter unit
                    • Trace heating for pressure line to the filter and condensate line
                  • Air lift separator V 70

                  • The V 70 is a air lift separator, designed for the removal of paper, plastics and other light materials from compost, wood and other streams of heavy waste. The V 70 comes in a silent diesel and an electric model.

                    It works through a system of a heavy duty fan, air hose and funnel. The funnel is placed over the moving stream of waste (e.g.: conveyor belt), and filters lighter material such as paper.

                    The machine is standalone, placed on a frame with forklift lifting points which makes it easy to move around.

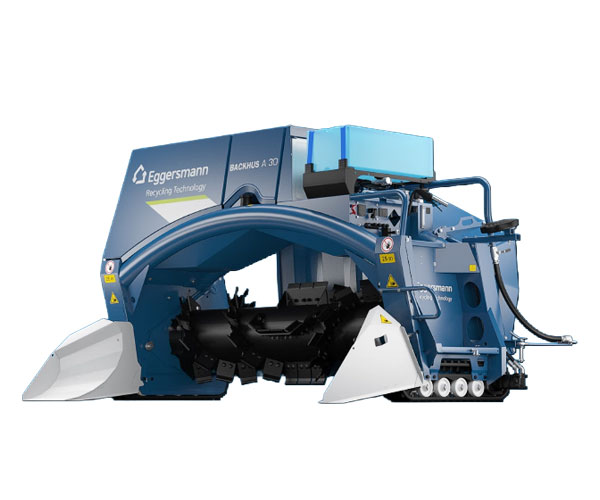

                  • BACKHUS A 30

                  • The BACKHUS A 30 is a robust, compact and manoeuvrable turner that is easy to operate. It requires little maintenance and provides superior performance. The fully selfpropelled A 30 is easy to transport and assures maximum flexibility. It is ideally suited for use in the gardening, landscaping, fruitgrowing and market gardening sectors as well as for the maintenance of municipal parks.

                    Facts
                    • Heavy-duty, compact design
                    • Economical diesel technology
                    • Height-adjustable, reversible rotor
                    • Fully hydraulic, low-maintenance drive
                    • Self-propelled, no tractor necessary - optimal utilization of
                    • space available
                    • Easy to transport and ready for use in no time at all

                  • BACKHUS A 36

                  • A proven concept with short payback
                    The BACKHUS A 36 is a great value and an ideal entry level machine into professional composting at a very reasonable price. This turner is already one of the most efficient solutions within its class.

                    Facts
                    • High performance diesel engine with low emissions
                    • Simple handling and optimum ergonomics
                    • Compact transport dimensions
                    • Easy to maintain construction
                    • Low ground pressure for gentle turning

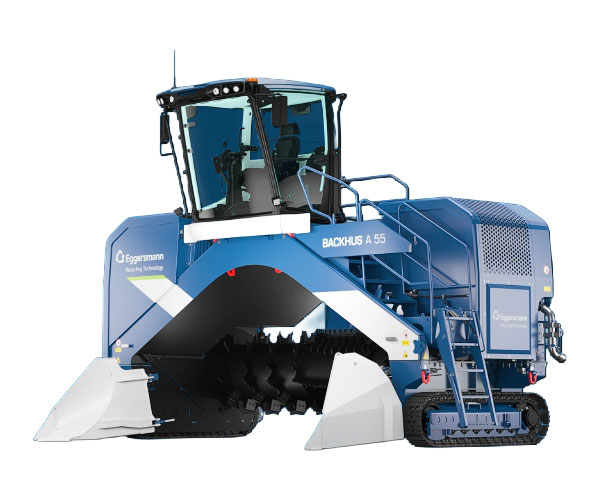

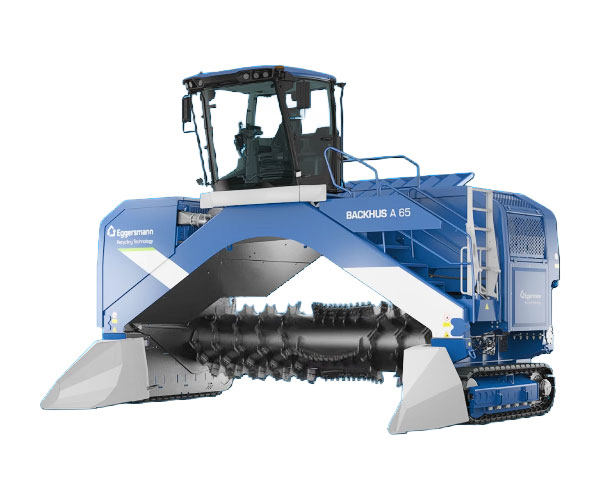

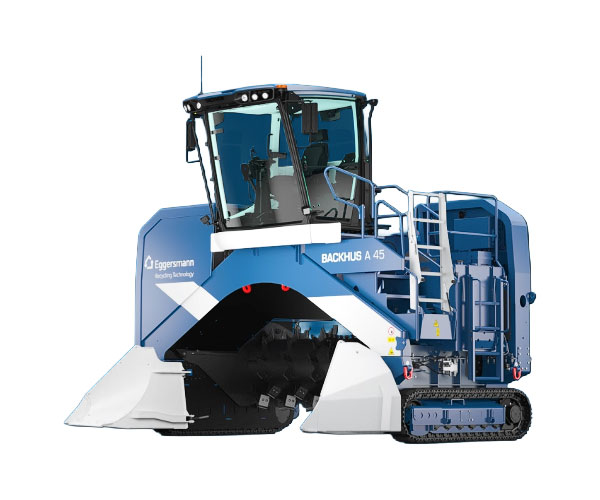

                  • BACKHUS A 43 - A 65

                  • Tomorrows Windrow Turner — already today
                    Prepared for all the challenges of the future, the BACKHUS A-series combines highest efficiency with a maximum of optionality. Or to put it simple:

                    Facts
                    • High recovery rate of light fraction
                    • A lot of setting options allow an optimal separation result
                    • Integrated filter unit
                    • Trace heating for pressure line to the filter and condensate line
                  • BACKHUS A 70 - A 75

                  • Outstanding performance is a result of cutting edge technology
                    With its outstanding turning capacity of up to 6,800 m³/hr, extreme sturdiness and intelligent technology the BACKHUS A 70 - 75 -series meets all demands of modern turning. No matter what working width you may choose, your BACKHUS will set new standards in power, efficiency and handling.

                    Facts
                    • High recovery rate of light fraction
                    • A lot of setting options allow an optimal separation result
                    • Integrated filter unit
                    • Trace heating for pressure line to the filter and condensate line
                  • BACKHUS Lane Turner

                  • Forward thinking waste management for enclosed applications and indoor plants
                    The BACKHUS Lane Turner incorporates the proven plant technology of BACKHUS. It offers high efficiency and turning performance and combines great economy, low maintenance and long life for composting, bioremediation and MSW treatment between lane walls or in tunnels.

                    Facts
                    • Intelligent waste management for indoor plants
                    • Tailor made integration into new or existing plants
                    • Half or fully automatic operation of turner and material flow
                    • Optional electronic or diesel engine
                    • Highly efficient material flow and batch process
                  • BACKHUS Lane Turner Closed LTC

                  • the system for closed lane composting Facts

                    Closed dynamic system
                    • Fully automated material feed and output
                    • Fully automated material transport within the lanes by regular turning
                    • Optimized oxygen supply through pressure ventilation
                    • Optimized water output through pressure ventilation
                    • Fully auomated process control
                    • Exhaust treatment of process and hangar exhaust

                    Advantages of the dynamic treatment procedure compared to static procedures:
                    • High recovery rate of light fraction
                    • A lot of setting options allow an optimal separation result
                    • Integrated filter unit
                    • Trace heating for pressure line to the filter and condensate line
                  • BB - Bale Breaker

                  • The Bale Breaker serves for unraveling of press bales of PET-bottles, waste paper, residual waste, plastic waste and similar materials, as well as the metered material transport downstream working processes. By adjusting the unraveling grade, an optimal subsequent sorting is guaranteed.

                    The BB- series does not crush but loosen the material for a most effective material sorting. If required, a supplemented ripping device can be installed for an additional loosening process and opening of tied bundles and cartons.

                    If the feeding of loose material per front loader and bales is required, the Bale Breaker is also available with a closed hopper with door at the rear side.

                    Optionally available with BD Bale Dewiring machine as complete bale opening system.
                    • For PET-bottles, residual waste, plastic containers, waste paper, sorting rests, etc.
                    • Efficient opening of bales and loosening up of material
                    • Even feed and continous material discharge
                    • Infinitely adjustable throughput rate
                    • Large bale hopper for long feeding intervals
                    • Ready-for-operation construction with drives and electrical control system
                    • High mobility and usability on various sites
                    • Optional with BD Bale dewiring machine as complete bale opening system
                  • Bag Opener

                  • The Bag Opener opens the plastic bags and transfers the metered material to the subsequent sorting and preparation plants. The machine is available as a standard model or in combination with a charging hopper. The hopper is fed batchwise by a front loader.
                    • Virtually 100% opening and emptying of the plastic bags
                    • High opening rate of “bags within bags”
                    • Suitable for a wide range of material, e.g.light weight packaging material, biowaste, residual waste
                    • Protection against entaglement and wrapping of strings, tapes, wires and foils
                    • Loosened up and evened out material supply to the sorting process
                    • Low servicing and maintenance requirements
                    • Overrange protection and automatic switch-o in case of blockages cauzed by bulky and disruptive material
                    • Large storage hopper for feeding by front-end loader
                  • Bag Opener BOE

                  • The next generation of Bag Openers
                    The new BOE 17 evolved from the proven BO-series. The innovations in this new model are based upon two decades of experience and more than 500 shipped machines. Functionality, sturdiness and modularity combined with the easy-to-use but precise controls, make it the best Bag Opener available on the market.

                    The focus for the BOE-series was set on user friendliness and automation while maintaining the level of quality and functionality of the BO-series. As a result a wide set of features to support the user as well as the facility manager, have been integrated in to the controlling system.

                    Trend setting innovations in the BOE-series contain:
                    • Modern design makes it especially easy-to-use and easy-to-service
                    • Innovative adjustable opening cycles of the segment drum
                    • Highly energy efficient with low maintenance costs due to the electrical servo drive
                    • Modular extendable bunker-system
                    • Weighing system to monitor processing quantities and for analysis
                    • Fully automated regulation of throughput quantity to optimize facility utilization
                    • Web interface for monitoring and reporting
                    • Load guide to support loading process and personnel
                  • Bag Opener BOS

                  • Dismantler for small waste bags
                    The BOS opens the small plastic waste bags and transfers the materials to downstream sorting and recovery plants. The BOS is available in basic design.

                    In combination with a pre-connected Feed and Metering Hopper of the D-series the Bag Opener will reach its highest efficiency.

                    The hopper is charged batchwise per front-end loader or gripper.
                    • Virtually 100% opening and emptying of bags
                      Low acquisition costs
                    • Extremely robust and resistant to wear
                    • Loosened up and evened out material supply into the sorting process
                    • Ready-to-connect design
                    • Low servicing and maintenance requirements
                    • Space-saving
                    • Silent machine operating
                    • Slow runner
                    • Ideal with pre-connected Feed and Metering Hopper of the D-series

                  • BS - Ballistic Separator

                  • The BS-series are the most sold Ballistic Separators for light packaging and household waste. A wide range of machine-types available to t to all application of the ballistic-separation.

                    The Separation Process takes place in only one step. Here, the material is broken down into a rolling, at and sieve fraction, which is highly suitable for further processing. In the separation of single stream, light packaging and comingled waste, BS is the first choice for effective sorting process with low cost and high availability.
                    • Rugged machine-design for durable application
                    • Patented eccentric-crankshaft with rugged changeable bearings
                    • Many types for each purpose
                    • Sieve area from 6m2 to 34m2
                    • 4 useful width (1.57 / 2.07 / 2.6 / 2.76m), 6 + 8 + 10 sievepaddle at each machine
                    • 2 sievepaddle-widths available (253/338mm)
                    • Troughput up to 200m3/h
                    • Two different paddle types
                    • Screwable Sieve mesh

                  • BSD - Ballistic Separator Double

                  • The BSD is the most sold Ballistic Separator for light packaging and household waste. A wide range of machinetypes available to fit to all application on the ballistic-separation.

                    The separation process takes place in only one step. Here, the material is broken down into a rolling, at and sieve fraction, which is highly suitable for further processing. In the separation of single stream, light packaging and comingled waste, BSD is the first choice for effective sorting process with low cost and high availability.
                    • Rugged machine-design for durable application
                    • Patented eccentric-crankshaft with rugged changeable
                    • bearings
                    • Up to five fractions in one step
                    • Angle independent on both decks hydraulically adjustable
                    • High troughput

                  • Chain belt conveyor KGF

                  • The chain conveyor belt is used with light-weight and heavy transported materials, such as press-feed conveyors and storage discharge conveyors.

                    The conveyor is manufactured in a segmented construction. The belt frame is comprised of heavy, stable and torsion-resistant steel plating and profile constructions. The conveyor chain is an M112 massive bolt chain with 60 mm diameter rollers and 125 mm graduation.

                    The conveyor chain is supplied with lubricant from a central oiler system. Belt support profiles are attached by screws between the chains in intervals of 250 mm. The belt is attached with screws to the belt support profiles and the chain. The driver pins on the upper sider of the belt are connected every 750 mm to the belt support profiles. Only top-brand belts from DUNLOP and CONTI are used.

                    Support strips are continuously arranged at the feed position. The lower drum of the chain conveyor is provided with protection against operator intervention in the dangerous area. The feeding and discharge hoppers are adapted to the respective sites. The supports can be adapted to local requirements. Walkable and drivable pit covers, including peripheral angle, can be provided in the feed area.
                  • D-Storage

                  • Modern plants demand flexible charging and even batching. This was the idea behind the design of the D-series. A system that can be adapted to your operation due to its modular construction.

                    Each sorting chain can be loaded continuously by different modules, making effective use of available space. The storage volume can be increased at any time by adapting a further module. Basic-Module contains all the major components of the drive and the control unit. By adding further modules, the storage capacity can be increased as desired. Optimal batching and quantity limits are achieved by topping it with a module with dosing drum. The mat thickness can be specified exactly.
                    • Robust moving floor system
                    • Good proportioning with slight material deformation or deterioration
                    • Virtually maintenance-free
                    • Overhead dosing drum conveying
                    • Variable hopper size
                    • Hopper also usable without proportioning drum as an individual unit
                    • Two proportioning drum diameters available
                    • Exchangeable carrier on proportioning drum
                    • Very effective material dispersal for materials with a propensity toward bridging (e.g. wastepaper)

                  • DM - Dismantler for electric appliances

                  • The manual opening of the plastic housings of used small household appliances, electrical and electronic tools, toys and medical equipment is time-consuming and dangerous. Splitters and sharp edges, as well as the appliances’ contents may cause injuries.

                    The Dismantler DM executes this work automatically, safely and fast. The plastic housings are coarsely broken. The inside parts remain intact and can be removed safely.

                    The crushed housings are transported to subsequent sorting in a continuous material ow.
                    • Suitable for household appliances, toys, electronic and electronic tools, etc.
                    • Cracking of the plastic housings for removing metal parts
                    • Turn key design
                    • Metered material transfer to sorting
                    • No risk of injury for personnel
                    • Low dust formation
                    • Space-saving
                    • Low noise level
                    • Low energy consumption
                    • Economic purchase price
                    • Slow runner

                  • Feed and Metering Hopper D

                  • D Feed and Metering Hoppers are designed for continous and even feeding of most different materials and are equipped with an electrical volume flow regulation and an MF Moving Floor Conveyor.

                    Preferably, such Feed and Metering Hoppers are employed for feeding in sorting and recovery plants with waste paper, packaging waste, waste wood, biodegradable waste, organic waste and wood chips. Feed- and Metering Hoppers of the D-series are charged e.g. by front loader. For adapting the feeding intervals to the operational demands, the hopper can be manufactured in various sizes.

                    The integrated MF Moving Floor Conveyor serves for material transport to the dosing unit. There, the recyclables are loosened up and presented to downstream sorting processes as even and continuous material stream. Optical sensors control the material layer on the discharge belt. The rotational speed of the dosing unit and the velocity of the moving floor are adjusted accordingly.
                    • For waste paper, biowaste, commercial waste, RDF, demolition waste, residual waste, etc.
                    • Loosened up and even material feeding to sorting and recovery units
                    • Infinitely adjustable throughput rate
                    • Entanglement protection and self-cleaning effect of the dosing drum against strings, long foils, cords and wires
                    • Large feed hopper for long feeding intervals
                    • Low maintenance and serviceing requirements
                    • Efficiency boost of as much as 20 % compared to common feeding methods
                    • Ready for operation construction including drives and electrical control system
                  • Feed hopper with decompactor DC

                  • Feed hoppers with an integral decompactor are used in mechanical and biological waste treatment facilities. They are used for taking up, buffering and dosed feeding of green, biological waste, organic production residues, plastic waste, etc. As a means of transportation, depending on the input material, chain scraper conveyors or belt conveyors can be used.

                    The above transport systems can be loaded via wheel loaders. All systems can be equipped with a decompactor with one or several decompactor rollers. The decompactor rollers loosen up the input material and ensure even transfer to downstream system components.

                    Feed hoppers with decompactors consist of a heavy, stable and torsion-resistant sheet steel and pro le steel structure. They are adapted to the particular requirements of the input material.
                  • Heavy material conveyor

                  • The heavy material is used with heavy transported materials, such as heavy building site rubble, or as a storage conveyor.

                    Thanks to its stable design, larger distances between supports can be realised. The conveyor is manufactured in a segmented construction. The conveyor belt frame is comprised of stable edge profiles equipped with all cut-outs and bore holes required for attaching accessories. The glide surface of the transported material can be reinforced in the feed area. The drive drum is fully gummed in order to exclude slipping in case of moisture.

                    In the interest of easier servicing, the drive and deflection drums are equipped with thread adapters. The conveyor belt slides over the surface and only top-brand belts from DUNLOP and CONTI are used. The return rollers are ball bearing – supported and easily replaced, even though they are protected against operator intervention by the lower belt cover.

                    The standard lower belt cover is in planar form, as this allows easy maintenance and cleaning.

                    The feeding and discharge hoppers are adapted to the respective sites. The supports can be adapted to local requirements.
                  • Lock-washer screen HKS 50

                  • The HKS 50 is a hook lift mobile screening machine which can be used downstream of a trommel screening machine or crusher. It can be employed as a completely mobile solution for oversize separation or fine fraction screening.
                    • Flexibility: The integrated optional diesel generator transforms the HKS 50 into a completely independent screening machine. The cassette design of the screening panels ensures that the HKS 50 is ready for quick, uncomplicated screening panel changes.
                    • Customer orientation: A variety of addition equipment options mean that the HKS 50 can be optimally adapted to suit customer wishes. For example, hydraulic supports can be ordered to raise the complete screening machine. This option enables the achievement of a larger material cone under the discharging conveyors.
                    • The HKS 50 achieves much more impressive screening capacities as a 2-fraction screening machine, thanks to generously dimensioned conveyor belts and a screening surface of 5.5 m2.

                    Special features: compact design, dedicated drive for independent operation

                  • Lock-washer screen R 60 / R 70

                  • The mobile R 60 or R 70 screening panel is used to achieve further fractioning downstream of Terra Select trommel screening machines. The screening panel is set up behind the fine or coarse-grain conveyor and powered by the optional auxiliary drive of the trommel screening machine.
                    • Flexibility: 3-fraction screening if required, otherwise the full performance capability of a Terra Select trommel screening machine without the screening panel
                    • Mobility: The R 60 screening panel can be transported on the infeed hopper of a T 50 or T 60 using hydraulic folding supports and a mounting for the rapid changer of a suitable wheel loader.
                    • The R 70 screening panel is ideal for achieving greater throughput rates or as an oversize grain separator, thanks to the larger screening surface. The R 70 screening panel can be equipped for transporting on a hook lift platform.
                    Special features: cost-effective screening for further fractioning, folding supports for mobile applications
                  • Lock-washer screen S 50

                  • Customer expectations of a recycling machine in this performance class have played a decisive role in the development of the S 60. The wide, one-piece discharge conveyors are ideally arranged opposite to each other and facilitate movement of the machine into the working position. Large maintenance flaps provide exemplary access to the machine. A high tilting wall facilitates feeding of material into the large hopper. This prevents the material from tipping over during the loading process. The standard machine equipment meets every requirement.
                    • The S 60 is extremely economical, thanks to the entirely electric drive with an optional diesel generator.
                    • The S 60 lock-washer screen impresses through high throughput rates of up to 300 m3/h during 3-fraction screening.
                    • Applications: Biomass, bark, waste wood, compost, wood chips
                    Special features: maintenance-friendly structure, lock-washer screening panel, optional diesel generator
                  • Lock-washer screen S 60

                  • Customer expectations of a recycling machine in this performance class have played a decisive role in the development of the S 60. The wide, one-piece discharge conveyors are ideally arranged opposite to each other and facilitate movement of the machine into the working position. Large maintenance flaps provide exemplary access to the machine. A high tilting wall facilitates feeding of material into the large hopper. This prevents the material from tipping over during the loading process. The standard machine equipment meets every requirement.
                    • The S 60 is extremely economical, thanks to the entirely electric drive with an optional diesel generator.
                    • The S 60 lock-washer screen impresses through high throughput rates of up to 300 m3/h during 3-fraction screening.
                    • Applications: Biomass, bark, waste wood, compost, wood chips
                    Special features: maintenance-friendly structure, lock-washer screening panel, optional diesel generator
                  • Lock-washer screen Z 60

                  • The Z 60 screening panel insert from Terra Select has been developed for the Terra Select T 60 trommel screening machine to expand its application options and increase its flexibility.

                    • Efficiency: Simple replacement of the screening trommel with the screening panel insert enhances the screening capacity of the Terra Select T 60 for certain materials by up to 40 %.
                    • Flexibility: Star screening technology can be used here in a trommel screening machine for applications which require greater throughput rates (e. g. for compost). Where the application purpose changes again, the screening insert can be removed in no time at all and the screening trommel is ready for use again.
                    The screening insert is equipped with an aggressive metering roller for optimum material distribution and is powered using the auxiliary drives of the screening machine.
                  • Moving Floor Conveyor MF

                  • MF Moving Floor Conveyors can be manufactured in virtually every length and width. Thanks to the design, the units can be transported in completely mounted state. All requested hopper capacities with reversible transport directions can be realised.

                    Characteristics:
                    Each MF Moving Floor Conveyor consists of three push-boards groups. Each group can be moved independently from the others. For transporting of material, all three groups are moved in the requested transport direction.

                    The material transport is effected by forward and backward moving push-boards. During the following working strokes, the groups are individually withdrawn. The material is held back on the unmoved push-boards. By reversing the transport direction, an optimal feeding of the hopper is achieved before the material is being transported to subsequent processes.

                    Additional equipment, such as sidewalls, completely closed hoppers or metering and discharging devices are available upon request.
                    • Transport of all kinds of material, no matter if featherweight, heavyweight, wet and sticky or highly abrasive
                    • Modular design for any required size
                    • Transport speed infinitely adjustable from 0 to maximum
                    • Easy integration into existing material bunkers
                    • Also available as driveable heavy-duty design
                    • Without rotating parts, therefore no danger of entangling
                    • High carrying capacity, safe against impact load
                    • Long service life at minimal maintenance requirements
                  • PS & PD - Single Perforator & Double Perforator

                  • Perforators of the series are excellently suited for material feeding per front loader, as well as placing the machine over the conveyor belt charging the bale press.

                    The bottles are punctured and pressed at. Bottles rolling no more on the belt considerably facilitates buffering and transport of the material. The conveyor belt is used more efficiently for a much faster feeding of the bale press.

                    The perforator‘s mobility allows flexible handling and fast installation wherever needed. Modi ed, the machine can also be used as glass breaker.
                    • Mechanic dewiring of press bales
                    • Automatic opening and removing of wire strapping
                    • Packing of removed bale wires
                    • Wire cutting without danger of injury
                    • For bales consisting of plastics, foils, PET bottles, paper etc.
                    • Self-acting adaptation to bale size
                    • Automatic adjustment to material density
                    • High availability due to wear-resistant edges
                    • Delivery complete with chain belt conveyor, all drives and electrical control system Compact material preparation system in combination with a Bale Breaker
                  • BPS - Papersorter

                  • The BPS is suitable within the range of the waste paper assortment both for the separation from paper and cardboard boxes and for the Finesorting of the problematic disturbing of portions in the waste paper, here particularly also for the improvement of the Deinking quality.
                    • Rugged Machine-Design for durable Application
                    • Patented Eccentric-Crankshaft
                    • Rugged changeable Bearings
                    • Patented adjustable Sieve-opening
                    • Many Types for each purpose
                    • Sieve-area from 6m2 to 42m2
                    • 3 useful width
                    • 6+8 Sievepaddle at each Machine
                    • 2 Sievepaddle-width available
                    • Troughput from 6t/h to 45t/h
                    • Easy to maintain
                    • Two housings available
                    • For Fines/Trash and Cardboard-Sorting

                  • Special Edition 250 Pre-Crusher

                  • FORUS pre crushers are specialists for all types of wood and waste – effortlessly crushing waste wood, demolition wood, cuttings and rootstocks. The slow-running two-shaft crusher also processes plastic films, papers, refuse, waste and electronic scrap just as efficiently. Depending on the shredding unit different roller drives are used, from 2 x (multifunctional type) to 1 x (triangular knives). The final particle sizes vary from 150 to 300 mm. The Special Edition 250 is a superb all-rounder – a powerhouse that is reliably adapted to your requirements.

                    Included special equipment
                    • Hydraulically liftable and lowerable overbeltmagnet
                    • Galvanized conveyor frame
                    • Breaker bar, type A4
                    • Hydraulically liftable and lowerable breaker bar
                    • Radio remote control
                    • Lifting hopper

                  • Special Edition 450 Pre-Crusher

                  • FORUS pre crushers are specialists for all types of wood and waste. The Special Edition 450 effortlessly crushes heavy waste wood, demolition wood, sleepers and rootstocks. The slow-running two-shaft crusher also processes plastic films, papers, refuse, waste and electronic scrap just as efficiently. The final particle sizes vary from 150 to 350 mm. The heavy FORUS pre crusher is a reliable powerhouse for large recycling companies. Depending on requirements, we can deliver a mobile version (chassis, crawler track) as well as a semi-mobile hooklift version.

                    Included special equipment
                    • Hydraulically liftable and lowerable overbandmagnet
                    • Galvanized conveyor frame
                    • Breaker bar, type A4
                    • Hydraulically liftable and lowerable breaker bar
                    • Radio remote control
                    • Lifting hopper

                  • Grobsieb SC

                  • Principle
                    The separator classifies the input material in a light weight and a heavy weight fraction. The input material has to be free of fines and oversizes as far as possible. The input material has to be free- owing and may not agglutinate. For a good separation results, the ratio of the smallest to the largest particle should be 1: 4.

                    Functional Description
                    The input material must be evenly distributed on the acceleration belt. Under the head of the accelerating belt a nozzle is placed. The input material passes this nozzle in free fall. Very light components are blown out of the stream over the arch belt directly into the settling chamber. In the transfer area, very heavy parts fall down on a heavy material discharge belt. All other parts reach the arch belt. Over the radius of the arch belt they are also separated into light and heavy fractions.

                    In the settling chamber the light fraction is separated from the air stream. Due to calming of the air, the light particles can settle here and are discharged by the light material discharge belt.

                    Air Management / Integrated Filters
                    The separator operates in recirculation mode. A second fan extracts the dust-laden air through a filter from the settling chamber and transfers the cleaned air to the surroundings. The separated dust is supplied to the light material fraction.

                    Advantages
                    • High recovery rate of light fraction
                    • A lot of setting options allow an optimal separation result
                    • Integrated filter unit
                    • Trace heating for pressure line to the filter and condensate line
                  • SF - Screen for fine material

                  • Use the SF fine screen for post-treatment of the mixed paper fraction. Producing a loose, even stream, the fine screen prepares the material in an optimal way for manual, mechanical or optical sorting. The oversize grain consists mainly of valualbe de-inking material.
                    • Optimal subsequent treatment of mixed paper fraction
                    • Efficient screening of disruptive materials and small parts
                    • Reasonable price, long service life
                    • Additional improvement of performance and quality
                    • Loosened up and even material feeding to post-sorting
                    • Easy to clean
                    • Almost no danger of entangling through long foils or tapes
                    • Easy integration into existing sorting plants

                  • TEUTON Z 55

                  • Single-Speed-Shredder
                    With worlwide activties and years of experience in special machinery for recycling plants, we know exactly about the customers needs. The Eggersmann TEUTON Z 55 – a single-speed-shredder for grinding wood waste, organic waste, industrial waste, tires as well as bulk trash and matresses – is an efficient and low-maintenance universal shredder that fulfills all requirements.

                    Since a homogenous end product is the key to success on the worldwide markets, two shredders were often needed to reach that level in two work steps. The Eggersmann TEUTON Z 55 is able to do the pre- and post-shredding in one work step.
                  • Sliding belt conveyor GGF280

                  • The sliding belt conveyor is used with lightweight transported materials. The conveyor is manufactured in a segmented construction. The conveyor belt frame is comprised of stable edge profiles equipped with all cut-outs and bore holes required for attaching accessories. The glide surface of the transported material can be reinforced in the input area.

                    The drive drum is fully gummed in order to exclude slipping in case of moisture. In the interest of easier servicing the drive and deflection drums are equipped with thread adapters. The conveyor belt slides over the surface and only top-brand belts from DUNLOP and CONTI are used. The return rollers are ball bearing – supported and easily replaced, even though they are protected against operator intervention by the lower belt cover.

                    The standard lower belt cover is in planar form, as this allows easy maintenance and cleaning. The feeding and discharge hoppers are adapted to the respective sites. The supports can be adapted to local requirements.
                  • Trommel screen SD

                  • Trommel Screens separate the material input in different grain sizes. The specific materials, throughput rates and the screen size of the output fractions are the main criteria for the appropriate size of the screen drum.

                    The exchangeable screen sheet metals have round or rectangular holes, as well as an additional entangling protection if required for a particular kind of material. Further bag ripping tools, accelerators, mixers or other means can be added for additional improvement of the screening result.
                    • Suitable for domestic waste, organic material, RDF, compost, industrial waste, building rubble, etc
                    • Eminently suitable for separating of at materials thanks to permantent material turning
                    • Extremely robust and resistant to wear Production of up to four grain sizes
                    • Different mesh sizes and tools for optimal screening results
                    • Protects downstream units from blockages high maintainability
                    • High efficiency and effectiveness, outstanding throughput capacity
                  • Trommel screen DT 50

                  • huge flexibility
                    The Terra Select DT 50 is the perfect combination between a two and three fraction trommel screening machine and shows huge flexibility. The number of fractions in this model can be changed by a simple trommel change, allowing even more tasks and areas of use to be covered in a versatile, reliable and fast manner.
                    • The design of the Terra Select DT 50 is technically flexible: The screening trommels of the T 50 model can be inserted in the DT 50, giving it the full productive efficiency of a two fraction screening machine.
                    • The DT 50 can also be used as a three fraction trommel screening machine reliably and efficiently by inserting a special double trommel. The large screening cut in this case is de ned by the mesh size of the interchangeable inner trommel, the fine screening cut is made to be variable due to the interchangeable wire mesh.
                    Special features: 55 kW motor, one piece ne and medium grain belt, double trommel
                  • Trommel screen DT 60

                  • Perfect machine for three fraction screening
                    The Terra Select DT 60 is the “big brother” of the DT 50 and is based on the model T 60. Its enlarged screening area makes the DT 60 suitable for many different fields of application. This means that even two fine screenings, e. g. bark separation (0–10 mm, 10–40 mm, 40–x mm) can be screened in one step with a high throughput performance. The double trommel screening machines perform a “coarse before fine separation”; this process separates the coarse fractions in the initial step, which means that the fine screen covering then needs to screen a lower volume of material. This process ensures good throughout performance and has an excellent price/value ratio. The double trommel screening machines from Terra Select are subject to much less wear in comparison with the frequently used star screening machines in this performance class.
                    • The generous trommel measurements (5,500 mm long, 2,200 mm in diameter) provide for screening performance of up to 120 m3/h.
                    • The DT 60 is the perfect machine for three fraction screening, e. g. biomass, shredded green cuttings, tree bark, wood chips as well as sand, stones and earth, etc.
                    Special features: three fractions in one step, one piece fine and medium grain belt, uses double trommel or normal T 60 single trommel

                  • Trommel screen T 30

                  • The entry into professional screening technology
                    The T 30 trommel screen lends itself to being used on small composting sites, in market gardens or in rental fleets. The model is flexibly usable and therefore perfect for customers who previously hired a contractor for screening work and now want to perform this work in this sector them selves. Clarity, maintenance friendliness and the use of proven quality components from the Terra Select trommel screen product range provide for easy and safe handling. Good accessibility to the machine means service tasks can be performed quickly and reliably.
                    • The Terra Select T 30 is equipped with a 25 kW diesel motor with extremely low fuel consumption, which only uses an average of 4 l/h.
                    • A screening output of up to 60 m3/h can be achieved as a result of the generous fill hopper.
                    • The T 30 impresses due to its large and flexible scope of application and its carefully developed inner workings — a machine with an excellent price/value ratio.

                    Special features: easy and simple trommel changes, low load height, large fill hopper
                  • Trommel screen T 40

                  • The compact class
                    For the model T 40, Terra Select compressed the technical advantages of the “big machines” and transferred them into a smaller machine. As a result, it also contains the special hopper drive, a powerful diesel motor, hot dip galvanised conveyor belt frame, generous transfer points and wide conveyor belts. The T 40 is a powerful professional machine from the compact class, almost reaching the models from the five metre class, and all of this with an excellent price/value ratio.
                    • The Terra Select T 40 is designed for all types of materials. It can also screen substances like earth, soil, sand, building rubble, etc. without any difficulties.
                    • The T 40 is a powerful machine with compact dimensions due to its high quality equipment, its well-conceived execution and its 1,600 mm trommel diameter.

                    Special features: powerful hopper belt drive, 19 m2 screening area, wide conveyor belts

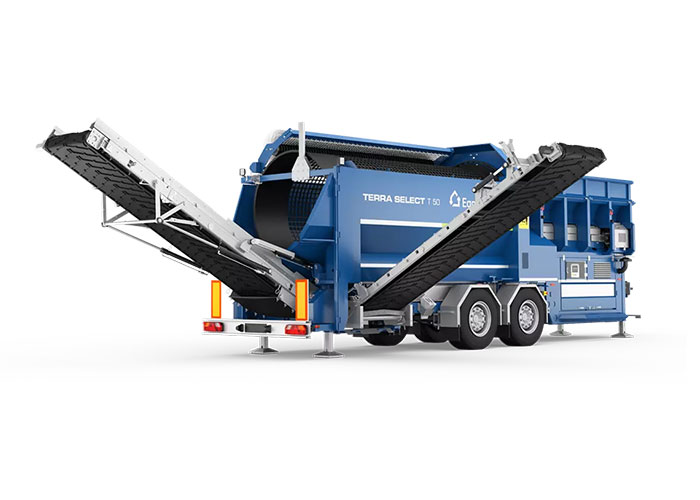

                  • Trommel screen T 50

                  • The allrounder
                    The Terra Select T 50 is the all-rounder among the trommel screening machines and a master of transformation: It only takes a few modi cations to be able to even use the trommels of others manufacturers in this model. Furthermore, the T 50 technology represents the combination between compact measurements and outstanding screening performance. Because of its adaptability and its convincing technical arguments, this model is perfectly placed in the five metre class.
                    • The Terra Select T 50 has a trommel diameter of 2,000 mm (normal in this class: 1,800 mm); increasing the screening performance by up to 20 %.
                    • Accordingly, the T 50 is equipped with a large fill hopper with a volume of more than 5 m3.
                    • Many of the T 50’s drive elements originated in its “big brother”, the T 60; this ensures a long service life and provides for a higher intrinsic value.
                    Special features: quiet running 55 kW diesel motor, can use screening drums of other manufacturers, one piece conveyor belt

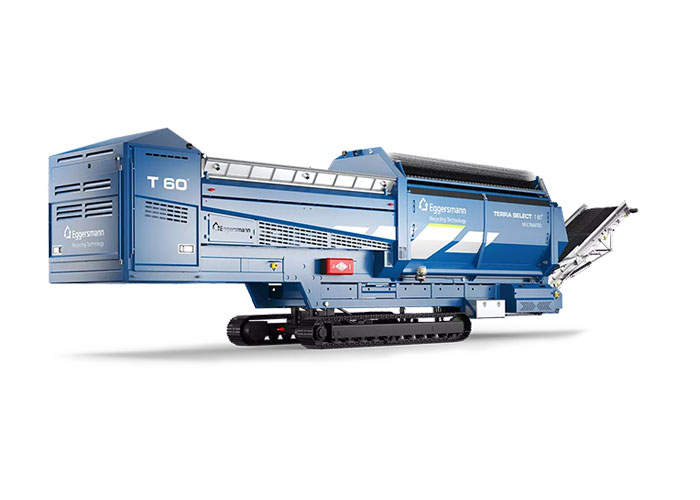

                  • Trommel screen T 60

                  • The power-pack
                    High throughput performance and many innovative design solutions are the striking features of the Terra Select T 60, while its high performance motor runs fuel and energy-efficiently. The engine has sufficient power reserves to operate additional optional equipment such as lock washer screening decks or windsifters. The pivoting infeed unit makes the daily manoeuvring of the machine easy for the personnel.
                    • The T 60 trommel screening machine is equipped with a powerful industrial diesel motor (75 kW power).
                    • The trommel, with a length of 5,500 mm and a diameter of 2,200 mm, provides for impressive screening performance of up to 200 m3/h.
                    • The auger, attached on the outside of the trommel, prevents screening material from settling between the trommel and the side panels of the machine.
                    Special features: one piece fine grain belt, 33 m2 screening area, powerful 75 kW diesel motor
                  • Trommel screen T 70

                  • Endless capacity
                    The model T 70 is the most powerful, mobile trommel screening machine in the Terra Select product range and provides for convincing throughput performance. With an impressively large screen area, it easily handles even hard-to-screen materials, such as wet compost. The long trommel and the correspondingly wide screening deck are perfectly suited for screening all kinds of waste.
                    • The Terra Select T 70 achieves a screening performance of up to 250 m3/h using an effective screening area of approx. 46 m2.
                    • The trommel length in this model is 7.500 mm, the diameter is 2,200 mm.
                    Special features: impressive screening area, large fill hopper, generous infeed opening in screening drum
                  • Trommel screen T 80

                  • 3 times screening
                    The Terra Select T 80 is a very effcient trommel screening machine and produces three fractions in one step. The screening trommel is divided into two individually selectable, different perforations and the long screening areas are arranged one behind the other: This allows fine screening to be performed perfectly. Optionally, the hinged hopper grid on the infeed hopper already makes it possible to separate “thick chunks” while the machine is being filled. As a result, a total of four different fractions are produced with one machine.
                    • All the discharge belts can optionally be equipped with magnetic rolls of various qualities, e. g. with various
                    • Neodymium parts for extra strength.
                      The “fine before coarse” screening in the T 80 is especially suitable for the mineral reconditioning process.
                    Special features: impressive screening area, large fill bunker, three fractions due to divided screen perforation
                  • Troughed belt conveyor MGF230

                  • The troughed belt conveyor is used with lightweight and heavy transported materials.

                    The conveyor is manufactured in a segmented construction. The conveyor belt frame is comprised of stable edge profiles equipped with all cut-outs and bore holes required for attaching accessories. The glide surface of the transported material can be reinforced in the input area. The drive drum is fully gummed in order to exclude slipping in case of moisture.

                    In the interest of easier servicing, the drive and deflection drums are equipped with thread adapters. The conveyor belt is rollersupported and only top-brand belts from DUNLOP and CONTI are used. The return rollers are ball bearing – supported and easily replaced, even though they are protected against operator intervention by the lower belt cover.

                    The standard lower belt cover is in planar form, as this allows easy maintenance and cleaning. The feeding and discharge hoppers are adapted to the respective sites. The supports can be adapted to local requirements.
                  • Tunnel filling system front loader

                  • The input system fills rotting and fermentation tunnels. A diagonally movable transfer bridge is installed upstream of the tunnel system, which includes a bridge belt as well as a filling shuttle with two transport belts and the Swivel distribution belt and moves between the tunnels.

                    The filling shuttle is able to enter the assigned tunnels on both sides and fill these in layers with the two transport belts. On the top, the tunnel walls are equipped with a continuous running beam consisting of reinforced concrete on which the filling shuttle moves. The filling shuttle carries a transport belt and pulls a second transport belt along with it into the tunnel for filling. This telescope principle makes it possible to fill long tunnels with a relatively short filling bridge. A swivel distribution belt is installed beneath the filling shuttle, which distributes the material across the entire tunnel surface up to the tunnel walls.

                    The material transferred on the transport belts is distributed in longitudinal direction and on the swivel distribution belt by the travel speed adapted to the material flow in such a way that layers with a relatively even thickness can be filled in. A permanently mounted supply belt is installed in front of the tunnel system. A scraper cart located on the supply bridge supplies the material to the transport belts via the bridge belt. Integral component of the supply belt is a volumetric flow rate measuring device that influences the control of the distribution function and thus the speed of the filling shuttle.

                    For optimum homogenisation, the material is filled in in several horizontal layers across the entire tunnel surface until the desired fill height is reached. Sensors record the fill height across the entire filling surface. Filling corrections are performed in the process until the specified fill height is achieved across the entire filling surface.
                  • Tunnel filling system top loader

                  • The filling system is used to fill rotting tunnels. A diagonally movable transfer bridge is installed upstream of the tunnel system, which picks up a filling shuttle with transport belt and moves this in front of the tunnels. The filling shuttle is able to enter an assigned tunnel and fill this in layers with the transport belt. On the top, the tunnel walls are equipped with a continuous running beam consisting of reinforced concrete on which the filling shuttle moves.

                    The filling shuttle picks up a diagonally movable and reversible transport belt that is equipped with a movable and reversible distribution belt on both ends. The distribution belt serves to transport the material up to the tunnel wall and set it down there. For this purpose, the corresponding distribution belt is moved to the discharge parabola of the transport belt. The material transferred on the transport belts is distributed in longitudinal and diagonal direction and on the distribution belt by the travel speed adapted to the material flow in such a way that layers with a relatively even thickness can be filled in.

                    The supply belt attached movably on the tunnel ceiling with automatic cover lifting device always follows the diagonal movements of the transport belt so that the material is always centrally distributed on the transport belt through the opening in the tunnel ceiling. Integral component of the supply belt is a volumetric flow rate measuring device that influences the control of the distribution function and thus the speed of the filling shuttle.

                    If required, the material is watered at the transfer point from the supply belt to the transport belt. The excess water is absorbed by the material in the tunnel. When filling in the material, the bottom half of the tunnel gate is closed to reduce emissions during suctioning towards the rear tunnel wall. For optimum homogenisation, the material is filled in in several horizontal layers across the entire tunnel surface until the desired fill height is reached.

                    Sensors record the fill height across the entire filling surface. Filling corrections are performed in the process until the specified fill height is achieved across the entire filling surface.
                  • Waste screen SMW

                  • SMW Waste screen is a potent, compact screen segment unit for efficient separation of MSW into two fractions.

                    The rotor elements consist of rugged steel tubes equipped with pentagonal screen discs. SMW Rotor Screens are flexibly adjustable to the individual separating behaviour and transport characteristics of the input material.

                    The axial distance of the single rotor elements can be adjusted gradually. Same renders possible to choose different axial distances over the whole length of the screen. The proven BRT design makes exchange of screen discs easy and fast to accomplish.

                    The machine can be upgraded with a speed control adjustment for optimal adjustment of the screen to the input material composititon. This additional feature enables the machine to operate with changing velocities. As further option, an inclination adjustment device can be used for changing the inclination angle. A prolonged treatment time of the material on the screen results in a higher screening quality.
                    • Efficient material separation into two fractions
                    • High material selectivity
                    • Effective separation of disruptive materials
                    • Easy to clean
                    • Budget-priced and long-life
                    • Insusceptible to di cult material
                    • Loosened-up and evened out material feeding to post-sorting processes Small footprint
                    • Easy Integration into existing sorting plants
                    • Easy exchange of single screen discs
                    • Dynamic change of screen arrangement

                  • Windsifter V 40 / V 60

                  • The V 40 Windsifter can be used for continuous cleaning of coarse grain material when screening with a trommel screening machine. It is fitted to the end of the coarse grain conveyor. Air is blown under the material and impurities are syphoned away. The V 60 Windsifter is powered hydraulically via the screening machine or electrically.
                    • The V 40 and V 60 Windsifter operate with a suction/pressure fan with a capacity of 20.5 kW. This fan is mounted on the container which is filled with the impurities to be syphoned.
                      The syphon unit is moved with ease using the prongs of a forklift truck or a quick-change unit.
                      Applications: Biomass fractions, compost, recycling materials
                    Special features: ease of handling, an e cient, cost-e ective solution
                  • Windsifter W 70

                  • The W 70 Windsifter is designed for cleaning light impurities out of screen over flows in composting and biomass recycling. Impressive cleaning performances are achieved, thanks to a dedicated infeed hopper with an integrated metering roller, and it is completely mobile. Materials which have already been screened can be cleansed of impurities completely independently of the screening machine.
                    • The infeed hopper is equipped with the proven positive-fitting drive system of the Terra Select trommel screens. In addition, a metering roller ensures an even infeed of material into the machine.
                    • The W 70 Windsifter impresses with a high, continuously adjustable cleaning level at throughput rates of up to 80 m3/h.
                    • The machine is a maintenance-friendly design, and all functions are hydraulically powered.
                    Special features: hopper with metering roller, stone separation and magnet roller
                  • Windsifter W 80

                  • The infeed hopper is equipped with the proven positive-fitting drive system of the Terra Select trommel screens. In addition, a metering roller ensures an even infeed of material into the machine.
                    • The W 80 Windsifter impresses with a high, continuously adjustable cleaning level at throughput rates of up to 120 m3/h.
                    • The Terra Select W 80 offers easy accessibility to all components.
                    Special features: energy efficient direct drive, hopper with metering roller, optional discharge conveyor for light fraction
                  • Windsifter WE 60

                  • The Electric
                    The WE 60 Windsifter is a mainly semi-stationary or stationary and entirely electric Windsifter. Terra Select provides this Windsifter in two versions. The mobile WE 60 is mounted on the ABS 80 km/h road-legal chassis, and an entirely stationary solution is also available.
                    • Both machines use the same cleaning technology. The material is ideally fed into the WE 60 from a screening machine coarse grain conveyor, then distributed by an acceleration belt.
                    • The material is blown through by the pressure fan at the end of the conveyor and aspirated by the suction fan.
                      Applications: Biomass fractions, screen over ows from the compost process, biocompost
                    Special features: direct interaction with an upstream screening machine, higher cleaning level, lower operating costs
                • Optimizing, Service and Operating of Recycling Plants

                • At Eggersmann, our focus is on the customer. From developing modern plant constructions to the final implementation, maintenance, service and repairs – Eggersmann is your competent partner in all areas.

                  Our service staff does not only react promptly and flexibly to occuring problems and trouble-shoots them, but also shares its knowledge with the owner to improve workplace safety, make your processes more efficient and reduce operating costs.

                  This well-founded know-how that we share with you is the same we use to develop and improve our own recycling plants.
