The Imaging Source
Videos
Loading the player ...
  • Offer Profile
  • Established in 1990, The Imaging Source has become a leading manufacturer of industrial machine vision cameras, frame grabbers and video converters, serving the following sectors:
    • Factory automation
    • Quality inspection
    • Medical systems
    • Microscopy systems
    • Life science projects
    • Astronomy
Product Portfolio

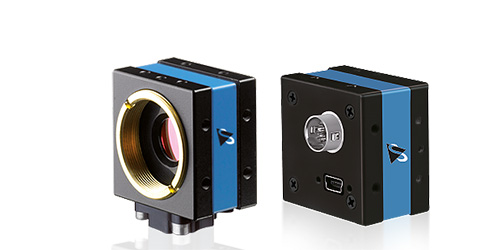

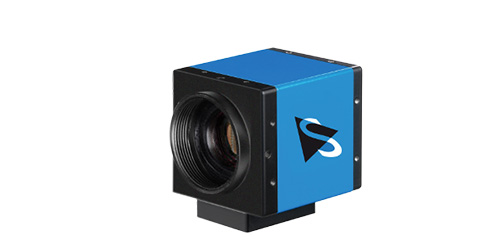

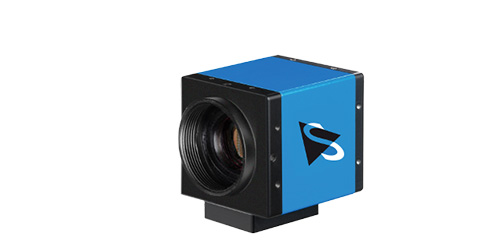

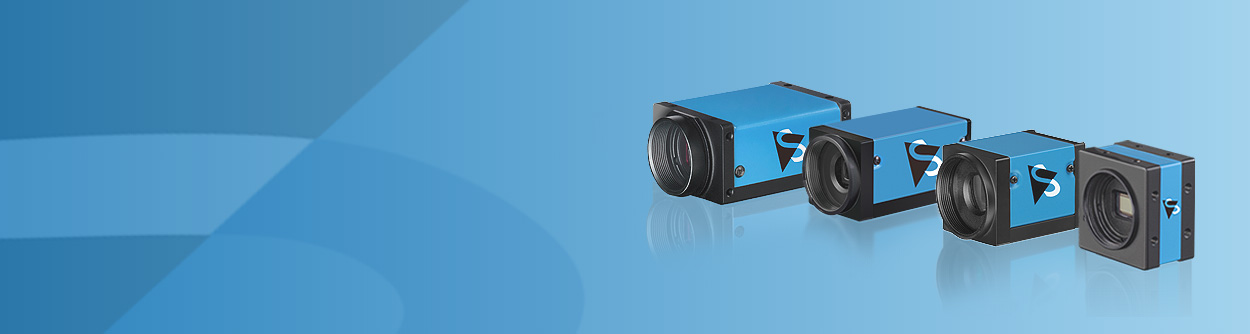

  • Industrial Cameras

  • Set resolution, format, FPS and sensitivity with shipped software.
      • USB 3.0 MONO

      • Resolution up to 2592x1944
        FPS 15, 20, 30, 60, 100, 120
      • USB 3.0 COLOR

      • Resolution up to 2592x1944
        FPS 15, 20, 30, 60, 100, 120
      • USB 2.0 Mono

      • Resolution up to 2592x1944
        FPS 6, 12, 15, 25, 30, 60, 76
      • USB 2.0 Color

      • Resolution up to 2592x1944
        FPS 6, 10, 12, 15, 25, 30, 60, 76
      • USB 2.0 CMOS LOW COST COLOR

      • Resolution 1280x720
        FPS up to 30
      • GigE Mono

      • Resolution up to 1280x960
        FPS 15, 30, 60
      • GigE Color

      • Resolution up to 1280x960
        FPS 15, 30, 60
      • FIREWIRE 800 MONO

      • Resolution up to 1280x960
        FPS 15, 30, 60
      • FIREWIRE 800 COLOR

      • Resolution up to 1280x960
        FPS 15, 30, 60
      • FIREWIRE 400 MONO

      • Resolution up to 1280x960
        FPS 15, 30, 60
      • FIREWIRE 400 COLOR

      • Resolution up to 1280x960
        FPS 15, 30, 60

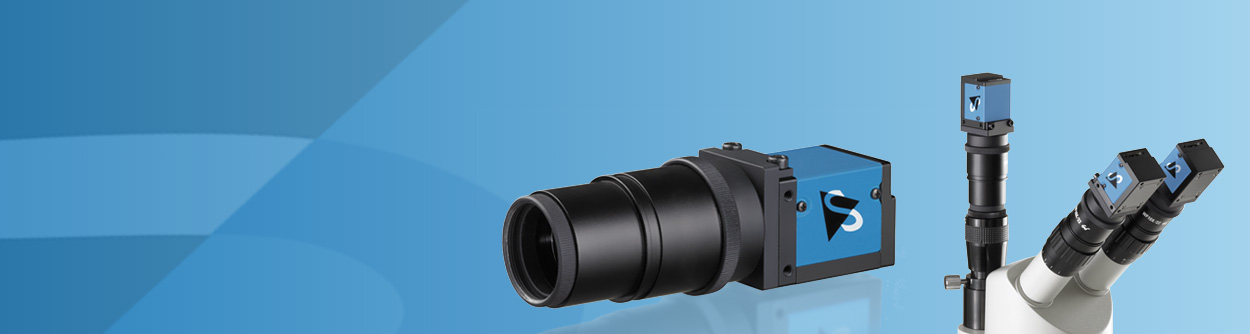

    • Microscope Cameras

          • USB 3.0 CMOS COLOR

          • Resolution up to 4128x3096
            FPS up to 30
      • Integrated Optics Cameras

            • USB CMOS COLOR

            • Resolution up to 4128x3096
              FPS up to 30

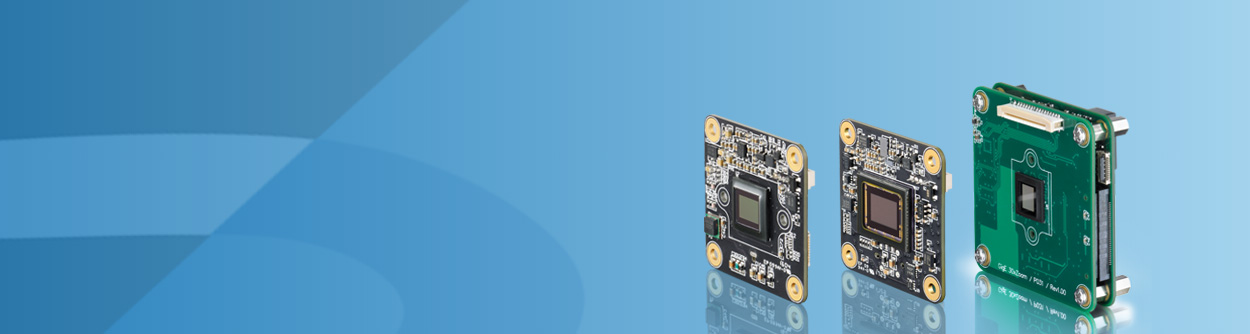

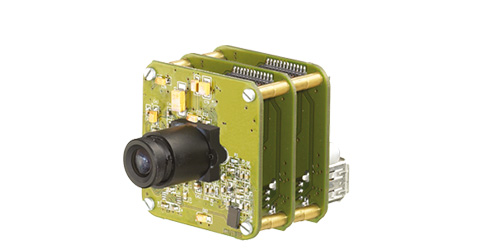

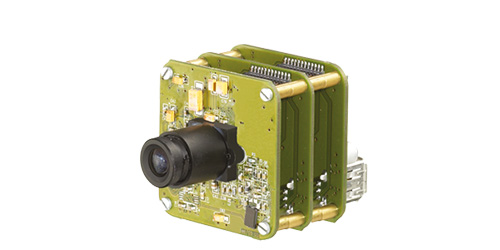

        • Board Cameras

            • USB CMOS Mono

            • Resolution up to 2592x1944
              FPS 6 up to 150
              Sensitivity 22.4 V/lux-sec
            • USB CMOS Color

            • Resolution up to 2592x1944
              FPS 6 up to 150
              Sensitivity 22.4 V/lux-sec
            • USB CCD Mono

            • Resolution up to 2592x1944
              FPS 6 up to 150
              Sensitivity 22.4 V/lux-sec
            • USB CCD Color

            • Resolution up to 2592x1944
              FPS 6 up to 150
              Sensitivity 22.4 V/lux-sec

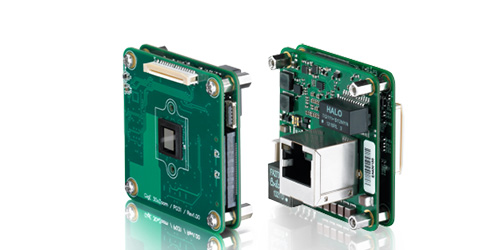

            • GIGE MONOCHROME BOARD

            • Resolution up to 5MP
              FPS up to 132 fps
              Sensitivity 0.05 lx
            • GIGE COLOR BOARD

            • Resolution up to 5MP
              FPS up to 132 fps
              Sensitivity
              0.05 lx
            • FireWire CCD Mono

            • Resolution up to 2592x1944
              FPS 6 up to 150
              Sensitivity 22.4 V/lux-sec
            • FireWire CCD Color

            • Resolution up to 2592x1944
              FPS 6 up to 150
              Sensitivity 22.4 V/lux-sec

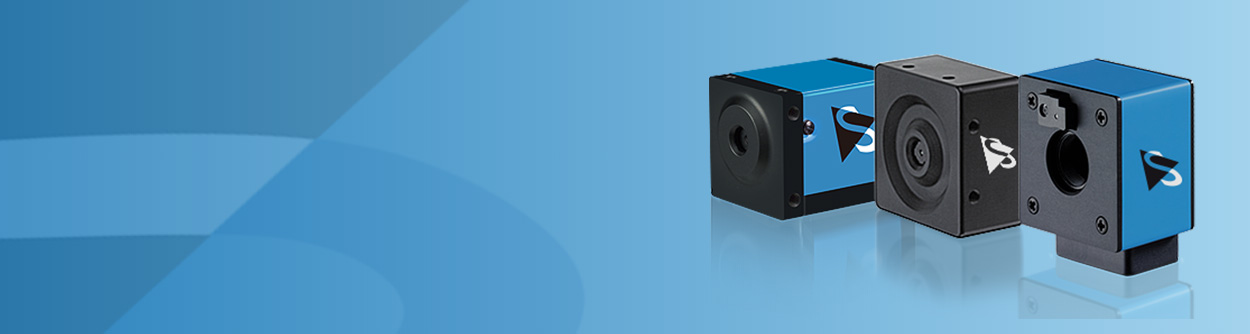

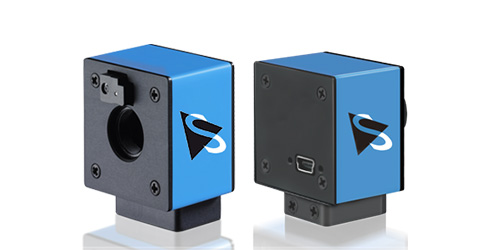

          • Autofocus Cameras

                • USB CMOS Mono

                • Resolution up to 2592x1944
                  FPS 6 up to 150
                  Sensitivity 22.4 V/lux-sec
                • USB CMOS Color

                • Resolution up to 2592x1944
                  FPS 6 up to 150
                  Sensitivity 22.4 V/lux-sec

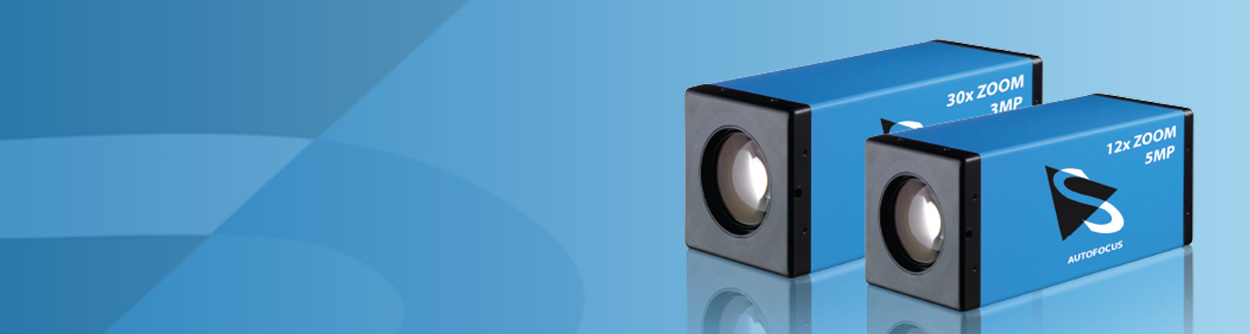

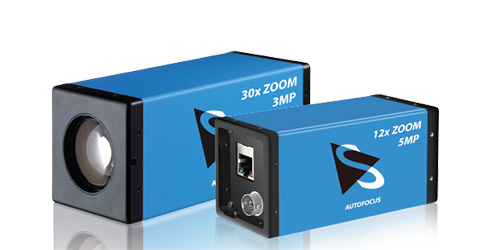

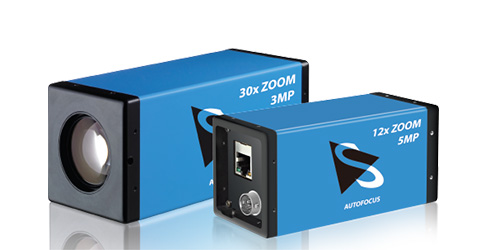

            • Zoom Cameras

                • FireWire CCD Mono

                • Resolution up to 1024x768
                  FPS 30, 60
                • FireWire CCD Color

                • Resolution up to 1024x768
                  FPS 30, 60
                • GIGE MONOCHROME

                • Resolution up to 2592x1944
                  FPS up to 15
                • GIGE COLOR

                • Resolution up to  2592x1944
                  FPS up to 15

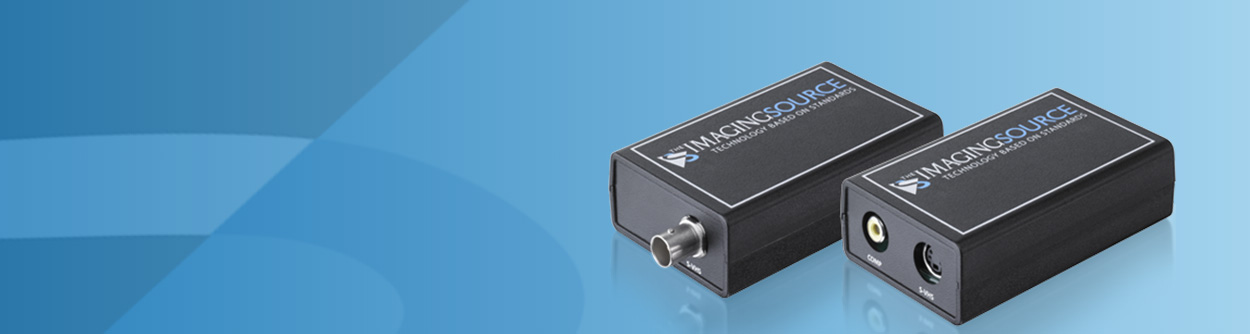

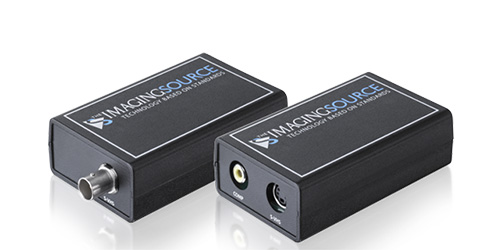

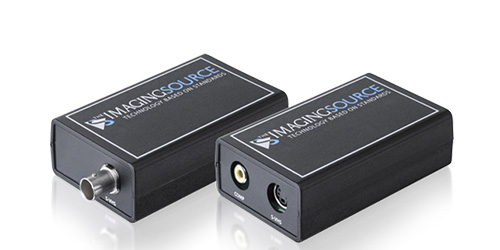

              • Converters

                    • DFG/USB2propcb

                    • Video formats: PAL/NTSC, RS-170/CCIR
                      Composite video inputs: 1
                      Y/C inputs: 1
                      Bus: USB 2.0
                    • DFG/USB2pro

                    • Video formats: PAL/NTSC, RS-170/CCIR
                      Composite video inputs: 1
                      Y/C inputs: 1
                      Bus: USB 2.0
