PITTLER
Videos
Loading the player ...
  • Offer Profile
  • Pittler is well known for its technological innovations and customer orientation for the widest range of production solutions. Based on the main idea of "unit cost reduction" as well as the experience and know-how from the many thousands of lathes supplied around the world, specific customer requirements were systematically analyzed and state-of-the-art technological research findings taken into consideration for these developments.
Product Portfolio
  • Machine

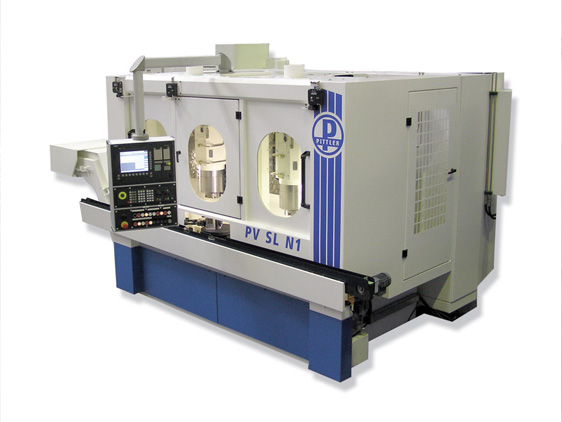

      • PV SL N1 Vertical Pick Up Lathe for pivot diameters up to 250mm

      • Small – flexible – precise
        in the diameter range from 50 to 250 mm, maximum precision in spite of high speed.
        The module system for reducing unit costs. The modular N1 product platform unites applications from different machining technologies. The benefit for users goes beyond significantly reducing investment costs to include the declared intention of this development: Permanent reduction of unit production costs. PITTLER T&S GmbH, the traditional manufacturer of CNC lathes, has integrated operations such as drilling, thread cutting, counter-sinking, milling, grinding as well as final expanding and burnishing into the N1 platform in addition to turning. The offer is completed by our own integrated quality and process assurance modules as well as material flow components.

        Technical Data

          Maschinenbaugröße ø250
        Hauptspindel Spindelflansch-ø (mm) 140 170
          Leistung bei 100% ED (kW) 17 52
          Drehmoment bei 100%ED (Nm) 100 254
          Drehzahl (min-1) 4500 4800
          Max. Werkstück Länge (mm) 200 200
          Max. Werkstück Gewicht (kg) 15 20
        Revolver mit Antrieb Leistung bei 100% ED (kW) 3,7 3,7
          Drehmoment bei 100%ED (Nm) 20 20
          Drehzahl (min-1) 5000 5000
          WZ System VDI 40/50
        Capto C4/C5
        HSK 40/50

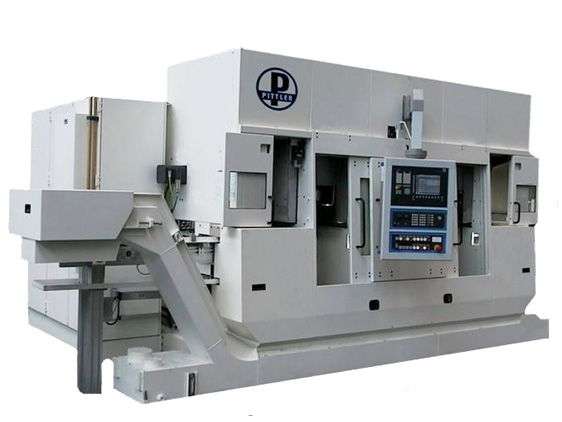

      • PV SL 2 and PV SL 3 Vertical Pick Up Lathe for pivot diameters up to 630mm

      • In the diameter range from 100 – 630 mm customers frequently have additional requirements - such as high unfinished part allowances for machining - high degree of complexity of parts - high part weights. The PV SL 2 / PV SL 3 machine platforms take such requirement profiles into consideration. The sturdy, high torque and high performance design ensures efficient production of parts even with high allowances or allowance variations. Various sizes of operating chambers are available for processing. This ensures sufficient space for auxiliary operations such as drilling, milling and grinding. In practice this means fewer chucking operations.High performance reliability In the diameter range from 100 – 630 mm customers frequently have additional requirements - such as high unfinished part allowances for machining - high degree of complexity of parts - high part weights. The PV SL 2 / PV SL 3 machine platforms take such requirement profiles into consideration. The sturdy, high torque and high performance design ensures efficient production of parts even with high allowances or allowance variations. Various sizes of operating chambers are available for processing. This ensures sufficient space for auxiliary operations such as drilling, milling and grinding. In practice this means fewer chucking operations.

        Technical Data

          Maschinenbaugröße PV SL2 ø400 PV SL3 ø630
        Hauptspindel Spindelflansch-ø (mm) 170 220 220 380
          Planlager-ø (mm) 120 140 140 240
          Leistung bei 100% ED (kW) 36 72 39 72
          Drehmoment bei 100%ED (Nm) 384 600 600 1375
          Drehzahl (min-1) 5.500 4.000 4.000 4.000
          Max. Werkstück Länge (mm) 250 250 300 300
          Max. Werkstück Gewicht (kg) 30 30 40 40
        Revolver mit Antrieb Leistung bei 100% ED (kW) 5,9 5,9 6,2 6,2
          Drehmoment bei 100%ED (Nm) 68 68 80 80
          Drehzahl (min-1) 4.000 4.000 3.000 3.000
          WZ System VDI 450
        Capto C5
        HSK 50
          VDI 60
        Capto C6
        HSK 63

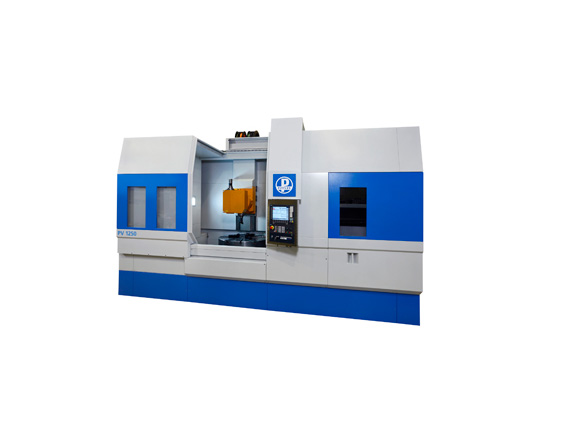

      • PV³ Vertical machining center, Pivot diameters 315mm to 1,600mm

      • PV³ Platform - Your Multi-talent
        PV³, machining center of the future.

        The innovative solution for complete machining of rotationally symmetrical and cubic parts, based on proven designs. The modular concept allows the machine to be produced with 1 or 2 independent spindles and with one or two cross slides.
        The PV³ combines technologies such as turning, drilling, thread cutting, milling, skiving, grooving or grinding and gear hobbing as well as hard turning and grinding including integrated quality check in a monitored process, all in one machine.
        Unique, patented tool carriers allow this high application flexibility in the part diameter range from 400 to 1,600 mm.

        Technical Data

          Maschinenbaugröße ø400   ø630   ø800
        Hauptspindel Spindelflansch-ø (mm) 170 220 220 380 380 380
          Planlager-ø (mm) 120 140 - 240 300 300
          Leistung bei 100% ED (kW) 36 72 31 39 70 70
          Drehmoment bei 100%ED (Nm) 384 600 425 4375 3500 2800
          Drehzahl (min-1) 5500 4000 1000 4000 680 850
          Max. Werkstück Länge (mm) 250 250 500 500 500
        (1000)
        500
        (1000)
          Max. Werkstück Gewicht (kg) 500 500 1000 1000 2000 2000
        Multifunktions-
        kopf
        Leistung bei 100% ED (kW) 45-50 45-50 45-50 45-50 45-50 45-50
          Drehmoment bei 100%ED (Nm) 270-970 270-970 270-970 270-970 270-970 270-970
          Drehzahl (min-1) max. 3.600
        bis
        max. 7.000
        max. 3.600
        bis
        max. 7.000
        max. 3.600
        bis
        max. 7.000
        max. 3.600
        bis
        max. 7.000
        max. 3.600
        bis
        max. 7.000
        max. 3.600
        bis
        max. 7.000
          WZ System VDI 50   VDI 60   VDI 60
            Capto C5   Capto C6   Capto C6/
        C8

            HSK50   HSK63   HSK63/
        80

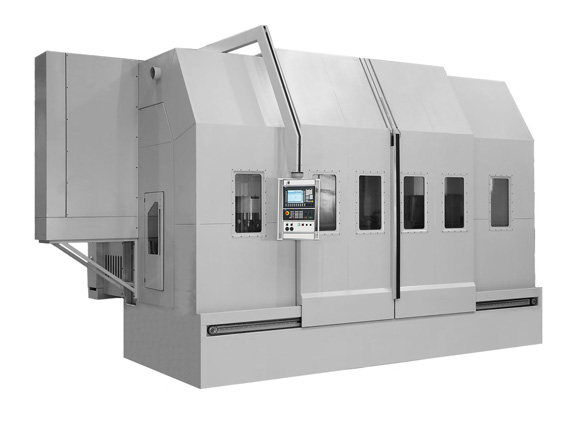

      • PV HDC Vertical machining center, Pivot diameters 2,000mm to 5,000mm

      • PV HDC Platform - Heavy machining made easy
        PV HDC, system designed for precision work

        The HDC Heavy Duty Cutting machine series is designed for a part diameter range of 2,000 to 5,000 mm for heavy duty machining (chip cross section up to 20 mm²) and for precision and hard precision machining.
        The machines are equipped with system-integrated tool carriers for compete processing. Tools are automatically changed directly between the tool carriers mounted on the cross slide and the tool magazine without using adapters or processing units. The carriage guides consist of large dimensioned, clearance-free roller guides, guaranteeing maximum positioning accuracy as well as high rapid traverse speeds.
        Our HDCs do not require expensive foundations.
        The cross slides are guided over the entire stroke length to ensure a constant guide ratio in all stroke positions in contrast to tappet slide concepts.

        Technical Data

          Maschinenbaugröße  ø2.000 ø3.000 ø4.000 ø5.000
        Hauptspindel Spindelflansch-ø (mm) 1200 1600 2000 2300
          Planlager-ø (mm)     1250
          Leistung bei 100% ED (kW) 206 192 256 256
          Drehmoment bei 100%ED (Nm) 32800 63960 72800 73800
          Drehzahl (min-1) 250 135 100 80
          Max. Werkstück Länge (mm) 500(1000) 500(1000) 500(1000) 500(1000)
          Max. Werkstück Gewicht (kg) 10000 18000 21000 25000
        Stößel/
        Tetiakopf
        Leistung bei 100% ED (kW) 45-50 45-50 45-50 45-50
          Drehmoment bei 100%ED (Nm) 270-970 270-970 270-970 270-970
          Drehzahl (min-1) max. 3.600
        bis
        max. 7.000
        max. 3.600
        bis
        max. 7.000
        max. 3.600
        bis
        max. 7.000
        max. 3.600
        bis
        max. 7.000
          WZ System Capto C8/C8X/
        C10
        HSK 100/125
