Buderus Schleiftechnik
  • Offer Profile
  • Our name stands for core competencies in internal and external cylinder grinding and thread grinding.

    Today BUDERUS is one of the world's leading specialists in the field of hard machining of axially symmetrical parts.

    With CNC-controlled hard machining tools and grinding centers, BUDERUS is the right partner for mass production as well as single production of precision machined parts.
    Professional know-how and competency distinguish all of our custom tailored solutions.
Product Portfolio
  • Horizontal Machines

      • Center Drive

            • CNC 28 M, the two sided machine

            • Highlights
              • Flexible combination of processes possible
              • Simultaneous internal and external machining on hollow shafts possible

              Machine description

              The CNC 28 M double sided, internal, external and surface grinding machine guarantees very short machining times and maintenance of high shape and position tolerances because up to 4 grinding wheels machine the workpiece simultaneously. This is made possible by the center drive with high precision hydrodynamic or hydrostatic workpiece spindle. The machine can process a wide spectrum of workpieces. This includes, among others, two sided machining of housings, drive shafts, hydraulic parts and many others.

              Technical Data

                  CNC 28 M
              Max. clamping diameter mm 200*
              Max. workpiece length mm 650*
              Max. number of grinding units   4
              *standard
        • Machining Lining Parts

            • CNC 335 Hard machining center

            • Highlights
              • Flexible combination of processes possible
              • Complete machine bed in natural granite

              Machine description

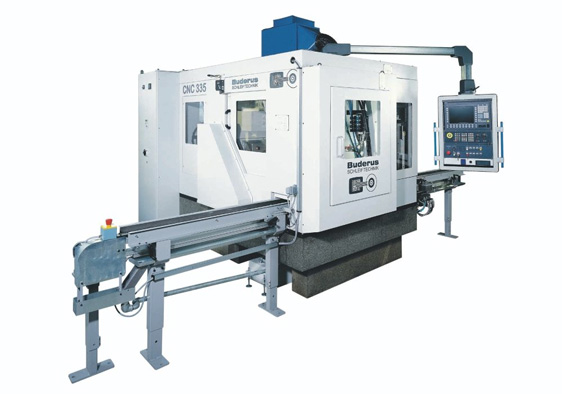

              The CNC 335 horizontal hard machining center allows turning and grinding processes in one machine. This optimizes machining costs while ensuring the required workpiece accuracy. These machines are suitable for every type of application, from manually controlled machines for production of single parts, to automatic machines for mass production, right up to custom charging equipment. The natural granite machine bed on the CNC 335 grinding machine guarantees high precision. This machine also forms the basis for the CNC 335 G female thread grinding machine
            • CNC 335 G Female thread grinding machine

            • Highlights
              • High precision machining of special profiles possible
              • Profile corrections with reduced swivel angle at high pitches
              • Complete machine bed in natural granite

              Machine description

              The natural granite machine bed on the CNC 335 G female thread grinding machine guarantees high precision. Moreover, the CNC controlled radius dresser with diamond roller ensures maximum accuracy. It is possible to machine metric female threads as well as Whitworth, trapezoidal and special profiles, such as spherical collar nuts with Gothic or radius profile. The machine is equipped with a female thread grinding support with additional vertical axis. This guarantees that the middle of the wheel is always positioned at the center height, even when the length of the grinding arbor varies.
          • Shaft Machining

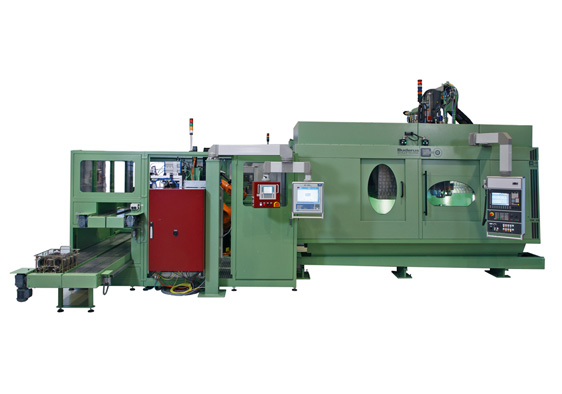

              • CNC 635 External grinding center

              • Highlights
                • Machining with up to three grinding units possible
                • Complete machine bed in natural granite

                Machine description

                The CNC 635 external grinding center is available in two size versions. One version is designed for workpieces with a grinding length of up to 500 mm and the other for workpieces with grinding lengths up to 1000 mm. The machine is suitable for straight plunge cut and angular plunge cut grinding as well as for rough and thread grinding. It can be equipped with one, two or even three grinding supports, so that it is usually no longer necessary to reclamp on other cylindrical surface grinders.

                Technical data
                    CNC 635 500 CNC 635 1000
                Max. workpiece diameter mm 200* 200*
                Distance between centers mm 600 1200
                Grinding spindle head swivel range * 30 30
                Max. grinding wheel diameter mm 700 700
                * standard
              • CNC 635 G Male thread grinding machine

              • Highlights
                • High precision machining of special profiles possible
                • Alternatively with female thread grinding unit
                • Relief grinding motion with X axis
                • Complete machine bed in natural granite

                Machine description

                CNC 635 G Male thread grinding machine In addition to metric, Whitworth, trapezoidal threads and special profiles, the CNC 635 G also allows grinding of worm gears with shapes ZK, ZN, ZE and ZA with one or multiple starts. The cylinder correction can be programmed with the control. The pitch can also be programmed variably over the thread length. The machine can be supplemented with a female thread grinding unit with high frequency grinding spindle. The tools are profiled by means of plunge cut dressing on a profile roller or path control via the machine axes on a universal diamond roller.

                Technical data

                    CNC 635 G
                Max. workpiece diameter mm 250*
                Distance between centers mm 620 - 6000
                Pitch angle * 30° right and 90° left
                module   up to 12
                * standard
            • Vertical Machines

                • Bottom Workpiece Spindle, Stationary

                      • BV Vertical hard machining center

                      • Highlights
                        • Flexible combination of processes possible
                        • Two main spindles - left charging, right machining possible
                        • Multifunction head with linear or rotary auxiliary axis possible
                        • Clamping chuck with additional linear Y axis possible

                        Machine description

                        The BV hard machining center was developed for complete final processing of large parts. The modular machine design allows realization of all technologies required for final machining such as internal, external, surface and conical grinding, turning, drilling, reaming and milling. This makes it possible to finish parts with diameters up to 5,000 mm. Workpieces can weigh up to 40 t, depending on the size of the workpiece spindle

                        Technical Data

                  • Center Drive

                      • CNC 235 M

                      • Highlights
                        • Flexible combination of processes possible
                        • Simultaneous internal and external machining on hollow shafts possible

                        Machine description

                        The CNC 235 M is a vertical grinding machine with center drive allowing machining of parts from two sides. This makes it possible to machine the inner and outer diameter, as well as enabling surface grinding on a workpiece sequentially or simultaneously in one clamping operation. This achieves high concentricity of the ground diameter and surfaces in relation to one another while reducing cycle times.

                        Technical Data


                            CNC 235 M Max. clamping diameter mm 100* Max. workpiece length mm 500 Max. number of grinding units   4 *standard

                      • CNC 245 M Vertical grinding machine

                      • Highlights
                        • Simultaneous internal and external machining on hollow shafts possible
                        • Flexible combination of processes possible

                        Machine description

                        The CNC 245 M is a vertical grinding machine with center drive allowing machining of parts from two sides. This makes it possible to machine the inner and outer diameter, as well as enabling surface grinding on a workpiece sequentially or simultaneously in one clamping operation. This achieves high concentricity of the ground diameter and surfaces in relation to one another while reducing cycle times. Various hydrostatic bearings are available for the center drive.

                        Technical Data


                            CNC 245 M Max. clamping diameter mm 200* Max. workpiece length mm 1000 Max. number of grinding units   4 *standard

                    • Horizontal Workpiece Spindle, Stationary

                        • CNC 235 H Hard machining center

                        • Highlights
                          • Simultaneous machining with up to four machining units possible

                          Machine description

                          The CNC 235 H vertical hard machining center with horizontal workpiece spindle can be used for internal as well as external grinding. Moreover, these processes can be combined with one another as well as supplemented with other technologies such as hard turning or hard reaming. In addition to sequential machining, the machine can also be equipped for simultaneous machining, i.e. external and internal grinding at the same time or several simultaneous external grinding operations.

                          Technical Data


                              CNC 235 H 300 CNC 235 H 750 Max. workpiece diameter mm 225 2225 Distance between centers   350* 750* Grinding spindle head swivel range ° +/- 45 +/-45 Max. grinding wheel diameter mm 500 500 Max. number of tools   4 4 *standard

                        • CNC 245 H Hard machining center

                        • Highlights
                          • Simultaneous machining with up to four machining units possible

                          Machine description

                          The CNC 245 H hard machining center with horizontal workpiece spindle can be used for internal as well as external grinding. Moreover, these processes can be combined with one another as well as supplemented with other technologies such as hard turning or hard reaming. In addition to sequential machining, the machine can also be equipped for simultaneous machining, i.e. external and internal grinding at the same time or several simultaneous external grinding operations.

                          Technical Data


                          Max. workpiece diameter mm 150* Max. workpiece length mm 150* Pitch angle - swivel range for grinding version ° 10 Rh and LH threads *standard

                      • Top Workpiece Spindle, Movable

                          • CNC 235 Hard machining center

                          • Highlights
                            • Flexible combination of processes possible
                            • Machine bed optionally available in natural granite

                            Machine description

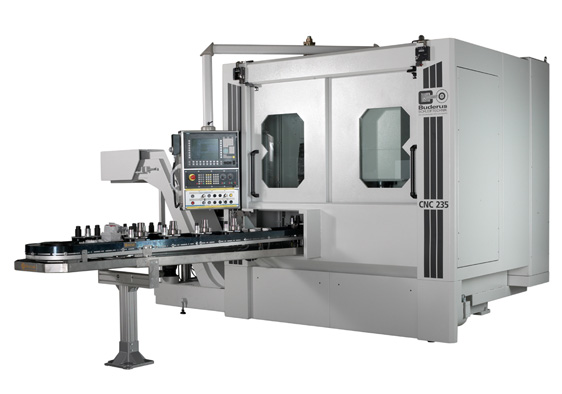

                            The CNC 235 vertical hard machining center with vertical workpiece spindle can be used as a single purpose machine for
                            • Internal grinding
                            • External grinding
                            • Hard turning

                            Moreover, these processes can be combined with one another as well as supplemented with other technologies. In addition to sequential machining, the machine can also be equipped for simultaneous machining, i.e. external and internal grinding at the same time. Use of a consistent module design also allows the possibility of equipping the machine with two main spindles, i.e. two workpieces can be machined simultaneously or the front and back can be machined at the same time. This machine also forms the basis for the CNC 235 G female thread machining tool.

                            Technical Data


                                CNC 235 CNC 235 DH Workpiece spindles   1 2 Max workpiece diameter mm 200* 200* Max. workpiece length mm 150* 150* Max. number of machining stations   4* 6* *standard

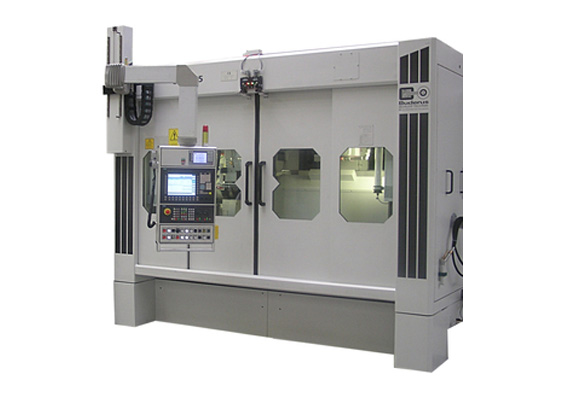

                          • CNC 245 Hard machining center

                          • Highlights
                            • Flexible combination of processes possible
                            • Tool carrier optionally available in natural granite

                            Machine description

                            The CNC 245 vertical hard machining center with vertical workpiece spindle can be used as a single purpose machine for
                            • Internal grinding
                            • External grinding
                            • Hard turning

                            Moreover, these processes can be combined with one another as well as supplemented with other technologies. In addition to sequential machining, the machine can also be equipped for simultaneous machining, i.e. external and internal grinding at the same time. Use of a consistent module design also allows the possibility of equipping the machine with two main spindles, i.e. two workpieces can be machined simultaneously or the front and back can be machined at the same time.

                            Technical Data


                                CNC 245 CNC 245 D Workpiece spindles   1 2 Max workpiece diameter mm 350* 350* Max. workpiece length mm 250* 250* Max. number of machining stations   4* 4* *standard

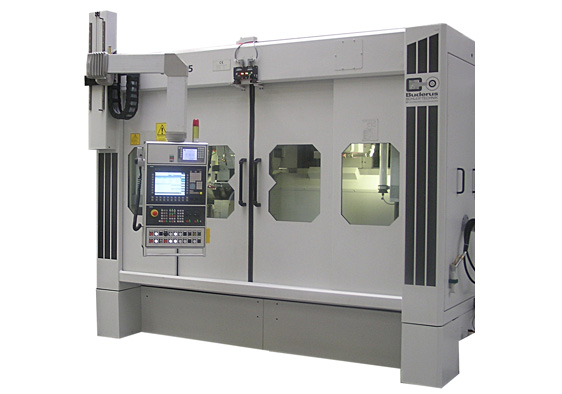

                          • CNC 235 G Female thread machining tool

                          • Highlights
                            • Additional tools in the working chamber make complete machining possible with one clamping operation

                            Machine description

                            The CNC 235 G female thread machining tool is equipped with a vertical workpiece spindle in the upper area of the machine. The tools are firmly arranged in the lower area of the machine. Either hard turning tools are used exclusively or, in addition, grinding spindles or revolving turrets are used. The machine is particularly suitable for hard turning spherical collar nuts with high pitch. Additional tools in the working chamber make complete machining possible with one clamping operation.

                            Technical Data


                            Max. workpiece diameter mm 150* Max. workpiece length mm 150* Pitch angle - swivel range for grinding version ° 1o Rh and LH threads *standard
