- Offer Profile
- The Multibody
Mechanics Group of the Department of Mechanical Engineering at the Vrije
Universiteit Brussel (VUB) started its research activities on computer-aided
analysis of rigid and flexible mechanical systems in 1990. Its main research
is focused on kinematical and dynamical simulations and on the development
and use of new actuators as well as on the control of mechanical systems.
Product Portfolio

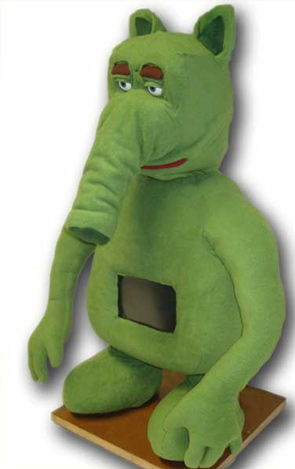

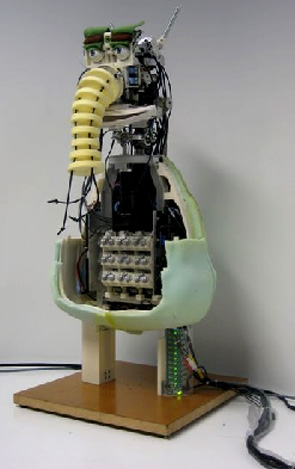

Probo - intelligent huggy robot
- Probo is an intelligent huggy robot that is developed
as research platform to study cognitive human-robot interaction (cHRI) with
a special focus on children. The robot Probo is designed to act as a social
interface, providing a natural interaction while employing human-like social
cues and communication modalities. The robot has a fully actuated head, with
20 degrees of freedom, capable of showing facial expressions. A remarkable
feature is the moving trunk and the soft and huggable jacket. A user
friendly Robotic User Interface (RUI) enables the operator to control the
robot.

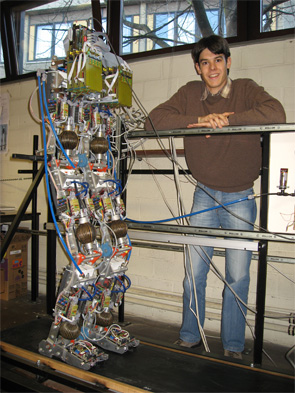

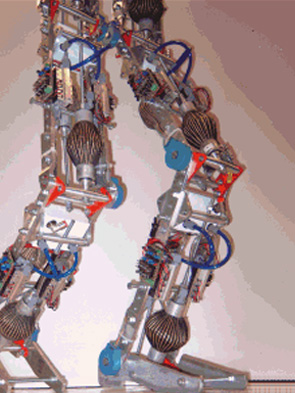

Lucy - bipedal walking robot
- The goal of this project is to create a lightweight
biped which is able to walk in a dynamical stable way. The configuration of
this biped is anthropomorphic focusing on the lower walking part which is
composed of two articulated legs. The robot, all included, weighs about 30
kg and is 150cm tall. This robot is restricted to move only in the sagittal
plane due to it’s one dimensional joints of which each of them are powered
by an antagonistic pair of Pleated Pneumatic Artificial Muscles. These
muscles are lightweight pneumatic actuators which work at low pressures and
can be directly coupled without complex gearing mechanisms. The adaptable
passive behaviour of these actuators will be exploited in the walking
algorithms.
One of the key ideas in the design is modularity which resulted in nearly
the same configuration for each structural element as well as the
mechanical, electronic and low-level controlsoftware part. The joint design
itself allows easy changes in actuator characteristics which creates a
flexible experimental platform.

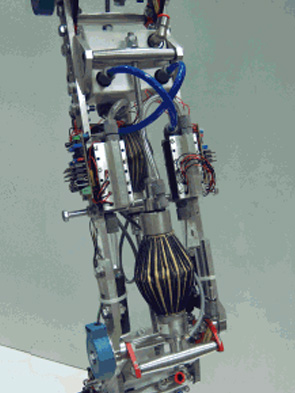

Pneumatic artificial muscles
- A pneumatic artificial muscle is, in essence, a
membrane that will expand radially and contract axially when inflated, while
generating high pulling forces along the longitudinal axis. Different
designs have been developed. The best known is the so called McKibben muscle
(example is the Air Muscle of the Schadow Robot Company). This muscle
contains a rubber tube which will expand when inflated, while a surrounding
netting transfers tension. Hysteresis, due to dry friction between the
netting and the rubber tube, makes control of such a device rather
complicated. Typical of this type of muscles is a threshold level of
pressure before any action can take place. The main goal of the new design
was to avoid both friction and hysteresis, thus making control easier while
avoiding the threshold. This was achieved by arranging the membrane into
radially laid out folds that can unfurl free of radial stress when inflated.
The membrane's stiff longitudinal fibres transfer tension.
Soft Arm
- Repetitive manual handling of heavy loads is common in
assembly and is a frequent cause of lower back disorders. This can have a
significant impact on the quality of life and has a serious economic cost.
Manipulators are robotic systems designed to avoid these problems. They
assist people in performing heavy-duty tasks.
Most of the commercially available manipulators use a counterweight, which
limits their use to handling loads of a specific mass. Others are
electrically or hydraulically actuated. This usually makes them heavy,
complex and expensive.
The use of the PPAM actuator allows us to tackle these issues and develop a
manipulator that combines ergonomics, operator safety, low cost, low weight
and ease of operation.
The goal of our research is to develop a proof-of-concept manipulator that
will be used in direct contact with an operator, without expensive force or
torque sensors and without user interaction through control elements (such
as joysticks). We are working towards a system that behaves as follows: when
the operator wants to move a load attached to the manipulator, he/she starts
moving it as if there were no manipulator. By measuring the muscle gauge
pressures, the system can estimate the forces applied by the operator and
assist him in accomplishing the desired load movement. Ideally, moving a 30
kg load would feel like moving a 3 kg load. The direct interaction between
operator and load (without intermediary control tools) allows for very
precise positioning.
AMPfoot
- Walking with classical protheses is very difficult and
energy consuming and is like Hugh Herr says "like walking with closed ski
boots". Out of our technology of compliant actuators and bipedal walking
robots like the biped Lucy we developed the AMP foot. It is a passive
prosthesis (so no energy is supplied in the walking gait), but energy is
stored and released trying to mimic as best as possible a normal ankle.
MACCEPA: The Mechanically Adjustable Compliance and
Controllable Equilibrium Position Actuator
- Besides the development and implementation of the
Pleated Pneumatic Artificial Muscles, our research group developed a second
actuator with adaptable compliance. The MACCEPA (The Mechanically Adjustable
Compliance and Controllable Equilibrium Position Actuator) is a
straightforward and easy to construct rotational actuator, of which the
compliance can be controlled separately from the equilibrium position. Each
of these parameters is set by a position controlled servo motor. Moreover,
the torque is a linear function of the compliance and of the angle between
equilibrium position and actual position. Thus this actuator can be seen as
a fully adaptable torsion spring, where one motor sets the stiffness of the
torsion spring, and another set the equilibrium position. Since this
actuator has a spring it can store and release energy. This makes this
actuator perfectly suitable for dynamic walking and human-robotic
interfaces.
- As can be seen there are 3 bodies pivoting around
one rotation axis. To visualize the concept, the left body in figure 1 can
be seen as an upper leg, the right body as the lower leg and the rotation
axis, which goes through the knee joint. Around this rotation axis, a lever
arm is pivoting, depicted as a smaller body in figure 3. A spring is
attached between a fixed point on the lever arm and a cable running around a
fixed point on the right body to a pretension mechanism.
